REQUEST MACHINE INSPECTION : used HYUNDAI WIA SE2200LSY CNC High Production Y-Axis CNC Turning Center – Year 2023 made in South of Korea

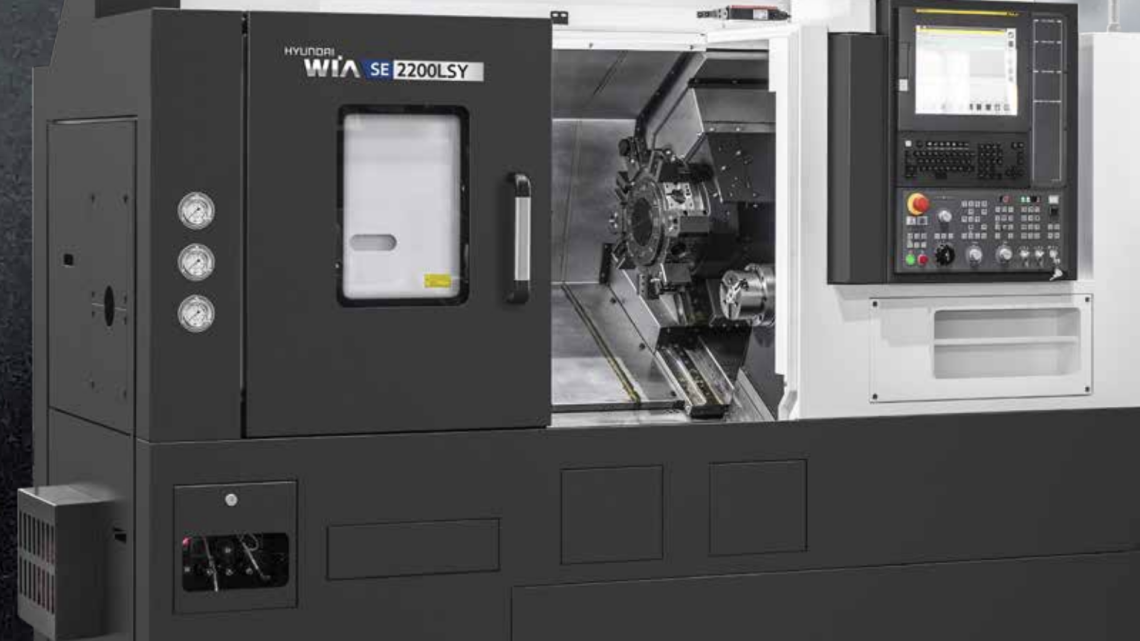

HYUNDAI WIA SE2200LSY CNC High Production Y-Axis Turning Center – Year 2023
| Technical Specification | Metric | Imperial |
|---|---|---|
| GENERAL MACHINE INFORMATION | ||
| Manufacturer | HYUNDAI WIA | HYUNDAI WIA |
| Model | SE2200LSY | SE2200LSY |
| Machine Type | CNC High Production Y-Axis Turning Center with Sub Spindle & Live Tooling | CNC High Production Y-Axis Turning Center with Sub Spindle & Live Tooling |
| Year of Purchase / Installation | 2023 | 2023 |
| Condition | Used – Regularly Maintained – Fully Operational | Used – Regularly Maintained – Fully Operational |
| Machine Status | Currently in Active Operation | Currently in Active Operation |
| Inspection / Test | Machine Can Be Seen Running and Tested | Machine Can Be Seen Running and Tested |
| CNC CONTROL | ||
| CNC Control | FANUC SMART PLUS | FANUC SMART PLUS |
| TURNING CAPACITY | ||
| Swing Over Bed | Ø600 mm | Ø23.62 in |
| Maximum Turning Diameter | Ø300 mm | Ø11.81 in |
| Maximum Turning Length | 508 mm | 20.00 in |
| MAIN SPINDLE | ||
| Main Spindle Bar Capacity | Ø65 mm | Ø2.56 in |
| Main Chuck Size | Approx. Ø254 mm | 10 in |
| Main Spindle Motor Power | 15 kW | Approx. 20.1 HP |
| Maximum Spindle Speed | 3,500 rpm | 3,500 rpm |
| C-Axis | Included | Included |
| C-Axis Indexing Resolution | 0.001° | 0.001° |
| SUB SPINDLE / COUNTER SPINDLE | ||
| Sub Spindle | Included | Included |
| Sub Spindle Bar Capacity | Ø32 mm | Ø1.26 in |
| Sub Chuck Size | Approx. Ø127 mm | 5 in |
| Sub Spindle Motor Power | 7.5 kW | Approx. 10.1 HP |
| Complete Machining Capability | Front and Back-Side Machining in a Single Setup | Front and Back-Side Machining in a Single Setup |
| TURRET & LIVE TOOLING | ||
| Turret Type | Servo Turret | Servo Turret |
| Number of Turret Stations | 12 Stations | 12 Stations |
| Live Tooling | Included | Included |
| Driven Tool Capability | Yes | Yes |
| Y-AXIS & C-AXIS MACHINING | ||
| Y-Axis | Included | Included |
| C-Axis | Included – 0.001° Indexing | Included – 0.001° Indexing |
| Live Tool Milling Capability | Included | Included |
| Multi-Task Machining Configuration | Y-Axis + C-Axis + Live Tooling + Sub Spindle | Y-Axis + C-Axis + Live Tooling + Sub Spindle |
| AXIS RAPID TRAVERSE | ||
| X-Axis Rapid Traverse | 30 m/min / 30,000 mm/min | 1,181.1 in/min / 98.43 ft/min |
| Y-Axis Rapid Traverse | 10 m/min / 10,000 mm/min | 393.7 in/min / 32.81 ft/min |
| Z-Axis Rapid Traverse | 36 m/min / 36,000 mm/min | 1,417.3 in/min / 118.11 ft/min |
| GUIDEWAY SYSTEM | ||
| Linear Guideway Type | Roller-Type Linear Guideway System | Roller-Type Linear Guideway System |
| Machine Construction | High-Rigidity Production Turning Center Construction | High-Rigidity Production Turning Center Construction |
| COOLANT & CHIP MANAGEMENT | ||
| Coolant Tank Capacity | 200 Liters | Approx. 52.83 US gal |
| Chip Conveyor | Included | Included |
| KEY EQUIPMENT & FEATURES | ||
| FANUC SMART PLUS CNC Control | Included | Included |
| 10-inch Main Chuck | Included | Included |
| 5-inch Sub Chuck | Included | Included |
| 12-Station Servo Turret | Included | Included |
| Live Tooling | Included | Included |
| Y-Axis | Included | Included |
| C-Axis | Included – 0.001° Indexing | Included – 0.001° Indexing |
| Counter / Sub Spindle | Included | Included |
| Roller Linear Guideways | Included | Included |
| Chip Conveyor | Included | Included |
| PRODUCTION CAPABILITIES | ||
| High-Production Turning | Suitable | Suitable |
| Complete Machining in One Setup | Supported via Main Spindle + Sub Spindle + Live Tooling | Supported via Main Spindle + Sub Spindle + Live Tooling |
| Turning Operations | Supported | Supported |
| Live-Tool Milling Operations | Supported | Supported |
| Off-Center Machining | Supported via Y-Axis and Live Tooling | Supported via Y-Axis and Live Tooling |
| Angular Positioning / C-Axis Operations | Supported – 0.001° Indexing | Supported – 0.001° Indexing |
| Back-Side Machining | Supported via Sub Spindle | Supported via Sub Spindle |
| TYPICAL INDUSTRIAL APPLICATIONS | ||
| Automotive Industry | High-Volume Precision Component Production | High-Volume Precision Component Production |
| Defense Industry | Precision Machined Components | Precision Machined Components |
| Machine Manufacturing | Precision Turned and Milled Components | Precision Turned and Milled Components |
| Precision Machining | Suitable for High-Accuracy Serial Production | Suitable for High-Accuracy Serial Production |
| CONDITION & MAINTENANCE | ||
| Current Operating Condition | Fully Operational / Currently Running | Fully Operational / Currently Running |
| Maintenance | Regular Periodic Maintenance Performed | Regular Periodic Maintenance Performed |
| Service History | Periodic Maintenance and Service Performed by Authorized Hyundai WIA Service | Periodic Maintenance and Service Performed by Authorized Hyundai WIA Service |
| Known Operational Faults | None Reported | None Reported |
| Inspection Under Power | Available | Available |
| Test Run | Available | Available |
| REASON FOR SALE | ||
| Reason for Sale | The machine is being offered for sale due to a change in the company’s production structure. The current owner will no longer focus on special manufacturing and low-volume production. As a high-capacity machine designed for efficient serial production, the SE2200LSY now exceeds the company’s current production requirements. | |
| MACHINE DESCRIPTION | ||
| Description | HYUNDAI WIA SE2200LSY high-production CNC turning center purchased in 2023, equipped with FANUC SMART PLUS CNC control, Y-axis, C-axis, live tooling, 12-station servo turret and counter spindle. The configuration enables turning, milling and back-side machining operations to be performed in a highly productive integrated machining process. | |
| Turning Capacity | The machine provides a Ø600 mm (23.62 in) swing over bed, maximum turning diameter of Ø300 mm (11.81 in) and maximum turning length of 508 mm (20.00 in). Main spindle bar capacity is Ø65 mm (2.56 in), while the sub-spindle bar capacity is Ø32 mm (1.26 in). | |
| Main & Sub Spindle Configuration | Equipped with a 10-inch main chuck powered by a 15 kW (approximately 20.1 HP) spindle motor and a 5-inch sub chuck powered by a 7.5 kW (approximately 10.1 HP) motor. Maximum stated spindle speed is 3,500 rpm. | |
| Multi-Task Machining Capability | The combination of Y-axis, C-axis with 0.001° indexing, live tooling and counter spindle enables complex components to undergo multiple machining operations and front/back-side processing with reduced re-clamping. | |
| Production Advantages | Designed for high-productivity serial manufacturing with fast axis movements, roller-type linear guideways, servo turret, live tooling and integrated sub-spindle. Particularly suitable for automotive, defense, machine-building and precision machining applications. | |
| Machine Condition | According to the supplied information, the machine is currently in active operation and has been regularly maintained and serviced by authorized Hyundai WIA service personnel. No fault or operational problem affecting machine performance has been reported. The machine can be inspected under power and tested. | |
