REQUEST MACHINE INSPECTION : used MAZAK NEXUS 70E/40-II CNC Vertical Machining Center – Year 2012 made in Japan

MAZAK NEXUS 70E/40-II CNC Vertical Machining Center – Year 2012

Technical Specification	Metric	Imperial
GENERAL MACHINE INFORMATION
Manufacturer	MAZAK	MAZAK
Model	NEXUS 70E/40-II	NEXUS 70E/40-II
Machine Type	CNC Vertical Machining Center	CNC Vertical Machining Center
Year of Manufacture	2012	2012
WORK TABLE
Table Size	2,032 × 698.5 mm	80.0 × 27.5 in
Table Type	T-Slotted Table	T-Slotted Table
Maximum Table Load Capacity	Approx. 2,500 kg	5,511 lbs
AXIS TRAVELS
X-Axis Travel	2,032 mm	80.0 in
Y-Axis Travel	701 mm	27.6 in
Z-Axis Travel	718.8 mm	28.3 in
Spindle Face to Table Surface – Minimum	Approx. 200 mm	7.87 in
Spindle Face to Table Surface – Maximum	Approx. 920 mm	36.22 in
FEED & RAPID TRAVERSE
Rapid Traverse Rate	Approx. 30,000 mm/min / 30 m/min	1,181 IPM / 98.42 ft/min
SPINDLE
Maximum Spindle Speed	12,000 rpm	12,000 rpm
Spindle Motor Power – 30 Minute Rating	Approx. 18.6 kW	25 HP
Spindle Motor Power – Continuous Rating	Approx. 7.6 kW	10.2 HP
Spindle Taper	CAT-40	CAT-40
Coolant Through Spindle	High-Pressure – Approx. 14.7 bar	High-Pressure – 213 psi
AUTOMATIC TOOL CHANGER
Tool Magazine Capacity	30 Tools	30 Tools
Tool Holder	CAT-40	CAT-40
Maximum Tool Diameter	Approx. 82.6 mm	3.25 in
Maximum Tool Diameter – Adjacent Pockets Empty	Approx. 125 mm	4.92 in
Maximum Tool Length	Approx. 350 mm	13.78 in
Maximum Tool Weight	Approx. 8 kg	17.6 lbs
Tool Selection Method	Random, Automatic Shortest Path	Random, Automatic Shortest Path
Tool-to-Tool Change Time	1.5 sec	1.5 sec
CNC CONTROL

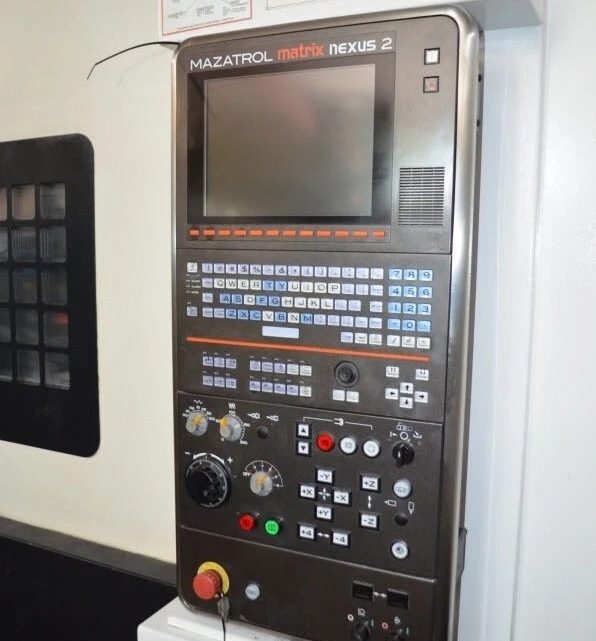

CNC Control	MAZATROL MATRIX NEXUS 2	MAZATROL MATRIX NEXUS 2
Display	12.1-inch Color LCD	12.1-inch Color LCD
Operating System	Windows 7 for Mazak Machine Control	Windows 7 for Mazak Machine Control
EIA / ISO Code Input Function	Included	Included
Additional EIA / ISO Functions	Included	Included
Maximum Program Size	8 MB	8 MB
Absolute Encoder System	Included	Included
Manual Pulse Generator	1 Dial – Detachable	1 Dial – Detachable
NETWORK & DATA INTERFACES
LAN Port	Included – Located in Electrical Cabinet	Included – Located in Electrical Cabinet
USB Interface	2 Ports	2 Ports
MT Connect Preparation	Included – Software Upgrade Required for Support	Included – Software Upgrade Required for Support
PROBING & MEASUREMENT SYSTEM
Dual Probing Kit	OMP60 / OTS AA	OMP60 / OTS AA
Probe System	Workpiece Probe + Tool Setting System	Workpiece Probe + Tool Setting System
EIA Inspect Plus	Included	Included
Automatic Tool Length Measurement	Included	Included
MACHINING FUNCTIONS & SOFTWARE
Synchronized Tapping	Included	Included
GOO Slope Constant	Included	Included
MAZACC-2D Software	Included – Shape Compensation	Included – Shape Compensation
MAZACC-3D High-Speed Software Package	Included	Included
High Smoothing Control	Included	Included
COOLANT & CHIP MANAGEMENT
High-Pressure Coolant Through Spindle	Approx. 14.7 bar	213 psi
Chip Conveyor Manufacturer	LNS	LNS
Chip Conveyor Model	Turbo Micro Hinge 250	Turbo Micro Hinge 250
Chip Conveyor Type	Hinge-Type Chip Conveyor	Hinge-Type Chip Conveyor
ADDITIONAL EQUIPMENT
Relocation Device	Included	Included
80 × 27.5 in T-Slotted Table	2,032 × 698.5 mm – Included	80 × 27.5 in – Included
30-Tool CAT-40 Magazine	Included	Included
OVERALL MACHINE DIMENSIONS
Machine Height	Approx. 3,631 mm / 3.63 m	142.95 in / 11.91 ft
Floor Space – Width	Approx. 3,485 mm / 3.49 m	137.2 in / 11.43 ft
Floor Space – Length	Approx. 4,978 mm / 4.98 m	196 in / 16.33 ft
Approximate Floor Space	3,485 × 4,978 mm / Approx. 17.35 m²	137.2 × 196 in / Approx. 186.8 ft²
MACHINE WEIGHT
Machine Weight	Approx. 13,100 kg / 13.1 Metric Tons	28,880 lbs / 14.44 US Tons
EQUIPPED WITH
MAZATROL MATRIX NEXUS 2 Control	Included	Included
12.1-inch Color LCD	Included	Included
EIA / ISO Code Input	Included	Included
Additional EIA / ISO Functions	Included	Included
LAN Port	Included	Included
2-Port USB Interface	Included	Included
Absolute Encoder System	Included	Included
Detachable Manual Pulse Generator	Included	Included
High-Pressure Through-Spindle Coolant	Included – Approx. 14.7 bar	Included – 213 psi
MT Connect Preparation	Included – Software Upgrade to Support	Included – Software Upgrade to Support
Windows 7 Operating System	Included	Included
OMP60 / OTS AA Dual Probing Kit	Included	Included
EIA Inspect Plus	Included	Included
Automatic Tool Length Measurement	Included	Included
Synchronized Tapping	Included	Included
MAZACC-2D Shape Compensation	Included	Included
MAZACC-3D High-Speed Software Package	Included	Included
High Smoothing Control	Included	Included
LNS Turbo Micro Hinge 250 Chip Conveyor	Included	Included
MACHINE DESCRIPTION
Description	2012 MAZAK NEXUS 70E/40-II CNC Vertical Machining Center equipped with MAZATROL MATRIX NEXUS 2 CNC control, 12,000 rpm CAT-40 spindle, 30-position automatic tool changer and a large 2,032 × 698.5 mm (80 × 27.5 in) T-slotted work table.
Machining Capacity	The machine provides 2,032 mm (80 in) X-axis travel, approximately 701 mm (27.6 in) Y-axis travel and approximately 719 mm (28.3 in) Z-axis travel. Maximum stated table load capacity is 5,511 lbs (approximately 2,500 kg).

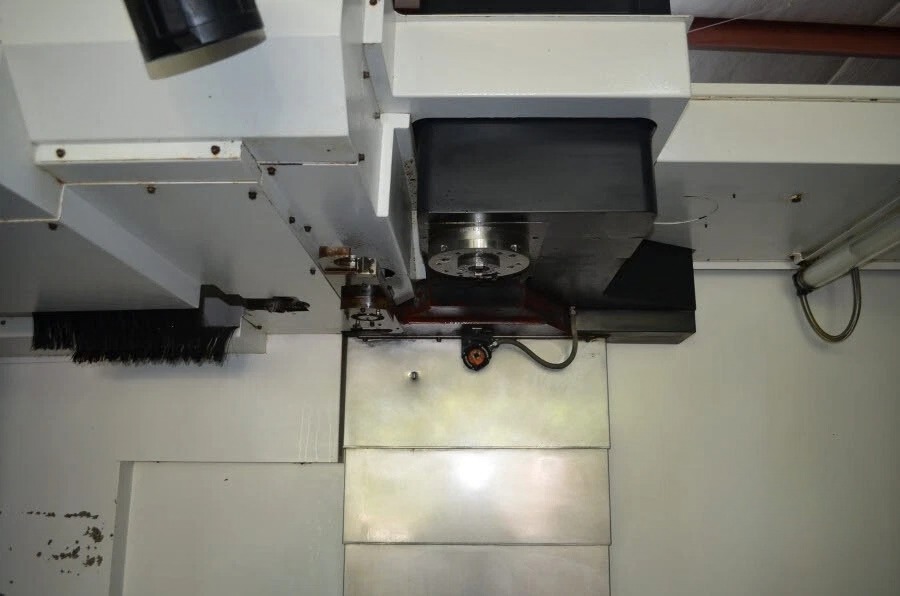

Spindle & Tooling	Equipped with a 12,000 rpm CAT-40 spindle and 30-tool automatic magazine. Maximum tool diameter is 3.25 in (82.6 mm), increasing to 4.92 in (125 mm) with adjacent pockets empty. Maximum tool length is 13.78 in (350 mm), and maximum tool weight is 17.6 lbs (8 kg).
Probing & High-Speed Machining	Equipped with OMP60 / OTS AA dual probing kit, EIA Inspect Plus, automatic tool-length measurement, MAZACC-2D shape compensation, MAZACC-3D high-speed machining software and High Smoothing Control.
Chip & Coolant System	High-pressure coolant-through-spindle system rated at 213 psi (approximately 14.7 bar) and LNS Turbo Micro Hinge 250 chip conveyor.
