REQUEST MACHINE INSPECTION : used CKD BLANSKO SKJ 25-50 CNC Vertical Lathe Single Column Max Turning Diameter 5000mm

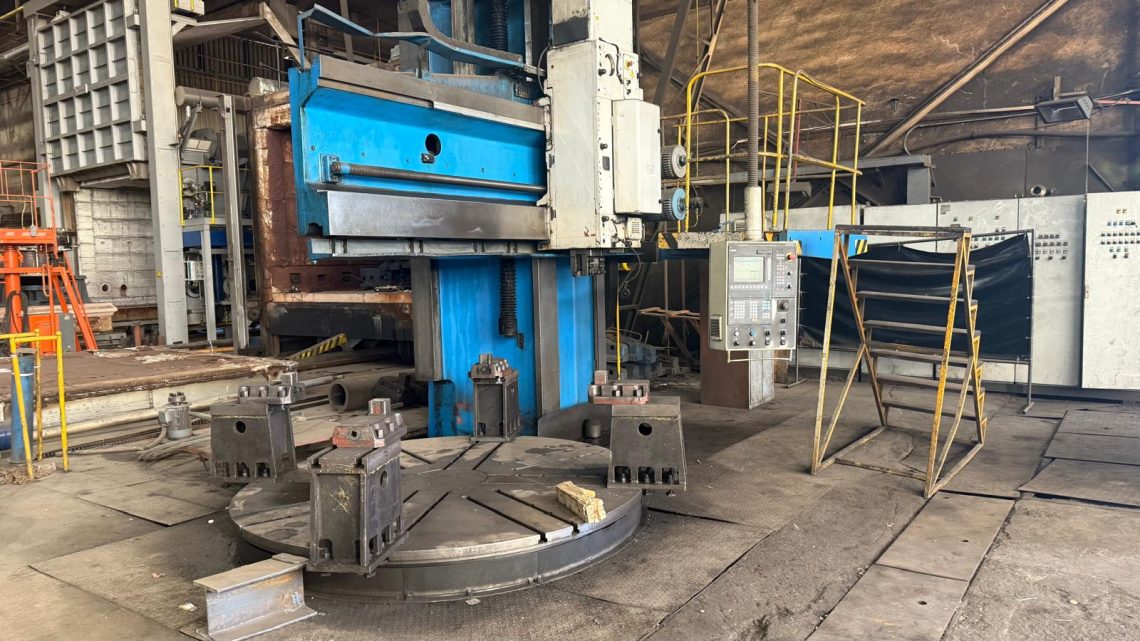

CKD BLANSKO SKJ 25-50 CNC Vertical Lathe Single Column Max Turning Diameter 5000mm
| Technical Specification | Metric | Imperial |
|---|---|---|
| GENERAL MACHINE INFORMATION | ||
| Manufacturer | CKD BLANSKO | CKD BLANSKO |
| Model | SKJ 25/50 CNC | SKJ 25/50 CNC |
| Machine Type | CNC Vertical Lathe / Vertical Turning Lathe | CNC Vertical Lathe / Vertical Turning Lathe |
| CNC Control System | Siemens Sinumerik 802D | Siemens Sinumerik 802D |
| TURNING CAPACITY | ||
| Maximum Turning Diameter | 5,000 mm | 196.85 in / 16.40 ft |
| Maximum Workpiece Height | 2,000 mm | 78.74 in / 6.56 ft |
| Maximum Workpiece Weight | 40,000 kg / 40 Metric Tons | Approx. 88,185 lbs / 44.09 US Tons |
| FACEPLATE / TABLE | ||
| Faceplate Diameter | 2,500 mm | 98.43 in / 8.20 ft |
| Table Rotation Speed Range | 1 – 100 rpm | 1 – 100 rpm |
| FEED SYSTEM | ||
| Feed Range – Linear | 0.5 – 200 mm/min | Approx. 0.020 – 7.874 in/min |
| Feed Range – Per Revolution | 0.03 – 20 mm/rev | Approx. 0.0012 – 0.7874 in/rev |
| Feed Motor Power | 4.2 kW | Approx. 5.63 HP |
| Feed Motor Control Range | 1:400 | 1:400 |
| RAM & TOOL HEAD | ||
| Ram Vertical Travel | 1,250 mm | 49.21 in / 4.10 ft |
| Tool Head Tilt | ±30° | ±30° |
| MAIN DRIVE | ||
| Main Motor Power | 50 kW | Approx. 67.05 HP |
| Main Motor Control Range | 1:27.5 or 1:10 | 1:27.5 or 1:10 |
| Constant Cutting Speed Control | Available according to stated 1:27.5 / 1:10 control range | Available according to stated 1:27.5 / 1:10 control range |
| MACHINE DIMENSIONS & WEIGHT | ||
| Machine Height | 6,800 mm / 6.80 m | 267.72 in / 22.31 ft |
| Machine Weight | Approx. 38,000 kg / 38 Metric Tons | Approx. 83,776 lbs / 41.89 US Tons |
| CAPACITY SUMMARY | ||
| Maximum Machining Diameter | Ø5,000 mm | Ø196.85 in / Ø16.40 ft |
| Faceplate Size | Ø2,500 mm | Ø98.43 in / Ø8.20 ft |
| Maximum Workpiece Envelope – Diameter × Height | Ø5,000 × 2,000 mm | Ø196.85 × 78.74 in |
| Maximum Workpiece Load | 40 Metric Tons | Approx. 88,185 lbs / 44.09 US Tons |
| MACHINE CONFIGURATION | ||
| Vertical Turning Configuration | Heavy-Duty CNC Vertical Lathe | Heavy-Duty CNC Vertical Lathe |
| Siemens CNC Control | Sinumerik 802D | Sinumerik 802D |
| Tilting Tool Head | ±30° | ±30° |
| Heavy Workpiece Capability | Up to 40,000 kg | Up to 88,185 lbs |
| MACHINE DESCRIPTION | ||
| Description | CKD BLANSKO SKJ 25/50 CNC heavy-duty vertical lathe equipped with Siemens Sinumerik 802D CNC control. The machine provides a maximum turning diameter of 5,000 mm (196.85 in), maximum workpiece height of 2,000 mm (78.74 in) and maximum stated workpiece capacity of 40,000 kg (88,185 lbs). | |

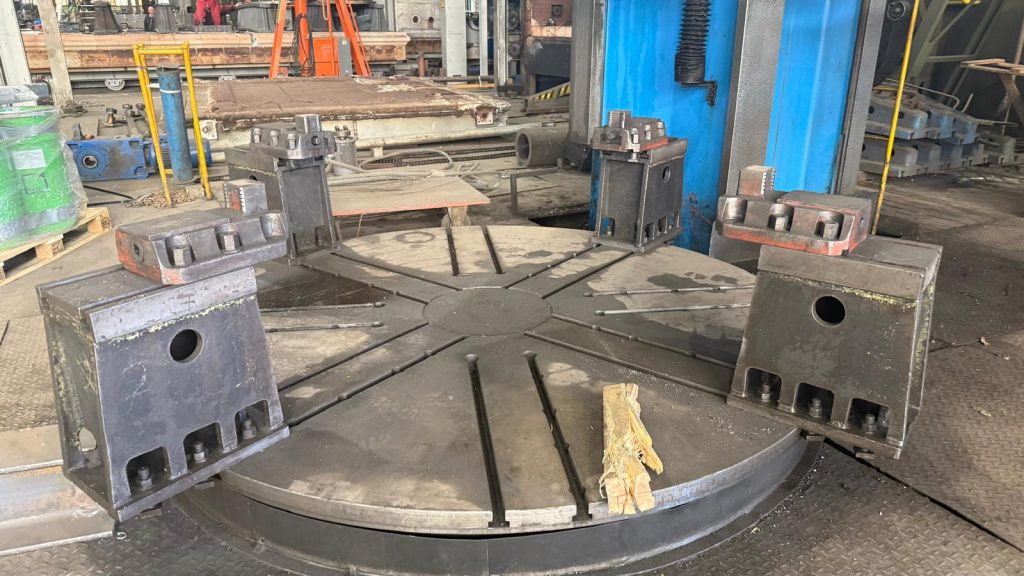

| Faceplate & Workpiece Capacity | Equipped with a 2,500 mm (98.43 in) diameter faceplate with a stated rotational speed range of 1–100 rpm. The machine is designed to accommodate large and heavy components weighing up to 40 metric tons. | |
| Ram & Tool Head | The vertical ram provides 1,250 mm (49.21 in) of travel. The tool head offers ±30° tilting capability for machining operations requiring angular tool positioning. | |
| Drive System | Main drive power is 50 kW (approximately 67.05 HP), with the supplied specification stating a control range of 1:27.5 or 1:10 for constant cutting speed. Feed drive power is 4.2 kW (approximately 5.63 HP) with a stated control range of 1:400. | |
| Feed Capability | The stated feed range is 0.5–200 mm/min (0.020–7.874 in/min), or 0.03–20 mm/rev (0.0012–0.7874 in/rev). | |
| Machine Size | Overall machine height is approximately 6,800 mm (22.31 ft), with an approximate machine weight of 38 metric tons (83,776 lbs). | |
| Typical Applications | Suitable for heavy-duty vertical turning of large-diameter and high-weight industrial components where large workpiece capacity, high rigidity and controlled CNC machining are required. | |
