REQUEST MACHINE INSPECTION : used Campbell Grinder 750-30-30-36/36 CNC Vertical Cylindrical Grinding Machine – Year 2008

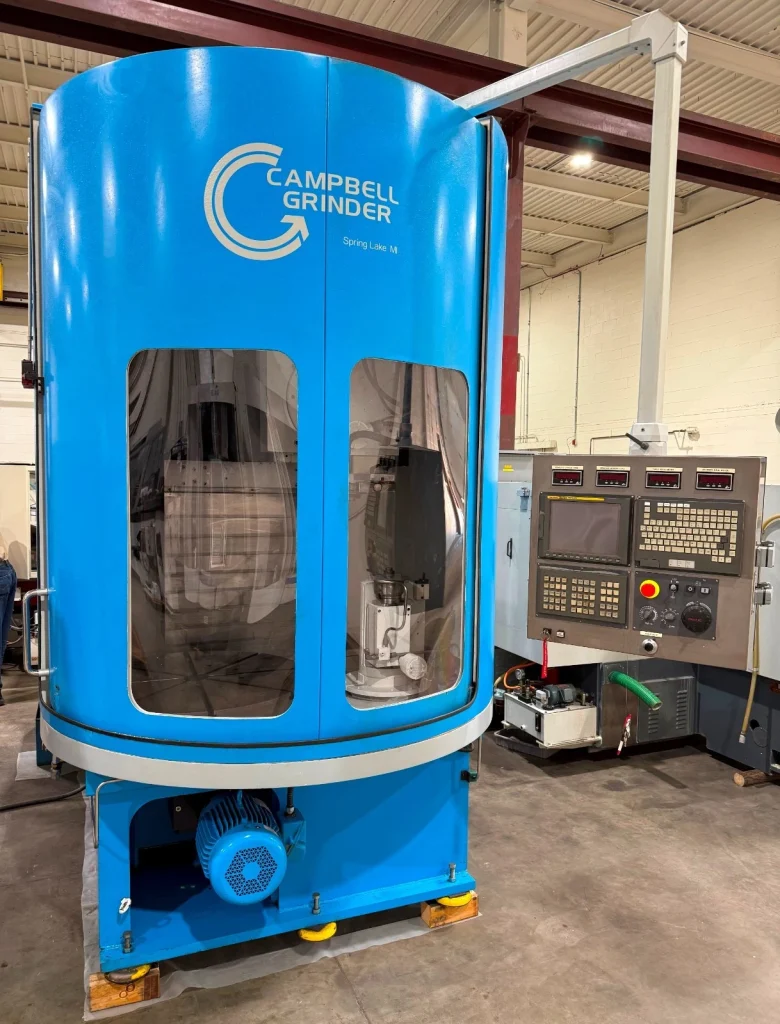

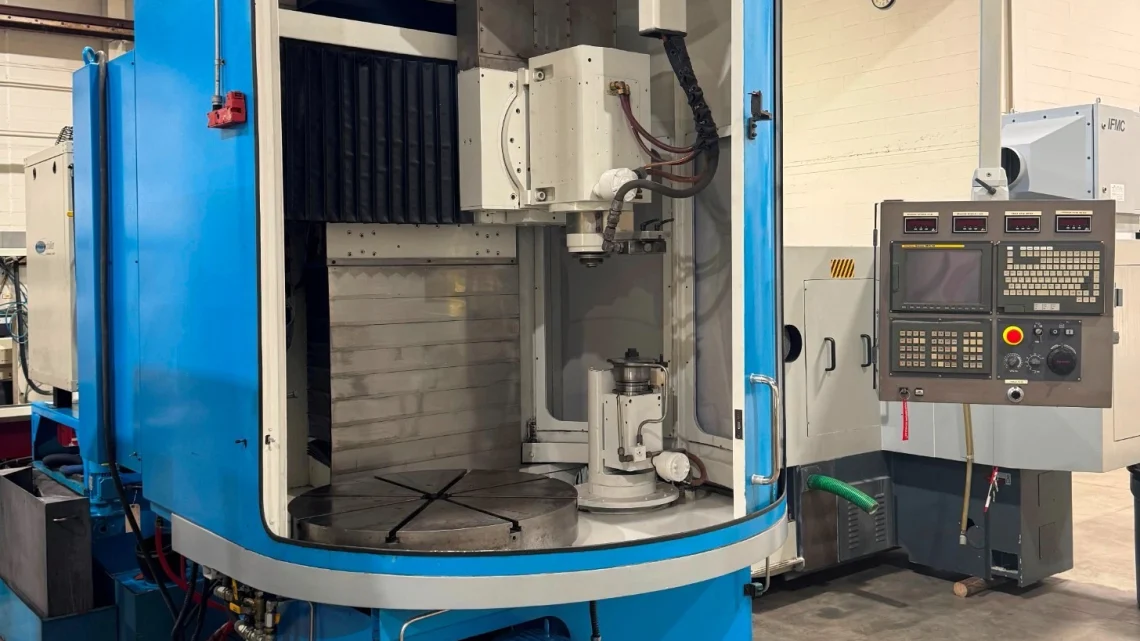

Campbell Grinder 750-30-30-36/36 CNC Vertical Cylindrical Grinding Machine – Year 2008
| Technical Specification | Metric | Imperial |
|---|---|---|
| GENERAL MACHINE INFORMATION | ||
| Manufacturer | Campbell Grinder | Campbell Grinder |
| Model | 750-30-30-36/36 | 750-30-30-36/36 |
| Machine Type | CNC Vertical Cylindrical Grinding Machine | CNC Vertical Cylindrical Grinding Machine |
| Year of Manufacture | 2008 | 2008 |
| CNC Control | FANUC 160i-M | FANUC 160i-M |
| WORKPIECE CAPACITY | ||
| Maximum Table Diameter | Ø914.4 mm | Ø36 in |
| Maximum Swing Diameter | Ø965.2 mm | Ø38 in |
| Top of Chuck to Bottom of Rotating Assembly / Spindle | 831.9 mm | 32.75 in |
| Maximum Part Height | 609.6 mm – Arbor and Approach Dependent | 24 in – Arbor and Approach Dependent |
| Part Approach | Angular or Straight Approach | Angular or Straight Approach |
| AXIS TRAVELS | ||
| X-Axis Travel | 914.4 mm | 36 in |
| Z-Axis Travel | 914.4 mm | 36 in |
| B-Axis – Grinding Spindle Swivel | ±180° | ±180° |
| B-Axis Type | Servo-Driven Rotary Axis | Servo-Driven Rotary Axis |
| X-Axis Position Feedback | Absolute Position Feedback – Linear Glass Scale | Absolute Position Feedback – Linear Glass Scale |
| Z-Axis Position Feedback | Absolute Position Feedback – Linear Glass Scale | Absolute Position Feedback – Linear Glass Scale |
| B-Axis Position Feedback | Absolute Position Feedback – Linear Glass Scale | Absolute Position Feedback – Linear Glass Scale |
| MAIN GRINDING SPINDLE | ||
| Grinding Spindle Manufacturer | Setco | Setco |
| Grinding Spindle Model | Setco U30HP7200SM80.55772R | Setco U30HP7200SM80.55772R |
| Main Grinding Spindle Power | Approx. 22.4 kW | 30 HP |
| Maximum Grinding Spindle Speed | 7,200 rpm | 7,200 rpm |
| Grinding Spindle Speed Range | 1,500 – 7,200 rpm | 1,500 – 7,200 rpm |
| Spindle Taper | HSK-80 | HSK-80 |
| Spindle Cooling | Liquid Cooled | Liquid Cooled |
| Automatic Drawbar | Included | Included |
| ROTARY TABLE / C-AXIS | ||
| Rotary Table Diameter | Ø914.4 mm | Ø36 in |
| Rotary Table Height | 127 mm | 5 in |
| Rotary Table Type | T-Slotted Rotary Table | T-Slotted Rotary Table |
| C-Axis / Table Speed Range | 0 – 150 rpm | 0 – 150 rpm |
| Table Drive Motor | Approx. 5.6 kW A.C. Digital Servo “Whisper Drive” | 7.5 HP A.C. Digital Servo “Whisper Drive” |
| Table Radial Run-Out | 0.00254 mm | 0.0001 in |
| Table Axial Run-Out | 0.00254 mm | 0.0001 in |
| DRESSING SYSTEM | ||
| Rotary Dresser | Included | Included |
| Rotary Dresser Spindle Motor Power | Approx. 0.75 kW | 1.0 HP |
| Rotary Dresser Spindle Speed | 3,600 rpm | 3,600 rpm |
| Single-Point Dresser | Included | Included |
| GUIDEWAY & POSITIONING SYSTEM | ||
| Guideway Type | Precision Roller Ways – All Axes | Precision Roller Ways – All Axes |
| Absolute Position Feedback | X, Z and B Axes | X, Z and B Axes |
| Feedback Scale Type | Linear Glass Scales | Linear Glass Scales |
| GRINDING & TURNING CAPABILITY | ||
| Vertical Grinding Capability | Included | Included |
| Spindle Swivel Capability | Servo Controlled up to ±180° | Servo Controlled up to ±180° |
| Light Turning Capability | Supported by Servo-Driven Spindle Swivel Configuration | Supported by Servo-Driven Spindle Swivel Configuration |
| Angular Grinding Approach | Supported | Supported |
| Straight Grinding Approach | Supported | Supported |
| COOLANT & THERMAL MANAGEMENT | ||
| Spindle Chiller | Thermal Care Accu-Chiller | Thermal Care Accu-Chiller |
| Coolant Filtration System | Gravity Bed Filtration System | Gravity Bed Filtration System |
| Filter Media | Disposable Media Filter | Disposable Media Filter |
| MIST COLLECTION & ENCLOSURE | ||
| Mist Collector | Royal Mist Collector | Royal Mist Collector |
| Machine Enclosure | Full Machine Enclosure | Full Machine Enclosure |
| ELECTRICAL DATA | ||
| Electrical Supply | 480 V / 3 Phase / 60 Hz | 480 V / 3 Phase / 60 Hz |
| Full Load Amperage | 114 A FLA | 114 A FLA |
| OVERALL MACHINE DIMENSIONS | ||
| Floor Space – Front to Back | Approx. 4,089 mm / 4.09 m | 161 in / 13.42 ft |
| Floor Space – Left to Right | Approx. 3,607 mm / 3.61 m | 142 in / 11.83 ft |
| Overall Height | Approx. 3,581 mm / 3.58 m | 141 in / 11.75 ft |
| Overall Dimensions – F-B × L-R × H | Approx. 4,089 × 3,607 × 3,581 mm | 161 × 142 × 141 in |
| Approximate Floor Area | Approx. 14.75 m² | Approx. 158.8 ft² |
| MACHINE WEIGHT | ||
| Approximate Machine Weight | Approx. 9,525 kg / 9.53 Metric Tons | Approx. 21,000 lbs / 10.5 US Tons |
| EQUIPPED WITH | ||
| FANUC 160i-M CNC Controller | Included | Included |
| Setco U30HP7200SM80.55772R Grinding Spindle | Included – Liquid Cooled / Automatic Drawbar | Included – Liquid Cooled / Automatic Drawbar |
| Servo-Driven B-Axis Spindle Swivel | Included – ±180° | Included – ±180° |
| Rotary Dresser | Included | Included |
| Single-Point Dresser | Included | Included |
| 36 in × 5 in T-Slotted Rotary Table | Ø914.4 × 127 mm | Ø36 × 5 in |
| Absolute Position Feedback Scales | Included on X, Z and B Axes | Included on X, Z and B Axes |
| Precision Roller Ways | Included on All Axes | Included on All Axes |
| Full Machine Enclosure | Included | Included |
| Thermal Care Accu-Chiller | Included | Included |
| Gravity Bed Coolant Filtration System | Included – Disposable Media Filter | Included – Disposable Media Filter |
| Royal Mist Collector | Included | Included |
| MACHINE DESCRIPTION | ||
| Description | Campbell Grinder 750-30-30-36/36 CNC Vertical Cylindrical Grinding Machine, manufactured in 2008 and equipped with FANUC 160i-M CNC control. The machine features a 36 in (914.4 mm) T-slotted rotary table, maximum swing diameter of 38 in (965.2 mm), 36 in (914.4 mm) X-axis travel and 36 in (914.4 mm) Z-axis travel. | |
| Grinding Spindle | Equipped with a Setco U30HP7200SM80.55772R liquid-cooled grinding spindle rated at 30 HP (approximately 22.4 kW), with automatic drawbar, HSK-80 spindle interface and a stated operating speed range of 1,500 to 7,200 rpm. | |
| B-Axis / Spindle Swivel | Servo-driven rotary B-axis provides up to ±180° spindle swivel. According to the supplied specification, this configuration permits angular and straight grinding approaches and also allows light turning operations. | |
| Rotary Table Precision | The 36 in (914.4 mm) rotary table is driven by a 7.5 HP (approximately 5.6 kW) A.C. digital servo “Whisper Drive” and operates from 0 to 150 rpm. Stated radial and axial table run-out is 0.0001 in (0.00254 mm). | |
| Dressing System | Equipped with both rotary and single-point dressing systems. The rotary dresser spindle is rated at 1 HP (approximately 0.75 kW) and 3,600 rpm. | |
| Precision & Positioning | X, Z and B axes are equipped with absolute position feedback using linear glass scales. Precision roller ways are fitted on all axes. | |
| Coolant & Auxiliary Equipment | The machine is equipped with a Thermal Care Accu-Chiller, gravity-bed coolant filtration system with disposable filter media, Royal mist collector and full machine enclosure. | |
