REQUEST MACHINE INSPECTION : used Nukon ECO 315 GX CNC Fiber Optic Laser Cutting System 3kW – Year 2021 made in Türkiye

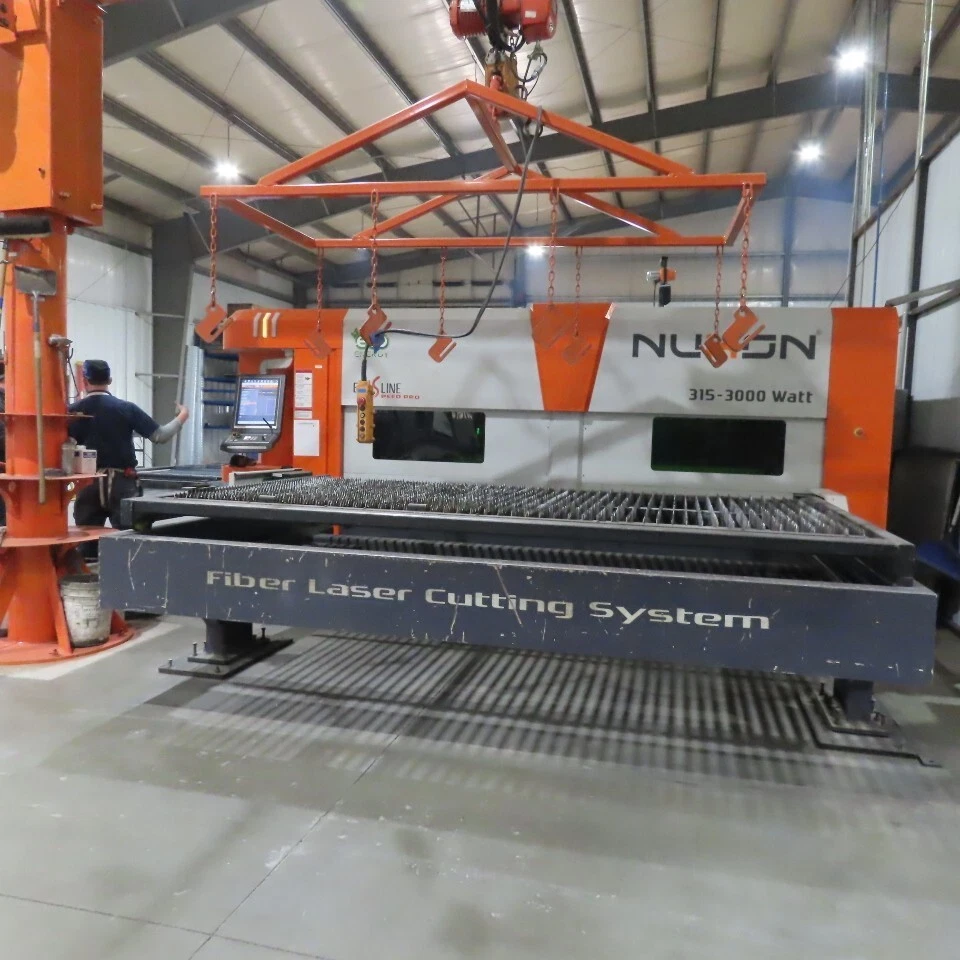

Nukon ECO 315 GX CNC Fiber Optic Laser Cutting System – 3 kW – Year 2021
| Technical Specification | Metric | Imperial |
|---|---|---|
| GENERAL MACHINE INFORMATION | ||
| Manufacturer | Nukon | Nukon |
| Model | ECO 315 GX | ECO 315 GX |
| Machine Type | CNC Fiber Optic Laser Cutting System | CNC Fiber Optic Laser Cutting System |
| Year | 2021 | 2021 |
| Laser Power | 3,000 W / 3 kW | Approx. 4.02 HP / 3,000 W |
| Condition | Excellent Working Condition | Excellent Working Condition |
| Installation Status | Machine Located Off-Site | Machine Located Off-Site |
| SHEET CAPACITY & WORKING AREA | ||
| Sheet Accommodation | Approx. 1,524 × 3,048 mm | 5 × 10 ft / 60 × 120 in |
| X-Axis Travel | Approx. 3,048 mm | 10 ft / 120 in |
| Y-Axis Travel | Approx. 1,524 mm | 5 ft / 60 in |
| Z-Axis Travel – Upper Shuttle Table | Approx. 73.7 mm | 2.9 in |
| Z-Axis Travel – Lower Table | Approx. 248.9 mm | 9.8 in |
| Maximum Load Capacity | Approx. 1,500 kg | 3,306 lbs |
| SHUTTLE TABLE SYSTEM | ||

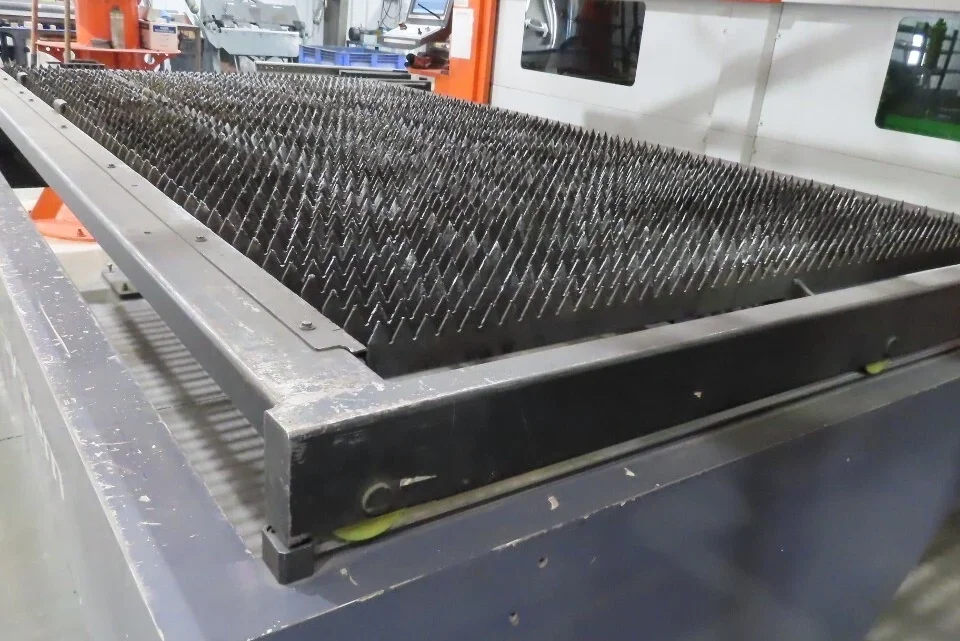

| Table Configuration | Shuttle Table System | Shuttle Table System |
| Shuttle Table Changeover Time | 16 seconds | 16 seconds |
| Shuttle Table Footprint | Approx. 3,658 × 2,743 mm | 12 × 9 ft |
| CONTROL & OPERATOR INTERFACE | ||
| Operator Display | 19 in Touchscreen | 19 in Touchscreen |
| Engineering / Background Screen | Administration-password protected. Access to engineering-level menu items, including machine runtime information, requires the administration password to be obtained through Nukon technicians. | |
| Software Protection | Administrative access is protected to prevent unauthorized changes or tampering with the machine software. | |
| Electrical Schematics | Complete Electrical Schematics Included | Complete Electrical Schematics Included |
| LASER SOURCE | ||
| Laser Source Manufacturer | nLight Corporation | nLight Corporation |
| Laser Source Type | Class 4 Single-Mode Fiber Laser | Class 4 Single-Mode Fiber Laser |
| Laser Source Power | 3,000 W / 3 kW | 3,000 W |
| Maximum Load | 30 A | 30 A |
| Laser Source Item Number | 1100133 | 1100133 |
| Laser Source Year | 2020 | 2020 |
| DUST COLLECTION SYSTEM | ||
| Dust Collector Manufacturer | Arunsan | Arunsan |
| Dust Collector Model | AR-2500 | AR-2500 |
| Dust Collector Year | 2019 | 2019 |
| Dust Collector Airflow Capacity | 2,500 m³/h | Approx. 1,471 CFM |
| CHILLER SYSTEM | ||
| Chiller Manufacturer | OMI S.r.L. | OMI S.r.L. |
| Chiller Type | Refrigerated Chiller | Refrigerated Chiller |
| Chiller Model | CHWT 130 + CHA4 | CHWT 130 + CHA4 |
| TRANSFORMER | ||
| Transformer Manufacturer | Hammond | Hammond |
| Transformer Model | SG3A0030KK | SG3A0030KK |
| Transformer Primary Voltage | 480 V | 480 V |
| Transformer Rating | 10 kV – As Stated in Supplied Specification | 10 kV – As Stated in Supplied Specification |
| Transformer Secondary | 480Y / 277 V | 480Y / 277 V |
| OVERHEAD JIB | ||
| Overhead Jib Capacity | Approx. 907 kg | 1 US Ton / 2,000 lbs |
| Headroom Under Jib Arm | Approx. 3,658 mm / 3.66 m | 12 ft |
| Approximate Jib Height | Approx. 4,267 mm / 4.27 m | Approx. 14 ft |
| SYSTEM FOOTPRINT | ||
| Shuttle Table Footprint | Approx. 3,658 × 2,743 mm | 12 × 9 ft |
| Laser Cutter Footprint | Approx. 5,182 × 2,896 mm | 17 ft W × 9 ft 6 in D |
| Supporting Equipment Installation Area | Approx. 4,572 × 3,048 mm | Approx. 15 × 10 ft |
| Supporting Equipment Location | Installed Behind Main Cutting System | Installed Behind Main Cutting System |
| RECENT MAINTENANCE / UPGRADES | ||
| Drive System | New drives installed within the last year, according to the supplied machine information. | |
| INCLUDED SYSTEM COMPONENTS | ||
| 3 kW nLight Fiber Laser Source | Included | Included |
| Arunsan AR-2500 Dust Collection System | Included – 2,500 m³/h | Included – Approx. 1,471 CFM |
| OMI Refrigerated Chiller | Included – CHWT 130 + CHA4 | Included – CHWT 130 + CHA4 |
| Hammond Transformer | Included – SG3A0030KK | Included – SG3A0030KK |
| Shuttle Table System | Included | Included |
| Overhead Jib | Included – Approx. 907 kg Capacity | Included – 1 US Ton Capacity |
| Complete Electrical Schematics | Included | Included |
| CONDITION & INSTALLATION NOTES | ||
| Overall Condition | Complete system is reported to be in excellent working condition. According to the supplied information, the equipment has been well maintained, carefully looked after and is clean. | |
| Commissioning Recommendation | Due to the precision and sensitive nature of the equipment, it is recommended that manufacturer-trained technicians be engaged for installation and commissioning after relocation. | |
| Administration Password | Engineering-level software access is password protected. The required administration password should be obtained through Nukon technicians. | |
| Machine Location Status | Located Off-Site | Located Off-Site |
| MACHINE DESCRIPTION | ||
| Description | Nukon ECO 315 GX CNC fiber optic laser cutting system, Year 2021, configured with a 3,000 W nLight single-mode fiber laser source. The system accommodates approximately 1,524 × 3,048 mm (5 × 10 ft) sheet material and features a shuttle table system with a stated 16-second table changeover time. | |
| Working Envelope | The stated X-axis travel is approximately 3,048 mm (10 ft) and Y-axis travel is approximately 1,524 mm (5 ft). Z-axis travel is approximately 73.7 mm (2.9 in) at the upper shuttle table and 248.9 mm (9.8 in) at the lower table. | |
| Material Load Capacity | Maximum stated load capacity is approximately 1,500 kg (3,306 lbs). | |
| Complete System | The supplied configuration includes the Nukon laser cutter, 3 kW nLight fiber laser source, shuttle table, Arunsan AR-2500 dust collector, OMI refrigerated chiller, Hammond transformer, overhead jib and complete electrical schematics. | |
| Maintenance | New drives were installed within the last year. The complete system is reported to be in excellent working condition, clean and well cared for. | |
