REQUEST MACHINE INSPECTION : used Schiess FB-P 360/1250 CNC Floor-Type Horizontal Boring Mill 12 Meters

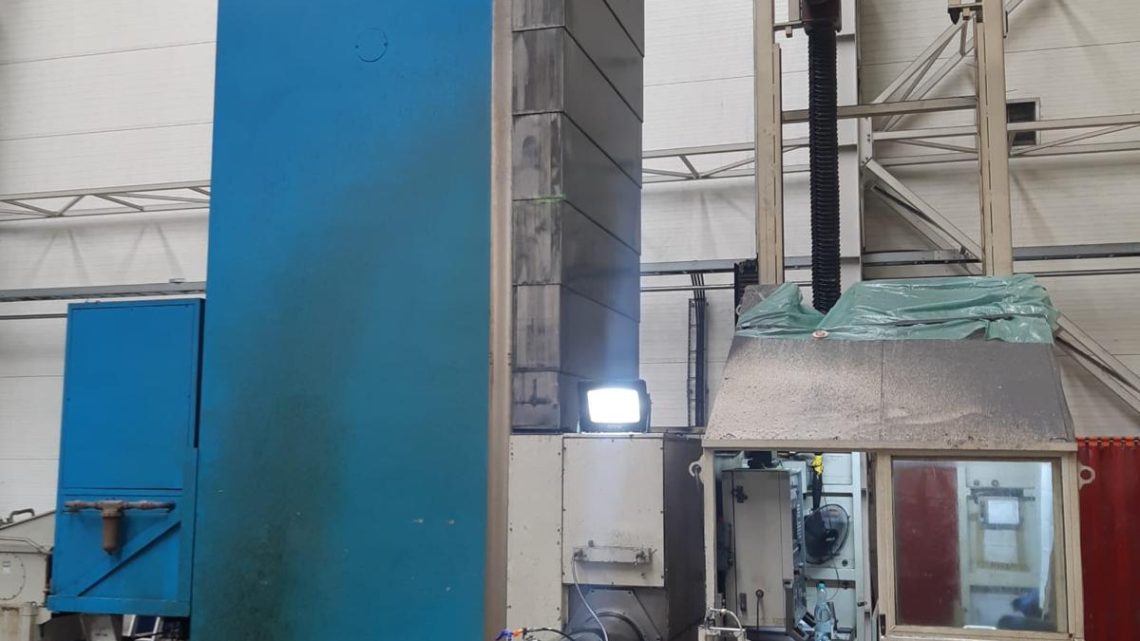

Schiess FB-P 360/1250 CNC Floor-Type Horizontal Boring Mill
| Technical Specification | Metric | Imperial |
|---|---|---|
| GENERAL MACHINE INFORMATION | ||
| Manufacturer | SCHIESS | SCHIESS |
| Model | FB-P 360/1250 | FB-P 360/1250 |
| Machine Type | CNC Floor-Type Horizontal Boring Mill | CNC Floor-Type Horizontal Boring Mill |
| SPINDLE | ||
| Spindle Diameter | Ø360 mm | Ø14.17 in |
| Maximum Spindle Speed | 2,000 rpm | 2,000 rpm |
| AXIS TRAVELS | ||
| X-Axis Travel | 12,000 mm / 12.0 m | 472.44 in / 39.37 ft |
| Y-Axis Travel | 4,500 mm / 4.5 m | 177.17 in / 14.76 ft |
| Z-Axis Travel – Headstock | 1,250 mm | 49.21 in / 4.10 ft |
| W-Axis Travel – Table | 2,000 mm | 78.74 in / 6.56 ft |
| ROTARY TABLE | ||
| Table Size | 3,250 × 2,750 mm | 127.95 × 108.27 in |
| Table Size | 3.25 × 2.75 m | 10.66 × 9.02 ft |
| Maximum Table Load Capacity | 50 Metric Tons / 50,000 kg | Approx. 110,231 lbs / 55.12 US Tons |
| FLOOR / BASE PLATE | ||
| Floor Plate Size | 9,000 × 5,000 mm | 354.33 × 196.85 in |
| Floor Plate Size | 9.0 × 5.0 m | 29.53 × 16.40 ft |
| Floor Plate Surface Area | 45 m² | Approx. 484.4 ft² |
| CAPACITY SUMMARY | ||
| Spindle Diameter | Ø360 mm | Ø14.17 in |
| X × Y Travel | 12,000 × 4,500 mm | 472.44 × 177.17 in |
| Z-Axis / Headstock Travel | 1,250 mm | 49.21 in |
| W-Axis / Table Travel | 2,000 mm | 78.74 in |
| Rotary Table Size | 3,250 × 2,750 mm | 127.95 × 108.27 in |
| Maximum Table Load | 50,000 kg | Approx. 110,231 lbs |
| Floor Plate Size | 9,000 × 5,000 mm | 354.33 × 196.85 in |
| Maximum Spindle Speed | 2,000 rpm | 2,000 rpm |
| MACHINE DESCRIPTION | ||
| Description | SCHIESS FB-P 360/1250 heavy-duty CNC floor-type horizontal boring mill featuring a Ø360 mm (14.17 in) boring spindle and a maximum spindle speed of 2,000 rpm. | |
| Machining Travels | The machine provides 12,000 mm (39.37 ft) X-axis travel, 4,500 mm (14.76 ft) Y-axis travel and 1,250 mm (49.21 in) Z-axis headstock travel. The supplied specification additionally states 2,000 mm (78.74 in) W-axis table travel. | |
| Heavy-Duty Rotary Table | Equipped with a 3,250 × 2,750 mm (127.95 × 108.27 in) work table with a stated maximum load capacity of 50 metric tons (approximately 110,231 lbs). | |

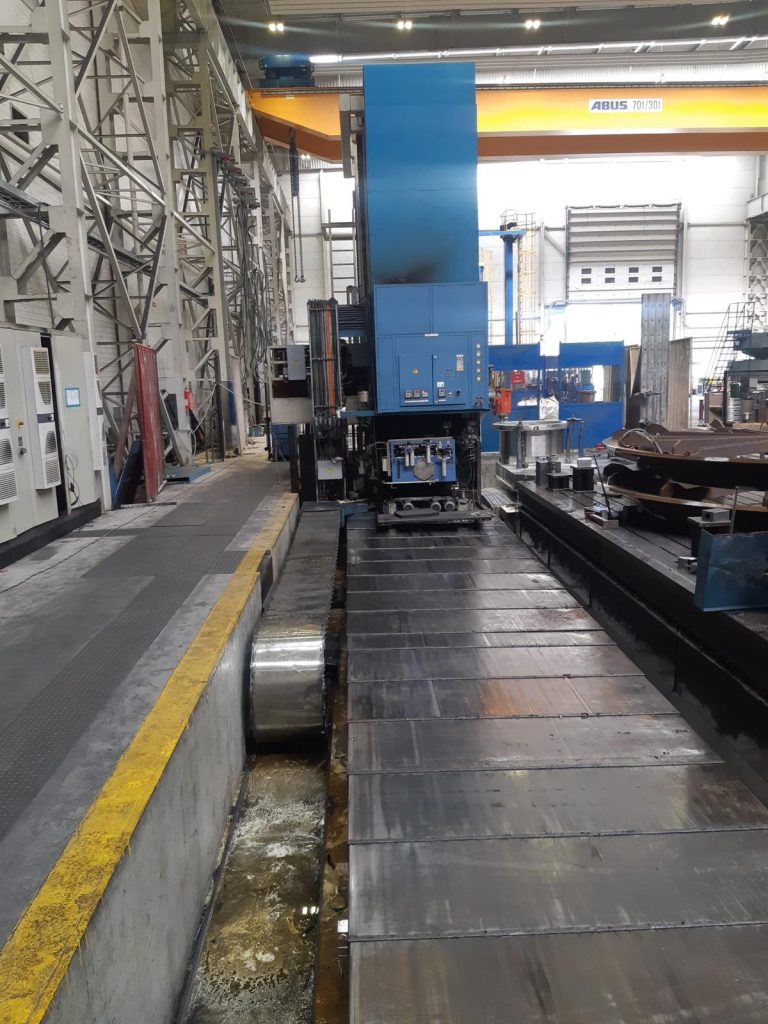

| Floor Plate | The supplied specification includes a large 9,000 × 5,000 mm (29.53 × 16.40 ft) floor plate, providing approximately 45 m² (484.4 ft²) of working surface. | |
