REQUEST MACHINE INSPECTION : used Quaser MV204CU/15 CNC 5-Axis Vertical Machining Center – Year 2005 made in Taiwan

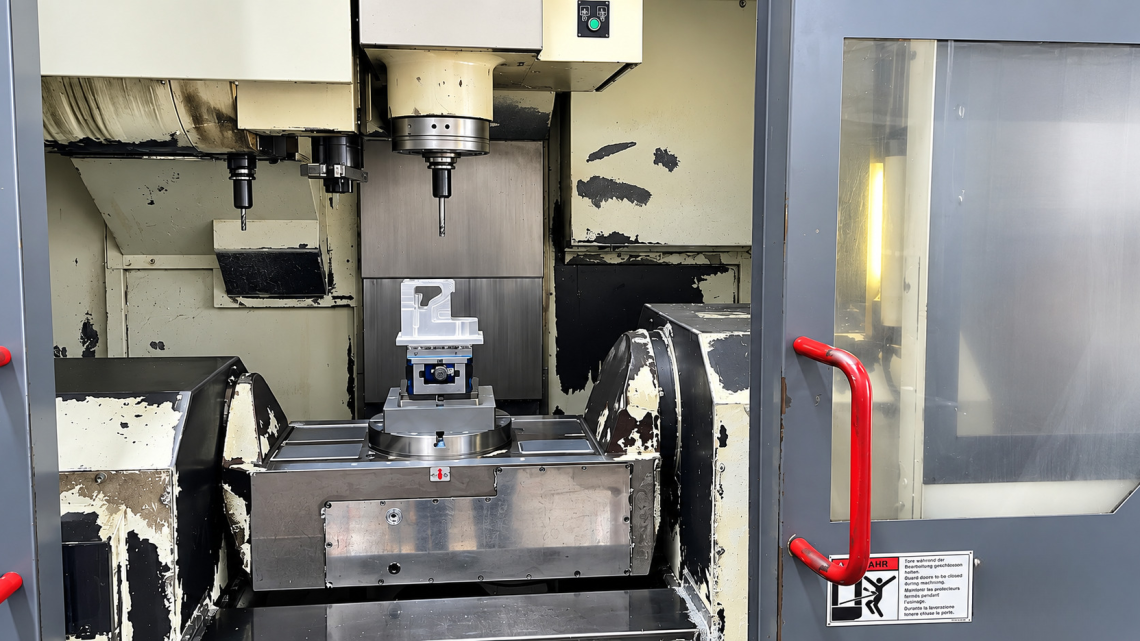

Quaser MV204CU/15 CNC 5-Axis Vertical Machining Center – Year 2005
| Technical Specification | Metric | Imperial |
|---|---|---|
| GENERAL MACHINE INFORMATION | ||
| Manufacturer | Quaser | Quaser |
| Model | MV204CU/15 | MV204CU/15 |
| Year | 2005 | 2005 |
| Machine Type | CNC 5-Axis Vertical Machining Center | CNC 5-Axis Vertical Machining Center |
| CNC CONTROL | ||
| CNC Control | HEIDENHAIN iTNC 530 | HEIDENHAIN iTNC 530 |
| AXIS TRAVELS / WORKING RANGE | ||
| X-Axis Working Range | -330 / +330 mm | -12.99 / +12.99 in |
| Total X-Axis Range | 660 mm | 25.98 in |
| Y-Axis Working Range | -330 / +330 mm | -12.99 / +12.99 in |
| Total Y-Axis Range | 660 mm | 25.98 in |
| Z-Axis Travel | 500 mm | 19.69 in |
| 5-AXIS MACHINING CONFIGURATION | ||
| Machining Configuration | 5-Axis | 5-Axis |
| Rotary / Tilting Table | Equipped | Equipped |
| MEASUREMENT & POSITION FEEDBACK | ||
| Axis Measuring System | Axes Equipped with Linear Scales | Axes Equipped with Linear Scales |
| Workpiece Measurement Probe | Included | Included |
| In-Process Workpiece Measurement | Supported via Workpiece Probe | Supported via Workpiece Probe |
| MACHINE CONDITION | ||
| Operating Condition | Currently in Active Operation | Currently in Active Operation |
| Machine Demonstration | Available Under Power | Available Under Power |
| Test Machining | Workpiece Can Be Machined On-Site for Demonstration | Workpiece Can Be Machined On-Site for Demonstration |
| KEY FEATURES | ||
| HEIDENHAIN iTNC 530 CNC Control | Included | Included |
| 5-Axis Machining | Included | Included |
| Linear Scales | Included on Axes | Included on Axes |
| Workpiece Measuring Probe | Included | Included |
| Machine Available Under Power | Yes | Yes |
| On-Site Cutting Test | Available | Available |
| MACHINE DESCRIPTION | ||
| Description | Quaser MV204CU/15 CNC 5-Axis Vertical Machining Center, Year 2005, equipped with HEIDENHAIN iTNC 530 CNC control. | |
| Machining Range | The supplied machine information states an X-axis working range of -330 / +330 mm (-12.99 / +12.99 in), a Y-axis working range of -330 / +330 mm (-12.99 / +12.99 in), and a Z-axis travel of 500 mm (19.69 in). | |
| Precision Equipment | The machine axes are equipped with linear scales for position feedback. A workpiece measurement probe is also included for workpiece setup and measurement operations. | |
| Operating Status | The machine is currently in active operation and can be demonstrated under power. According to the supplied information, an actual workpiece can be machined on-site to demonstrate the machine’s operation. | |
