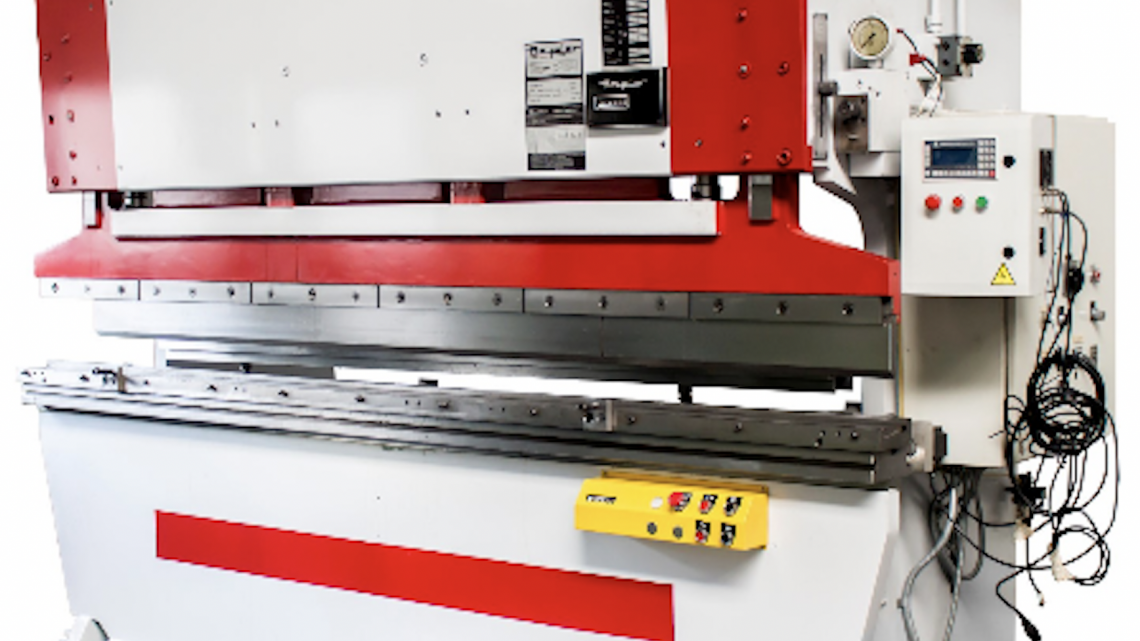

When buying a used Beyeler P 110×3100 press-brake (or similar capacity machine), there are many technical, mechanical, and practical details to check to ensure you get a machine that’s safe, reliable, and cost-effective. Below is a detailed guide of what to pay attention to, including specific points relevant to a “110 tons × 3100 mm” Beyeler type.

---

Key Specs to Know

Before inspection, know what the nominal specs are, so you have something to compare with actual condition. For a machine like Beyeler P 110×3100 (often also called “Beyeler Sagita 110×3100”):

• Press force: ~110 tons.
• Bending length: ~3100 mm.
• Distance between columns (“inside”) ~2600 mm.
• Stroke of ram (how far it moves down), “daylight opening” (max distance between ram at top and bed), working height etc.
• Power consumption / motor power.
• Approximate machine weight & footprint.

These give you baseline values: do measurements match these or are they off substantially? If off, might indicate wear, modifications, misusage.

---

What to Inspect (Mechanical / Structural)

1. Frame & Structural Integrity
   • Check the frame for cracks, especially around highly stressed zones (ram guides, uprights, bed welds). Castings can crack over time.
   • Check whether the machine is still square: measure alignment of beam/ram over full length. Any sagging or bending in beam causes bending error.
   • Inspect the guides/ways for wear, scoring, rust. Smooth surfaces are essential for accurate ram travel.
2. Ram (Upper Beam) & Bed / Table
   • Check for parallelism between ram and bed. Use a precision straight edge / feeler gauge or dial indicator along length.
   • Inspect the bottom tool‐holder / die shoe and top punch holder: any deformation, bending, twisting?
   • Check how well the tools seat; uneven seating means possible misalignment or wear.
3. Hydraulic System
   • Oil leaks: cylinders, hoses, seals etc. Leaks often hide bigger maintenance problems.
   • Cylinder condition: piston rods should be straight, free of pitting or scoring (which can damage seals).
   • Hydraulic pump and valves: do they respond well? Is the system holding pressure? Is there sponginess or lag in ram movement?
   • Filters & oil cleanliness: dirty or degraded oil accelerates wear.
4. Controls & Back-Gauge (if equipped)
   • If back-gauge is hydraulic or mechanical, test its movement accuracy and repeatability.
   • Check readouts or dials: are they accurate? Do they suffer from drift?
   • If CNC or semi-automatic, check control electronics (if available): are they working? Any error codes? Are spare parts / support available?
5. Tooling & Dies
   • Inspect punch and die V-blocks: are they worn, chipped, bent? If replacing them is difficult or expensive, that’s a cost.
   • Adjustability: are there crowning mechanisms to compensate for deflection in long bends? If crowning is manual or missing, long pieces may bend unevenly.
6. Speed, Repeatability & Performance
   • Test under load (bend a test piece of known grade & thickness) and measure bend angle, check consistency across length.
   • Observe the closing action: is ram travel smooth? Any jerks or delays?
   • Measure return speed, ram stopping accuracy, response times.
7. Safety
   • Make sure safety guards, emergency stop buttons, two-hand control (if required) are present and functioning.
   • Check whether machine meets required safety standards in your region.
8. Wear & Maintenance History
   • Ask for maintenance records if available: when was the last overhaul? Which parts replaced?
   • Check hours of operation, number of bends made (if available).
   • Environment history: was the machine used indoors, in a clean workshop, or dusty/wet environment?
9. Electrical / Motor System
   • Inspect motor(s) for overheating, unusual sounds.
   • Wiring: look for damaged insulation, signs of repairs or modifications.
   • Panel and control board: are switches / contactors still good? Any corrosion?
10. Foundation, Leveling, and Setup Costs
    • Is the machine currently leveled and firmly anchored? If not, installation could cost you.
    • Transport: weight and size means heavy lifting; check logistics to move it.
    • Power supply: ensure the electric / hydraulic requirements match what you have (voltage, phases, etc.).

---

Specific Weak Points for Beyeler P 110×3100 (or Similar Models)

Drawing from known listings and typical wear patterns of similar machines:

• Because the bending length (3100 mm) is long, deflection of bed and ram becomes significant. If the machine doesn’t have crowning (adjustment to compensate for bending), consistent results over full length may be compromised.
• The distance between columns (~2600 mm) means outer ends of the beam are somewhat far from support; that increases bending moment; wear at guide ways is more likely there.
• Hydraulic seals of older machines tend to degrade; older Beyeler machines likely have parts that are less modular or have been in service a long time. Seals may be non-standard or hard to source.
• Older controls (if original) may be simple and robust, but less precise; upgrading control (e.g. adding better back-gauge or readouts) might be necessary but costly.
• Electrical insulation and wiring may deteriorate with age; safety compliance might be missing, so retrofitting might be needed.
• Machine weight (~7–8 tonnes in these listings) and size mean transport / foundation / leveling add cost & effort.

---

Questions to Ask Seller

To supplement your own inspection, these questions help clarify condition and hidden costs:

1. What is the hour-meter or estimated usage (number of bends / hours)?
2. When was the hydraulic oil last changed? What quality?
3. Any major repairs: cylinder replacement, beam regrinding, straightening, etc.?
4. Are there original drawings / manuals? Are spare parts still available?
5. What tooling is included (punches, dies, back-gauge)? Their condition?
6. Has the machine been modified? (Controls, safety, hydraulic system)
7. Why is it being sold? (Might indicate hidden problems)
8. Is the machine under power now? Can you see it operating? Can you test bend something?
9. Are there any alignment certificates or previous accuracy tests?

---

How to Evaluate Pricing (What’s a Fair Deal)

• Compare price with similar machines of the same spec and condition. If many have similar age/spec in your region, see how this one stacks up.
• Factor in refurbishment or needed repairs: replacing seals, worn tooling, straightening may cost significantly.
• Include transport, installation, alignment, foundation work.
• Consider operating costs: hydraulic oil, electricity, maintenance of old parts or custom parts.
• Also consider downtime: if machine may be off-work for weeks while you restore it, that cost is part of the investment.
