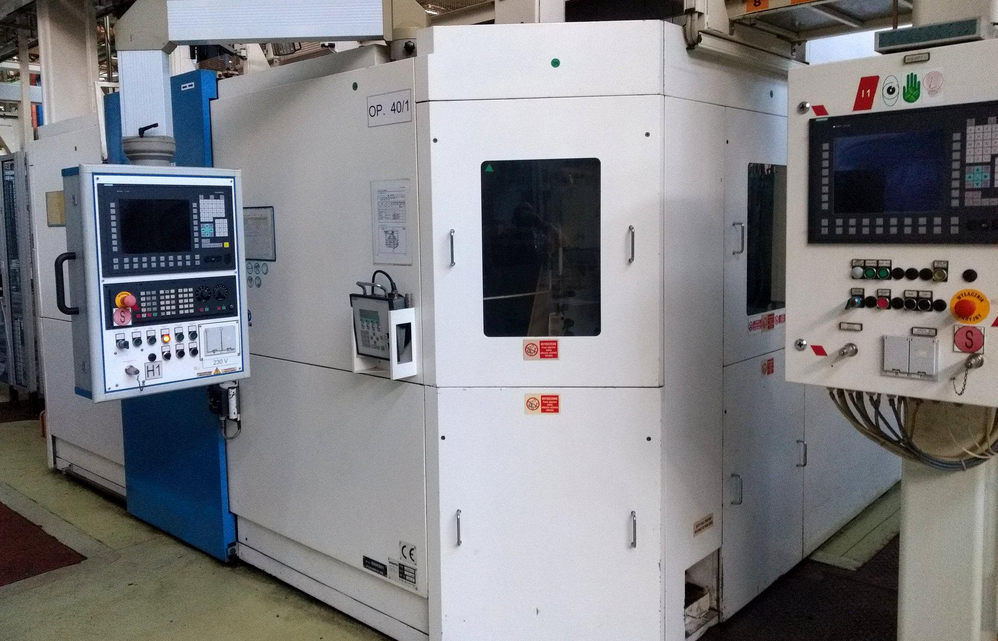

What to check when buying a second-hand KOMATSU “GPM 200F2-3” (or similar) CNC crankshaft milling machine

Here is a detailed checklist (in English) tailored to buying a used large crankshaft milling machine — many of the items apply in particular to the GPM-series by Komatsu (they list details of their GPM “external blade” and “internal blade” crankshaft millers).
Use this as your due-diligence guide.

---

1. Confirm model, specification & suitability

• Make sure the machine is indeed the correct model (you mentioned “GPM 200F2-3” — check stamp/plate, serial number, and documentation).
• Check the specification: for example, the GPM external blade series list by Komatsu show model names like GPM1100, GPM1600, GPM2000 and correspond to maximum workpiece lengths up to 13,000 mm and swing diameters up to ~1,600 mm.
• Verify that the machine’s capacity (length of crankshaft, diameter, weight) fits your crankshaft production/repair needs — e.g., large-engine crankshafts vs smaller ones.
• Check controller/CNC version: Since it’s used, verify what CNC control it has, how many axes, spare parts availability, programming capabilities, etc.
• Check tooling & cutter system: The GPM series emphasises external-blade or internal-blade cutters, rigidity, etc.
• Establish whether any upgrades/modernisations were done (retrofit of control, spindles, drives, safety systems). These can affect value.

---

2. Condition of mechanical components

• Spindles: Check for excessive run-out, wear, overheating marks, lube/Oil condition.
• Slideways / guideways: Since large machines shift heavy workpieces, check for wear, scrapes, pitting, corrosion, alignment.
• Chuck / work-holding system: The rigidity and accuracy of the work-holding are critical in crankshaft milling (to maintain journal/arm tolerances). Any damage/deformation must be noted.
• Cutter system / blades: Verify toolholder condition, changeover mechanism, whether original or replaced, how many corners used, condition of inserts/blades. According to Komatsu: “Inserts can be used for up to 8 corners … high rigidity structure machine”.
• Bearings / gearboxes / motors: Are there signs of regeneration, heavy repair, oil leak, vibration?
• Frame & structure: Any cracks, weld repairs, distortions, base settlement? With such large machines movement over years can cause issues.
• Accuracy & alignment: Can the machine still hold spec? Ask for recent alignment report or test run with measurement.

---

3. Condition of control/electrical/automation systems

• CNC control: Is it original or upgraded? Are spare parts still available? How user-friendly is it for your workers?
• Drives, servo motors, spindle motors: Are they functioning well? Any fault logs?
• Electrics/cabinets: Are they clean, corrosion-free? Look at wiring condition, fans, filters.
• Safety systems: Guards, interlocks, emergency stops, safety relays. These may need updating to local EU standards.
• Automation / tooling changeover: If the machine uses automated tool change, chuck change, etc., verify that those mechanisms still function reliably.
• Software/licencing: For CNC, for toolpath programming, for machine-diagnostics. A used machine may require licence renewal or software update.

---

4. Service history, usage and wear

• Usage hours / workload: Ask how many hours of actual machining, what kind of crankshafts (sizes, materials) it processed, how heavy the workpieces were.
• Maintenance history: Regular preventive maintenance, major repairs, rebuilds, spindle replacements.
• Upgrades / modifications: Document changes (e.g., new spindle, control upgrade, safety retrofit).
• Idle time / storage conditions: If machine has been idle for a long time, rust/corrosion may have set in; verify storage environment.
• Parts availability: For older machines it may be harder to obtain spare parts for control, hydraulic/pneumatic components, etc.
• Attachments/tools: Are all original tools, fixtures, jigs, chucks included? The real cost of missing tooling can be high.

---

5. Installation / logistic / foundation / site requirements

• Foundation & floor: Large machines like these often require heavy foundations, proper leveling, vibration isolation. Confirm that your country is prepared or what modifications will be needed.
• Power supply: What are the electrical requirements (voltage, phase, amperage), compressor/air supply, coolant/chip‐handling systems.
• Transport and installation cost: Shipping from Japan (if imported) or from other country, customs, rigging, crane, installation, alignment.
• Space / clearance: Large swing diameter and lengths means big footprint; check machine size (W×D×H) and ensure your facility accommodates it. For example one GPM series spec: Machine size ~22,000 × 7,460 × 4,000 mm.
• Ancillary systems: Coolant supply, chip conveyors, dust/filing systems, lubrication, automation if needed.

---

6. Inspection & test run

• If possible inspect on site: visually check everything, ask to run sample piece.
• Check for noise, vibration, overheating during first run.
• Measure actual accuracy: e.g., after machining, check journals or sample pieces for conformance.
• Check tool / cutter changeover: how long it takes, whether system works smoothly.
• Check alignment: use test gauge to verify machine still meets specs.
• Check lubrication/cooling systems: Are they working, any leaks, old coolant, contaminated fluids.
• Check documentation: machine drawings, specifications, operation manuals, maintenance records, calibration certificates.

---

7. Legal / commercial considerations

• Confirm the machine’s provenance: who owned it, any liens, export/import history.
• Warranty status (though likely none for used equipment) and what is included (e.g., tooling, fixtures).
• Guarantee or acceptance period: You may negotiate a clause that if machine fails within certain time you have rights.
• Spare parts package: Negotiate whether seller includes spare parts, tooling, manuals.
• Shipping/installation terms: Who pays what, responsibilities.

---

8. Cost of ownership and hidden costs

• Spare parts & tooling replacement cost (especially for large crankshaft machining).
• Maintenance cost, downtime risk.
• Running cost: power consumption, coolant, filters, disposal of chips/swarf.
• Accuracy recovery cost: If machine has drifted, you may need major alignment or rebuild.
• Opportunity cost: If machine is down or re-installed slowly, you lose production.

---

9. Matching to your workflow / investment return

• Machining cycle times: What throughput can you get with this machine vs your demand?
• Material size/weight compatibility: Ensure your crankshafts fit size, swing, length, weight capacity of the machine.
• Tooling and fixture cost: Will you need new tooling to match your parts?
• Future flexibility: Can the machine handle other work besides crankshafts (if you plan)?
• Payback: Considering all costs (purchase + installation + tooling + maintenance) vs revenue you’ll generate—ensure it makes financial sense.

Summary

In short: When buying a used machine of this size and cost, the devil is in the details. The mechanics might look good superficially, but the real questions are: how precise and rigid is it now, how well was it maintained, is the controller/update state acceptable, are spare parts available, and does the machine fit your operational needs (size, capacity, throughput). A machine from the KOMATSU GPM series has strong pedigree (their crankshaft-milling line emphasises rigidity, high precision and turnaround time reduction) but a used one will still require careful verification.
