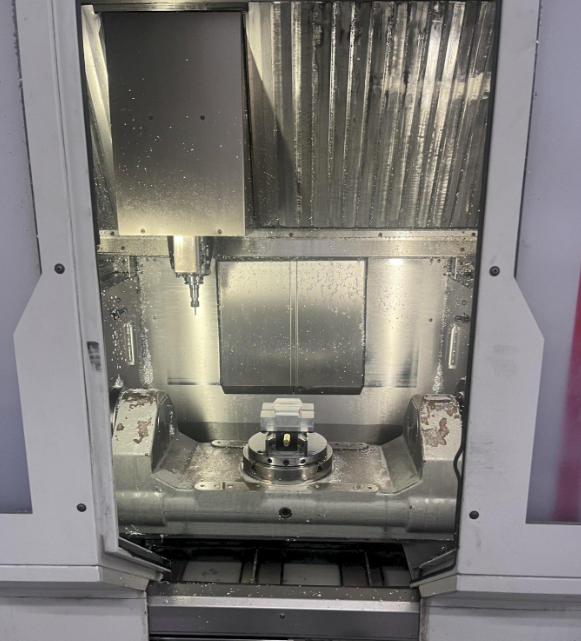

If you’re evaluating a pre-owned Hermle C20U (5-axis vertical machining centre) for purchase, industry experts suggest doing a deep, systematic check of everything mechanical, electrical, control systems, wear & tear, plus verifying that it matches your production needs. Below are:

• Typical specs / what a healthy C20U should deliver
• What to inspect & test (by subsystem)
• Red flags & what to ask the seller
• Some calculation / economic considerations

---

Typical Specifications & Baselines for the Hermle C20U

These are the common published specs so you know what to benchmark against. Machines sometimes differ slightly depending on options, date, configuration.

Parameter	Typical Value
Axes / Type	5-axis vertical machining centre, tilting/swivel rotary table/trunnion table style
Travel (X × Y × Z)	≈ 600 mm × 450 mm × 450 mm
Spindle speed	Up to 18,000 rpm (older C20Us) as common; some versions or options may vary.
Spindle power	~ 26 kW in many listings; sometimes expressed as ~54 HP (~40 kW depending on rating) depending on region/option.
Tool magazine / ATC	Usually ~30 tools capacity.
Table / Work envelope	Table diameter ~250 mm in many cases, with table load capacity in the few hundred kg region (or several hundred pounds) depending on the model and table type.
Control	Often HEIDENHAIN TNC 530 in many units.
Rapid traverse / feed rates	Published values: ~1,771 IPM (≈ 45 m/min) rapid (X/Y/Z) in certain listings.

Keep in mind: newer machines or those with different options (HSK vs SK, higher RPM spindles, additional features like probing, thermal compensation, special rotary table, etc.) may exceed or diverge from these.

---

What Experts Recommend Checking / Verifying Before Buying

Here is a thorough checklist arranged by subsystem. Ideally, bring a measurement tools & an experienced technician if possible.

---

Mechanical & Structural

1. Machine Bed, Base & Frame
   • Check for any cracks, repairs, welding, or structural damage.
   • Look at overall alignment & straightness of bed / base. Significant sag or twist in the frame can degrade precision.
2. Travel & “Ways” (Guideways, Linear Rails / Slideways / Trunnion if tilting table)
   • Inspect for wear, scoring, pitting, rust.
   • Check lubrication of ways, presence/function of way covers.
   • Check backlash in axes, free play; movement smoothness in all 5 axes.
3. Spindle & Spindle Bearings
   • At multiple spindle speeds, listen for vibration, run-out.
   • Check spindle taper condition. If the tool holders “wiggle” or have poor fit, the taper may be worn.
   • Thermal behavior of spindle: does it heat up abnormally? Possibly test under load.
   • If “thru-spindle coolant” is optional, verify its condition and functionality.
4. Rotary / Tilting Table (A-/C-axes)
   • Verify full travel ranges (A tilt, C rotation) are achieved, and accurately.
   • Inspect rotary/tilt mechanisms for wear: bearings, worm gear backlash, torque drive if fitted.
   • Tables often carry heavy workpieces; check table flatness, run-out, repeatability.
5. Tool Changer / Magazine
   • Does ATC load/unload smoothly? Any misfires / misalignments?
   • Are tool holders in good condition? Are shanks correct, clean, no damage?
   • Check drawbar health & pull force (if applicable).
6. Coolant/Lubrication Systems
   • Condition of coolant tank, cleanliness, filtration, any sludge or rust.
   • Coolant pumps, hoses, nozzles, whether programmable coolant works (on/off, direction etc.).
   • Lubrication systems for axes and spindle (grease/oil), some Hermle machines have automatic lubrication; check that all points are being fed.
7. Electrical & Control Systems
   • Control panel: HEIDENHAIN TNC530 (if that’s what is advertised) – check that it’s fully functional, that displays are clear, no flicker, alarms behave.
   • Wiring: check for loose wires, signs of overheating, corrosion.
   • All sensors, limit switches, safety interlocks must work.
   • Check for any modifications / retrofits (non-OEM parts) – could affect service/spare availability.
8. Accessories & Options
   • Probing system (if included) – check probe condition & calibration.
   • Chiller / Coolant cooling if used.
   • Chip conveyor or chip evacuation – is it included, in good working order?
   • Mist collector, auxiliary coolant, thermal compensation, etc.

---

Performance Tests

9. Part Machining Trials
   • Bring or use sample workpieces similar to what you’ll run in production.
   • Do test cuts: heavy cut, fine finish, 5-axis simultaneous moves. Check surface finish, dimensional accuracy, chatter, temperature drift.
10. Repeatability & Calibration
    • Measure same dimension in multiple positions (e.g. at center, near edges, with table swivel/tilt) to check for consistent accuracy.
    • Check positional repeatability after table swiveling/tilting, after multiple tool changes.
11. Spindle Run-Out Test
    • Use dial indicator at taper, also tool tip. Any radial/axial run‐out beyond small tolerance suggests spindle bearing wear.
12. Thermal Stability
    • Machine under power for some time; see whether accuracy shifts as machine warms up. Heat expansion can degrade precision.

---

Maintenance & History

13. Usage & Service Records
    • Total hours / cycles of operation; spindle hours if available.
    • What kinds of work was it used for (mould tools, high precision, rough milling, small parts)?
    • Was it idle often? Idle periods can cause problems (rust, degraded lubrication, seizure).
14. Spare Parts / OEM Support
    • Is Hermle support available in your region? Are parts for this model still manufactured, or are many replaced by used or third-party parts?
    • Complexity of spare parts: rotary table assembly, A/C axis, control components etc.
15. Control Software & Updates
    • Whether the CNC has current firmware/software updates.
    • Are backups of control programs, parameter settings, calibration records included?

---

Logistics, Safety & Economic

16. Physical Installation Requirements
    • Machine weight and size: is your building/floor capable of supporting the weight? Ceiling height, crane access, doors etc.
    • Power requirements: voltage, phase, amperage; cooling requirements; whether chiller/auxiliary systems cause extra load.
17. Safety & Regulatory Compliance
    • Guards, emergency stops, safety interlocks.
    • Compliance with local regulations (electrical, safety, environmental – coolant/mist, chip handling).
18. Cost of Ownership / ROI
    • Estimate the cost to refurbish any wear parts.
    • Consumables: tooling, coolant, filters, bearings.
    • Expected uptime vs downtime: how much repair or calibration will likely be needed soon.
19. Inspection Before Purchase
    • Ideally inspect in person, under power, doing test cuts.
    • Use measurement tools (calipers, micrometers, indicators, test bars) on site.
    • Maybe engage a third-party inspection or engineer who knows Hermle machines.

---

Red Flags & Warning Signs

Here are specific things that often indicate serious issues / costly future investment:

• Spindle or taper damage: visible wear, scoring, oil leakage into bearings.
• Excessive backlash in A/C rotary/tilt axes, or condition of rotary table bearings.
• Tables that do not hold load, drop at tilt etc., or creep under load.
• Tool changer misfires, slippage, or inability to hold precise tool offsets.
• Degraded coolant systems: rust, sludge, microbial growth, poor filtration – these affect both surface finish and internal components.
• Control issues: outdated or unsupported control boards; parts that are original but obsolete; difficulty in finding replacements.
• Cracks or structural repair in the main casting / bed / column.
• Signs of neglect: missing guards, rust, badly maintained way covers, lubrication system failures.
• Unusually loud vibration or noise during spindle operation or during axis movement.
• Heat, smell of burned insulation or overheated electronics.

---

Questions to Ask the Seller

To help get more insight, ask:

1. What is the serial number, year of manufacture, machine history?
2. How many operating hours (total & spindle), and what was typical usage (materials, precision vs roughing, small-batch vs large volume)?
3. What maintenance & calibration has been done (recently and historically)? Let’s see service records.
4. Has spindle ever been rebuilt? Any repair to rotary/tilt axes?
5. What optional accessories are included: probe, coolant programmer, chip conveyor, chiller, mist collector, etc.
6. Are there test reports / inspection reports available (geometric tests, run-out, accuracy after swivel/tilt)?
7. What is condition of control system: display, software version, backup of parameters, fault history?
8. Are all safety devices and guards intact and functional?
9. Are spare parts still obtainable locally for this model?
10. Can I see a demonstration under load (cutting, 5-axis move, heavy milling) to evaluate actual performance?

---

Economic / Fit Considerations

• Make sure the working envelope (600×450×450 mm) and table load are sufficient for your parts.
• If you need high precision / tight tolerances, make sure the machine can still meet them after wear.
• Factor in transport, installation, leveling, foundation, anchoring, possibly electrical upgrades.
• If you need high surface finish or high RPM spindle, check whether the unit has been maintained accordingly.
• Calculate expected wear/repair costs in next few years; weigh against buying newer or more modern machine.
