1. Pre-Purchase Preparation & Documentation Review

Before you even inspect the machine physically or power it up, gather as much information as possible.

What to Request	Why It Matters / What to Look For
Maintenance & service records	A well-maintained machine is far safer to buy. Look for regular preventive maintenance (lubrication, alignment checks, bearing replacement, etc.).
Original factory manuals, schematics, parts lists	Critical for repairs and understanding the machine. If missing, obtaining them later may be expensive.
Serial number, build date / year of manufacture	Helps ascertain age, matching parts, history.
Control and electronics history (upgrades, modifications)	You want to know if the controller (e.g. Milltronics 9000) was modified, serviced, or swapped, which may affect longevity or compatibility.
Operating logs / alarm history	Frequent alarms or recurring problems may hint at deeper issues.
Work history (what materials, duty cycle, how often run)	A machine that mostly cut soft material lightly is less stressed vs. one that ran heavy steel, castings, or continuous 24/7 duty.
Spare parts inventory (which parts come with the sale)	Good to have extra components (bearings, seals, etc.) included can reduce future cost.

If the seller refuses to provide meaningful documentation, treat that as a red flag.

---

2. Visual & Structural Inspection

Perform a thorough walk-around visual and physical inspection. Many problems manifest first at the surface or external parts.

Frame, Bed & Base

• Inspect the slant bed casting and the machine base: look for cracks, weld repairs, distortions, or twist. Any structural damage is a serious concern.
• Check for flatness and straightness of the bed ways over the full travel. Use straightedges, levels, test bars, etc.
• Look for uneven wear, gouges, deep scratches, or corrosion on guide surfaces, way covers, and slide surfaces.
• Ensure all covers, guards, panels are present and solid (no missing or broken parts).

Way Covers / Bellows / Guards

• Check the way covers (bellows, telescopic covers) for tears, gaps, holes, or misalignment. If way covers are broken or missing, debris can damage the ways and screws.
• Look under covers for signs of chip accumulation, rust, or excessive coolant residue.

Turret / Tooling Area

• Inspect the turret (12-station auto turret) for damage, chipped tool slots, looseness, missing clamps, or signs of crash.
• Check the turret indexing, whether it moves smoothly and precisely (you will test operationally later).
• Check for tool holders and turret components included in the sale—are they original, worn, or substandard?

Tailstock (if present)

• If the lathe has a tailstock (or tailstock quill), inspect for alignment, smoothness, and whether it engages properly. Examine for wear or play.

Coolant System / Chip Conveyor

• Check whether the coolant system is intact: coolant sump, piping, pumps, hoses, nozzles. Leaks, corrosion, or missing parts are red flags.
• If a chip conveyor is an option, see whether it is installed and functional, and whether chips were properly removed historically (i.e., minimal chip accumulation inside machine).

Electrical Enclosures & Cabling

• Inspect electrical cabinets, wiring, connections, and power panels. Look for signs of overheating (discoloration, burnt insulation), frayed wires, missing covers, or sloppy wiring.
• Verify labeling, neatly arranged wiring, and proper grounding.
• Check for moisture ingress, rust, or corrosion inside enclosures.

General Cleanliness & Wear Indicators

• Is the machine generally clean, well-kept, or heavily sludged, greasy, or “neglected”? Exterior condition often correlates with internal care.
• Check for oil leaks, coolant leaks, or seepage at joints, seals, and guides.
• Look for inconsistent wear patterns — e.g. one side of the bed being more worn than the other.

---

3. Mechanical & Motion Systems

Once the machine is powered & (ideally) under test, evaluate the core motion systems (spindle, axes, ball screws, guides, etc.).

Spindle & Bearings

• Run the spindle across its complete speed range (low, mid, high). Listen for any abnormal noises: grinding, whine, rumble, chatter, or bearings “howling.”
• At high speed, check for vibration, run-out, or wobble. Use dial indicators or test bars to check spindle run-out at 2–3″ out, TIR (total indicator reading).
• After a few minutes, check for spindle housing temperature—abnormal heat is a warning.
• Inspect the spindle bore and draw-tube for damage, wear, or scoring.

Axes (X / Z) & Ball Screws

• Jog the axes through full travel, in increments, listening for binding, jerky motion, chatter, backlash, or stiction.
• Use an incremental dial or laser interferometer (if available) to check backlash, positioning accuracy, and repeatability (compare against published spec ±0.0002″ for SL8-II)
• Check ball screws: feel for rattling, axial play, backlash, or wear at different positions. Excessive wear is expensive to repair.
• Check preload and lubrication condition; are the ballscrew seals intact?
• While moving axis, watch for consistent speed, no hesitations or sudden accelerations.

Guideways / Linear/ Roller Guides

• For the SL series, Milltronics advertises linear motion guide roller ways in the design.
  • Check for wear, scarring, pitting, or indentations on the guide surfaces.
  • Use feeler gauges or test bars across the carriage to detect gaps or twist.
  • Move the carriage manually (if possible) and feel for smoothness.
  • Examine guide lubrication channels; check for clogged lines or dried lubricant.

Turret Operation, Interlocks & Tool Change

• Execute a full turret indexing cycle, switching through all stations, and measure time, smoothness, accuracy of indexing.
• Check turret locking mechanism (is it solid, no play, no slop).
• Try tool changes under no-load and loaded conditions to see if there is hesitation, error codes, or mis-indexing.

Homing, Soft Limits, Limit Switches

• Check that homing works properly and repeatably.
• Verify that soft limits, interlocks, and limit switches function as intended.
• Attempt to jog to the physical ends to see if limit switches trip properly.

Control / Motions Under Load

• Run a sample cutting test (if possible) on a standard material (e.g., mild steel) to see how the machine behaves under load: smooth motion, chatter, thermal drift, quality of finish.
• Monitor axis forces, drive currents, torque, and motor behavior: are there spikes, hiccups, or unusual current draw?
• Check that feedrates and acceleration behave smoothly (no lag or overshoot).

---

4. Control, Electronics & Software

The control system is the “brain” of the lathe. Even a mechanically perfect machine is useless if the electronics or control is flaky.

Control Panel / HMI

• Test all keys, buttons, knobs, switches for responsiveness, proper function, no ghosting or stuck keys.
• Check display(s) for clarity, brightness, dead pixels, flickering, or artifacts.
• Inspect pendant, remote controls, handwheel, USB or other interface connectors.

CNC Control (Milltronics “9000” or variant)

• Power on and review boot sequence, error messages, firmware version.
• Access the system diagnostics, alarm history logs, axis status.
• Load and run sample programs; test data I/O (USB, RS-232, Ethernet, etc.)—see if you can upload/download NC programs, tool tables, etc.
• Check capability to modify parameters, calibration, offsets, compensation (backlash compensation, etc.).
• Ask whether the control software is original, has been upgraded/modified, or rebuilt. Verify compatibility of backups, spare controllers, and replacement parts.

Drives, Servo Motors & Power Electronics

• Inspect each servo drive, amplifier, and motor wiring. Look for discoloration, burnt marks, bulging capacitors, or replaced modules.
• Check that all drives are working (no fault lights). Trigger diagnostic tests if possible.
• Monitor motor temperatures under motion. Overheating suggests stress or aging.
• Check the power supply, circuit breakers, control voltage supply stability, and grounding.

Encoders & Feedback Loops

• Check that encoders (on axes and spindle) are functional, no backlash or slippage.
• Verify linear scale (if any) feedback or compensation systems work properly.
• Test closed-loop behavior: does the machine correct deviations, and are they within spec?

Safety & Interlocks

• Test all safety doors, emergency stops, limit switches, interlocks, and verify they function reliably.
• Check whether any modifications or bypasses were made (a red flag).
• Ensure wiring meets code and safety standards.

---

5. Performance / Accuracy / Calibration Tests

Once the machine is mechanically and electronically sound, evaluate its actual machining performance vs. specs.

• Use test bars (e.g. ground steel bar) and cut to tolerance. Measure diameters, surfaces, cylindricity, concentricity, finish. Compare with published specs (e.g. ±0.0002″ repeatability for SL8-II)
• Perform backlash tests on both axes (X and Z) at multiple positions.
• Thermal stability: run the machine for hours and retest precision; monitor for drift due to heat.
• Surface finish test on a representative material at different feeds / speeds.
• Run at maximum spindle speed and test vibration, chatter, and stability under full load.
• Long moves vs short moves to check speed consistency and servo behavior.

---

6. Spare Parts / Maintenance & Repairability

Even a perfect used machine needs maintenance and occasional parts replacement. You must verify:

• Availability of spare parts: bearings, drives, motors, encoders, turret components, guides, cables, seals, coolant system parts, etc. Are they still manufactured? Or are there aftermarket equivalents?
• Cost of spare parts (check OEM lists vs aftermarket).
• Are replacement parts local (in your country) or only in USA, requiring import and high shipping/duties?
• Can you source control boards, memory modules, or CNC controller parts if needed?
• Are consumables (belts, filters, fluids) standard and readily available?
• Are service / support / field technicians available in your area (for Milltronics brand or the relevant control)?

---

7. Hidden Risks, Red Flags & “Deal Breakers”

During inspection you should be alert for the following red flags. If several are present, the machine may not be worth the risk:

• Missing documentation, manuals, schematics, or parts lists.
• Excessive spindle noise, vibration, or bearing issues.
• Large backlash or motion irregularities in axes.
• Cracks, weld repairs, or structural deformations in the bed or casting.
• Evidence of collisions, crashes, gouges on ways or turret.
• Torn or missing way covers, poor protection leading to chip damage internally.
• Poor wiring, burnt components, or electrical repairs done in a sloppy way.
• Obsolete or non-serviceable control or electronics.
• Frequent repetitive alarms or a history of chronic faults.
• Undocumented modifications or “jury-rigged” patches.
• The seller refusing live test runs or only allowing the machine cold (without proof of working under load).
• Apparent mismatch between claimed hours/mileage and actual wear.
• The machine is sold “as-is, no return” with no warranty and with heavy disclaimer.
• The machine’s price is too good to be true (suspiciously low).
• Lack of nearby technical support or difficulty in importing parts.

---

8. Commercial / Practical Considerations

Beyond technical checks, consider the commercial side of the decision:

• Total cost to get into production: transportation, rigging, installation, leveling, foundation, utilities (power, coolant supply, compressed air, etc.).
• Calibration / alignment: the machine will likely need re-leveling, alignment, and calibration after installation.
• Downtime & ramp-up time: expect some time to tune, test, and optimize.
• Operator training: for the specific controller, tool offsets, maintenance routines.
• Risk tolerance and resale value: how risky is the purchase, and what is its resale potential if you must divest?
• Warranty or limited guarantees: even a used machine from a dealer may come with a short warranty period; that’s preferred.
• Return policy or walk-away clause: ideally have a clause allowing a return or price adjustment if defects surface post-delivery.
• Compliance / safety / regulation adherence in your jurisdiction: ensure electrical, safety, machine guarding, etc., conform.

---

9. Summary: Key “Must-Pass” Criteria

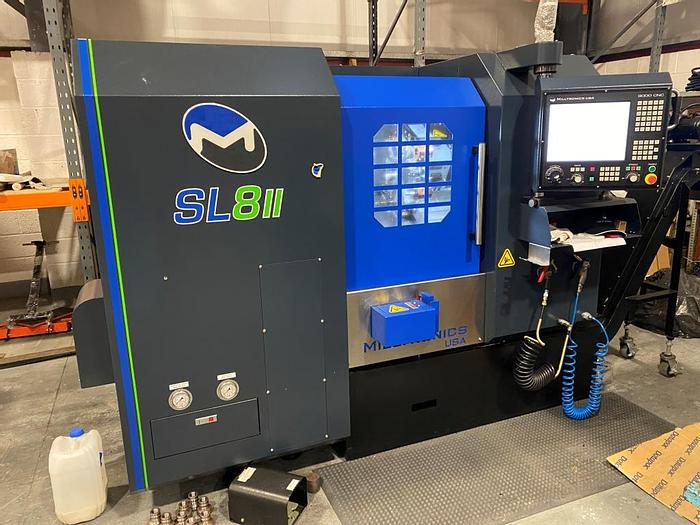

When evaluating a used Milltronics SL8-II, you should insist on passing at least these critical checkpoints:

1. Spindle health: no abnormal noise, vibration, excessive temperature or wobble.
2. Axes / ball screws / guides: minimal backlash, smooth motion, no binding, wear within tolerances.
3. Turret & tool system: precise, repeatable indexing, proper locking, no damage.
4. Control & electronics: working, stable, ability to load/run programs, no frequent error codes.
5. Structural integrity: no major cracks or damage in bed or frame; way alignment acceptable.
6. Documentation / parts support: manuals, schematics, and access to spare parts.
7. Tested under load: sample cuts with measured results matching spec.
8. No egregious red flags: omissions, repairs, poor wiring, missing protections, etc.

If a candidate machine checks all or most of those, it’s likely a sound purchase.
