Here is a Smart Buyer’s Guide / Due-Diligence Framework you can use when evaluating a used / surplus / secondhand Mazak Variaxis i-300 AWC (or similarly complex 5-axis vertical machining center) before committing to purchase. Because machines like these are high value and high complexity, the margin for hidden defects is small — so a systematic, critical inspection and evaluation approach is essential.

---

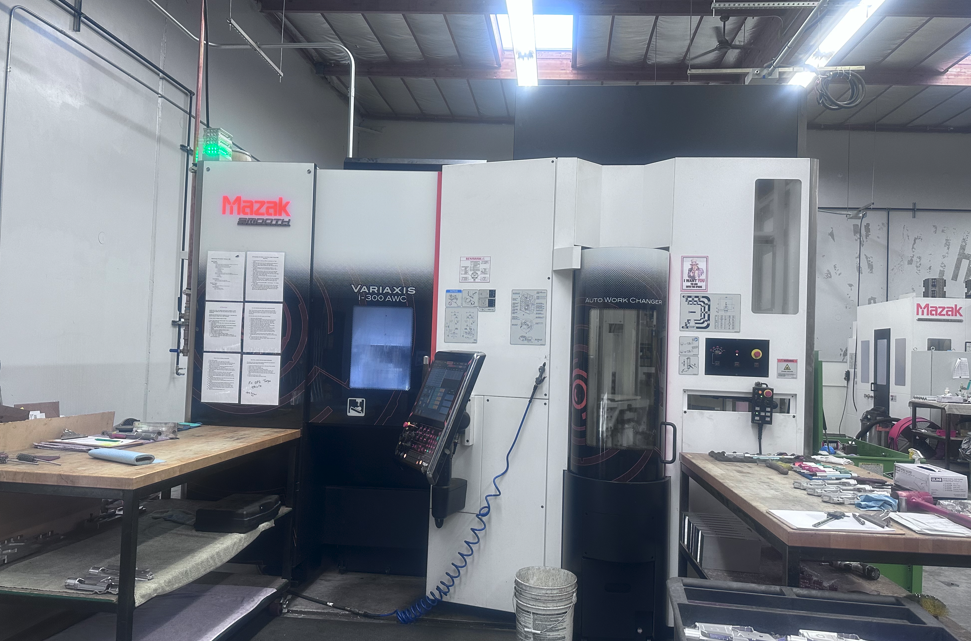

Why the Variaxis i-300 AWC deserves special scrutiny

Before diving into the checklist, here are key features and risks specific to the Variaxis i-300 AWC that you should keep in mind. These will help you set “go / no-go” thresholds and priorities in your inspection.

Key features & specs to use as benchmarks

From Mazak’s literature:

• The Variaxis i-300 AWC is a 5-axis simultaneous vertical machining center with an auto work changer (AWC) for multiple workpieces.
• Typical travels: X = 350 mm, Y = 550 mm, Z = 510 mm (approx)
• Rotary axes: A-axis (tilt) from –120° to +30° (150° total tilt) and a full 360° C-axis indexing.
• Spindle options: The standard model offers a 12,000 rpm spindle, but higher performance spindles (18,000 rpm, 25,000 rpm, 30,000 rpm) are also possible.
• Power and torque: For example, 18,000 rpm high-torque option: ~ 35 kW and 134 N·m torque (at 40% duty) in some configurations.
• Tool magazine capacity: standard ~ 145 tools, with optional capacities: 205, 265, 325, 385, 445, 505.
• Auto work changer (AWC) handling: holds up to 32 workpieces (in some configurations) with size limits, e.g. 350 × 315 mm workpiece size (approx).

Because of this complexity — multi-axis, rotating/tilting table, integrated work-changer, advanced spindle options — each subsystem must be vetted thoroughly.

---

Comprehensive Inspection Checklist & Risk Items

Below is a structured checklist (with explanations and red-flag indicators) that you can use during remote evaluation (video/photos) and especially on-site inspection.

Subsystem / Aspect	What to Inspect / Test	Why / What to Watch For	Acceptable vs. Red Flag / Comments
1. Fit to your application	• Confirm that the workpiece envelope, fixture geometry, tool paths, and tool reach will work for your parts (including orientation in 5-axis). • Confirm that the machine’s rotary axes are true simultaneous and not just “3 + 2” (i.e. tilting + indexing) only. • Check whether your CAM & postprocessor setup is supported by the existing controller. • Verify that tooling (e.g. HSK-A100 or BT/BBT/HSK options) matches or can be adapted to your tooling inventory.	Many 5-axis machines marketed as “5-axis” do only tilting + indexing (not full simultaneous motion). In a PracticalMachinist forum, users warn: “Some ‘5 axis’ machines only have 3 plus 2 capabilities.” If you need full simultaneous motion, that becomes a critical differentiator.	If all your intended parts and toolpaths can be validated on the candidate machine, then it’s good. If you see key interference, insufficient rotary travel, or sub-optimal geometry, that may disqualify the machine.
2. Machine history, documentation & control software	• Request full service logs (maintenance, repairs, spindle rebuilds, alignment checks). • Ask for original electrical, hydraulic, pneumatic, and wiring diagrams, plus any modifications. • Ask for software version and update history, and whether the control (Mazak’s SmoothX or related) is current and supported. • Ask for crash / overload history for the axes, rotary tables, or tool-changer. • Ask for backup of the control (NC programs, offsets, parameters).	Proper documentation is a strong sign of good care. Missing or chaotic logs are risk. Control-level obsolescence can leave you unsupported or force costly retrofits.	If logs show periodic maintenance and occasional component replacement, that’s positive. If logs are missing, or control is outdated with no upgrade path, that’s a warning.
3. Visual & structural inspection	• Check for rust, corrosion, pitting on key surfaces: table, rotary axes, column, exposed ways, covers. • Look for cracks, weld repairs, or modifications in the castings, base, or housing. • Check condition and integrity of guards, covers, way covers, bellows, splash guards. • Look for oil leaks, coolant leaks, hydraulic lines, pneumatic lines, loose or missing panels. • Inspect all external mounting surfaces, bolting surfaces, base — ensure no misalignment or distortion.	External wear often correlates with internal wear. Major structural repairs or cracks may indicate severe abuse.	Minor cosmetic wear is acceptable; heavy rust, cracks, missing covers, or significant weld repairs are red flags.
4. Spindle & bearing system	• Run the spindle (empty) across its full rpm range (low, mid, high) and listen for noise (rattle, hum, knocking), vibration, heating. • After running, feel for heat or hotspots on spindle housing. • Check spindle runout (with a precision dial indicator or test artifact). • Ask whether the spindle (or spindle bearings) has ever been rebuilt, and how many hours since rebuild. • If through-spindle coolant exists, test that system for pressure and flow under load. • Check spindle orientation (multi-point orient) functionality if available.	The spindle is often the most expensive single repair/replace item. Bearing degradation or misalignment can degrade all machining performance.	Smooth, quiet, within acceptable runout, moderate temperature rise = good. If there is whine, chatter, excessive heat, or signs of bearing wear, it is a serious concern.
5. Guideways, ball screws, backlash & motion quality	• Move all axes (X, Y, Z) manually and via controlled motion — check for smoothness, binding, “stiction,” or roughness. • Measure backlash in each axis (at multiple points in travel). • Examine guideway surfaces for scoring, wear, chips, and check condition of wipers and seals. • Inspect ball screws and nuts — check for axial play, pitting, wear, grease cleanliness. • Check temperature control systems for ball screw cooling (if present) — verify coolant flow. • Check linear guide rails or roller guide systems (Mazak uses roller guides in some axes) for wear or misalignment.	Precision, accuracy, and surface finish depend heavily on the quality of these motion systems. Worn ball screws or guideways are often expensive to repair or re-grind.	If backlash is within Mazak spec, motion is smooth, minimal wear = acceptable. If there is binding, excessive backlash, scoring, or slop, that is a red flag.
6. Rotary axes, tilt axis, table & trunnion mechanisms	• Command full motion of the A-axis and C-axis through their range. Check for smooth motion, no stiction, no chatter or “dead spots.” • Index the rotary axes (e.g. move C-axis 0 → 180°, A-axis tilt) and verify accurate repositioning of a known feature (e.g. bore location). • Perform a “rotate & re-measure” test: zero a feature, rotate 90°, re-measure squareness/location to detect tilt-axis errors. • Check tilt table locking, backlash in the rotary drives, and servo motor condition. • Inspect rotary bearings, gear trains, rotary seals, lubrication in those axes. • Check for calibration / compensation records for 5-axis kinematic alignment (MAZA-CHECK or equivalent).	These axes are complex and subject to wear or misalignment. Errors here propagate directly into the 5-axis accuracy. Especially critical is the trunnion tilt axis and C-axis table rotation. From forum discussions: users emphasize verifying rotational accuracy (e.g. check bore offset after 180° rotation) to catch axis miscalibration.	If rotary axes are accurate, smooth, and within spec tolerances = good. If there is play, mis-indexing, backlash, or drift errors = serious concern.
7. Tool changer / tool magazine / ATC system	• Cycle the automatic tool changer (ATC) through all pockets, with different tool lengths, and observe for misloads, crashes, hesitation. • Check tool clamp and release mechanism for wear or slippage. • Measure tool change times, alignment, and accuracy (e.g. tool tip offset after change). • Inspect the magazine rails, drive belts/gears, sensors, detection switches for wear or failure. • Check for missing or worn pockets, check tool IDs, and ensure proper registration. • If using cam-driven magazine or robotic transfer, check linkage, cams, maintenance.	A faulty tool changer causes downtime, mis-positioned tools, and scrap. Magazine wear or broken IDs can cripple the machine.	If tool changes are reliable, repeatable, and error-free over many cycles = good. If misloads, crashes, hesitation, or worn pockets = red flag.
8. Auto Work Changer (AWC) / pallet changer / workholding automation	• Operate the work changer (the AWC) through a full cycle: load, index, unload across all pallets. • Check that pallets are clamped solidly, without wobble or looseness. • Check for any misalignment, binding, or hesitation in the pallet indexing or transfer mechanism. • Inspect all grippers, sensors, actuators, cam tracks, positioning pins for wear or damage. • Confirm that the size and weight of your parts (within spec) can be handled reliably. • Check any chip flingers, blow-off air paths, or pallet cleaning functions.	Automation is one of the major differentiators of Variaxis AWC models. If the AWC fails or is misaligned, you lose a major advantage and have high service cost to repair.	If the AWC works smoothly, precisely, and reliably = good. If there is hesitation, misalignment, pallet wobble, or failure in some cycles = major red flag.
9. Control electronics, servo drives, wiring & diagnostics	• Power up the control, run diagnostics, inspect all submenus, error logs, alarms. • Test communication pathways (USB, network, serial) and data backup/restore. • Run sample or test programs to exercise motions, tool changes, multi-axis interpolation, and automation functions. • Check for signal noise, EMC issues, wiring harness condition, loose connectors, corrosion on terminals. • Inspect servo drive boards, I/O cards, power supplies, cooling systems, fans. • Check whether spare components (I/O, drives) are still available for the control model.	The “brain / nerves” of the machine is the control and electronics subsystem. Without it working reliably, even perfect mechanical systems are useless.	If control is stable, error-free, all axes responsive, and diagnostic logs are clean = good. If there are control crashes, dead cards, missing modules, or incompatibility = deal-breaker.
10. Auxiliary systems & support subsystems	• Coolant system: test pump, piping, filters, flow, pressure, overflow, leakage, chip flushing. • Lubrication / central lubrication: check that all lines, metering valves, pressure, timers are functional and not clogged. • Hydraulic / pneumatic systems: test cylinders, valves, air supply, pressure stability. • Chip conveyor, chip auger, chip bins, guards — verify movement and structural integrity. • Air blow-off, compressed air lines, air filtration. • Safety systems: doors, interlocks, limit switches. • Electrical panel: wiring, breakers, fuses, safety grounding, surge protection. • Temperature control / cooling for spindle, electronics, ball screw cooling. • Facility compatibility: check power supply, grounding, cooling water, extraction, and environmental conditions.	All these “secondary” systems are easy to neglect, yet their failure can stop production. Rebuilding or replacing them after purchase is expensive and time-consuming.	If these support systems are fully functional, with no leaks, stable pressure, proper cooling, good condition = acceptable. If pumps are failing, lines blocked, safety interlocks dead, or electrical wiring is in poor state = strong negative.
11. Geometry, calibration & part test / acceptance testing	• Perform geometry checks: squareness (X–Y, X–Z, Y–Z), straightness, flatness, and alignment of spindle axis relative to table. • Use test artifacts: e.g. cut a sample 5-axis part, measure features after rotating A/C axes to verify positioning accuracy, surface finish, straightness, multi-face compensation. • Execute a “rotate & re-measure” test: zero on one face, rotate 90° or 180°, and re-check dimensional consistency. • Run thermal drift test: let the machine run for extended periods and observe whether part dimensions drift over time. • Execute motion in multiple combinations of axes (X+Y+Z+A+C simultaneously) to simulate real cutting loads. • Verify part repeatability in multiple setups, and check tolerance compliance across full travel.	The ultimate performance of the machine is judged by what parts it can produce, reliably, and to tolerance under real conditions. Even a mechanically “OK” machine that cannot maintain geometry under load is of little use.	If the test parts come within your required tolerances, drift is minimal, and geometry is stable across the envelope = good. If tests show drift, variation, or cumulative error beyond your tolerance window = serious risk.
12. Spare parts availability, consumables, service support	• Ask which parts have been replaced (spindle parts, rotary bearings, drives, sensors) and get details (brand, hours, serials). • Investigate whether Mazak (or third-party) still supports this model, especially control, drives, rotary axis components. • Ask for price and lead times of “critical parts” (spindle bearings, drive boards, rotary bearings, tool changer parts, etc.). • Ask whether the seller can provide spare consumables (way wipers, belts, filters, seals). • Check whether software updates/patches are still offered. • If possible, get an inventory of spare parts that come with the machine.	A machine is only as good as your ability to maintain it. Lack of parts or long lead times can turn a bargain into a liability.	If spare parts are reasonably available, reasonably priced, and documented = good. If parts are obsolete, overpriced, or virtually impossible to get = a red flag.
13. Total cost & pricing negotiation	• Estimate cost of refurbishment/repairs (spindle rebuild, alignment, part replacement, calibration) and subtract from asking price. • Include transport, rigging, disassembly & reassembly, foundation, leveling, utilities, installation, certification, alignment, and test-run costs. • Seek concessions from seller to repair or guarantee critical subsystems (e.g. guarantee spindle, rotary axis) before handover. • Leave negotiation margin for unknown surprises (e.g. electronics failure, hidden wear). • Compare with price of newer machines (or reconditioned units) to ensure you are getting fair value. • Insist on a written acceptance test period or warranty (e.g. run-in / burn-in period).	Even a “cheap” used machine may cost more in hidden repairs. You should aim for a buffer to absorb surprises.	If after allowances you still see sufficient margin and acceptable risk, that’s a valid purchase. If your repair buffer equals or exceeds the machine’s value, walk away.
14. Expert inspection / third-party evaluation	• Bring (or hire) a machinist, metrology / calibration expert, or service technician experienced in 5-axis machines. • Use vibration analysis, thermal imaging, axis servo current traces, and other diagnostic tools. • If on remote evaluation, request high-resolution videos: tool changes, full-axis motions, spindle behavior, error messages. • Use a formal “acceptance test sheet” covering all critical axes and subsystems.	Many small defects hide from untrained eyes; an expert often spots what you’d miss. Investing in inspection often saves much more later.	If the expert gives a clean bill of health (with caveats) = good. If the expert finds serious or uncertain flaws, treat that as a deal-breaker (or re-negotiate heavily).
15. Contract, acceptance criteria, trial period & warranties	• Insist that your acceptance criteria (e.g. geometric tolerances on a test part) are met before you finalize. • If possible, negotiate a trial / burn-in period (e.g. 1–2 weeks) with return rights or penalty mechanism if performance not met. • Insist the seller deliver all documentation, software backups, parameter files, training, manuals, and spare parts list. • Document in contract all promised repairs, defects, and responsibilities. • Include terms for liability, repair of hidden defects, or escalation process.	A rigorous contract protects you against post-sale surprises and reneging on promises.	If the seller agrees to the acceptance test, trial period, and documentation handover, you have negotiating leverage. If they resist all guarantees or trial periods, treat that with strong caution.

---

How to Use This Guide in Practice (Roadmap)

1. Define your requirements clearly
   • Decide what parts (geometry, tolerances, material hardness) you will actually produce. Specify the 5-axis motions, clearances, envelope, and throughput needed.
   • Based on that, set your “go / no-go thresholds” (e.g. maximum allowable backlash, runout, thermal drift, tool change time, cycle times).
2. Shortlist candidate machines
   • Look for Variaxis i-300 machines (or equivalents) in your region / globally.
   • Get preliminary data: age, hours, options, photos, control version, service history.
   • Request video tours and motion demos.
3. Conduct remote screening
   • Ask for videos of full-axis motion, tool changes, sample 5-axis cuts, control screens, diagnostic menus.
   • Ask for relevant logs and documentation (service history, software versions, parts replaced).
   • Based on those, eliminate clearly unsuitable candidates before travel.
4. On-site inspection (with checklist above)
   • Take measurement tools: dial test indicators, micrometers, square, surface plate, test artifact, thermal camera (if possible).
   • Walk through the checklist, spend time on rotary axis and automation (tool changer, AWC) sections especially.
   • Run test parts, verify geometry, confirm acceptance criteria.
   • Document everything (photos, videos, measurement records).
5. Negotiate price & contract terms
   • Use defects you found as negotiation leverage.
   • Ask for seller to correct critical defects or include a guarantee.
   • Insist on acceptance testing / trial period and documented handover of software, backups, manuals, and possibly spare parts.
6. Plan logistics & reinstallation
   • Budget for rigging, transport, foundation / leveling, utilities, and alignment.
   • Plan initial calibration, burn-in machining, and final acceptance.
   • Monitor performance over the first few weeks, re-check geometry drift, thermal stability, and error logs.

---

Additional Tips & 5-Axis Specific Considerations

• Watch out for interference / envelope constraints: Because the tilt/trunnion assembly and rotary axes add bulk, sometimes you cannot place tooling, fixtures, or parts as advertised. Always bring your actual fixture or mock-up and check interference in all orientations.
• Check for dynamic work offsets / dynamic error compensation features: Many advanced 5-axis control systems have dynamic compensation for axis misalignment; verify that the candidate machine has those features and that they function properly.
• Cycle count vs. hours: Rotary axes, tool changers, and automation see more load cycles than linear axes. A machine with “low hours” but many cycles in A/C or ATC may be more worn than it appears.
• Heat / thermal drift is magnified in multi-axis machines: Ensure spindle cooling, ball screw cooling, electronics cooling, ambient stability, and thermal compensation systems are working properly.
• Software and control flexibility: Because 5-axis programming is more complex, you’ll want a robust CAM/postprocessor environment, and the ability to adapt or upgrade software (control patches, compensation modules, etc.).
• Spare parts for rotary / tilt bearings: These bearings and rotary gear sets tend to be expensive and sometimes proprietary. Their replacement may require long lead times.
• Machine calibration & re-verification costs: Post-installation, you may need to spend nontrivial time (and metrology services) to bring geometry within spec. Include that as part of your “real cost.”
• Beware of misleading “hours” or “spec” listing: Always verify by inspection. Some sellers may under-report or gloss over key defects; your inspection must be more thorough than trusting brochures.
