Here’s a Smart Buyer’s Guide specifically aimed at evaluating a pre-owned / used / surplus Finetech SMV-1060-H3L (CNC vertical machining center) (or similar mid-size VMC) before you commit. The idea is to give you a structured checklist, red flags, and decision logic so your purchase is safer and more predictable.

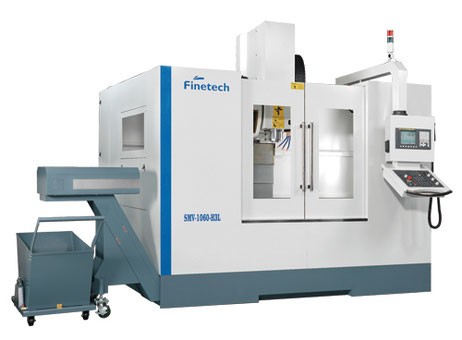

I begin by summarizing known specs of the SMV-1060-H3L (so you know what a “healthy” unit should look like), then go through what to check, test, negotiate, and what to watch out for.

---

1. Reference Specs & Baseline Expectations for SMV-1060-H3L

Before inspecting, it helps to have a baseline of what the manufacturer claims, so you can spot deviations or excessive wear. Based on public listings:

• Table size: ~ 1,100 mm × 500 mm.
• Travel (axes): X ≈ 1,000 mm ; Y ≈ 600 mm ; Z ≈ 550–560 mm.
• Max table load: ~ 700 kg (some sources say up to 800 kg)
• Spindle: BT-40 taper, up to ~ 12,000 rpm (stepless)
• Rapid traverse rates: ~ 36 m/min in X & Y ; ~ 32 m/min in Z
• Spindle motor ~ 11 kW power, total machine demand ~ 35 kVA
• Machine weight: ~ 5,650 kg (i.e. ~5.6 t)

These are your “ideal / manufacturer spec” benchmarks. A used machine will likely have some drift or wear, but it should be reasonably close or restorable to something near those values.

Also, Finetech’s marketing claims:

• They perform laser calibration, ball-bar testing, backlash compensation, thermal growth tests during factory QC.
• They use combination of linear guideways and box ways, hand scraping / matching for high precision, volumetric oil lubrication, etc.

So when you inspect, check whether those QC-style features have held up.

---

2. Pre-Inspection / Information to Request from the Seller

Before you travel or inspect in person, ask for the following. Many bad deals are avoided already at this stage.

• Machine serial number, build year, revision / version (any retrofit history)
• Total runtime / operating hours (cutting hours, idle hours)
• Maintenance and repair history: spindles rebuilt, axis rework, guideway replacement, control board replacements
• Modifications, non-factory changes (e.g. aftermarket control, extra sensors, custom wiring)
• Copies of mechanical, electrical, wiring, hydraulic / coolant diagrams, parts lists / BOMs
• CNC control / software, parameter backups, firmware version, vendor documents
• Tooling inventory & spares included (collets, holders, backup motors, spindle parts)
• Photos / video of the machine in motion (axes exercise, spindle spin, tool changes, coolant flow)
• Utility & facility requirements: electrical load, floor capacity, coolant, air, etc.
• Reason for sale, last usage condition, any known faults

If the seller can’t supply calibration / alignment records or documentation, treat that as a red flag (or discount heavily).

---

3. Mechanical / Structural Inspection Checklist

Once on site, methodically inspect all mechanical parts. Because this is a precision VMC, even small wear matters.

A. Structure & Frame

• Inspect base, column, saddle castings for cracks, distortions, weld repairs
• Check whether machine is level, whether the foundation is solid
• Check covers, enclosures, guarding, chip shields for damage or removal

B. Guideways / Linear Motion / Ball Screws

• Visually inspect guide / rail surfaces for wear, scoring, corrosion, pitting
• Jog axes (X, Y, Z) slowly over full travel; feel for binding, rough spots, stiction
• Reverse small moves and check for backlash using a dial indicator
• Use a straightedge or test bar to check straightness / deviation along travel
• Inspect ball screws and nuts for backlash, noise, binding
• Examine couplings, motor-to-screw alignment, looseness or play
• Check lubrication: oil lines, wicks, distribution, condition of oil and filters
• Verify way covers / wipers / scrapers are intact and functioning

C. Spindle & Head Assembly

• Run the spindle (no load) across rpm range; listen to bearings, check for vibration
• Mount test bar / dial indicator and measure radial + axial runout at various radii
• Inspect spindle nose, taper, collet seat for wear or damage
• Test spindle chucking, tightening, unlocking behavior
• If the head has any vertical quill or head movement, inspect its travel, rigidity, backlash

D. Tooling / ATC / Tool Magazine

• If there is an automatic tool changer, cycle it through all tools; check indexing, misfeeds
• Inspect magazine rails, mechanical arms, sensors, couplings for wear
• Test tool change under load (if safe)
• Check tool holder condition (collets, shanks)

E. Coolant, Air, and Auxiliary Systems

• Inspect coolant tank, pumps, plumbing, filters, cleanliness, leaks
• Check whether there is coolant-through-spindle (CTS) functionality (if installed)
• Look for compressed air systems, dryers, regulators, leakage
• Inspect auxiliary systems (chip conveyors, guards, safety enclosures)

F. Electrical Cabinets, Wiring & Components

• Open control / drive cabinets: check for dust, coolant ingress, corrosion, burnt boards
• Inspect wiring harnesses, connectors, shielding, proper labeling
• Check servo drives, power modules, cooling fans for health
• Inspect sensor / signal wiring for damage, shielding, connectors

G. Environmental / Setup Checks

• Check for vibration in the floor or nearby machines that could affect precision
• Measure ambient temperature stability, drafts, thermal influences
• If the machine has been moved, verify whether alignment has been redone, whether anchoring / leveling is recent

---

4. Functional / Performance Tests & Validation

Beyond inspection, you must test the machine under power, with real motions and test cuts, to expose hidden defects.

A. Axis Motion / Jog Tests

• Jog X, Y, Z through full travel at various speeds; observe smoothness, no stutter, no jump
• Reverse approach to targets to detect hysteresis / backlash
• Continuous motion cycles to check for drift or irregular friction

B. Spindle Operation / Light Cutting Test

• Spin spindle at several speeds; observe for vibration, noise, heating
• Do a light milling cut (e.g. facing on a test block) to verify cutting behavior, stability, chatter
• Measure resulting surface flatness and finish, compare with expected tolerances

C. Accuracy / Repeatability / Metrology Checks

• Use a calibrated test block or gauge to test repeatability of positions (e.g. move to N points repeatedly)
• Measure linear positioning error over travel with a known metric (measuring scale, laser, etc.)
• Check for squareness between axes (X vs Y) using test blocks or squares
• Re-measure after some cycles to check for drift

D. Tool Change / ATC Tests

• Perform repeated tool changes and verify positioning, accuracy, and any delays
• Under load (if possible), test tool swap and resuming operations, check offset retention

E. Fault / Interrupt / Recovery Tests

• Interrupt a cycle mid-operation, then resume; verify correct position recovery
• Trigger limit switches or soft alarms to check safe behavior
• Power off / power on: check homing, reference return, parameter memory integrity

F. Thermal / Long-Run Drift Test

• Run a longer cutting test (30+ minutes) under load; then remeasure critical dimensions to see drift
• Monitor temperature changes, axis offsets, and whether the system compensates (if compensation features exist)

Collect and document all deviations, drift, and repeatability results.

---

5. Spare Parts, Control / Software & Support Strategy

A used machine is only as good as your ability to maintain it going forward.

• Ensure the seller transfers all documentation: mechanical, electrical, wiring, parts BOMs, control manuals, maintenance manuals
• Confirm that control / CNC program backups, parameter files, firmware/software are delivered and usable
• Check whether control boards, servo modules, spindle electronics are current or obsolete; assess availability of spares
• Identify wear / consumable parts: collets, bearings, seals, couplings, guideways, power components
• Check whether Finetech or its agents still support this model (parts, service, upgrades)
• If the machine has CTS (coolant-through spindle) option, check that it’s in working order and its parts are serviceable
• Confirm whether upgrade paths exist (e.g. control upgrade, replacing old modules with modern ones)

A single failed, unreplaceable module can ruin the long-term value.

---

6. Risk & Cost Budgeting, Decision Logic

When comparing candidates, you must factor in “hidden costs” and risk margins.

Risk / Cost Item	What to Estimate / Ask	Impact
Refurbishment & repair cost	Cost of reworking spindle, realigning axes, replacing worn guideways, restoring wiring or control modules	If repair cost is > ~ 20–30 % of your budget for the machine, it becomes high risk
Parts / module obsolescence	If key electronics or modules are discontinued or custom, replacement may be expensive / impossible	High risk that future failure can disable the machine
Calibration / alignment / commissioning	After shipping & installation, you must re-level, align, test, run-in, verify geometry	These “startup costs” often surprise buyers
Transportation / rigging / installation cost	Crating, shock control, cranes, leveling and anchoring, utility hookups	Underestimate at your peril
Downtime / integration / programming	Time for debugging, programming, operator training	Always build in buffer time & cost
Accuracy drift / wear margin	Even a machine that tests well now may be near its precision limit	Prefer machines with “headroom” margin
Alternative vs newer / refurbished machines	Compare total landed cost (purchase + repair + downtime) vs buying newer or refurbished with warranty	Sometimes paying more gets lower risk and better ROI

Many used machine buyers conservatively budget 20–30 % (or more, for precision machines) of the purchase price for refurbishment, spare parts, calibration, and contingencies.

---

7. Contract Protections & Acceptance Clauses

To protect yourself legally and financially, structure your purchase agreement carefully.

• Acceptance / Performance Test Clause: Final payment contingent upon the machine passing a defined test suite in your premises (accuracy, repeatability, functional tests).
• Hold-back / Escrow: Retain a part of payment (e.g. 10–20 %) until successful commissioning.
• Limited Warranty on Key Subsystems: Negotiate warranty (e.g. 30–90 days) on spindle, axes, control modules, electronics.
• Spare Parts / Tooling Package: Require seller to include a set of critical spare modules (servo cards, encoders, collets) or discount accordingly.
• Documentation / License Transfer: Ensure full transfer of all manuals, wiring diagrams, control software, parameter backups.
• Liability for Hidden Defects: Clause to remedy defects discovered after installation (repair or partial refund).
• Transport / Damage Liability: Clarify who is responsible for damage during shipping, disassembly/assembly, alignment errors.

These provisions shift some of the risk to the seller and give you legal recourse.

---

8. Red Flags & Deal-Breaker Conditions

While inspecting and negotiating, be especially wary if you see any of the following — they often signal deep problems:

• Spindle noise, vibration, or runout significantly deviating from spec
• Axis binding, stick-slip, or excessive backlash on any axis
• Tool changer misindexing, stuck or slow tool changes
• Missing / severely corroded control boards, wiring, or damaged electronics
• The seller cannot provide parameter backups, calibration records, or documentation
• Electrical cabinets show water damage, corrosion, burnt boards
• CTS (coolant-through-spindle) system present but nonfunctional or broken
• Large drift / inability to hold repeatable measurements
• The seller refuses full testing or access to internal components
• The machine is near the practical limits of wear (i.e. deviations far beyond spec)
• Spare parts for critical subsystems are unavailable or prohibitively expensive
• Price is too close to new / refurbished alternatives — leaving little margin for risk
