REQUEST MACHINE INSPECTION : used WEINIG HYDROMAT 3000 Complete Planer Line with Splitting axe – Ideal for automated production of cladding/flooring and roofing battens. Year 2020

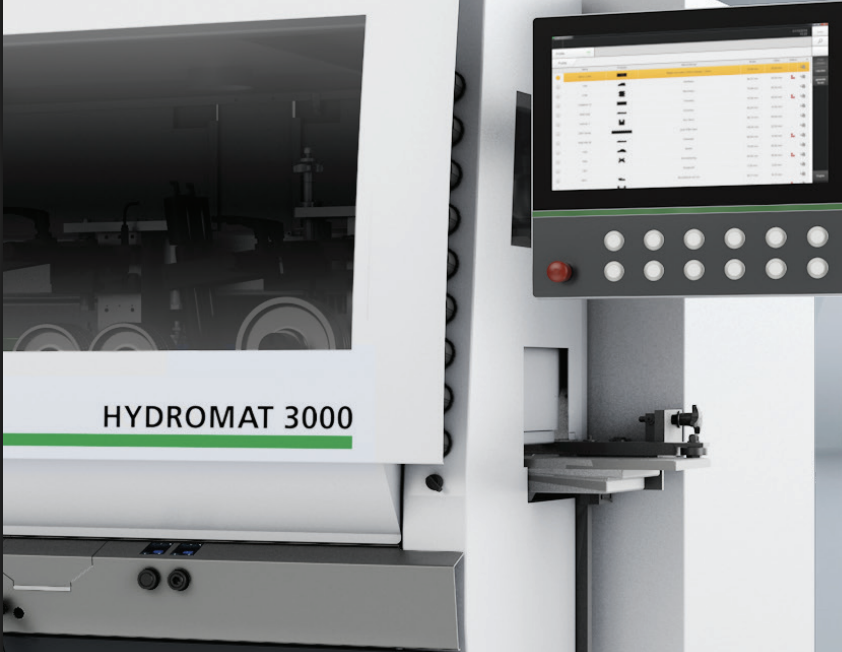

WEINIG HYDROMAT 3000 Complete Planer Line with Splitting axe – Year 2020
| Technical Specification | Metric | Imperial |
|---|---|---|
| GENERAL MACHINE INFORMATION | ||
| Manufacturer | WEINIG | WEINIG |
| Model | HYDROMAT 3000 | HYDROMAT 3000 |
| Machine Type | Automatic Planer / Moulder Production Line with Splitting Axe | Automatic Planer / Moulder Production Line with Splitting Axe |
| Year of Manufacture | 2020 | 2020 |
| Condition | Like New – Used | Like New – Used |
| Functionality | Fully Functional | Fully Functional |
| Reason for Sale | Capacity Upgrade | Capacity Upgrade |
| WORKING CAPACITY | ||
| Feed Length – X-Axis | 5,300 mm | 208.66 in / 17.39 ft |
| Working Width | 230 mm | 9.06 in |
| Working Height | 160 mm | 6.30 in |
| FEED SYSTEM | ||
| Feed Rate – X-Axis | 60 m/min | 196.85 ft/min |
| Feed Roller Diameter | Ø140 mm | Ø5.51 in |
| Feed Motor Power | 9 kW / 9,000 W | Approx. 12.07 HP |
| Height Adjustment | Electric | Electric |
| SPINDLE SYSTEM | ||
| Number of Spindles | 6 | 6 |
| Spindle Diameter | Ø180 mm | Ø7.09 in |
| Maximum Spindle Speed | 6,000 rpm | 6,000 rpm |
| Motor Brake | Included | Included |
| POWER & ELECTRICAL | ||
| Total Power | 127 kW | 172.67 HP |
| Input Current | 241 A | 241 A |

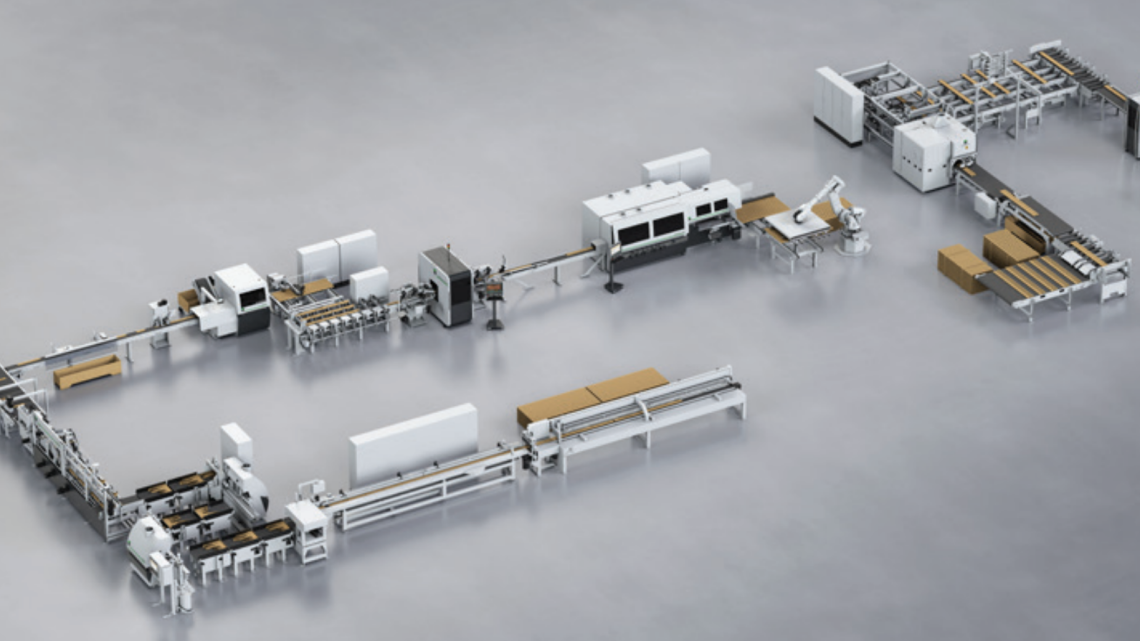

| COMPLETE PRODUCTION LINE CONFIGURATION | ||
| Complete Planer Line | Included – Complete and Functional | Included – Complete and Functional |
| Splitting Axe | Included | Included |
| Material Feeding System | Automatic Feeding by Destacking Tilting Table | Automatic Feeding by Destacking Tilting Table |
| Destacking Tilting Table | Included | Included |
| Planer Feeding System | Piece-by-Piece Automatic Planer Feeder | Piece-by-Piece Automatic Planer Feeder |
| Minibundling Station | Included | Included |
| Trimming System | Included | Included |
| Automatic Stacking System | Included | Included |
| Finished Package Handling | Automatic Lowering onto Buffer Conveyor | Automatic Lowering onto Buffer Conveyor |
| Buffer Conveyor | Included | Included |
| Strapping Preparation | Finished Package Transferred for PET Strapping | Finished Package Transferred for PET Strapping |
| PRODUCTION PROCESS | ||
| Step 1 – Material Loading | Timber is automatically supplied to the production line by the destacking tilting table. | |
| Step 2 – Planer Feeding | Workpieces are transferred individually into the WEINIG HYDROMAT 3000 by the piece-by-piece planer feeding system. | |
| Step 3 – Planing / Profiling | Material is processed through the 6-spindle HYDROMAT 3000 at a stated feed rate of up to 60 m/min (196.85 ft/min). | |
| Step 4 – Splitting | The production line is equipped with a splitting axe for the required splitting operation. | |
| Step 5 – Minibundling & Trimming | Processed workpieces proceed through the minibundling station and trimming section. | |
| Step 6 – Automatic Stacking | Finished workpieces are automatically stacked into packages. | |
| Step 7 – Package Discharge | The completed package is automatically lowered onto the buffer conveyor for subsequent PET strapping. | |
| APPLICATIONS | ||
| Cladding Production | Suitable | Suitable |
| Flooring Production | Suitable | Suitable |
| Roofing Batten Production | Suitable | Suitable |
| Automated Timber Production | Suitable for High-Throughput Automated Production | Suitable for High-Throughput Automated Production |
| MACHINE DESCRIPTION | ||
| Description | 2020 WEINIG HYDROMAT 3000 complete automatic planer production line with splitting axe. The machine is described as being in like-new used condition and fully functional. The HYDROMAT 3000 features six spindles, a maximum spindle speed of 6,000 rpm, working capacity of 230 × 160 mm (9.06 × 6.30 in), and a stated feed speed of up to 60 m/min (196.85 ft/min). | |
| Automation | The complete line incorporates automatic destacking and feeding, piece-by-piece planer feeding, planing/profiling, splitting, minibundling, trimming, automatic package stacking and automatic transfer of the finished package onto a buffer conveyor for PET strapping. | |
| Production Use | Complete automated production line intended for applications including cladding, flooring and roofing batten production. | |
