| GENERAL MACHINE INFORMATION |
| Manufacturer |
Shanghai NorthGlass |
Shanghai NorthGlass |
| Model |
AG-1E50 |
AG-1E50 |
| Machine Type |

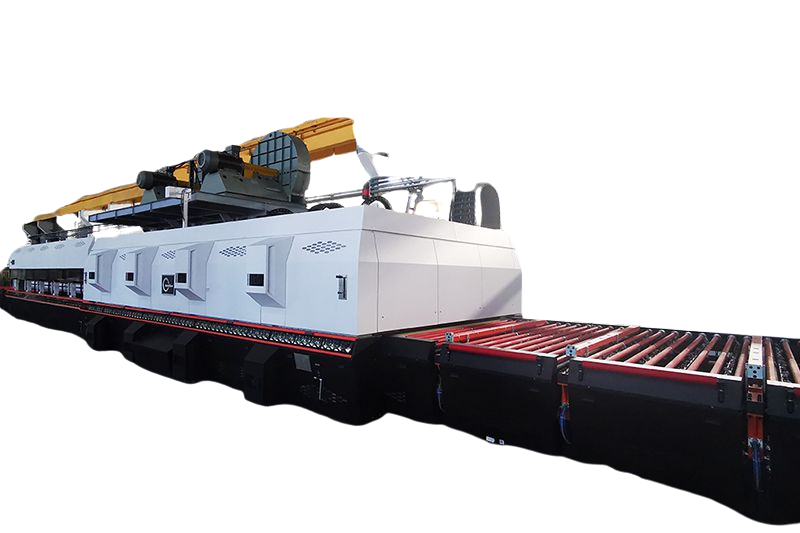

Full-Convection Flat Glass Tempering Furnace |
Full-Convection Flat Glass Tempering Furnace |
| Furnace Generation |
NorthGlass Fifth-Generation Forced-Air Convection Furnace |
NorthGlass Fifth-Generation Forced-Air Convection Furnace |
| Main Process |
Heating, Forced Convection, Flat Tempering and Cooling |
Heating, Forced Convection, Flat Tempering and Cooling |
| Convection Configuration |
Continuous Full Convection – Upper and Lower |
Continuous Full Convection – Upper and Lower |
| Tempered Glass Standard |
EN 12150-1:2000 |
EN 12150-1:2000 |
| Heat-Strengthened Glass Standard |
EN 1863-1:2000 (HS) |
EN 1863-1:2000 (HS) |
| GLASS PROCESSING CAPACITY |
| Maximum Working Width |
2,850 mm |
112.20 in / 9.35 ft |
| Maximum Loading Length |
5,000 mm |
196.85 in / 16.40 ft |
| Maximum Loading Area – 5 to 19 mm Glass |
2,850 × 5,000 mm |
112.20 × 196.85 in / 9.35 × 16.40 ft |
| Maximum Loading Area – 4 mm Glass |
2,850 × 4,600 mm |
112.20 × 181.10 in / 9.35 × 15.09 ft |
| Minimum Glass Size |
150 × 300 mm |
5.91 × 11.81 in |
| Tempering Glass Thickness Range – EN 12150 |
4 – 19 mm |
0.157 – 0.748 in |
| Heat-Strengthened Glass Thickness Range – EN 1863-1:2000 |
4 – 10 mm |
0.157 – 0.394 in |
| 4 mm Glass – Maximum Individual Pane Area |
2.5 m² |
26.91 ft² |
| SUITABLE GLASS TYPES |
| Float Glass |
Suitable |
Suitable |
| Coated Glass |
Suitable – Temperable Hard and Soft Coatings |
Suitable – Temperable Hard and Soft Coatings |
| Maximum Approximate Coating Temperature Resistance |
Approx. 700°C |
Approx. 1,292°F |
| Body-Tinted Glass |
Suitable |
Suitable |
| Enameled Glass |
Suitable |
Suitable |
| Low-Emissivity Glass |
Suitable – Document States Emissivity 0.01 |
Suitable – Document States Emissivity 0.01 |
| LOADING TABLE |
| Loading Table Construction |
Rubber-Coated Steel Rollers |
Rubber-Coated Steel Rollers |
| Roller Drive |
Individual Round-Pulley Drive; First Roller Non-Driven |
Individual Round-Pulley Drive; First Roller Non-Driven |
| Glass Positioning System |
Pneumatically Operated Automatic Vertical Ball-Transfer Unit |
Pneumatically Operated Automatic Vertical Ball-Transfer Unit |
| Loading Process |
Computer Controlled Automatic Loading |
Computer Controlled Automatic Loading |
| Large Sheet Transverse Loading |
Non-Driven Side Rollers – Loading from Either Side |
Non-Driven Side Rollers – Loading from Either Side |
| Glass Length Measurement |
Dual Photoelectric Sensor System |
Dual Photoelectric Sensor System |
| Glass Length Measurement Technology |
Patented Collision-Prevention Measurement System |
Patented Collision-Prevention Measurement System |
| HEATING SECTION & FULL CONVECTION SYSTEM |
| Heating Chamber Construction |
Double-Shell Chamber with Thermal Insulation |
Double-Shell Chamber with Thermal Insulation |
| Furnace Roller Material |
High-Temperature Ceramic |
High-Temperature Ceramic |
| Ceramic Roller Approved Brands |
Vesuvius / Haldenwanger / Ceradyne |
Vesuvius / Haldenwanger / Ceradyne |
| Specified Ceramic Roller Brand |
VESUVIUS |
VESUVIUS |
| Heating Elements |
Upper and Lower Spiral Heating Elements |
Upper and Lower Spiral Heating Elements |
| Heating Element Replacement |
Designed for Easy Replacement |
Designed for Easy Replacement |
| Heating Zone Monitoring |
Independent Thermocouple per Zone |
Independent Thermocouple per Zone |
| Temperature Regulation |
Independent PID Control Loops |
Independent PID Control Loops |
| Loading / Furnace Roller Synchronization |
Automatic Synchronous Motion |
Automatic Synchronous Motion |
| Upper Furnace Section |
Liftable for Maintenance |
Liftable for Maintenance |
| Upper Convection |
Included |
Included |
| Lower Convection |
Included |
Included |
| Convection Fan Material |
Aerospace-Grade High-Temperature Superalloy |
Aerospace-Grade High-Temperature Superalloy |
| Convection Fan Construction |
Special Welding, Sealing and Thermal-Bridge Isolation |
Special Welding, Sealing and Thermal-Bridge Isolation |
| Emergency Glass Removal |
UPS System or Manual Hand-Crank Roller Drive |
UPS System or Manual Hand-Crank Roller Drive |
| INTELLIGENT TEMPERATURE CONTROL |
| Temperature-Control Module |
NorthGlass Intelligent Temperature-Control Module |
NorthGlass Intelligent Temperature-Control Module |
| Temperature-Control Processing |
Direct Module Processing without PLC Routing |
Direct Module Processing without PLC Routing |
| Temperature-Control Response Time |
0.25 sec |
0.25 sec |
| Temperature Module Brand |
Shinko |
Shinko |
| Heating / Convection Arrangement |
Advanced Gap-Free Interleaving Arrangement |
Advanced Gap-Free Interleaving Arrangement |
| Heating Arrangement Purpose |
Center / Edge Temperature Balance and Leopard-Spot Reduction |
Center / Edge Temperature Balance and Leopard-Spot Reduction |
| FORCED-CONVECTION SYSTEM |
| Convection Distribution Pipes |
Heat-Resistant Steel |
Heat-Resistant Steel |
| Convection Structure |
Open-Pipe Structure |
Open-Pipe Structure |
| Return-Air Design |
Open Structure for Improved Return-Air Flow |
Open Structure for Improved Return-Air Flow |
| Edge Overheating Control |
Designed to Reduce Edge Overheating and Thermal-Stress Marks |
Designed to Reduce Edge Overheating and Thermal-Stress Marks |
| TEMPERING & COOLING SECTION |
| Air-Blowing Heads |
Upper and Lower Sections |
Upper and Lower Sections |
| Nozzle Material |
Aluminum Alloy |
Aluminum Alloy |
| Nozzle Height |
Adjustable Upper and Lower Distance |
Adjustable Upper and Lower Distance |
| Glass Transport |
Multiple Rollers Between Blowing Heads |
Multiple Rollers Between Blowing Heads |
| Furnace / Quench Roller Synchronization |
Synchronized |
Synchronized |
| Glass Movement During Tempering |
Back-and-Forth Oscillation |
Back-and-Forth Oscillation |
| Nozzle Movement |
Transverse Oscillation |
Transverse Oscillation |
| Air Pressure / Flow Regulation |
Automatic via Blower-Speed Control |
Automatic via Blower-Speed Control |
| Roller Covering |
Spirally Wound Kevlar Cord |
Spirally Wound Kevlar Cord |
| Drive-Belt Replacement System |
Patented Replacement without Stopping Conveyor |
Patented Replacement without Stopping Conveyor |
| Air-Nozzle Structure |
Staggered Gap-Free Nozzle Arrangement |
Staggered Gap-Free Nozzle Arrangement |
| Nozzle Optimization |
Optimized Diameters and Blowing Angles |
Optimized Diameters and Blowing Angles |
| Oscillating Side Walls |
Patented |
Patented |
| Nozzle-Wall Oscillation Screws |
Universal-Joint Type |
Universal-Joint Type |
| Quench Lighting |
Energy-Saving LED |
Energy-Saving LED |
| UNLOADING TABLE |
| Unloading Table Design |
Same Basic Design as Loading Table |
Same Basic Design as Loading Table |
| Glass End Detection |
Optical Sensor |
Optical Sensor |
| Automatic Stop |
Yes – Glass Stops at End of Table |
Yes – Glass Stops at End of Table |
| VENTILATION & AIR-DUCT SYSTEM |
| Fan Type |
High-Efficiency Centrifugal Fans |
High-Efficiency Centrifugal Fans |
| Fan Balancing |
Static and Dynamic Balancing |
Static and Dynamic Balancing |
| Fan Motor Control |
Individual Frequency Inverters |
Individual Frequency Inverters |
| Air Valve |
Butterfly Valve |
Butterfly Valve |
| Butterfly Valve Actuation |
Pneumatic Cylinder |
Pneumatic Cylinder |
| Valve Control |
Automatic Computer Control |
Automatic Computer Control |
| Flexible Air-Duct Connections |
Included – Vibration Isolation and Pressure Balancing |
Included – Vibration Isolation and Pressure Balancing |
| New PVC Air Duct |
Fully Sealed |
Fully Sealed |
| PVC Duct Tensile Strength |
Stated as Increased Threefold |
Stated as Increased Threefold |
| CONTROL & AUTOMATION SYSTEM |
| Process Recipe Storage |
Unlimited Process-Parameter Storage Stated |
Unlimited Process-Parameter Storage Stated |
| Recipe Parameters |
Thickness, Size, Color, Glass Type and Process Settings |
Thickness, Size, Color, Glass Type and Process Settings |
| Roller Motion Controller |
Included |
Included |
| Temperature Controller |
Included |
Included |
| Tempering Process Controller |
Included |
Included |
| Fault Warning System |
Automatic Fault Identification with Corrective Guidance |
Automatic Fault Identification with Corrective Guidance |
| Automatic Preheating |
Included |
Included |
| Standby Heating Energy Consumption |
15% of Heating Energy – Document Stated |
15% of Heating Energy – Document Stated |
| Ceramic Rollers During Standby |
Remain in Motion |
Remain in Motion |
| Automatic Reheating |
Programmable Before Next Production Shift |
Programmable Before Next Production Shift |
| Main Computer Functions |
Automatic Control / Recipe Read-Write / Self-Diagnostics / Alarm Display |
Automatic Control / Recipe Read-Write / Self-Diagnostics / Alarm Display |
| Main Drive Control |
Computer-Controlled Frequency Inverters |
Computer-Controlled Frequency Inverters |
| Production Display |
Glass Position, Drive Status, Zone Temperatures, Heating Time, Tempering, Cooling and Fan Settings |
Glass Position, Drive Status, Zone Temperatures, Heating Time, Tempering, Cooling and Fan Settings |
| Process Parameter Display |
Travel, Zone Temperatures, Fan Pressure, Cooling Time and Tempering Time |
Travel, Zone Temperatures, Fan Pressure, Cooling Time and Tempering Time |
| Service Screen |
Individual Component Testing for Maintenance Personnel |
Individual Component Testing for Maintenance Personnel |
| New Graphical Interface |
Interactive Furnace Graphic with Parameter Dialog Boxes |
Interactive Furnace Graphic with Parameter Dialog Boxes |
| FLOAT GLASS PRODUCTIVITY AT 65% LOADING |
| 4 mm Glass |
24 Loads/hour |
24 Loads/hour – 0.157 in Glass |
| 5 mm Glass |
20 Loads/hour |
20 Loads/hour – 0.197 in Glass |
| 6 mm Glass |
17 Loads/hour |
17 Loads/hour – 0.236 in Glass |
| 8 mm Glass |
12 Loads/hour |
12 Loads/hour – 0.315 in Glass |
| 10 mm Glass |
9 Loads/hour |
9 Loads/hour – 0.394 in Glass |
| 12 mm Glass |
7 Loads/hour |
7 Loads/hour – 0.472 in Glass |
| 15 mm Glass |
5 Loads/hour |
5 Loads/hour – 0.591 in Glass |
| 19 mm Glass |
3 Loads/hour |
3 Loads/hour – 0.748 in Glass |
| Productivity Test Basis |
1 × 2 m Glass – Indicative Values |
Approx. 3.28 × 6.56 ft Glass – Indicative Values |
| GENERAL TECHNICAL DATA |
| Loading Height |
920 mm |
36.22 in |
| Furnace Roller Diameter |
Ø95 mm |
Ø3.74 in |
| Upper Furnace Lifting Height |
550 mm |
21.65 in |
| Heating Time – 20°C to 700°C |
12 h Intermittent / 4 h Continuous |
68°F to 1,292°F – 12 h Intermittent / 4 h Continuous |
| Heating Time – 550°C to 680°C |
≤ 1 h |
1,022°F to 1,256°F – ≤ 1 h |
| Glass Discharge Temperature |
≤ 30°C Above Ambient |
≤ 54°F Above Ambient |
| Specified Yield |
≥97% for 4–19 mm Glass, Three Months after Acceptance |
≥97% for 0.157–0.748 in Glass, Three Months after Acceptance |
| CLEAR FLOAT GLASS QUALITY DATA AT 60–65% LOADING |
| 4 mm Glass – Overall Bow |
≤1.2‰ |
≤1.2‰ |
| 5 mm Glass – Overall Bow |
≤1.0‰ |
≤1.0‰ |
| 6 / 8 / 10 / 12 / 15 / 19 mm – Overall Bow |
≤1.0‰ |
≤1.0‰ |
| 4 mm Glass – Local Bow |
≤0.18 / 300 |
≤0.18 / 300 |
| 5 mm Glass – Local Bow |
≤0.15 / 300 |
≤0.15 / 300 |
| 6 mm Glass – Local Bow |
≤0.12 / 300 |
≤0.12 / 300 |
| 8 / 10 / 12 / 15 / 19 mm – Local Bow |
≤0.08 / 300 |
≤0.08 / 300 |
| Iridescence Requirement |
Not Visible to Naked Eye under Specified Acceptance Conditions |
Not Visible to Naked Eye under Specified Acceptance Conditions |
| Iridescence Viewing Distance |
≥1,000 mm |
≥39.37 in |
| Iridescence Minimum Viewing Angle |
15° |
15° |
| Maximum Total Panel Thickness for Iridescence Criterion |
30 mm |
1.181 in |
| Maximum Individual Glass Thickness for Iridescence Criterion |
19 mm |
0.748 in |
| 4 mm Acceptance Panel Limit |
Maximum 2.5 m² / Maximum Length 2 m |
Maximum 26.91 ft² / Maximum Length 6.56 ft |
| 5 mm Acceptance Panel Limit |
Maximum 4 m² / Maximum Length 2.5 m |
Maximum 43.06 ft² / Maximum Length 8.20 ft |
| 6 mm Acceptance Panel Limit |
Maximum 5 m² / Maximum Length 2.5 m |
Maximum 53.82 ft² / Maximum Length 8.20 ft |
| Glass Edge Preparation |
Glass Must Be Edge-Polished Before Tempering |
Glass Must Be Edge-Polished Before Tempering |
| Special Glass Quality Values |
Low-Iron, Shaped, Holed, Patterned and Printed Glass Specifications May Differ |
Low-Iron, Shaped, Holed, Patterned and Printed Glass Specifications May Differ |
| Acceptance Test Edge Exclusion |
Last 25 mm Excluded |
Last 0.984 in Excluded |
| UTILITIES & ELECTRICAL REQUIREMENTS |
| Air Compressor – Buyer Supply |
1.5 m³/min |
Approx. 53.0 CFM |
| Maximum Compressed-Air Pressure |
1 MPa / 10 bar |
Approx. 145 psi |
| Air Receiver – Buyer Supply |
0.6 m³ / 600 L |
Approx. 21.19 ft³ / 158.5 US gal |
| Air Receiver Operating Pressure |
0.6 MPa / 6 bar |
Approx. 87 psi |
| Air Receiver Pressure Resistance |
1 MPa / 10 bar |
Approx. 145 psi |
| Furnace Electrical Supply |
3 PH + N + PE, 400 V ±10%, 50 Hz |
3 PH + N + PE, 400 V ±10%, 50 Hz |
| Fan Control Supply |
3 PH + N + PE, 400 V ±10%, 50 Hz |
3 PH + N + PE, 400 V ±10%, 50 Hz |
| INSTALLED / REQUIRED POWER |
| Heating Power |
Approx. 1,420 kW |
Approx. 1,904 HP |
| Convection Drive Power – Total |
42 kW |
Approx. 56.3 HP |
| Upper Convection Drives |
6 × 4 kW = 24 kW |
6 × 5.36 HP = Approx. 32.2 HP |
| Lower Convection Drives |
6 × 3 kW = 18 kW |
6 × 4.02 HP = Approx. 24.1 HP |
| Auxiliary Drives |
20 kW |
Approx. 26.8 HP |
| Tempering Section Power |
630 kW – 315 kW × 2 |
Approx. 845 HP – 422.4 HP × 2 |
| Total Required Power |
Approx. 1,700 kW |
Approx. 2,280 HP |
| Power Requirement Note |
Actual required supply capacity may vary according to final machine design data. |
| CONTROL SYSTEM HARDWARE |
| Control Software |
Developed by Shanghai NorthGlass Industrial Technology Co., Ltd. |
| PLC Listed in Control-System Section |
SIEMENS S7-300 |
SIEMENS S7-300 |
| Industrial Computer Listed in Control-System Section |
EVOC – Taiwan |
EVOC – Taiwan |
| Frequency Inverters |
SCHNEIDER or SIEMENS |
SCHNEIDER or SIEMENS |
| Optical Sensors |
OMRON or Equivalent |
OMRON or Equivalent |
| Control Monitor |
17-inch LCD |
17-inch LCD |
| SCOPE OF SUPPLY |
| Loading Table |
Included |
Included |
| Full-Convection Heating Section |
Included – Upper & Lower Continuous Convection |
Included – Upper & Lower Continuous Convection |
| Flat Tempering / Cooling Section |
Included |
Included |
| Unloading Table |
Included |
Included |
| Control System |
Included |
Included |
| Electrical Cabinets & PLC Controllers |
Included |
Included |
| Fan Stations & Air-Duct System |
Included |
Included |
| Blower Frequency Inverters |
Included – Two 315 kW Fan Drives |
Included – Two Approx. 422 HP Fan Drives |
| Emergency UPS System |
Included |
Included |
| SO₂ Gas Supply System |
Included – Gas Cylinder Excluded |
Included – Gas Cylinder Excluded |
| Remote Diagnostics |
Modem and Software Included |
Modem and Software Included |
| Spare Parts Package |
Included – Stated as Sufficient for One Year of Operation |
Included – Stated as Sufficient for One Year of Operation |
| AG MODEL – INCLUDED / LISTED SPARE PARTS – HEATING SECTION |
| Ceramic Tubes |
30 pcs |
30 pcs |
| Upper T-Shaped Ceramic Tubes |
10 pcs |
10 pcs |
| Heating Elements |
10 pcs |
10 pcs |
| Roller Bearings |
2 sets |
2 sets |
| Main-Drive Bearings |
2 sets |
2 sets |
| Drive-Section Bearings |
2 sets |
2 sets |
| Pulley Bearings |
2 sets |
2 sets |
| Main Drive Belts |
5 pcs |
5 pcs |
| Insulation Board |
1 box |
1 box |
| Upper Ceramic Connecting Units |
10 pcs |
10 pcs |
| Upper Connecting Screws |
4 sets |
4 sets |
| Rigid Adhesive |
1 kg |
Approx. 2.20 lbs |
| High-Temperature Adhesive |
2 kg |
Approx. 4.41 lbs |
| Heating-Element Locking Components |
30 pcs |
30 pcs |
| Insulated Ceramic Components for Heating Elements |
20 pcs |
20 pcs |
| Ceramic Rings for Suspending Heating Elements |
20 pcs |
20 pcs |
| AG MODEL – SPARE PARTS – COOLING SECTION |
| Kevlar Cord |
40 m |
Approx. 131.23 ft |
| Cooling-Section Roller Bearings |
2 sets |
2 sets |
| Cooling-Section Main-Drive Bearings |
2 sets |
2 sets |
| Cooling-Section Drive Bearings |
2 sets |
2 sets |
| Wheel Bearings |
2 sets |
2 sets |
| Main Drive Belts |
5 pcs |
5 pcs |
| Flexible Air Duct |
1 pc |
1 pc |
| AG MODEL – SPARE PARTS – LOADING / UNLOADING TABLE |
| Roller Bearings |
2 sets |
2 sets |
| Self-Aligning Casters for Lifting Platform |
20 pcs |
20 pcs |
| AG MODEL – SPARE PARTS – VENTILATION SYSTEM |
| Flexible Connection at Blower Air Outlet |
1 pc |
1 pc |
| AG MODEL – ELECTRICAL SPARE PARTS |
| Thermocouples |
10 pcs |
10 pcs |
| Contactors |
2 pcs |
2 pcs |
| Relays |
2 pcs |
2 pcs |
| 1P Circuit Breaker |
1 pc |
1 pc |
| 2P Circuit Breaker |
1 pc |
1 pc |
| 3P Circuit Breaker |
1 pc |
1 pc |
| Lower Normally-Open Relays |
2 pcs |
2 pcs |
| Lower Normally-Closed Relays |
2 pcs |
2 pcs |
| Knob Indicator Lights |
5 pcs |
5 pcs |
| Button Indicator Lights |
2 pcs |
2 pcs |
| 2 A Cartridge Fuses |
5 pcs |
5 pcs |
| 6 A Cartridge Fuses |
5 pcs |
5 pcs |
| SSR – Type 1 |
5 pcs |
5 pcs |
| SSR – Type 2 |
5 pcs |
5 pcs |
| Fast-Acting Cartridge Fuses |
10 pcs |
10 pcs |
| Fans |
2 pcs |
2 pcs |
| Proximity Sensor |
1 pc |
1 pc |
| Photoelectric Switch |
1 pc |
1 pc |
| Pressure-Roller Travel Switch |
1 pc |
1 pc |
| Swing Lead-Screw Structure Travel Switch |
1 pc |
1 pc |
| Spare Parts List Status |
Preliminary list; final list may change due to technological upgrades and is supplied with delivery. |
| MAIN COMPONENTS / STANDARD BRANDS |
| Gear Reducer |
China |
China |
| Drive / Motor Control |
WEG / ABB / Siemens – Specified: WEG |
WEG / ABB / Siemens – Specified: WEG |
| High-Temperature Fan Motor |
Siemens / WEG – Specified: WEG |
Siemens / WEG – Specified: WEG |
| Cooling-Section Motor |
Siemens / WEG / ABB – Specified: WEG |
Siemens / WEG / ABB – Specified: WEG |
| Pneumatic Control Components |
Airtac |
Airtac |
| Ceramic Rollers |
Vesuvius / Haldenwanger / Ceradyne – Specified: VESUVIUS |
Vesuvius / Haldenwanger / Ceradyne – Specified: VESUVIUS |
| High-Temperature Fan |
NorthGlass |
NorthGlass |
| Insulation Material |
China |
China |
| Radiation / Convection Heating Elements |
China |
China |
| Kevlar Cord |
China |
China |
| Cooling-Section Aluminum Profiles |
NorthGlass |
NorthGlass |
| Roller Bearings |
NorthGlass |
NorthGlass |
| Cooling Fan |
NorthGlass-Taixin / Ningbo Fangyuan |
NorthGlass-Taixin / Ningbo Fangyuan |
| Industrial PC – Component List |
ADVANTECH |
ADVANTECH |
| LCD – Component List |
Nodka |
Nodka |
| PLC – Component List |
Omron / Siemens – Specified: OMRON |
Omron / Siemens – Specified: OMRON |
| Inverter Below 15 kW |
Schneider / Siemens / AB – Specified: SIEMENS |
Schneider / Siemens / AB – Specified: SIEMENS |
| Large Fan Inverter |
Siemens / Schneider / AB – Specified: SIEMENS |
Siemens / Schneider / AB – Specified: SIEMENS |
| Encoder |
Omron / Banner – Specified: OMRON |
Omron / Banner – Specified: OMRON |
| Proximity Sensor |
Omron |
Omron |
| Photoelectric Switch |
Omron |
Omron |
| Temperature Module |
Shinko |
Shinko |
| Contactor / Thermal Relay |
Siemens / ABB |
Siemens / ABB |
| Travel Switch |
Schneider |
Schneider |
| 24 V / 12 V Power Supply |
Schneider |
Schneider |
| Intermediate Relay |
Omron / Phoenix – Specified: OMRON |
Omron / Phoenix – Specified: OMRON |
| Solid-State Relay – SSR |
China |
China |
| Buttons / Knobs |
ABB / Schneider |
ABB / Schneider |
| UPS |
Optional Brand Listed: INVT / Kehua |
Optional Brand Listed: INVT / Kehua |
| Component Substitution |
NorthGlass reserves the right to make required technical modifications using
products of the same or better quality. |
| INSTALLATION SITE / ENVIRONMENTAL DATA REQUIRED FROM BUYER |
| Phase Voltage |
To Be Specified by Buyer – V |
To Be Specified by Buyer – V |
| Line Voltage |
To Be Specified by Buyer – V |
To Be Specified by Buyer – V |
| Frequency |
To Be Specified by Buyer – Hz |
To Be Specified by Buyer – Hz |
| Humidity |
To Be Specified by Buyer – % |
To Be Specified by Buyer – % |
| Air Density |
To Be Specified by Buyer – kg/m³ |
To Be Specified by Buyer – lb/ft³ |
| Average Summer Temperature |
To Be Specified by Buyer – °C |
To Be Specified by Buyer – °F |
| Average Winter Temperature |
To Be Specified by Buyer – °C |
To Be Specified by Buyer – °F |
| Atmospheric Pressure |
To Be Specified by Buyer – Pa |
To Be Specified by Buyer – psi |
| Altitude Above Sea Level |
To Be Specified by Buyer – m |
To Be Specified by Buyer – ft |
| INSTALLATION & COMMISSIONING REQUIREMENTS |
| Electrical Power |
Buyer to provide electrical power at Seller-specified connection points. |
| Compressed Air |
Buyer to provide compressed air at Seller-specified connection points. |
| Installation Personnel |
Two qualified workers continuously; four workers when heavy items must be moved. |
| Installation Tools |
Welding machines, grinders, drills and other required power tools to be supplied for installation. |
| Installation Crane |
10 Metric Ton Crane or 35 Metric Ton Mobile Crane |
Approx. 11 US Ton Crane or 38.6 US Ton Mobile Crane |
| Installation Forklift |
5 Metric Ton Forklift |
Approx. 11,023 lb / 5.51 US Ton Capacity |
| Foundation |
Buyer to prepare foundation according to Seller’s foundation drawing. |
| Commissioning Materials |
Buyer to provide all glass, electrical power and labor required for commissioning and tests. |
| Acoustic Enclosures |
Buyer responsibility where required for tempering/cooling and fan stations. |
| Air-Inlet Filters / Silencers |
Buyer responsibility where required. |
| Air-Duct Noise Insulation |
Buyer responsibility. |
| ACCEPTANCE TEST PARAMETERS |
| Acceptance Test Products |
Three products representing different dimensions and thicknesses. |
| Acceptance Criteria |
Applicable quality standards for finished products. |
| Normal Continuous Production Test |
2 – 8 Hours |
2 – 8 Hours |
| Maximum Repeat Tests |
3 |
3 |
| Standard Acceptance Run |
2 Hours Continuous Production unless Otherwise Agreed |
2 Hours Continuous Production unless Otherwise Agreed |
| IMPORTANT TECHNICAL DOCUMENT NOTES |
| PLC Information |
The control-system section specifies a SIEMENS S7-300 PLC, while Appendix 4
lists Omron / Siemens with OMRON shown as the specified component. Both entries
are retained because they appear separately in the source document. |
| Industrial PC Information |
The control-system section lists an EVOC industrial computer manufactured in Taiwan,
while Appendix 4 lists ADVANTECH as the industrial PC. Both source-document entries
are retained. |
| LCD Information |
The control-system description specifies a 17-inch LCD monitor; Appendix 4 lists
Nodka as the LCD component brand. |
| Final Configuration |
Final component configuration may differ according to final design and permitted
technical modifications using components of equivalent or better quality. |
| COMPLETE MACHINE DESCRIPTION |
| Machine Description |
NorthGlass AG-1E50 fifth-generation full-convection flat glass tempering furnace
designed for high-productivity tempering of float, coated, body-tinted, enameled
and low-emissivity glass. The line incorporates automatic loading, a thermally
insulated heating chamber, upper and lower continuous forced convection,
flat-glass quenching and cooling, automatic unloading, centrifugal fan stations,
air ducts and a computerized process-control system. |
| Maximum Processing Format |
Maximum working width is 2,850 mm (112.20 in). Maximum loading length is
5,000 mm (196.85 in) for 5–19 mm glass and 4,600 mm (181.10 in) for 4 mm glass.
Minimum glass size is 150 × 300 mm (5.91 × 11.81 in). |
| Full-Convection Technology |
Upper and lower forced-convection systems use heat-resistant open-pipe structures,
high-temperature superalloy fans and independently controlled heating zones.
The interleaved radiation and convection arrangement is designed to improve
temperature uniformity between the center and edges of the glass and reduce
thermal defects. |
| Automation |
Computerized operation includes recipe storage, automatic loading control,
temperature and tempering-process controllers, inverter-controlled drives,
self-diagnostics, fault warnings, automatic preheating, process visualization,
service diagnostics and remote diagnostic capability. |
| Production Capability |
At the document’s stated 65% loading condition, indicative float-glass productivity
ranges from 24 loads per hour for 4 mm glass to 3 loads per hour for 19 mm glass.
These figures are based on tests using 1 × 2 m glass and may vary according to
actual glass dimensions. |
