REQUEST MACHINE INSPECTION : used Gannomat Index PRO 130 CNC Dowel Insertion Machine for RTA fittings, drawer parts, frames, confirmats and all production requiring multiple boring patterns and hole sizes – Year 2021

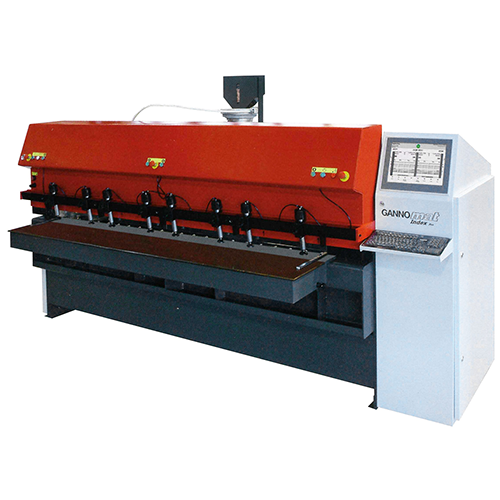

Gannomat Index PRO 130 CNC Dowel Insertion Machine – Year 2021
| Technical Specification | Metric | Imperial |
|---|---|---|
| GENERAL MACHINE INFORMATION | ||
| Manufacturer | Gannomat | Gannomat |
| Model | Index PRO 130 | Index PRO 130 |
| Machine Type | CNC Boring, Gluing & Dowel Insertion Machine | CNC Boring, Gluing & Dowel Insertion Machine |
| Year of Manufacture | 2021 | 2021 |
| BORING & DOWEL INSERTING SYSTEM | ||
| Boring / Inserting Aggregate | Travel on Profile Bearing Guides | Travel on Profile Bearing Guides |
| Boring Unit | 1 Single-Spindle Boring Unit | 1 Single-Spindle Boring Unit |
| Blowing / Gluing / Dowel Inserting Unit | 1 Unit | 1 Unit |
| Existing Dowel Diameter | Ø11 mm | Ø0.433 in |
| Existing Dowel Size | Ø11 × 45 mm | Ø0.433 × 1.772 in |
| Outstanding Dowel Length | 15 – 28 mm | 0.591 – 1.102 in |
| Dowel Hopper Feed | Separate Stand for Ø11 mm × 45 mm Dowels | Separate Stand for Ø0.433 in × 1.772 in Dowels |
| Dowel Hopper Monitoring | Mirror at Hopper Feed for Dowel Quantity Control | Mirror at Hopper Feed for Dowel Quantity Control |
| CNC AXES & POSITIONING | ||
| X-Axis | NC Controlled | NC Controlled |
| Y-Axis | NC Controlled – Ball Screw | NC Controlled – Ball Screw |
| Z-Axis | NC Controlled – Ball Screw with Dynamic Positioning | NC Controlled – Ball Screw with Dynamic Positioning |
| NC-Controlled Angle Adjustment | 0° – 45° | 0° – 45° |
| Angle Adjustment Application | Drilling, Gluing and Dowel Inserting Aggregate | Drilling, Gluing and Dowel Inserting Aggregate |
| GLUING SYSTEM | ||
| Gluing System | Closed Gluing System | Closed Gluing System |
| Glue Pressure | 6 bar | Approx. 87 psi |
| Glue Quantity Adjustment | Variable – Computer Controlled | Variable – Computer Controlled |
| Glue Insert Control | Electronic Inductive Glue Insert Control System | Electronic Inductive Glue Insert Control System |
| Glue / Water Selector | GLUE / WATER Selector Switch for Quick System Rinsing | GLUE / WATER Selector Switch for Quick System Rinsing |
| Glue Container | Stainless Steel – Approx. 5.68 Liters | 1.5 US Gallons |
| Water Container | Stainless Steel – Approx. 5.68 Liters | 1.5 US Gallons |
| WORKPIECE POSITIONING & CLAMPING | ||
| Stopping / Side Fence System | Right-Hand, Left-Hand and Center Stops – Removable | Right-Hand, Left-Hand and Center Stops – Removable |
| Right-Hand Stop | 1 – Removable | 1 – Removable |
| Left-Hand Stop | 1 – Removable | 1 – Removable |
| Center Stop | 1 – Removable | 1 – Removable |
| Continuous Front Stop | Included | Included |
| Clamp Cylinder Stroke | 50 mm | 1.97 in |
| Starting Buttons | 4 – Individual Processing of 1 to 4 Workpieces | 4 – Individual Processing of 1 to 4 Workpieces |
| Working Zones | 4 Independently Programmable Working Zones | 4 Independently Programmable Working Zones |
| PROGRAMMING & SOFTWARE | ||
| Programming System | Menu-Based Software | Menu-Based Software |
| Boring Pattern Programming | Variable – Absolute / Relative / Pitch | Variable – Absolute / Relative / Pitch |
| Automatic Mirror Image Programming | Included | Included |
| Workpiece Optimization | Included | Included |
| Graphical Workpiece Display | Included | Included |
| Parametric Programming | Included | Included |
| Programmable Job List | Included | Included |
| Network Software | Included | Included |
| Barcode Software | Included | Included |
| MOTOR & ELECTRICAL SYSTEM | ||
| Drilling Motor Power | 1.5 kW | Approx. 2.01 HP |
| Drilling Application | Suitable for Drilling Solid Wood | Suitable for Drilling Solid Wood |
| Transformer | 5 kVA – FEOC580 | 5 kVA – FEOC580 |
| Supported Special Voltages | 210 / 230 / 440 / 480 / 575 V – 3 Phase – 60 Hz | 210 / 230 / 440 / 480 / 575 V – 3 Phase – 60 Hz |
| LUBRICATION & EXHAUST SYSTEM | ||
| Central Lubrication | Fully Automatic, Electronically Controlled | Fully Automatic, Electronically Controlled |
| Exhaust Duct Connection Diameter | Ø80 mm | Ø3.15 in |
| SAFETY SYSTEM | ||
| Safety Package | 2-Hand Start for 4-Field Operation | 2-Hand Start for 4-Field Operation |
| MACHINE DESCRIPTION | ||
| Description | 2021 Gannomat Index PRO 130 CNC boring, gluing and dowel insertion machine equipped with NC-controlled X, Y and Z axes. The machine combines single-spindle boring, automatic gluing and dowel insertion in one production system. The NC-controlled aggregate provides angular adjustment from 0° to 45° for drilling, gluing and dowel insertion operations. | |
| Production Configuration | Four working zones can be operated using different programs. The system includes menu-based programming, graphical workpiece visualization, parametric programming, automatic mirror-image programming, workpiece optimization, programmable job lists, network software and barcode software. | |
