REQUEST MACHINE INSPECTION : used Mazak Optiplex 4020 Fiber III CNC Fiber Laser 10kW – Year 2021 made in Japan

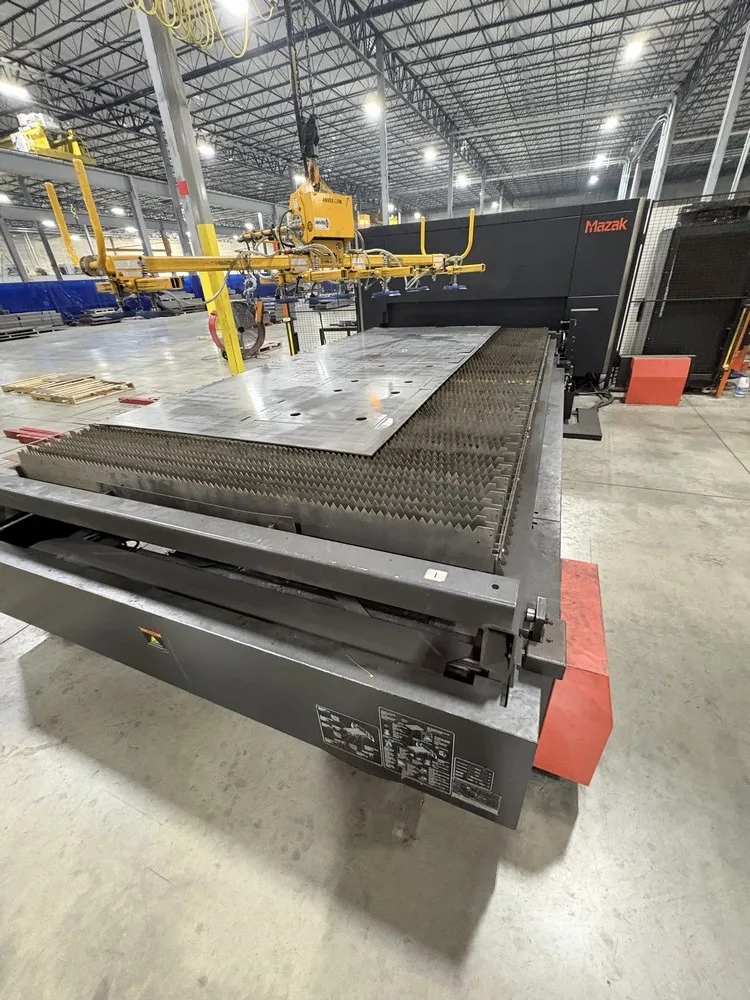

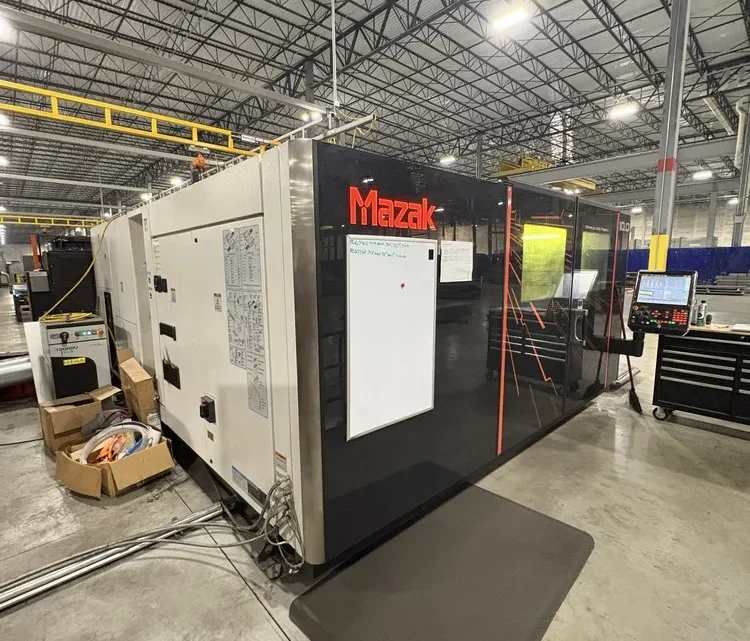

Mazak Optiplex 4020 Fiber III CNC Fiber Laser 10 kW – Year 2021
| Technical Specification | Metric | Imperial |
|---|---|---|
| GENERAL MACHINE INFORMATION | ||
| Manufacturer | Mazak | Mazak |
| Model | Optiplex 4020 Fiber III | Optiplex 4020 Fiber III |
| Year | 2021 | 2021 |
| Machine Type | CNC Fiber Laser Cutting Machine | CNC Fiber Laser Cutting Machine |
| Description | Approx. 2.0 × 4.0 m – 10 kW CNC Fiber Laser | 6.5 × 13 ft – 10 kW CNC Fiber Laser |
| WORKING TABLE | ||
| Table Width | Approx. 1,981 mm | 6.5 ft / 78 in |
| Table Length | Approx. 3,962 mm | 13 ft / 156 in |
| Table Size | Approx. 1,981 × 3,962 mm | 6.5 × 13 ft |
| Pallet Configuration | Dual Pallet Shuttle Table | Dual Pallet Shuttle Table |
| FIBER LASER SYSTEM | ||
| Laser Type | Fiber Laser | Fiber Laser |
| Maximum Laser Power | 10 kW / 10,000 W | 10 kW / 10,000 W |
| Laser Source Manufacturer | IPG | IPG |
| Laser Source | IPG Fiber Laser Source | IPG Fiber Laser Source |
| Laser Source Model / Designation | YLS 10000 | YLS 10000 |
| CNC CONTROL & CUTTING HEAD | ||
| CNC Control | Mazak Preview3 | Mazak Preview3 |
| Torch / Cutting Head | MCTII Torch Head | MCTII Torch Head |
| COOLING & AUXILIARY EQUIPMENT | ||
| Chiller | IPG Chiller | IPG Chiller |
| Compressor | Mazak Compressor | Mazak Compressor |
| DUST COLLECTION SYSTEM | ||
| Dust Collector | Camfil Gold Series X-Flo Dust Collector | Camfil Gold Series X-Flo Dust Collector |
| EQUIPMENT & FEATURES | ||
| Fiber Laser Source | 10,000 W IPG Fiber Laser Source | 10,000 W IPG Fiber Laser Source |
| Dual Pallet System | Equipped – Dual Pallet Shuttle Table | Equipped – Dual Pallet Shuttle Table |
| Chiller Unit | Equipped | Equipped |
| Dust Collection | Farr / Camfil Gold Series X-Flo Dust Collector | Farr / Camfil Gold Series X-Flo Dust Collector |
| Laser Chiller | IPG Chiller | IPG Chiller |
| Air Compressor | Mazak Compressor | Mazak Compressor |
| CNC Control System | Mazak Preview3 CNC Controls | Mazak Preview3 CNC Controls |
| Cutting Head | MCTII Torch Head | MCTII Torch Head |
| Laser Source Designation | YLS 10000 | YLS 10000 |
| MACHINE CONFIGURATION SUMMARY | ||
| Laser Power | 10 kW / 10,000 W | 10 kW / 10,000 W |
| Working Table | Approx. 1,981 × 3,962 mm | 6.5 × 13 ft |
| Laser Source | IPG YLS 10000 Fiber Laser | IPG YLS 10000 Fiber Laser |
| Table System | Dual Pallet Shuttle Table | Dual Pallet Shuttle Table |
| Included Equipment | IPG fiber laser source, IPG chiller, dual pallet shuttle table, MCTII torch head, Mazak Preview3 CNC control, Mazak compressor and Camfil / Farr Gold Series X-Flo dust collection system. | |
