REQUEST MACHINE INSPECTION : used FOUR-STAR FD-1422 CNC Fixed Double Column Machining Center 2.2 Meters – Year 2023 made in Taiwan

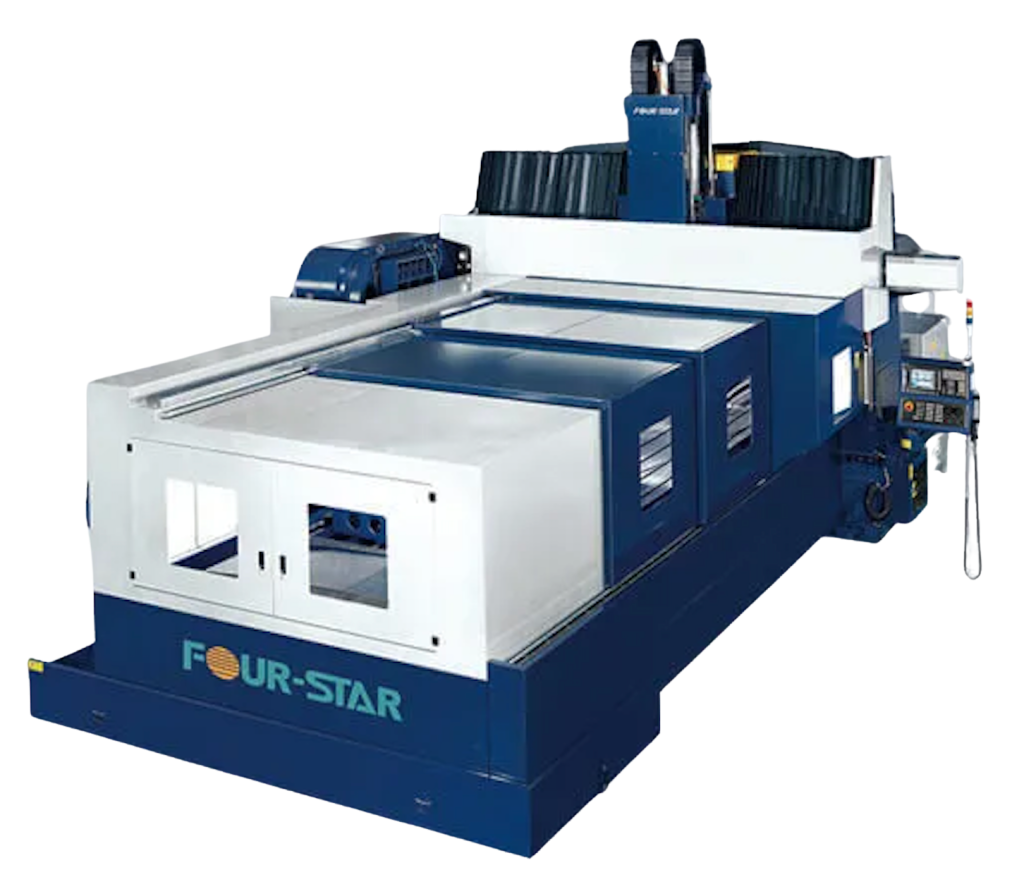

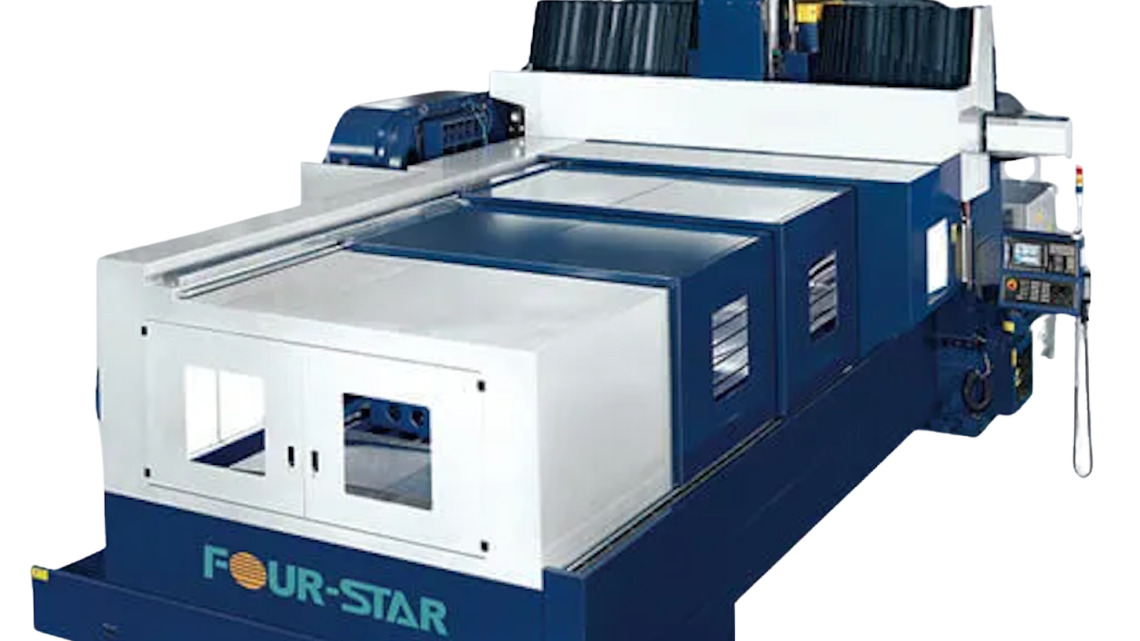

FOUR-STAR FD-1422 CNC Fixed Double Column Machining Center 2.2 Meter – Year 2023
| Catalogue Technical Specification | Metric | Imperial |
|---|---|---|
| GENERAL MACHINE INFORMATION | ||
| Manufacturer | FOUR-STAR | FOUR-STAR |
| Model | FD-1422 | FD-1422 |
| Machine Type | CNC Fixed Double Column Machining Center | CNC Fixed Double Column Machining Center |
| TABLE & COLUMN CAPACITY | ||
| Distance Between Columns | 1,400 mm | 55.12 in |
| Table Length | 2,000 mm | 78.74 in / 6.56 ft |
| Table Width | 1,200 mm | 47.24 in / 3.94 ft |
| Table Size | 2,000 × 1,200 mm | 78.74 × 47.24 in / 6.56 × 3.94 ft |
| Maximum Table Load | 10 metric tons / 10,000 kg | Approx. 22,046 lb / 11.02 US tons |
| T-Slots – Width × Pitch × Number | 18 × 150 mm × 7 | 0.71 × 5.91 in × 7 |
| AXIS TRAVELS | ||
| X-Axis Travel | 2,200 mm | 86.61 in / 7.22 ft |
| Y-Axis Travel | 1,300 mm | 51.18 in / 4.27 ft |
| Z-Axis Travel | 800 mm | 31.50 in |
| X / Y / Z Travel | 2,200 × 1,300 × 800 mm | 86.61 × 51.18 × 31.50 in |
| SPINDLE | ||
| Spindle Nose to Table | 80 – 880 mm (and other options) | 3.15 – 34.65 in (and other options) |
| Spindle Taper | BBT-50 | BBT-50 |
| Spindle Speed | 6,000 rpm | 6,000 rpm |
| Spindle Power | 22 / 26 kW | Approx. 29.5 / 34.9 HP |
| Spindle Gearbox | 2-Stage Gearbox | 2-Stage Gearbox |
| FEEDRATES | ||
| Cutting Feedrate | 10 m/min | Approx. 393.70 in/min |
| X-Axis Rapid Feedrate | 22 m/min | Approx. 866.14 in/min |
| Y / Z-Axis Rapid Feedrate – Standard | 18 / 18 m/min | Approx. 708.66 / 708.66 in/min |
| Y / Z-Axis Rapid Feedrate – +5F | 18 / 18 m/min | Approx. 708.66 / 708.66 in/min |
| ATC & TOOL MAGAZINE | ||
| Tool Magazine Capacity | 24 Tools | 24 Tools |
| Maximum Tool Diameter – Full Tool Magazine | Ø110 mm | Ø4.33 in |
| Maximum Tool Diameter – Adjacent Pocket Empty | Ø200 mm | Ø7.87 in |
| Maximum Tool Length | 380 mm | 14.96 in |
| Maximum Tool Weight | 18 kg | Approx. 39.68 lb |
| Tool Selection | Random Shortest Direction / M24 P3.0-45° | Random Shortest Direction / M24 P3.0-45° |
| MACHINE DIMENSIONS & WEIGHT | ||
| Machine Length | 6.4 m / 6,400 mm | Approx. 20.997 ft / 251.97 in |
| Machine Width | 4.00 m / 4,000 mm | Approx. 13.12 ft / 157.48 in |
| Machine Height | 4.10 m / 4,100 mm | Approx. 13.45 ft / 161.42 in |
| Approximate Machine Dimensions – L × W × H | 6,400 × 4,000 × 4,100 mm | Approx. 252.0 × 157.5 × 161.4 in |
| Approximate Machine Weight | 20 metric tons / 20,000 kg | Approx. 44,092 lb / 22.05 US tons |
| ACCURACY | ||
| Positioning Accuracy | ±0.015 mm / Full Travel | Approx. ±0.00059 in / Full Travel |
| Repeatability | ±0.003 mm | Approx. ±0.00012 in |
| STANDARD ACCESSORIES | ||
| 1. CNC Control | FANUC 0iMF + 10.4″ LCD | |
| 2. Spindle Oil Cooler | Standard | |
| 3. Spindle Air Blast | Standard | |
| 4. N2 Counter Balance System | Standard | |
| 5. Gearbox | Two-Stage H/L Planetary Gearbox | |
| 6. Automatic Lubrication System | Standard | |
| 7. Program End Alarm Lamp | Standard | |
| 8. Rigid Tapping | Standard | |
| 9. Electrical Cabinet Heat Exchanger | Standard | |
| 10. Communication Interfaces | USB / RJ-45 / Ethernet Interface | |
| 11. Cutting Coolant System | Standard | |
| 12. Chip Removal | Dual Screw Type Chip Remover | |
| 13. Chip Conveyor | Steel-Belt Type Chip Conveyor with Cart | |
| 14. ATC | Chain Type 32T ATC | |
| 15. Splash Guard | Semi-Enclosure Splash Guard (FD-14 / 18 / 21 / 24A / 26A) | |
| 16. Open Type Splash Guard | For FD-28 / 32 / 36 / 42 / 54 Series | |
| 17. ATC Auto Door | Standard | |
| 18. Foot Pedal Switch | Standard | |
| 19. Working Lamp | Standard | |
| 20. Machine Installation Equipment | Base Leveling Screws & Foundation Bolts | |
| 21. Tool Kit & Documentation | Tool Kit & Operation’s Manual | |
| 22. Cleaning Equipment | Air / Water Cleaning Equipment | |
| OPTIONAL ACCESSORIES | ||
| 1. Extended X-Axis Travel | 7 / 8 / 9 / 10 m | Approx. 22.97 / 26.25 / 29.53 / 32.81 ft |
| 2. Optional CNC Controls | FANUC 0iMF Plus / Mitsubishi / Siemens / Heidenhain Controller | |
| 3. Optional Spindle Power | 30 / 37 kW with Gearbox | Approx. 40.2 / 49.6 HP with Gearbox |
| 4. High-Speed Spindle | 8,000 – 24,000 rpm | 8,000 – 24,000 rpm |
| 5. Coolant Through Spindle | CTS – Coolant Through Spindle | |
| 6. 90° Milling Head | Auto / Semi-Auto / Manual | |
| 7. Extended Milling Head | Auto / Semi-Auto / Manual | |
| 8. AC Swiveling Milling Head | Auto / Semi-Auto / Manual | |
| 9. AHC System | For Automatic Milling Head | |
| 10. Toggle Head Stand | For Semi-Auto / Manual Milling Head | |
| 11. Five-Face Milling Head | Fixed Type | |
| 12. Universal Milling Head | Fixed Type | |
| 13. 5-Axis Simultaneous Milling Head | Optional | |
| 14. Extended Y-Axis Travel | Additional 650 mm for Auto 5-Face Machining | Additional 25.59 in for Auto 5-Face Machining |
| 15. Heavy-Duty RAM | 550 × 550 mm – FD-36 and Up | Approx. 21.65 × 21.65 in – FD-36 and Up |
| 16. Heavy-Duty RAM | 650 × 650 mm – FD-36 and Up | Approx. 25.59 × 25.59 in – FD-36 and Up |
| 17. Linear Scales | X, Y, Z Axis Linear Scale | |
| 18. Tool Length Measurement | Optional | |
| 19. Automatic Workpiece Measurement | Optional | |
| 20. CNC Rotary Table | Indexed / Simultaneous | |
| 21. Coolant Through Tool Holder Device | Optional | |
| 22. Full Enclosure Splash Guard | With Top | |
| 23. Transformer | Optional | |
