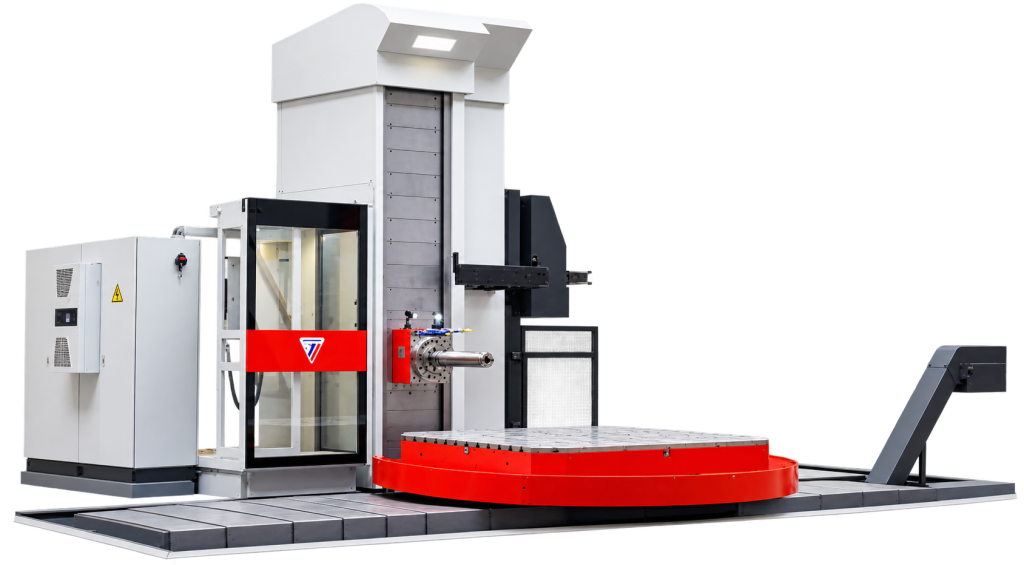

REQUEST MACHINE INSPECTION : used FERMAT WFT 13 CNC Table Type Horizontal Boring Milling Machine 2.5 Meters – Year 2016
FERMAT WFT 13 CNC Horizontal Boring Mill – Technical Specifications
| Technical Specification | Metric | Imperial |
|---|---|---|
| GENERAL MACHINE INFORMATION | ||
| Manufacturer | FERMAT | FERMAT |
| Model | WFT 13 | WFT 13 |
| Machine Type | CNC Horizontal Boring Mill | CNC Horizontal Boring Mill |
| CNC Control | FANUC | FANUC |
| SPINDLE | ||
| Spindle Diameter | Ø130 mm | Ø5.12 in |
| Spindle Taper | ISO-50 / BT-50 | CAT-50 |
| Spindle Speed Range | 3,000 / 4,000 rpm | 3,000 / 4,000 rpm |
| Rated Power of Main Motor S1 / S6 | Up to 53 / 64 kW | Up to 71 / 86 HP |
| Through-Spindle Coolant | Yes – Internal Coolant Supply | Yes – Through-Spindle Coolant |
| AXIS TRAVELS | ||
| X-Axis Travel | 2,500 mm | 98.43 in |
| Y-Axis Travel | 2,000 mm | 78.74 in |
| Z-Axis Travel | 2,000 mm | 78.74 in |
| X × Y × Z Working Travel | 2,500 × 2,000 × 2,000 mm | 98.43 × 78.74 × 78.74 in |
| Extension Spindle Travel – W Axis | 730 mm | 28.74 in |
| FEED & RAPID TRAVERSE | ||
| Operating Feed – X, Y, Z, W (V) | Max. 8,000 mm/min | Max. 315 in/min |
| Operating Feed – B Axis | Max. 2 rpm | Max. 2 rpm |
| Rapid Traverse – X, Y | 12,000 mm/min | 472.44 in/min |
| Rapid Traverse – Z / W | 10,000 mm/min | 393.70 in/min |
| TOOL SYSTEM & EQUIPMENT | ||
| Automatic Tool Changer (ATC) | No | No |
| Tool Magazine | Not Equipped | Not Equipped |
| Through-Spindle Coolant | Equipped | Equipped |
| CAPACITY SUMMARY | ||
| CNC Control | FANUC | FANUC |
| Spindle Diameter | Ø130 mm | Ø5.12 in |
| Working Travel X × Y × Z | 2,500 × 2,000 × 2,000 mm | 98.43 × 78.74 × 78.74 in |
| W-Axis Spindle Travel | 730 mm | 28.74 in |
| Internal Coolant Supply | Yes | Yes |
| Tool Magazine | No Tool Magazine | No Tool Magazine |
| Maximum Table Load | Not specified in the provided information | |
| Table Dimensions | Not specified in the provided information | |
