REQUEST MACHINE INSPECTION : used Mori Seiki SL-600C/2000 CNC Big Bore Turning Center – Year 2000 made in Japan

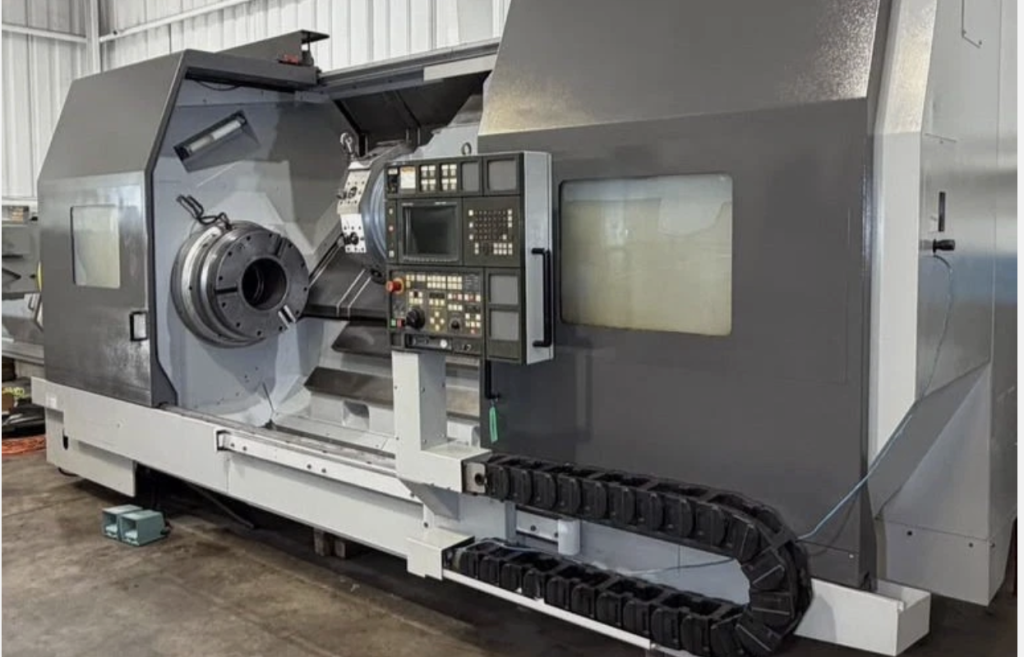

Mori Seiki SL-600C/2000 CNC Big Bore Turning Center – Year 2000
| Technical Specification | Metric | Imperial |
|---|---|---|
| GENERAL MACHINE INFORMATION | ||
| Manufacturer | Mori Seiki | Mori Seiki |
| Model | SL-600C/2000 | SL-600C/2000 |
| Year | 2000 | 2000 |
| Machine Type | CNC Big Bore Turning Center | CNC Big Bore Turning Center |
| Number of Axes | 2 Axis | 2 Axis |
| TURNING CAPACITY | ||
| Swing | Approx. 993 mm | 39.1 in |
| Maximum Turning Diameter | Approx. 899 mm | 35.4 in |
| Machining Length | Approx. 1,999 mm | 78.7 in / 6.56 ft |
| BIG BORE SPINDLE & CHUCK | ||
| Big Bore | Approx. Ø274 mm | Ø10.8 in |
| Chuck Size | Approx. Ø630 mm | Ø24.8 in |
| Maximum Spindle Speed | 1,000 rpm | 1,000 rpm |
| POWER | ||
| Power | Approx. 44.7 kW | 60 HP |
| TAILSTOCK & MACHINING CONFIGURATION | ||
| Tailstock | Yes | Yes |
| Live Tooling | No | No |
| Sub Spindle | No | No |
| MACHINE DIMENSIONS & WEIGHT | ||
| Overall Dimensions (L × W × H) – Approx. | 6,985 × 3,708 × 2,896 mm | 275 × 146 × 114 in |
| Overall Dimensions (L × W × H) – Approx. | 6.99 × 3.71 × 2.90 m | 22.92 × 12.17 × 9.50 ft |
| Approximate Machine Weight | Approx. 18,098 kg / 18.10 Metric Tons | Approx. 39,900 lbs / 19.95 US Tons |
| CAPACITY SUMMARY | ||
| Swing | Approx. 993 mm | 39.1 in |
| Maximum Turning Diameter | Approx. 899 mm | 35.4 in |
| Machining Length | Approx. 1,999 mm | 78.7 in |
| Big Bore | Approx. Ø274 mm | Ø10.8 in |
| Chuck Diameter | Approx. Ø630 mm | Ø24.8 in |
| Spindle Speed | Up to 1,000 rpm | Up to 1,000 rpm |
| Power | Approx. 44.7 kW | 60 HP |
| MACHINE DESCRIPTION | ||
| Description | Mori Seiki SL-600C/2000 CNC Big Bore Turning Center, Year 2000, featuring a 10.8-inch (approximately 274 mm) big bore and 24.8-inch (approximately 630 mm) chuck. | |
| Turning Capacity | The machine has a stated swing of 39.1 in (approximately 993 mm), maximum turning diameter of 35.4 in (approximately 899 mm), and machining length of 78.7 in (approximately 1,999 mm). | |
| Spindle & Power | Maximum spindle speed is 1,000 rpm with a stated power rating of 60 HP (approximately 44.7 kW). | |
| Configuration | 2-axis CNC turning configuration equipped with tailstock. Live tooling and sub spindle are not included. | |
