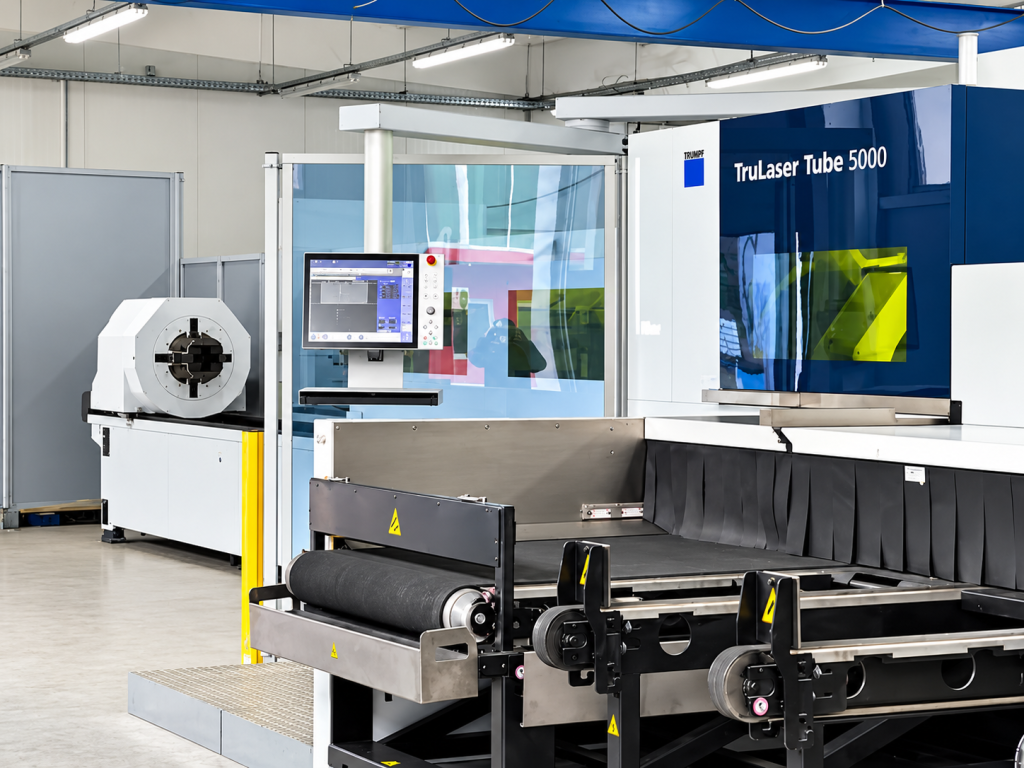

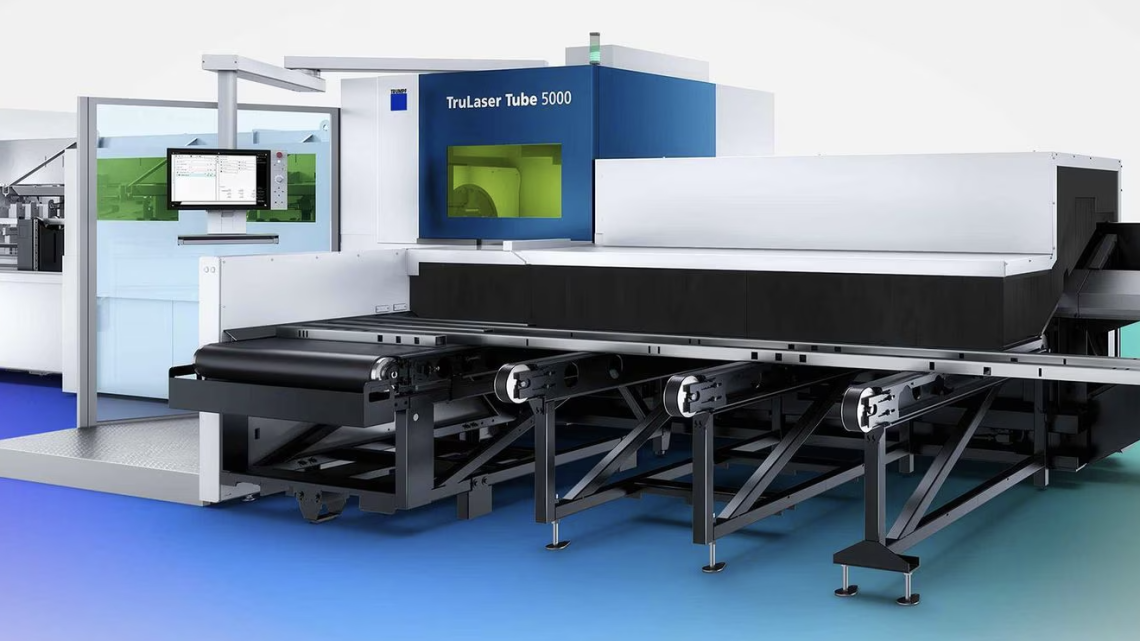

In Stock & Available For Sale : used TRUMPF TruLaser Tube 5000 Fiber T06 CNC Fiber Tube Laser 2kW – Year 2020 / REQUEST MACHINE INSPECTION
| TRUMPF TruLaser Tube 5000 Fiber T06 CNC Fiber Tube Laser 2kW – Year 2020 | ||
|---|---|---|
| Specification | Metric | Imperial |
| General Information | ||
| Manufacturer | TRUMPF | |
| Model | TruLaser Tube 5000 Fiber (T06) | |
| Machine Type | CNC Fiber Tube Laser Cutting Machine | |
| Machine Number | Contact to us | |
| Year of Manufacture | 01/2020 | |
| Condition | Excellent / Like New Used Condition | |
| Functionality | Fully Functional / In Perfect Working Order | |
| Machine Operating Hours | 3,956 Hours | |
| Laser Hours | 3,432 Hours | |
| Laser System | ||
| Laser Source | TRUMPF TruDisk 2001 Solid-State Laser | |
| Laser Power | 2,000 W / 2 kW | Approx. 2.68 HP |
| Laser Output | Single Laser Output | |
| Cutting Head | Lens Cutting Head | |
| Cutting Head Focal Length | 150 mm | Approx. 5.91 in |
| Bevel Cutting | Not Fitted | |
| Tube & Material Capacity | ||
| Maximum Tube Diameter | 152 mm | Approx. 5.98 in |
| Maximum Tube Wall Thickness | 8 mm | Approx. 0.31 in |
| Maximum Workpiece Weight | 130 kg | Approx. 287 lb |
| Raw Material Length | 6,500 mm | Approx. 255.91 in |
| Maximum Finished Part Length | 4,500 mm | Approx. 177.17 in |
| Axis & Motion | ||
| X-Axis Travel | 6,500 mm | Approx. 255.91 in |
| X-Axis Feed Rate | 170 m/min | Approx. 6,693 IPM |
| RapidCut | Dynamic Additional Axis for Increased Acceleration During Cutting Movements | |
| CNC Control | ||
| Control System | TRUMPF Control System Based on Siemens Sinumerik 840D SL | |
| Operator Panel | Pivoting Panel with 482.6 mm Touchscreen | 19 in Touchscreen |
| Automatic Loading & Material Handling | ||
| Loading System | LoadMaster Tube with Automatic Setup | |
| Maximum Raw Material Length | 6,500 mm | Approx. 255.91 in |
| Maximum LoadMaster Bundle Weight | 4,000 kg | Approx. 8,818 lb |
| LoadMaster Setup | Automatic Setting of Compartment Height and Width | |
| Feed Station | Self-Centering Clamping Jaws | |
| Feed-Through Chuck | Self-Centering Tensioning Rollers | |
| Raw Material Support | Automatically Retractable Tube Supports | |
| Finished-Part Support | Extendable Guide Rollers | |
| Finished-Part Handling | Extended to 4,500 mm | Approx. 177.17 in |
| Parts Deposit | Conveyor Table with Conveyor-Table Extension | |
| Part Removal Station | Scrap Conveyor Belt and Collection Container | |
| Adaptive Clamping System | ||
| Profile Clamping Capability | Additional Clamping Elements for L Profiles, U Profiles and Flat Material | |
| Feed-Through Chuck Equipment | Special Clamping Rollers for Profile and Flat Material | |
| Factory Tooling | ||
| Clamping Jaw Capacity | Up to Ø152 mm | Up to Approx. Ø5.98 in |
| Round Tube Form Supports | Up to Ø152 mm | Up to Approx. Ø5.98 in |
| Rectangular Tube Form Supports | Factory Specification: Up to 29 mm, 36 mm, 43 mm, 85 mm and 170 mm Outer Circle | |
| Guide Rollers | For Round and Rectangular Tubes | |
| Cutting Packages & Process Functions | ||
| Brass Cutting Package | Included – Nitrogen Cutting Data | |
| Copper Cutting Package | Included – Oxygen Cutting Data | |
| SeamLine Tube | Weld Seam Detection on the Outside of the Tube | |
| Process Functions | ControlLine, FocusLine and NitroLine | |
| Technology Data | Integrated Technology Data | |
| Cutting Gas Pressure | Programmable | |
| Automatic Operation | Automatic Switch-On and Shutdown | |
| Condition Monitoring | Condition Guide | |
| Software & Connectivity | ||
| Software | TruTops Tube Including 3D Tube Construction | |
| 3D Tube Interface | Included | |
| Positioning Aids | Included | |
| Bend Connection | Included | |
| TruTops Monitor | Complete Package | |
| Remote Support Interface | Equipped | |
| Interfaces | USB and RJ45 Network Interface | |
| Additional Connectivity | Central Link and Online Update Manager | |
| Electrical Supply | ||
| Input Voltage | 400 V | |
| Frequency | 50 Hz | |
| Input Current Type | Three-Phase | |
| Electrical Standard | IEC | |
| Machine Dimensions & Weight | ||
| Total Length | 16,000 mm | Approx. 629.92 in |
| Total Width | 7,000 mm | Approx. 275.59 in |
| Total Height | 2,800 mm | Approx. 110.24 in |
| Overall Weight | 17,000 kg | Approx. 37,479 lb |
| Equipment | ||
| Cooling Unit | Equipped | |
| Centralized Greasing System | Equipped | |
| Nozzle Changer | Equipped | |
| Dust Extraction | Equipped | |
| Fume Extraction | Equipped | |
| Work-Area Illumination | Equipped | |
| Safety & Documentation | ||
| Emergency Stop | Equipped | |
| Safety Light Barrier | Equipped | |
| Documentation / Manual | Available | |
| CE Marking | Yes | |
| Availability & Inspection | ||
| Availability | Immediate | |
| Inspection | Immediate Inspection Available | |
| Cutting Demonstration | Available Immediately | |
| Dismantling, Loading, Transport & Recommissioning | Scope and Costs to Be Agreed Separately; Full Support Available for Loading and Transport Arrangements | |
