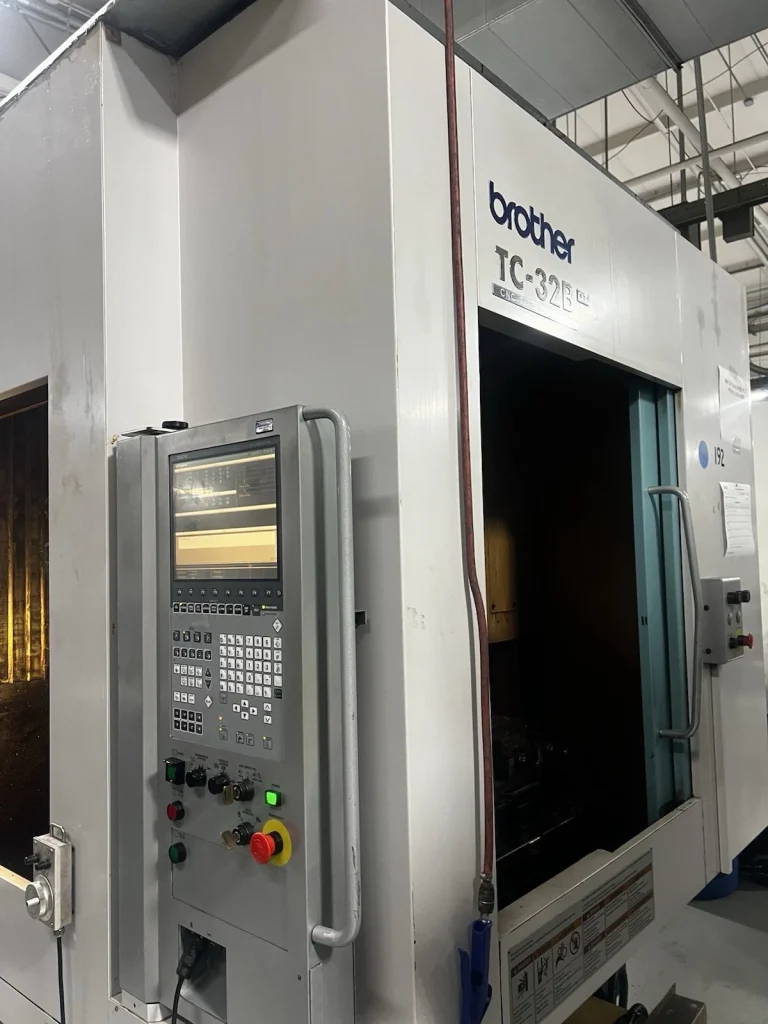

Available 4 Units : used Brothers TC-32B QT CNC Tapping Center Dual Pallet with 4th Axis Nikken Rotary Table and Hydraulic Vice – Year 2004 / REQUEST MACHINE INSPECTION
| Brother TC-32B QT CNC Tapping Center Dual Pallet with 4th Axis Rotary Table and Hydraulic Vice – Year 2004 | ||
|---|---|---|
| Specification | Metric | Imperial |
| General Information | ||
| Manufacturer | Brother | |
| Model | TC-32B QT | |
| Machine Type | CNC Tapping Center / Vertical Machining Center | |
| Year of Manufacture | 2004 | |
| CNC Control | Brother CNC-B00 – Conversational or G-Code | |
| Available Quantity | 4 Machines | |
| Axis Travels | ||
| X-Axis Travel | Approx. 551 mm | 21.7 in |
| Y-Axis Travel | Approx. 399 mm | 15.7 in |
| Z-Axis Travel | Approx. 414 mm | 16.3 in |
| Table & Pallet System | ||
| Table Size | Approx. 841 × 500 mm | 33.1 × 19.7 in |
| Maximum Pallet Load | Approx. 200 kg | 441 lb |
| Pallet System | Quick Table – Two-Surface Pallet Changer | |
| Pallet Change Style | 180° Rotational Index Style | |
| Spindle | ||
| Maximum Spindle Speed | 16,000 RPM | |
| Spindle Drive Power | Approx. 7.46 kW Continuous | 10 HP Continuous |
| Spindle Taper | BT30 | |
| Feed Rates | ||
| Rapid Traverse – X / Y / Z | Approx. 70 m/min | 2,756 IPM |
| Cutting Feed Rate | Approx. 1 – 20,000 mm/min | 0.04 – 787.4 IPM |
| Automatic Tool Changer | ||
| ATC Capacity | 26 Tools | |
| ATC Type | Dual-Arm Automatic Tool Changer | |
| Dimensions & Weight | ||
| Machine Dimensions | Approx. 3,175 × 1,930 × 2,464 mm | 125 × 76 × 97 in |
| Chip Conveyor Dimensions | Approx. 3,556 × 1,702 mm | 140 × 67 in |
| Machine Weight | Approx. 4,468 kg | 9,850 lb |
| Equipped With | ||

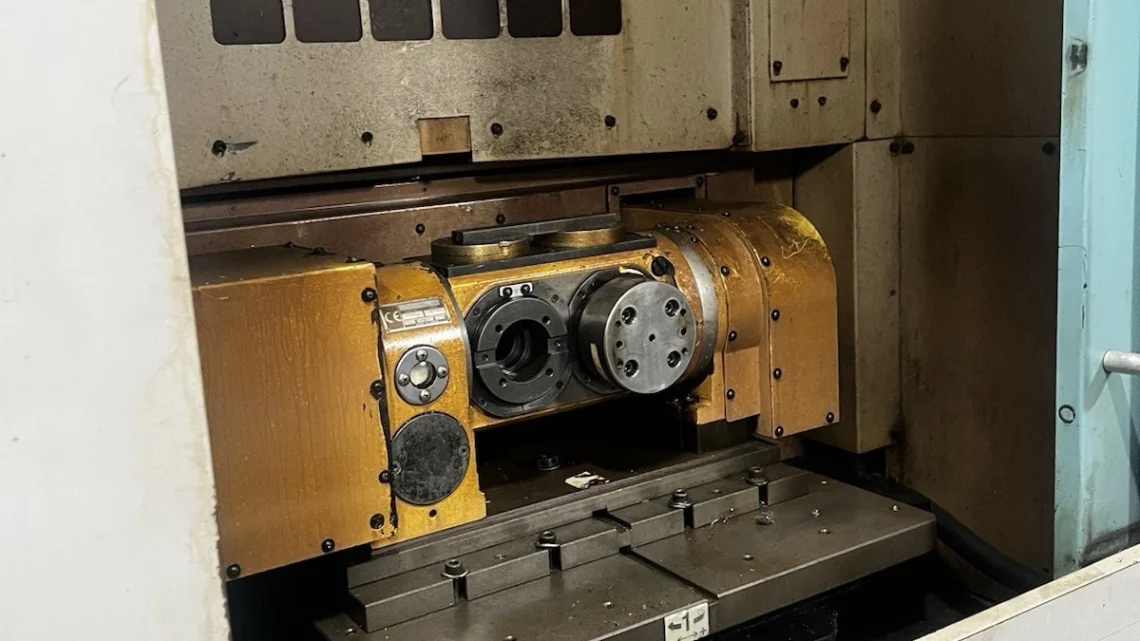

| 4th Axis | Rotary Table | |
| Workholding | Hydraulic Vice | |
| Chip Management | Chip Conveyor | |
| Dual Pallet System | Quick Table – Two-Surface Pallet Changer | |
