In Stock & Available For Sale : used NOMURA DS NN-20UB8 CNC Sliding Head Swiss Lathe with Bar Feeder – Year 2019 made in South of Korea

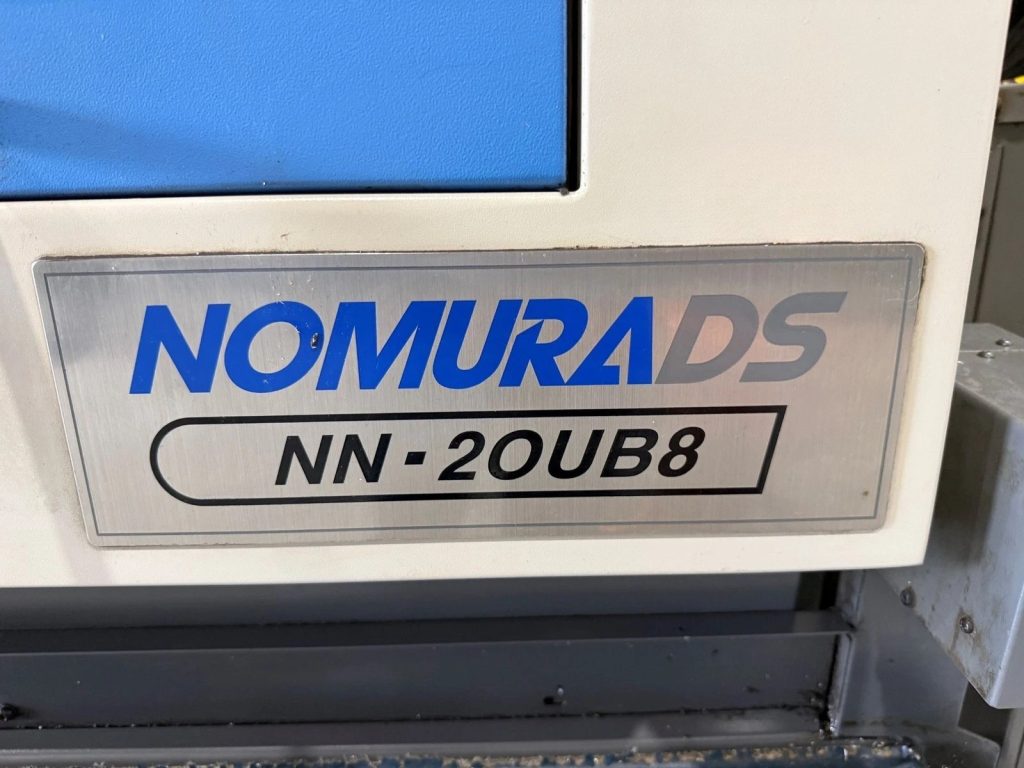

NOMURA DS NN-20UB8 CNC Sliding Head Swiss Lathe with Bar Feeder – Year 2019
| Category | Specification Item | Specification Value |
|---|---|---|
| Max. Machining Capabilities | Machining Diameter | Ø20 mm (Option: Ø25 mm) |
| Machining Length | 200 mm / 1 chuck | |
| Max. Parts Unloading Length | 105 mm *(1) | |
| Main Spindle | Main Spindle Through-Hole Diameter | Ø24 mm (Option: Ø27 mm) |
| Main Spindle RPM | 10,000 r.p.m max. / 6,000 r.p.m max. | |
| $1 Tooling | Max. No. of Tools (Standard) | 17 |
| OD Tool (□12.7 × 150 mm max.) | 5 (6 Option) | |
| ID Frontal Hole ER16 | 4 | |
| Live Tool ER16 | 4 (5 Option) | |
| Max. Frontal Drill Diameter | Ø10 mm | |
| Max. Frontal Drill Length | 40 mm *(2) | |
| Max. Frontal Tap Diameter | M8 | |
| Max. Live Tool Spindle Drill Diameter | Ø8 mm | |
| Max. Live Tool Spindle Tap Diameter | M6 | |
| Live Main Tool Spindle | 6,000 r.p.m max. | |
| $2 Back Tooling | OD Tool (□10 × 80 mm max.) | 1 |
| ID Frontal Hole ER16 | 3 | |
| Max. Frontal Drill Diameter | Ø8 mm | |
| Max. Frontal Tap Diameter | M6 | |
| ID / Off-Center Drill (Option) | 2 / 2 | |
| Max. ID / Off-Center Drill Diameter (Option) | Ø8 mm / Ø6 mm | |
| Max. ID / Off-Center Tap Diameter (Option) | M6 / M5 | |
| Feed & Control | Feed Rate | 30 m/min. |
| Min. Command Unit | 0.0001 mm | |
| C-Axis Min. Command Unit ($1 / $2) | 0.0001° | |
| Motor | Main Spindle Motor | 2.2 / 3.7 kW |
| Live Tool Motor | 0.75 kW | |
| Back Main Spindle Motor | 0.75 kW | |
| Back Live Tool Motor (Option) | 0.4 kW | |
| X1, Z1 | 1.0 kW | |
| Y1, X2, Z2 | 0.5 kW | |
| Coolant Pump | 0.25 kW | |
| Lubricant Pump | 0.003 kW | |
| Main Spindle Center Height | 1,000 mm | |
| Dimensions & Others | Input Power Capacity | 12 KVA |
| Pneumatic Pressure & Flow Rate | 0.6 MPa, 50 L/min | |
| Coolant Tank | 110 L | |
| Lubricant Tank | 0.8 L | |
| Dimensions (W × D × H) | 2,140 × 1,030 × 1,680 mm | |
| Weight | 2,135 kg | |
| Main Spindle Center Height | 1,000 mm | |
| NC Standard Functions | MITSUBISHI NC | M70A |
| NC Display | 8.4″ Color TFT LCD | |
| Machining Program Memory Capacity | 600 m | |
| Number of Tool Offset Corrections | 40 pcs. | |
| Background Programming Editing Function | Standard | |
| Main Spindle C-Axis Function ($1, $2) | Standard | |
| User Macro Function | Standard | |
| Tool Nose Rounding Offset Function | Standard | |
| Corner Chamfering / Corner Rounding | Standard | |
| Fixed Cycle | Standard | |
| Complex Fixed Cycle | Standard | |
| Geometric Commands | Standard | |
| Operation Manual | Standard | |
| Serial In/Output Interface | Standard | |
| CF Card Interface | Standard | |
| Notes | *(1) | In use of rotary back tool unit: 70 mm |
| *(2) | In use of drill holder for deep hole: 70 mm | |
