Wotan Rapid 5 CNC 5-Axis Floor Type Horizontal Boring Machine 19 Meters – Year 1999

Machine Overview

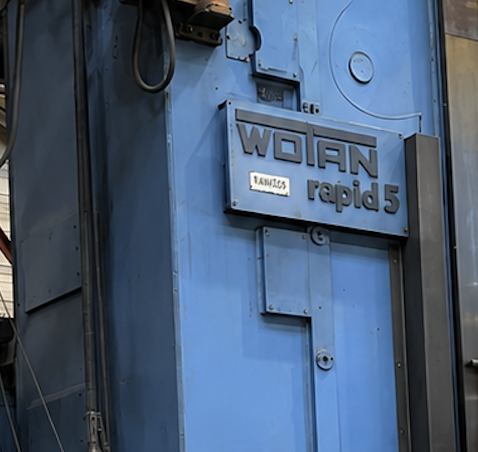

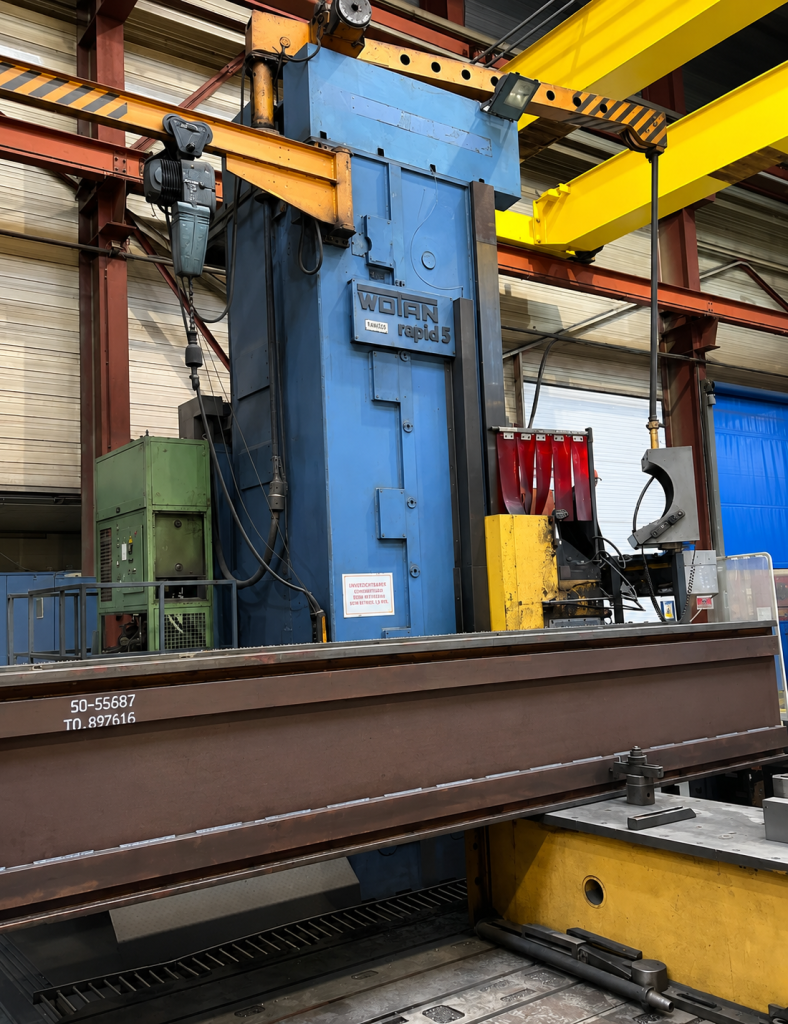

Wotan Rapid 5 CNC Floor Type Horizontal Boring Machine, Year 1999, featuring a 160 mm hydrostatic spindle, aerostatic guideways, and a 19,000 mm X-axis travel. This heavy-duty floor type boring mill is equipped with multiple interchangeable milling heads, a large NC rotary table, chip conveyor, and Siemens CNC control, making it suitable for machining extremely large and heavy workpieces for the energy, mining, marine, steel, and heavy engineering industries.

Technical Specifications

Specification	Metric	Imperial	Description
Manufacturer	Wotan	Wotan	Heavy-duty German floor type boring machine manufacturer.
Model	Rapid 5	Rapid 5	CNC Floor Type Horizontal Boring Machine.
Year of Manufacture	1999	1999	Original manufacturing year.
Machine Type	CNC Floor Type Horizontal Boring Machine	CNC Floor Type Horizontal Boring Machine	Heavy-duty horizontal boring and milling center.
Spindle Diameter	160 mm	6.30 in	Hydrostatic boring spindle.
Spindle Taper	ISO 50	ISO 50	Standard spindle interface.
X-Axis Travel	19,000 mm	748.03 in (62.34 ft)	Longitudinal floor travel.
Y-Axis Travel	3,000 mm	118.11 in	Vertical column travel.
W-Axis (Spindle Travel)	900 mm	35.43 in	Spindle quill travel.
Z-Axis Travel	900 mm	35.43 in	Cross travel.
Ram Dimensions	360 × 360 mm	14.17 × 14.17 in	Heavy-duty ram section.
Spindle Speed Range	3.2 – 1,250 RPM	3.2 – 1,250 RPM	Variable spindle speed.
Feed Rate	0.1 – 5,000 mm/min	0.004 – 196.9 IPM	Programmable feed rate.
Rapid Traverse	5 / 10 m/min	197 / 394 IPM	Rapid traverse speeds.
Main Spindle Motor	90 kW	121 HP	Main drive motor.
Total Connected Power	180 kW	241 HP	Total installed electrical power.
Machine Weight	105,000 kg	231,485 lbs	Approximate machine weight.
NC Rotary Table
Rotary Table Size	2,500 × 2,000 mm	98.43 × 78.74 in	NC controlled rotary table.
Maximum Table Load	40,000 kg	88,185 lbs	Maximum workpiece capacity.
Included Accessories
Support for Three Interchangeable Heads One Boring Quill Head Aerostatic Guideways Hydrostatic Spindle Bearings Right-Angle Milling Head (2,500 Nm) Universal Milling Head (1,600 Nm) NC Rotary Table 2,500 × 2,000 mm 40 Ton Table Capacity Pickup Station for Milling Heads Chip Conveyor Machine Documentation
Machine Features
Heavy-duty floor type horizontal boring machine designed for machining extremely large workpieces. 160 mm hydrostatic spindle provides exceptional rigidity and damping during heavy cutting. Aerostatic guideways ensure high positioning accuracy and smooth machine movement. Hydrostatic spindle bearings deliver long service life and superior machining precision. Equipped with both universal and right-angle milling heads for multi-face machining. Large NC rotary table with 40-ton capacity supports oversized components. Automatic pickup station enables fast head changes during machining. Suitable for wind energy, mining, shipbuilding, steel mills, power generation, heavy equipment and general large-part manufacturing.
