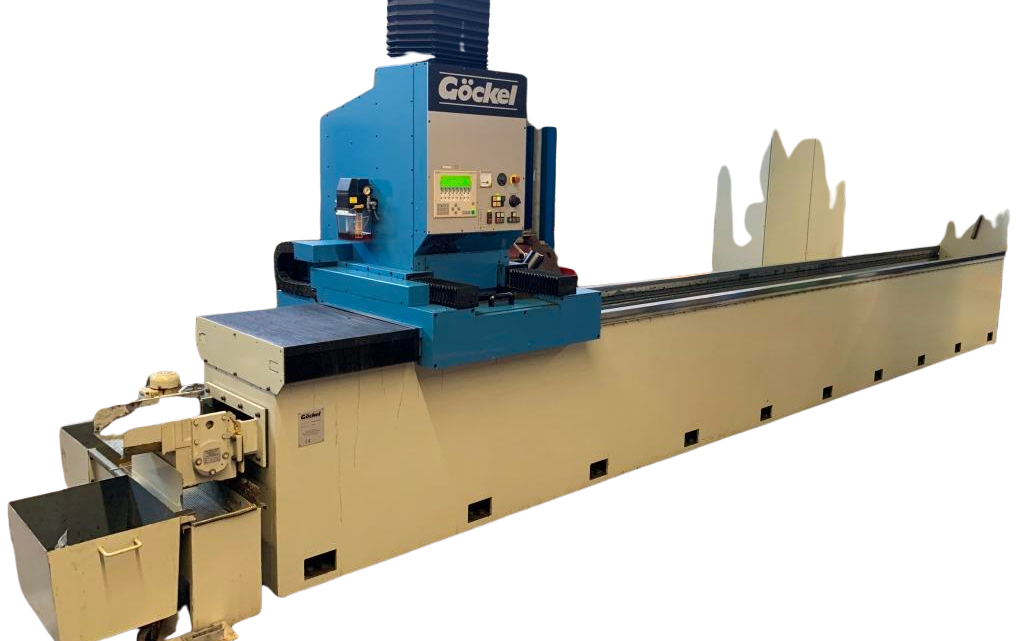

In Stock & Available For Sale : used Göckel U65/350PI Surface Grinding Machine – Year 2006 made in Germany
| Göckel U65/350PI Surface Grinding Machine – Year 2006 | |
|---|---|
| Manufacturer | Göckel |
| Model | U65/350PI |
| Year | 2006 |
| Machine Type | Surface Grinding Machine |
| Grinding Length | 5,000 mm |
| Grinding Width | 250 mm |
| Max. Workpiece Height | 210 mm |
| Magnetic Table | 200 × 5,050 mm |
| Magnetic Table Configuration | 3-Part, Not Swiveling |
| Grinding Wheel Width | 75 / 350 mm |
| Grinding Wheel Drive Power | 11 kW |
| Feed Rate | Infinitely Variable in 3 Axes |
| Longitudinal Axis (X) | Approx. 0–30 m/min |
| Transverse Axis (Z) | Approx. 0–3 m/min |
| Infeed / Vertical Axis (Y) | Approx. 0–3 m/min |
| Electrical Connection | 400 V, 15 kVA |
| Approx. Machine Weight | 7,000 kg |
| Included Equipment | Electrical Equipment Hydraulic Equipment Pneumatic Equipment Coolant Equipment with Magnetic Separator Guideway Cover Support Feet Technical Documentation |
| No. | Component | Göckel Catalogue Information U 65 / 80 / 100 / 130 / 150 Description / Features |
|---|---|---|
| 1 | Machine Bed |
• Welded construction, cell design • Thermally relieved and vibration damped • Smooth formation of internal space for good cooling water drainage and cleaning |
| 2 | Guideways |
• Bolted on, hardened and ground • Precision ways made from special steel with oblique joint • Guideway covers on request |
| 3 | Machine Table |
• Stationary for surface grinding and large table capacity in electromagnetic design and as cast table with slots • Electromagnetic swivelling table for surface, chamfered and multiple surface grinding in one clamping operation, rotatable by 360°, supported on multiple bearings, sturdy bearing points with overdimensioned journals for maximum torsional strength. Additional clamping sides with slots • Double and multiple tables in magnetic and cast design • Automatic table holding device with high-pressure hydraulics • Table adjustment with large scale and vernier, optional optical reading system. Sensitively adjustable with manual operation or motor-driven |
| 4 | Grinding Head Carriage |
• Heavy cast construction with top side guidance and anti-lift rollers • Grinding carriage length for optimum roller spacing, in this way best load distribution and smooth run • Support with long vertical guide and triple wedge bar support • Good view of the illuminated grinding area |
| 5 | Infeed Device for Grinding Tool |
• Lead screw system with weight counterbalance • Ball-race lead screw on request • Pulsed infeed with continuous preselection • Continuous infeed infinitely adjustable • Digital display with decade switch preselection for sequential program • Measuring control system with wheelwear compensation • Fast speed with automatic start grinding |
| 6 | Grinding Motor |
• Special construction with high precise bearings as sliding or rolling bearing • Compact set up with still standing spindle • Spindle drive fixed or steplessly variable • All rotation parts are dynamically balanced • Precision belts for max. power transmission |
| 7 | Grinding Tool |
• Straight wheels with big bores on hardened and ground cone with balancing slot • Dressing devices for straight and profile-dressing in various systems |
| 8 | Traverse Drive |
• Continuously adjustable servo-drive with gear transmission • Synchronous drive on both sides from Type U130 onwards • Contactless, smooth reverse |
| 9 | Coolant Device |
• Intensive cooling • Various tank systems • Coolant pump • Automatic cleaning systems |
| 10 | Electrical System |
• All equipment in separate control cabinet • Cable lead-in by cable carrying chains |
| 11 | Machine Control |
• PC control is standard • CNC control for all axes on request |
