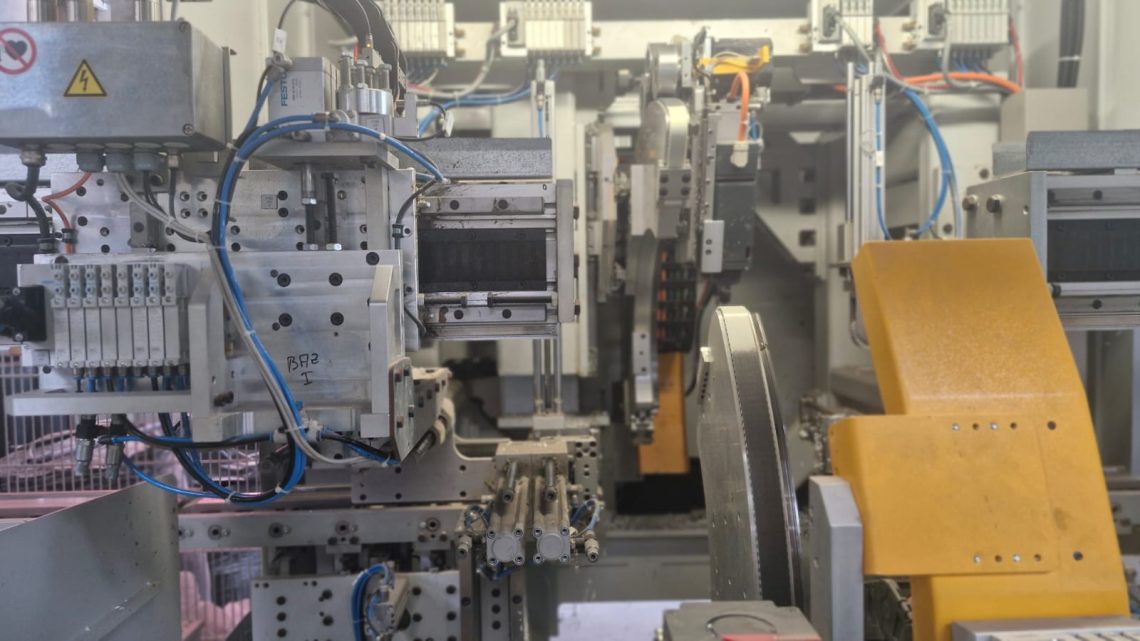

For Sale : used SCHIRMER BAZ VU 90° CNC Profile Cutting & Machining Center – Year 2020 made in Germany
| SCHIRMER BAZ VU 90° CNC Profile Cutting & Machining Center – Year 2020 | |||
|---|---|---|---|
| Specification | Imperial | Metric | Notes |
| General Information | |||
| Manufacturer | Schirmer Maschinen GmbH | Schirmer Maschinen GmbH | Germany |
| Model / Type | BAZ VU 90° | BAZ VU 90° | CNC Profile Cutting & Machining Center |
| Machine Number | contact to us | contact to us | Serial Number |
| Year of Manufacture | 2020 | 2020 | |
| Condition | Used | Used | Fully functional |
| CE Conformity | CE Certified | CE Certified | |
| Control System | |||
| CNC Control | Beckhoff PC-Based CNC | Beckhoff PC-Based CNC | Touchscreen HMI |
| Electrical & Pneumatic Requirements | |||
| Power Supply | 400 V / 50 Hz / 3-Phase | 400 V / 50 Hz / 3-Phase | |
| Pneumatic Supply | Max. 116 psi | Max. 8 bar | |
| Weight | |||
| Machine Weight | Approx. 8,818 lb | Approx. 4,000 kg | Approx. 4 tonnes |
| Machine Description | |||
| Application | CNC profile cutting and machining center designed for high-volume production of PVC and aluminium window and door profiles. | ||
| Production Capability | Automatic measuring, cutting, drilling, milling and routing of profile bars within one continuous machining cycle. | ||
| Main Features | Integrated CNC gantry with sawing, drilling, milling and routing units for complete profile processing with high dimensional accuracy and minimum manual handling. | ||
| Complete Production Line Configuration | |||
| Machine 1 | BAZ 1000-G6 | BAZ 1000-G6 | Year 2020 |
| Machine 2 | BAZ CV | BAZ CV | Year 2020 |
| Machine 3 | BAZ VU 90° | BAZ VU 90° | Year 2020 |
| Machine 4 | SBZ WW AN – 9PL | SBZ WW AN – 9PL | Year 2020 |
| Machine 5 | SBZ WW AB – 9PL | SBZ WW AB – 9PL | Year 2020 |
| Machine 6 | SBZ SCHR | SBZ SCHR | Year 2010 |
| Material Handling | Automatic In-feed & Out-feed Conveyor | Automatic In-feed & Out-feed Conveyor | Profile transport system |
| Process Operations | |||
| Automatic Profile Feeding | Yes | Yes | |
| Automatic Measuring | Yes | Yes | |
| Automatic Cutting to Length | Yes | Yes | |
| Automatic Drilling | Yes | Yes | |
| Automatic Milling | Yes | Yes | |
| Automatic Routing | Yes | Yes | |
| Automatic Profile Discharge | Yes | Yes | |
| Production Type | Fully automated profile processing line for window and door manufacturing. | ||
| Suitable Materials | PVC Profiles, Aluminium Profiles. | ||
| Advantages | High productivity, high dimensional accuracy, reduced manual handling, continuous automated production and efficient profile processing. | ||
