In Stock & Available For Sale : used Hanwha XD32II CNC Swiss Sliding Head Lathe with Bar Feeder Maximum Machining Diameter Ø32 – Year 2023 made in South of Korea

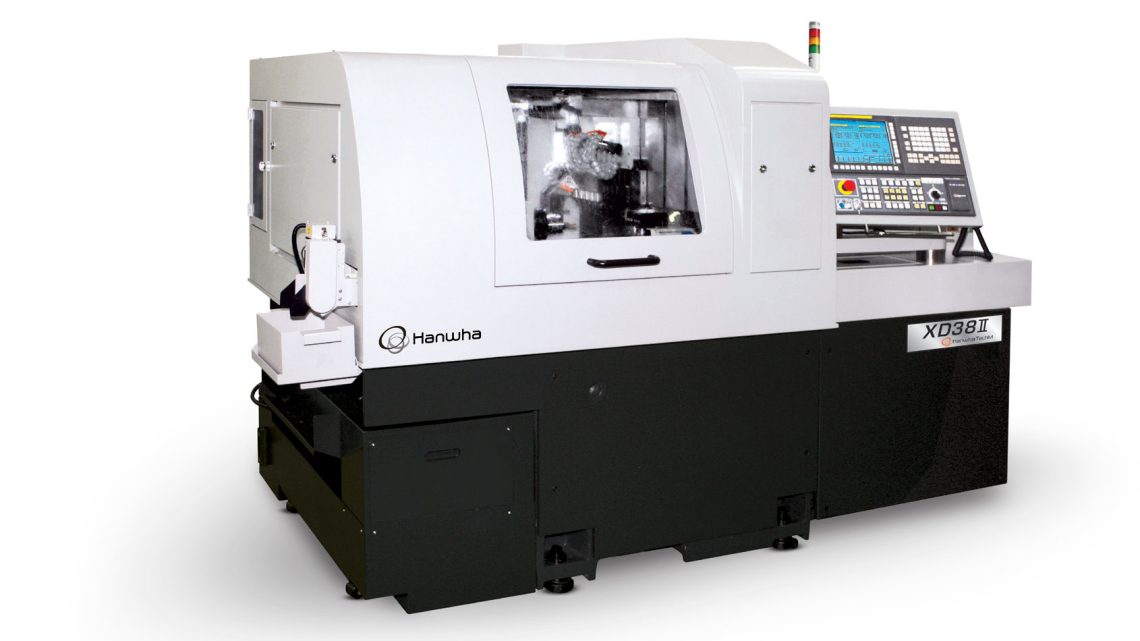

Hanwha XD32II CNC Swiss Lathe with Bar Feeder – Year 2023
| HANWHA XD32/38II CNC Swiss-Type Automatic Lathe – Specifications | ||
|---|---|---|
| Specification | Metric | Imperial |
| Model | XD32/38II | |
| Machine Versions | H / N / NH / He | |
| NC Control | Fanuc 32i-B / Hanwha Fanuc-i | |
| Maximum Machining Diameter | Ø32 / Ø38 mm | Ø1.26″ / Ø1.50″ |
| Z1 Stroke | 320 mm | 12.60″ |
| Additional Stroke Specification | 80 mm / 142 mm (H), 80 mm (N) / 320 mm | 3.15″ / 5.59″ (H), 3.15″ (N) / 12.60″ |
| Main Spindle Speed | 6,500 rpm | |
| Main Spindle Motor | 5.5 / 7.5 kW | 7.4 / 10.1 HP |

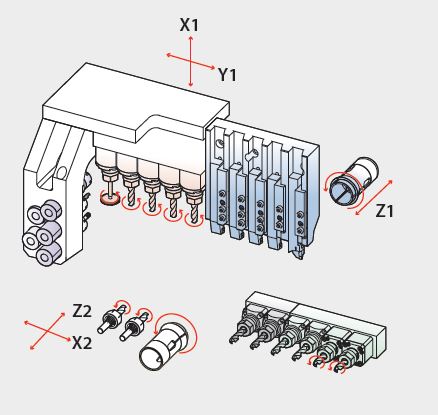

| OD Tools – Number of Tools | 5 (□16 mm) | 5 (□0.63″) |
| Front Tools – Number of Tools | 5 (ER20M, Ø32 mm) | 5 (ER20M, Ø1.26″) |
| Cross Drill – Number of Tools | 5 (ER16) | |
| Cross Drill Speed | 6,000 rpm | |
| Cross Drill Motor | 2.2 kW | 3.0 HP |
| Off-Center Drill – Option – Modular | 2 Tools (ER16) – Modular | |
| Off-Center Drill – Option – Non-Modular | 2 Tools (ER16) – Non-Modular | |
| Off-Center Drill Drive Type – Modular | Motor Drive – 6,000 rpm, 1.0 kW | |
| Off-Center Drill Drive Type – Non-Modular | Gear Drive | |
| Sub Spindle Speed – Built-In Motor Type | 6,500 rpm (Built-in Motor) | |
| Sub Spindle Speed – Spindle Motor Type | 6,500 rpm (Spindle Motor) | |
| Sub Spindle Motor – Built-In Motor Type | 2.2 / 5.5 kW | 3.0 / 7.4 HP |
| Sub Spindle Motor – Spindle Motor Type | 1.1 / 3.7 kW | 1.5 / 5.0 HP |
| Back Tools – Built-In Motor Type | 6 Tools (ER16) – 4 Fixed + 2 Driven | |
| Back Tools – Spindle Motor Type | 4 Tools (ER16) – 2 Fixed + 2 Driven | |
| Back Tool Speed | 6,000 rpm | |
| Back Tool Motor | 1.0 kW | 1.34 HP |
| Machine Dimensions (L x W x H) | 2,570 x 1,440 x 1,740 mm | 101.18″ x 56.69″ x 68.50″ |
| Machine Weight | 3,600 kg | 7,937 lb |
| Power Consumption | 25 kVA / 16.7 kW | |
| Power Cable Size | VCTF 16SQ x 4C | |
| Air Flow Rate | 120 – 150 Liter/min | 4.24 – 5.30 CFM |
| H Version | G/B (Guide Bushing) | |
| N Version | Non-G/B (Non-Guide Bushing) | |
| NH Version | Convertible G/B (Convertible Guide Bushing) | |
| He Version | Hanwha Fanuc-i NC (with G/B) | |
