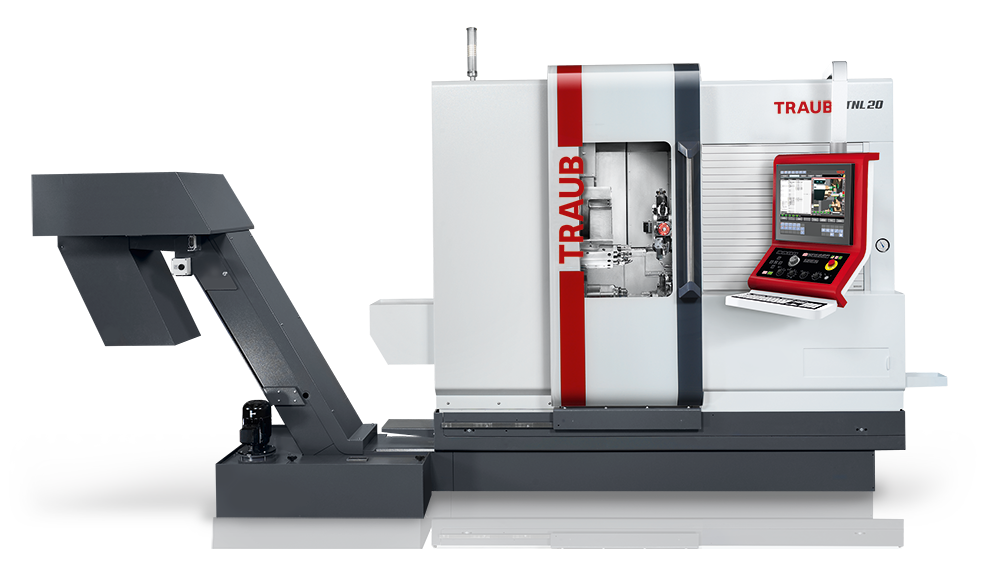

Available 1 unit : used TRAUB TNL20 CNC Turning Center with FMB turbo 3-36 Bar Feeder – Year 2022 made in Germany
| TRAUB TNL20 CNC Turning Center with FMB Turbo 3-36 Bar Feeder – Year 2022 | ||
|---|---|---|
| Specification | Metric | Imperial |
| Manufacturer | TRAUB | |
| Model | TNL20 | |
| Machine Type | CNC Turning Center / Short-Stroke Lathe | |
| Year of Construction | 2022 | |
| Condition | Excellent (Used) | |
| Functionality | Fully Functional | |
| Operating Hours | 7,279 h | |
| Technical Specifications | ||
| Turning Diameter Over Cross Slide | 20 mm | 0.79 in |
| Turning Diameter | 20 mm | 0.79 in |
| Maximum Rotational Speed | 10,000 rpm | |
| Total Height | 2,220 mm | 87.40 in |
| Total Length | 2,976 mm | 117.17 in |
| Total Width | 1,523 mm | 59.96 in |
| Overall Weight | 5,000 kg | Approx. 11,023 lbs |
| Bar Feeder | ||
| Bar Feeder Manufacturer | FMB | |
| Bar Feeder Model | Turbo 3-36 | |
| Equipment | ||
| Documentation / Manual | Included | |
| Rotational Speed | Infinitely Variable | |
| Machine Condition & Highlights | ||
| Machine Condition | TRAUB TNL20 short-stroke lathe in very well-maintained condition. | |
| Previous Application | The machine was used exclusively in medical technology and operated and maintained accordingly with great care. | |
| Operating Hours | Very low operating hours. | |
| Technical & Visual Condition | Excellent technical and visual condition. | |
| Application Area | Medical technology with high quality requirements. | |
| Maintenance | Regularly maintained and serviced. | |
| Precision & Reliability | High precision and process reliability. | |
| Machining Applications | Ideal for demanding turning and milling operations on small to medium-sized workpieces. | |
| Recommended Industries & Applications | ||
| Suitable Industries | Medical Technology, Precision Engineering, Aerospace and other applications requiring the highest levels of precision and reliability. | |
| Investment Advantage | Due to its low operating time and very good condition, this TRAUB TNL20 represents an attractive alternative to purchasing a new machine. | |
| Inspection & Demonstration | ||
| Inspection | Possible at any time by appointment. | |
| Machine Demonstration | Possible at any time by appointment. | |
| Additional Information | Further technical data and images are available upon request. | |
