| Specification |
Metric |
Imperial |
| Machine Information |
| Manufacturer |
FPT INDUSTRIE |
FPT INDUSTRIE |
| Model |

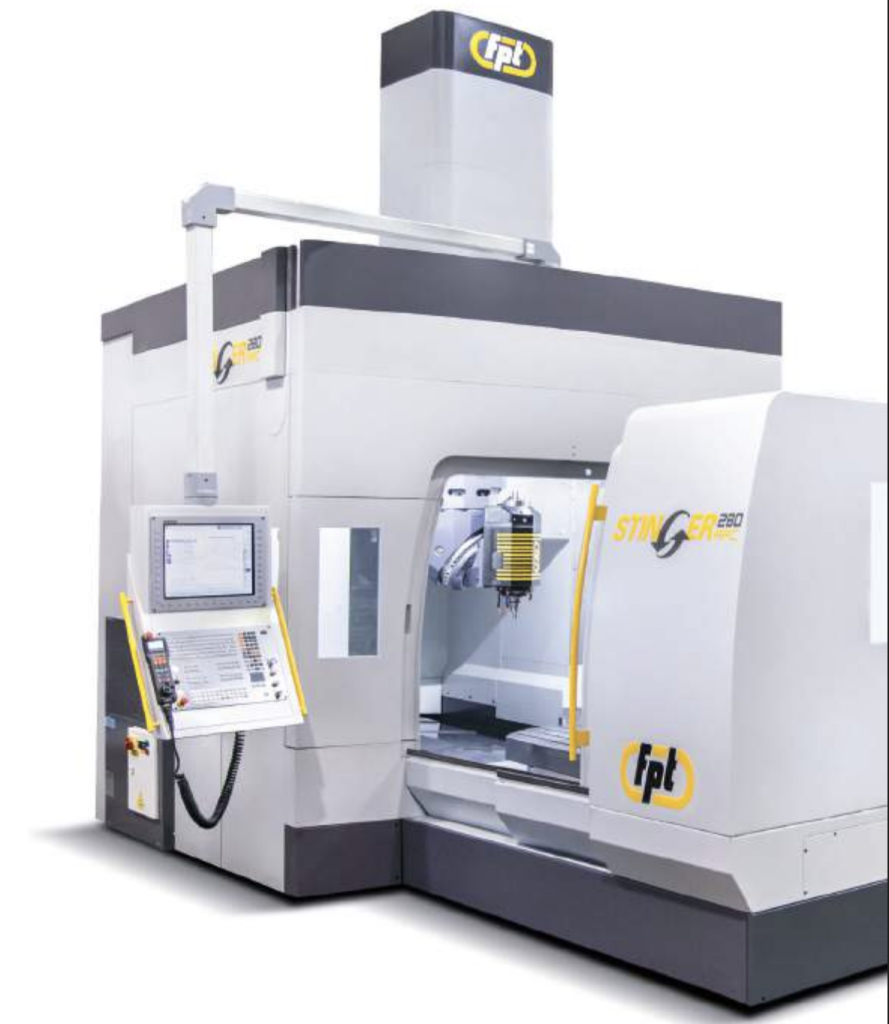

STINGER 280 APC |
STINGER 280 APC |
| Machine Type |
CNC 5-Axis Vertical Milling Machine |
CNC 5-Axis Vertical Milling Machine |
| Axis Travels |
| Longitudinal Travel (X-Axis) |
2,000 mm |
78.7″ |
| Cross Travel (Y-Axis) |
1,400 mm |
55.0″ |
| Vertical Travel (Z-Axis) |
800 mm |
31.5″ |
| Maximum Feed Rate |
Up to 35,000 mm/min |
Up to 1,378 IPM |
| Working Area & Table |
| Table Dimensions |
1,000 × 1,000 mm |
39.4″ × 39.4″ |
| Maximum Table Payload |
Up to 1,750 kg |
Up to 3,858 lbs |
| Distance Between Table Surface & Spindle Nose |
250 – 1,050 mm |
9.8″ – 39.6″ |
| Maximum Width Between Columns |
1,420 mm |
55.9″ |
| Machine Dimensions |
| Maximum Machine Height |
4,500 mm |
177.2″ |
| Machine Base Dimensions |
8,250 × 5,150 mm |
324.8″ × 202.7″ |
| Total Occupied Floor Area |
42.5 m² |
Approx. 457.5 ft² |
| Automatic Tool Changer |
| Tool Capacity |
30 / 60 Tools |
30 / 60 Tools |
| Available CNC Control Options |
| CNC Controls |
HEIDENHAIN TNC 640 / SINUMERIK 840 D sl / FANUC 31i |
HEIDENHAIN TNC 640 / SINUMERIK 840 D sl / FANUC 31i |

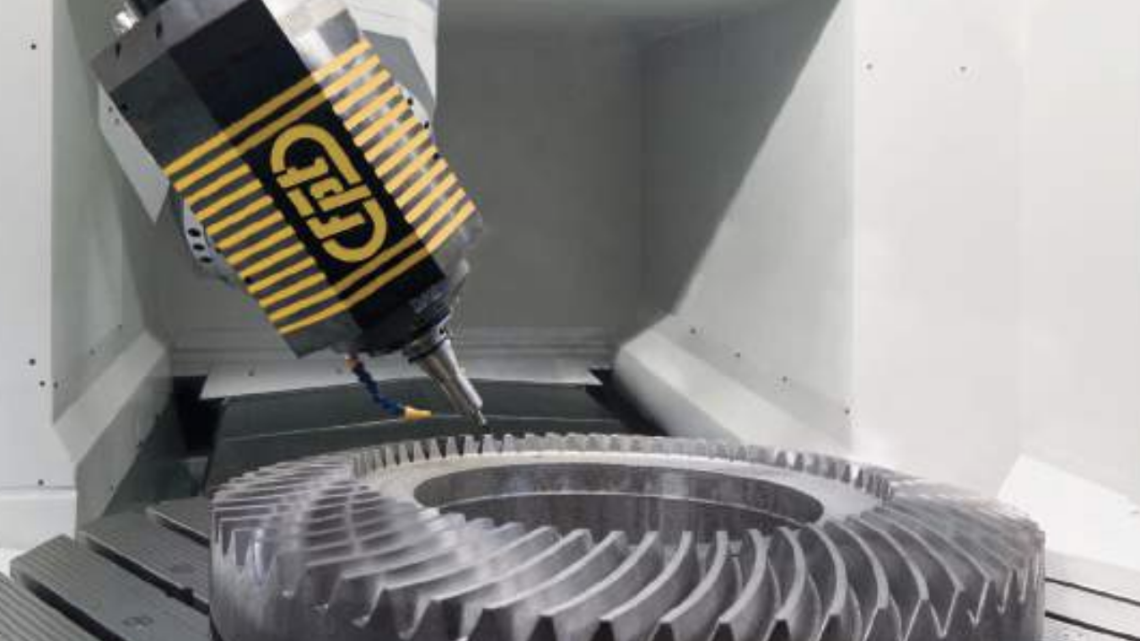

| Universal 50° Milling Head |
| Head Type |
Universal 50° Head |
Universal 50° Head |
| Axis Motors |
Direct Drive Torque Motors |
Direct Drive Torque Motors |
| C-Axis Rotation (Table) |
Endless / Continuous |
Endless / Continuous |
| A-Axis Rotation |
±185° |
±185° |
| Available Spindle Configurations |
| Maximum Spindle Speed |
12,000 / 15,000 / 18,000 / 22,000 / 34,000 RPM |
12,000 / 15,000 / 18,000 / 22,000 / 34,000 RPM |
| Spindle Power |
43 / 43 / 33 / 29 / 18.5 kW |
57.6 / 57.6 / 44.2 / 38.8 / 25 HP |
| Maximum Spindle Torque |
165 / 165 / 128 / 109 / 12 Nm |
121.6 / 121.6 / 94.4 / 80.3 / 8.8 lb-ft |
| Spindle Taper |
HSK A100 / HSK A100 / HSK A63 / HSK A63 / HSK E40 |
HSK A100 / HSK A100 / HSK A63 / HSK A63 / HSK E40 |
