In Stock & Available For Sale : used MAZAK VARIAXIS i-600 CNC Simultaneous 5-axis Vertical Machining Center – Year 2015 made in Japan

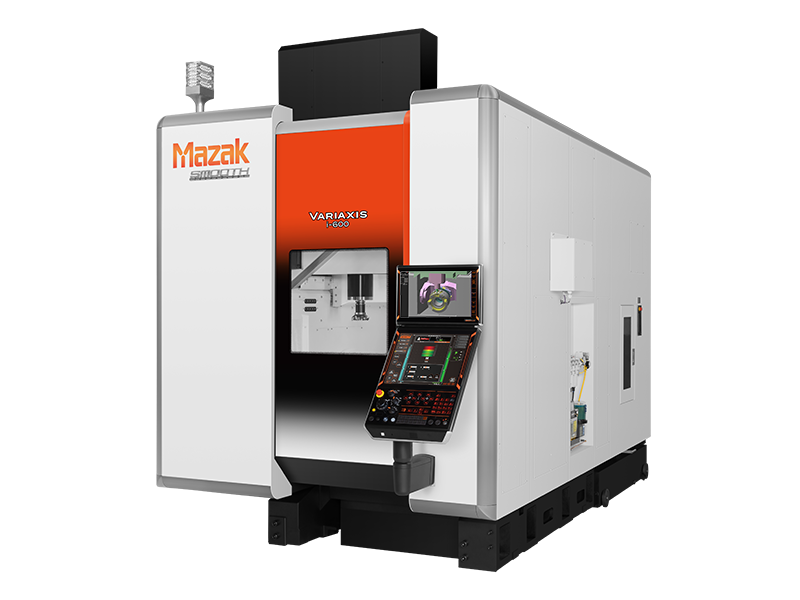

MAZAK VARIAXIS i-600 CNC Simultaneous 5-Axis Vertical Machining Center – Year 2015
| Specification | Metric | Imperial |
|---|---|---|
| Machine Information | ||
| Manufacturer | MAZAK | MAZAK |
| Model | VARIAXIS i-600 | VARIAXIS i-600 |
| Machine Type | CNC Simultaneous 5-Axis Vertical Machining Center | CNC Simultaneous 5-Axis Vertical Machining Center |
| Year | 2015 | 2015 |
| Ownership | Purchased New | Purchased New |
| Operating Hours | 22,000 Hours | 22,000 Hours |
| Condition | Fully Functional / No Known Faults | Fully Functional / No Known Faults |
| Current Status | Currently Under Power & In Operation | Currently Under Power & In Operation |
| Axis Travels | ||
| X-Axis Travel | 510 mm | 20.08″ |
| Y-Axis Travel | 910 mm | 35.83″ |
| Z-Axis Travel | 510 mm | 20.08″ |
| Table & Workpiece Capacity | ||
| Pallet / Table Size | Ø600 × 500 mm | Ø23.62″ × 19.69″ |
| Maximum Workpiece Size (Diameter × Height) | Ø600 × 500 mm | Ø23.62″ × 19.69″ |
| Table Load Capacity | 500 kg | Approx. 1,102 lbs |
| Rotary Axes | ||
| A-Axis (Table Tilt) | 150° (Approx. +30° / -120° Configuration) | 150° (Approx. +30° / -120° Configuration) |
| C-Axis (Table Rotation) | 360° Continuous | 360° Continuous |
| Machining Capability | Simultaneous 5-Axis Machining | Simultaneous 5-Axis Machining |
| Spindle | ||
| Maximum Spindle Speed | 12,000 RPM | 12,000 RPM |
| Spindle Taper | BT40 | BT40 |
| Spindle Motor Power | 22 / 15 kW | Approx. 29.5 / 20.1 HP |
| Automatic Tool Changer | ||
| Tool Magazine Capacity | 30 Tools | 30 Tools |
| Feed & Rapid Traverse | ||
| Rapid Traverse Rate | 50 m/min | Approx. 1,969 IPM |
| CNC Control | ||
| Control System | Mazatrol | Mazatrol |
