In Stock & Available For Sale : used ZIMMERMANN FZU32 CNC 5-Axis Unibody Gantry Milling Machine 6 Meters Spindle 24.000 rpm – Year 2024 made in Germany

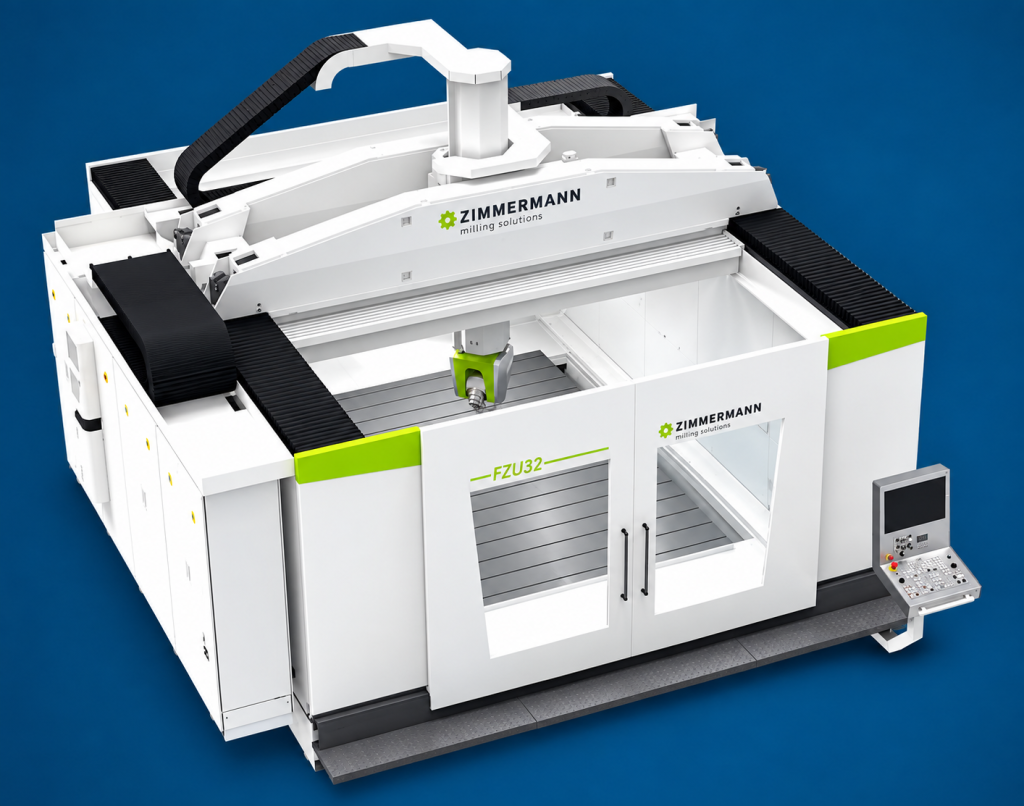

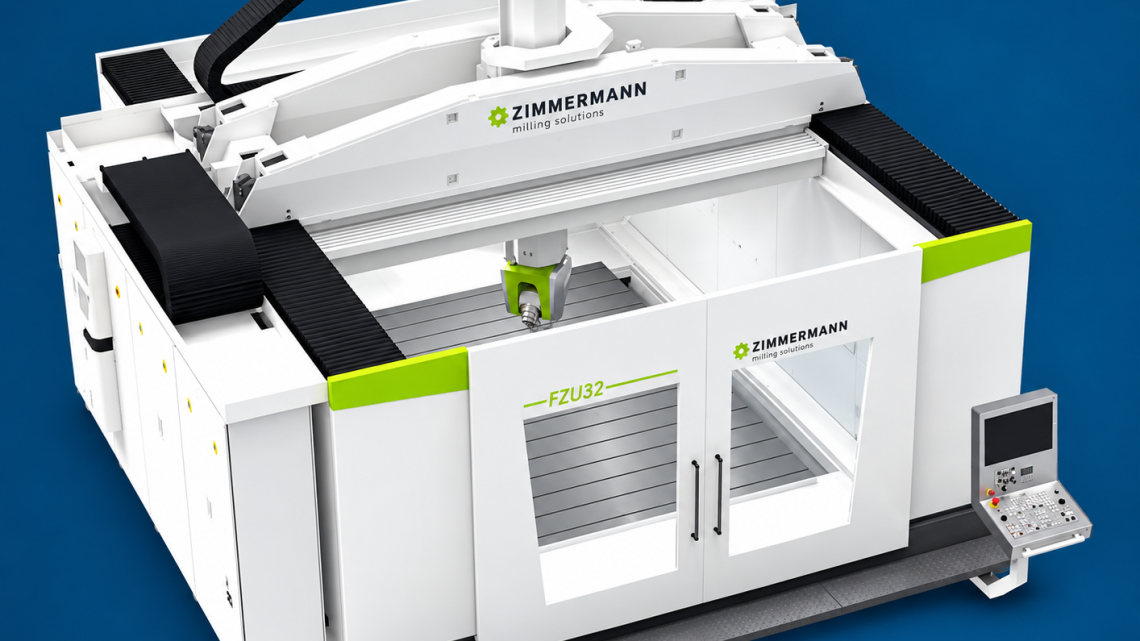

ZIMMERMANN FZU32 CNC 5-Axis
Unibody Gantry Milling Machine 6 Meters 24k rpm – Year 2024
| Specification | Metric | Imperial |
|---|---|---|
| Machine Information | ||
| Manufacturer | ZIMMERMANN | ZIMMERMANN |
| Model | FZU32 | FZU32 |
| Machine Type | Unibody Gantry Milling Machine | Unibody Gantry Milling Machine |
| Milling Head | VH10 | VH10 |
| Working Ranges | ||
| X-Axis Travel | 2,000 – 6,000 mm | 78.74″ – 236.22″ |
| Y-Axis Travel | 3,000 / 3,500 mm | 118.11″ / 137.80″ |
| Z-Axis Travel | 1,250 / 1,500 mm | 49.21″ / 59.06″ |
| Table | ||
| Table Length | 2,000 – 6,000 mm | 78.74″ – 236.22″ |
| Table Width | 3,000 – 3,500 mm | 118.11″ – 137.80″ |
| Table Load | 6,000 kg/m² (Max. 20,000 kg) | Approx. 1,229 lbs/ft² (Max. 44,092 lbs) |
| Longitudinal T-Slots | 18H12 | 18H12 |
| T-Slot Pitch | 250 mm | 9.84″ |
| Linear Axis Drives | ||
| X / Y / Z Feed Rate | Up to 60 m/min | Up to 2,362 IPM |
| X / Y / Z Acceleration | Up to 3 m/s² | Approx. 9.84 ft/s² |
| Machine Dimensions | ||
| Required Space – Length | 3,500 – 8,100 mm | 137.80″ – 318.90″ |
| Required Space – Width | 7,500 mm | 295.28″ |
| Required Space – Height | 4,800 / 5,400 mm | 188.98″ / 212.60″ |
| Dimension Reference | Without Peripherals | Without Peripherals |
| Accuracy & CNC Control | ||
| Standard Accuracy | According to VDI/DGQ 3441 or ISO 230-2 | According to VDI/DGQ 3441 or ISO 230-2 |
| Special Accuracy | On Request | On Request |
| Available CNC Control | Heidenhain TNC 7 / Siemens SINUMERIK ONE | Heidenhain TNC 7 / Siemens SINUMERIK ONE |
| VH10 Milling Head – Rotary Axes | ||
| A-Axis Torque – In Control | 600 Nm | Approx. 442.5 lb-ft |
| C-Axis Torque – In Control | 608 Nm | Approx. 448.4 lb-ft |
| A-Axis Torque – Clamped | 1,380 Nm | Approx. 1,017.8 lb-ft |
| C-Axis Torque – Clamped | 1,321 Nm | Approx. 974.3 lb-ft |
| Swivelling Range | ||
| A-Axis Swivelling Range | ±110° or +125° / -95° | ±110° or +125° / -95° |
| C-Axis Range at Z = 1,250 mm | 300° | 300° |
| C-Axis Range at Z = 1,500 mm | 360° | 360° |
| Rotary Axis Performance & Accuracy | ||
| A / C Axis Feed Rate | 180°/s | 180°/s |
| A / C Axis Acceleration | 700°/s² | 700°/s² |
| A / C Axis Resolution | 0.0001° | 0.0001° |
| A / C Axis Positioning Accuracy | 12 arcsec | 12 arcsec |
| A / C Axis Repeatability | 8 arcsec | 8 arcsec |
| Milling Spindle – 34 kW | ||
| Spindle Power – S1 (100%) | 34 kW | Approx. 45.6 HP |
| Spindle Power – S6 (40% / 2 min) | 41 kW | Approx. 55 HP |
| Maximum Spindle Speed | 24,000 RPM | 24,000 RPM |
| Spindle Torque – S1 (100%) | 39 Nm | Approx. 28.8 lb-ft |
| Spindle Torque – S6 (40% / 2 min) | 49 Nm | Approx. 36.1 lb-ft |
| Constant Power Range | 8,260 – 24,000 RPM | 8,260 – 24,000 RPM |
| Tool Holder | HSK-A63 | HSK-A63 |
| Optional Equipment | ||
| Tool Measurement | Tool Probe / Tool Measuring System | Tool Probe / Tool Measuring System |
| Work Area | Work Area Cover | Work Area Cover |
| Tool Handling | Tool Changer | Tool Changer |
| Chip Management | Chip Conveyor | Chip Conveyor |
| Extraction System | Mist / Dust Extraction System | Mist / Dust Extraction System |
| Lubrication / Cooling | Lubricant Cooling / Minimum Quantity Lubrication | Lubricant Cooling / Minimum Quantity Lubrication |
| Vacuum / Dust Equipment | Vacuum System / Dust Extraction Bell | Vacuum System / Dust Extraction Bell |
