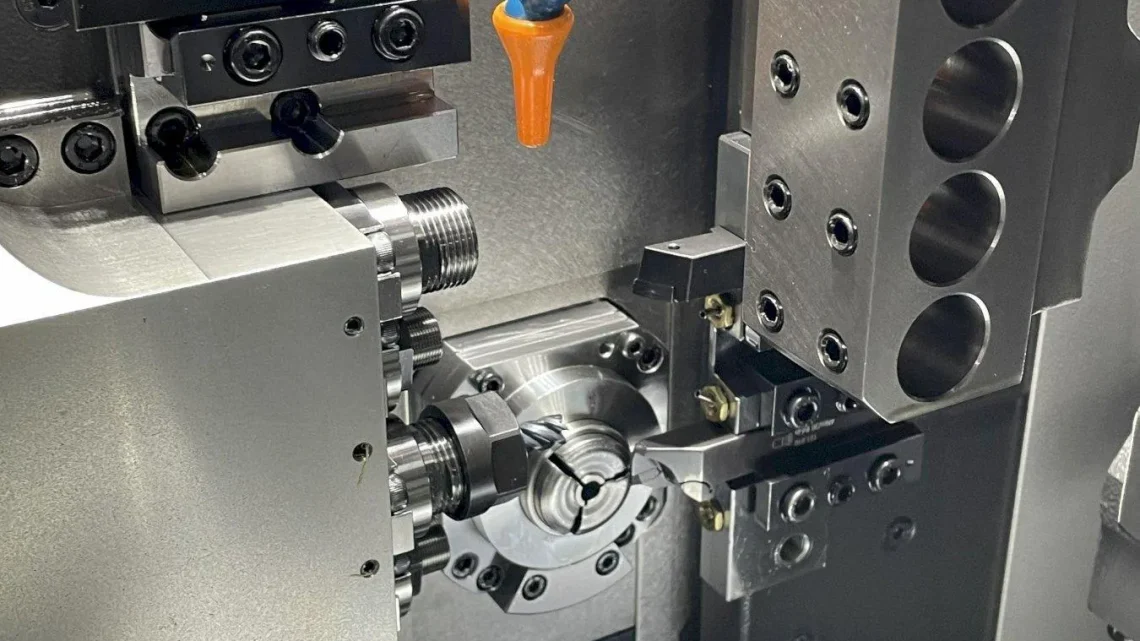

Immediate Sale: Tsugami B0205-VRCNC Swiss Lathe with Edge Scout 320 Bar feeder – Year 2024

Item	B0125-VR	B0126-VR	B0205-VR	B0206-VR
Max. Machining Diameter	Ø12 mm / 0.47″	Ø12 mm / 0.47″	Ø20 mm / 0.79″	Ø20 mm / 0.79″
Main Spindle Speed	Max. 12,000 rpm (Rated: 10,000 rpm)	Max. 12,000 rpm (Rated: 10,000 rpm)	Max. 10,000 rpm (Rated: 8,000 rpm)	Max. 10,000 rpm (Rated: 8,000 rpm)
Back Spindle Speed	Max. 12,000 rpm (Rated: 8,000 rpm)
Tool Storage Capacity (Std.)	21	27	21	27

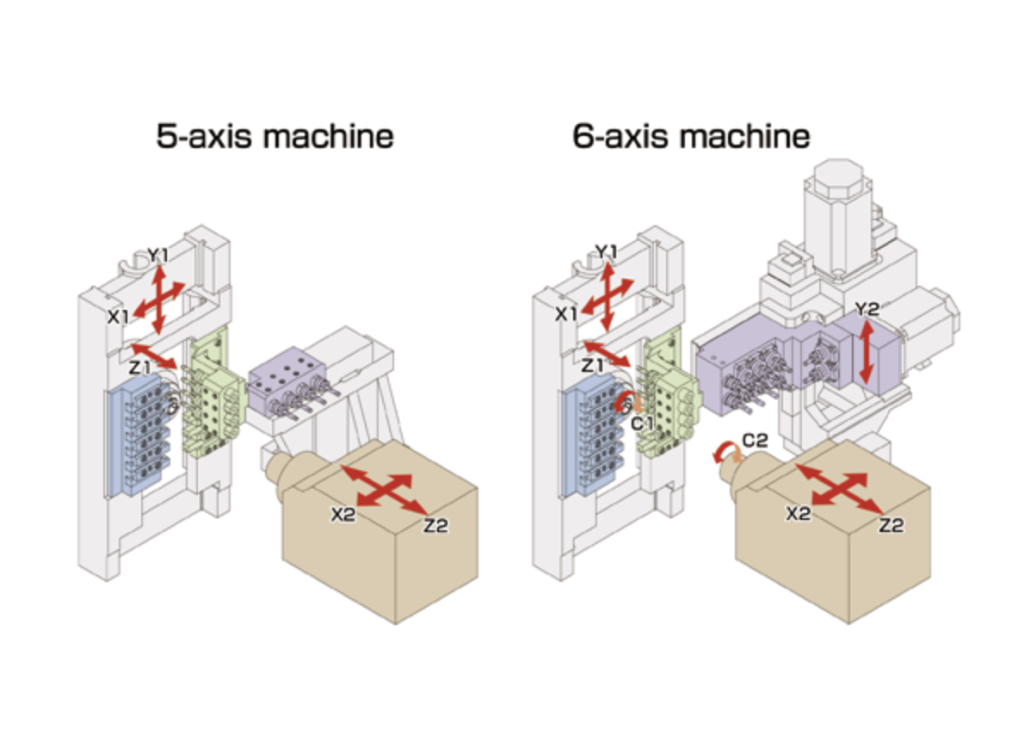

Rapid Traverse Rate	36 m/min (X2, Z2) / 1,417 IPM 32 m/min (Y1, Z1) / 1,260 IPM 24 m/min (X1) / 945 IPM 15 m/min (Y2 – 6 axis only) / 591 IPM
Main Spindle Motor	2.2 / 3.7 kW (3.0 / 5.0 HP)	2.2 / 3.7 kW (3.0 / 5.0 HP)	3.7 / 5.5 kW (5.0 / 7.4 HP)	3.7 / 5.5 kW (5.0 / 7.4 HP)
Back Spindle Motor	2.2 / 3.7 kW (3.0 / 5.0 HP)
Dimensions (W x D x H)	1,750 x 1,055 x 1,700 mm / 68.9″ x 41.5″ x 66.9″
Weight	1,800 kg / 3,968 lbs	1,850 kg / 4,079 lbs	1,800 kg / 3,968 lbs	1,850 kg / 4,079 lbs

Dimensions (W x D x H)	69″ x 41.5″ x 67″ / 1,753 x 1,054 x 1,702 mm
Weight	3,968 lbs / 1,800 kg
Maximum Machining Diameter	0.787″ / 20 mm
Maximum Headstock Stroke (Guide Bushing)	6.69″ / 170 mm
Maximum Headstock Stroke (Chucker)	1.771″ / 45 mm
Maximum Main Spindle Speed	10,000 rpm
Live Tool Spindle Speed	8,000 rpm
Number of Tool Positions	21
Sub Spindle Maximum Machining Diameter	0.787″ / 20 mm
Sub Spindle Front Ejection Max Length	3.15″ / 80 mm
Sub Spindle Speed	12,000 rpm
Max Tool Spindle Slotting Cutting Diameter	1.18″ / 30 mm
Rapid Traverse Rate	36 m/min / 1,417 IPM
System Input Power	13.0 kVA
Compressed Air Requirement	60 psi / 4.1 bar
Coolant Tank Capacity	47 gal / 178 L
Main Spindle Motor	7.5 hp / 5.6 kW
Sub Spindle Motor	5.0 hp / 3.7 kW
Axes Motors	0.67 hp / 0.5 kW
Live Tool Motor	1.34 hp / 1.0 kW
