Available now : YOU JI VTL-1600ATC+C CNC Vertical Lathe C-Axis Table Diameter 1600mm – Year 2023 For SALE
YOU JI VTL-1600ATC+C CNC Vertical Lathe C-Axis – Year 2023 YOU JI VTL Series – Technical Specifications
| Model | Table Size (mm) | Max Swing (mm) | Std. Cutting Ø (mm) | Z Axis Travel (mm) | Rail Travel (mm) | Ram to Table (mm) | Table Load (kg) | ATC System | Spindle Power (kW) | RPM | C Axis | Twin Ram | Weight (kg) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| VTL-800ATC | 610 / 813 | 1,100 | 1,041 | 800 | Fixed | 1,150 | 3,000 | 12 / 16 / 32 / 60 | 37 | 600 | Optional | No | 14,470 |
| VTL-1000ATC | 1,000 | 1,350 | 1,100 | 800 | 508 | 1,265 | 4,000 | 12 / 16 / 32 / 60 | 37 | 600 | Optional | No | 29,120 |
| YV-1000ATC | 1,000 | 1,350 | 1,100 | 800 | Fixed | 900 | 4,000 | 12 / 16 / 32 / 60 | 37 | 600 | Optional | No | 19,960 |
| YV-1200ATC | 1,250 | 1,600 | 1,400 | 900 | 800 | 1,510 | 5,000 | 12 / 16 / 32 / 60 | 45 | 350 | Optional | No | 22,680 |
| YV-1600ATC | 1,600 | 2,000 | 1,800 | 900 | 800 | 1,530 | 8,000 | 12 / 16 / 32 / 60 | 45 | 250 | Optional | No | 27,490 |
| VTL-1200ATC | 1,250 | 1,600 | 1,400 | 900 | 800 | 1,510 | 5,000 | 12 / 16 / 32 / 60 | 45 | 350 | Optional | No | 32,930 |
| VTL-1200ATC-I | 1,250 | 1,600 | 1,400 | 900 | 1,200 | 1,910 | 5,000 | 12 / 16 / 32 / 60 | 45 (75 opt.) | 350 | Optional | No | 34,470 |
| VTL-1200ATC-II | 1,250 | 1,600 | 1,400 | 1,200 | 1,400 | 2,100 | 5,000 | 12 / 16 / 32 / 60 | 45 (75 opt.) | 350 | Optional | No | 36,420 |
| VTL-1600ATC | 1,600 | 2,000 | 1,800 | 900 | 800 | 1,530 | 8,000 | 12 / 16 / 32 / 60 | 45 (75 opt.) | 250 | Optional | Optional | 36,920 |
| VTL-1600ATC-I | 1,600 | 2,000 | 1,800 | 900 | 1,200 | 1,930 | 8,000 | 12 / 16 / 32 / 60 | 45 (75 opt.) | 250 | Optional | Optional | 37,920 |
| VTL-1600ATC-II | 1,600 | 2,000 | 1,800 | 1,200 | 1,400 | 2,130 | 8,000 | 12 / 16 / 32 / 60 | 45 (75 opt.) | 250 | Optional | Optional | 39,420 |

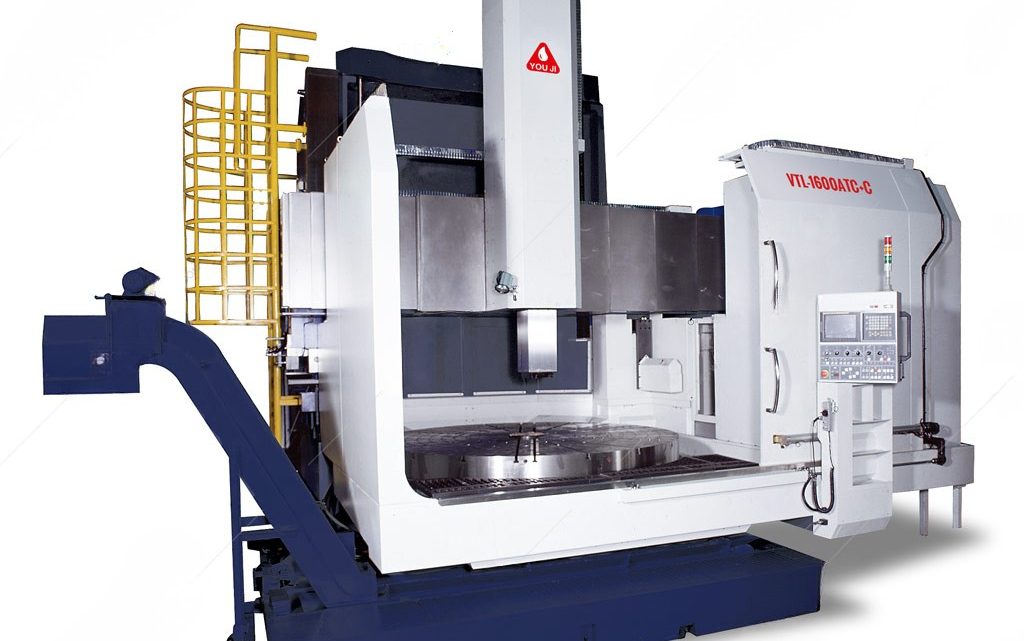

YOU JI VTL-1600ATC+C C-Axis CNC Vertical Turning Lathe
| Specification | Details |
|---|---|
| Machine Type | C-Axis CNC Vertical Turning Lathe (VTL) |
| Model | YV-1600 ATC + C |
| Total Operating Hours | 1,239 Hours |
| Table Diameter | 1,600 mm |
| Maximum Swing Diameter | 2,000 mm |
| Maximum Workpiece Height | 1,200 mm |
| Table Load Capacity | 8,000 kg |
| CNC Control | FANUC Oi-TF Plus |
| C-Axis | Included |
| Internal Coolant | Available (Optional) |
Additional Information
- Low operating hours
- Heavy-duty vertical turning capability
- Suitable for large diameter and heavy workpieces
