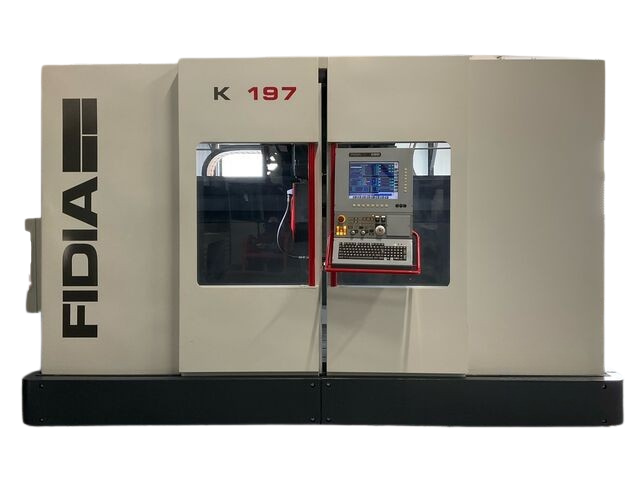

Available now : FIDIA K197/5 CNC 5-Axis Double Column Bridge Type Vertical Machining Center
FIDIA K197 / 5 CNC Machining Center – Technical Specifications
| Specification | Metric | Imperial |
|---|---|---|
| Longitudinal Travel (X-Axis) | 1,650 + 150 mm | 64.96″ + 5.91″ |
| Vertical Travel (Z-Axis) | 700 mm | 27.56″ |
| Cross Travel (Y-Axis) | 750 + 150 mm | 29.53″ + 5.91″ |
| Head Rotation (C-Axis) | Continuous +/- 200° | Continuous +/- 200° |
| Head Tilting (A-Axis) | Continuous +95° / -110° | Continuous +95° / -110° |
| CNC Control | FIDIA C20 | FIDIA C20 |
| Spindle Power | 27 / 32 kW | 36.2 / 42.9 HP |
| Spindle Speed | 240 – 24,000 RPM | 240 – 24,000 RPM |
| Spindle Taper | HSK63A | HSK63A |
| Internal Coolant Pressure | 50 bar | 725 psi |
| Rapid Traverse X-Axis | 30 m/min | 1,181 in/min |
| Rapid Traverse Y-Axis | 30 m/min | 1,181 in/min |
| Rapid Traverse Z-Axis | 30 m/min | 1,181 in/min |
| Axis Acceleration | 4 m/s² | 13.12 ft/s² |
| Table / Floor Area | 2,000 x 1,250 mm | 78.74″ x 49.21″ |
| Table Load Capacity | 7,000 kg | 15,432 lbs |
| Machine Total Weight | 21,500 kg | 47,399 lbs |
| Machine Floor Space | 4,000 x 3,900 – 3,940 mm | 157.48″ x 153.54″ – 155.12″ |
| High Pressure Coolant Flow | 50 bar – 29 L/min | 725 psi – 7.66 gal/min |
