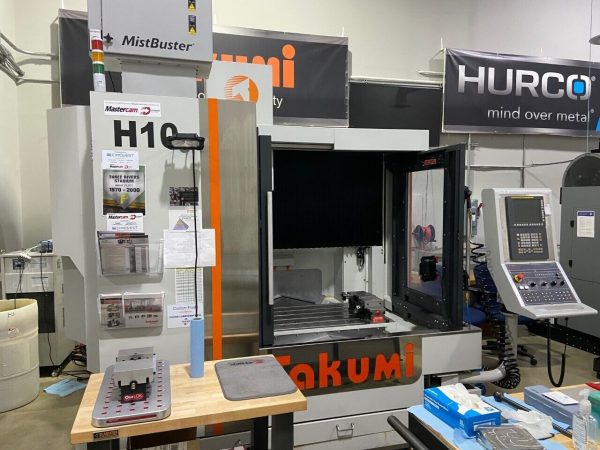

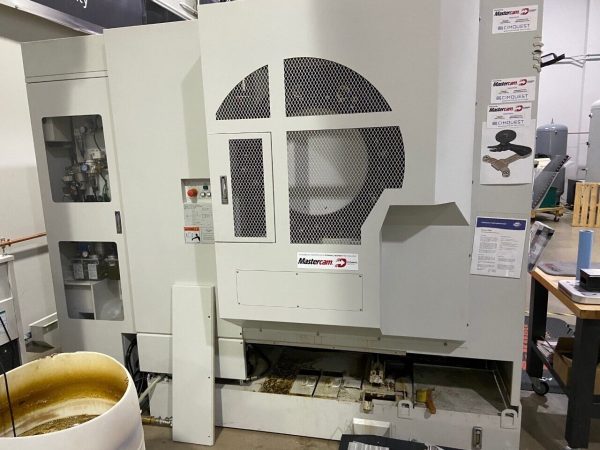

Takumi H10 CNC High Speed Double Column Machining Center

Description

Takumi H10
CNC High Speed Double Column Machining Center

Brand : Takumi
Model : H10
Condition : Used

X, Y, Z -axis Travel 40.16″ x 27.56″ x 19.69″

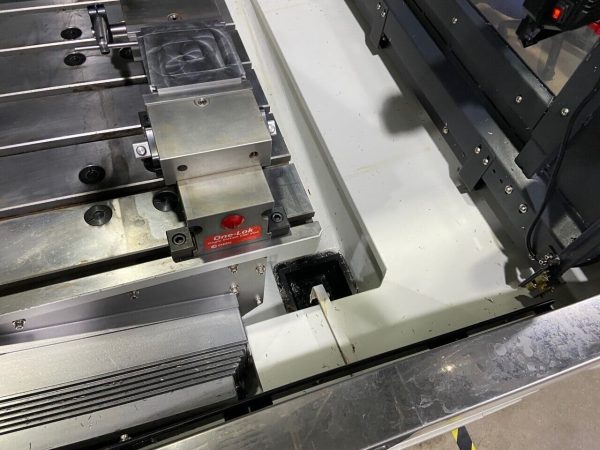

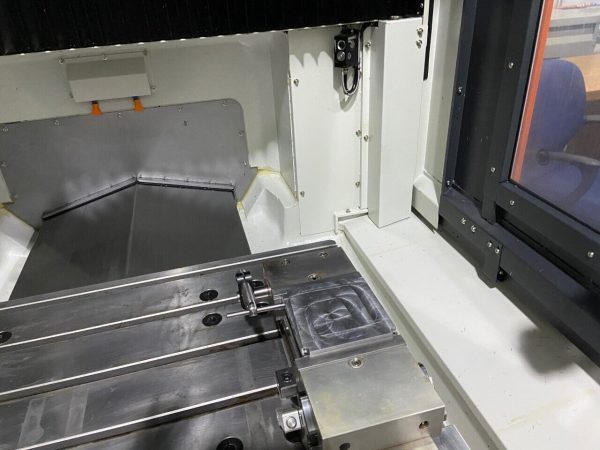

Table Working Surface 41.3″ x 27.6″
Table T-Slots 6 x .71″ on 4.92″ centers
Maximum Table Load 1,760 lbs.
Spindle Nose to Table 7.09″ / 26.77″
Coolant Capacity 110 gallons
Floor to Table Surface 37.7″

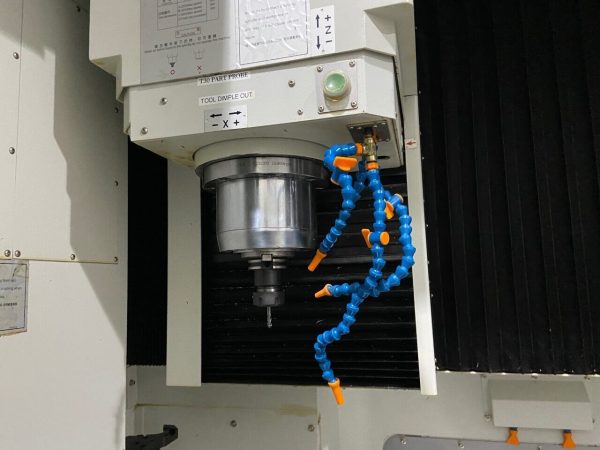

Spindle Taper CAT #40 / Big Plus
Spindle Speed 15,000 rpm
Spindle Motor Horsepower (30 min.) 24.8 HP @ 1500 rpm
Spindle Motor Torque (Peak) 105.5 ft. lbs.

Rapid Traverse Rate X/Y/Z 1,259 ipm
Max Programmable Feedrate 787 ipm
Positioning Accuracy (10 pass VDI 3441 Method) +/- .00025″
Repeatability (10 pass VDI 3441 Method) +/- .00015″
Positioning Accuracy with Linear Scales (10 pass VDI
3441 Method) +/- .00015″
Repeatability with Linear Scales (10 pass VDI 3441
Method) +/- .0001″

Number of Stations 30
Tool Changer Type Swing Arm
Maximum Tool Diameter 2.95″
Maximum Tool Length 11.8″

Maximum Floor Space (W x L x H) 177.95″ x 168.74″ x 120.01″
Machine Weight (approx.) 19,000 lbs.
Machine Shipping Weight (approx.) 18,125 lbs.
Shipping Dimensions (W x D x H) 129″ x 90.25″ x 100.25″
Accessory Skid Weight (approx.) 2,210 lbs.
Accessory Skid Dimensions (W x D x H) 103.6″ x 90.25″ x 61.25″
Voltage Required 220vac ± 10% 60Hz
Power Rating / Full Load KVA 50 KVA

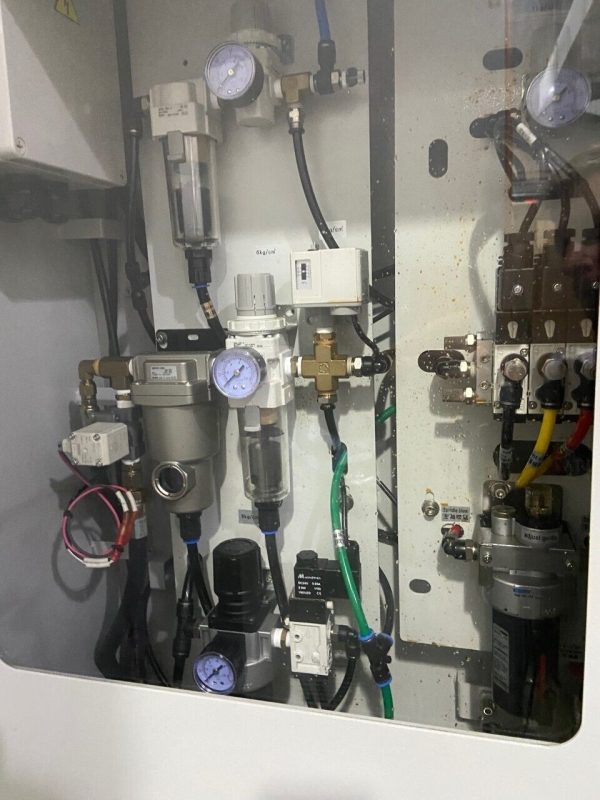

Air Requirements 5 CFM @ 85-115 ps

Manufacturer Catalogue Information about
Takumi H10 CNC High Speed Double Column Machining Center :

Box structure design, 3 axes linear guide ways, high speed & high precision.

Extraordinary of head design
● The special design of the head uses linear guides. This allows the head to be much shorter and lighter, allowing much faster traversing and also reducing deflection issues by maintaining a constant distance from the guides to the spindle.

Linear Guides & Ball Screws
● 4~6 Block for liner guide ways on 3-axis ensure the consistent precision and prolong machine life.
● Takumi use the roller guide way on 3 axes with high loading structure and smooth dynamic moving, provide low abrasion & high accuracy.
● X/Y/Z axis ball screws and linear guides are lubricated by centralized auto lubrication system (Oil type).
● Absolute encoder motors are used in 3–axis feeding.

User Friendly Design
● Full enclosure (without top cover) provides a safe and clean operating environment. The top cover is optional for CE safety directives or machining needs.
● The swivel operation panel allows users to operate at any angle and position.
● Wide door width makes the loading and unloading of work-piece easier.
● Large windows on the door allow great visibility.
● Automatic magazine door can effectively protect
magazine and tools from the damage of chips.
● Magazine enclosure protects operator’s safety.

High Rigidity and
High Stability Double
Column Structure
● Bed, column, saddle and other main casting are made of Meehanite grade cast iron and released the stress by heat treatment, ensuring the best structural stability and positioning accuracy.
● The ladder type design of linear guide ways on the beam provide wider supporting surface for saddle, assuring the spindle of a powerful and stable cutting performance.
● 3 axes ball screws pretension design reduces the thermal variation, offering the best accuracy.
● 3 axes ball screws and linear guide ways are lubricated by centralized automatic lubrication system (oil type).

The achievement of Takumi’s innovation and technology:
The perfect performance of high speed and high accuracy.

● H series is designed for the machining requirements from the industries of parts production and mold & die. 3 axes are equipped with roller type linear guide ways to meet the demand of high acceleration/deceleration, the maximum cutting feed rate ups to 30 m/min (H12/H16). By adopting 10000rpm~24000rpm high speed spindles, H series is widely used in the industries of 3C, automotive and mold machining.
● Wide door width makes the loading and unloading of work-piece easier.

The swivel operation panel allows users to operate at any angle and position.

Special color for customer
● T-shape bed provides the best rigidity and stability.
● Beam & column are made of one piece casting.

High Rigidity and High Stability Double Column Structure
Respect, Teamwork, Innovation, Service
● 3 axes travel: X=750~1600mm, Y=600~1300mm, Z=500~700mm.
● 3 axes are equipped with roller type linear guide ways to optimize
acceleration/deceleration.
● Non-counter balance on spindle head allows high speed and quick
response.
● Bed, column, saddle and other main casting are made of
Meehanite grade cast iron and released the stress by heat treatment, ensuring the best structural stability and positioning accuracy.
● The ladder type design of linear guide ways on the beam provide wider supporting surface for saddle, assuring the spindle of a powerful and stable cutting performance.
● 3 axes ball screws pretension design reduces the thermal variation, offering the best accuracy.
● 3 axes ball screws and linear guide ways are lubricated by centralized automatic lubrication system (oil type).
● Absolute encoder motors are used in 3 axes feeding system to ensure the positioning accuracy.
● The device of oil & coolant separation on machine bed and oil skimmer on coolant tank prolongs the service life of coolant.
● Fully enclosed splash guard provides safety and clean operating environment.

Standard Accessories

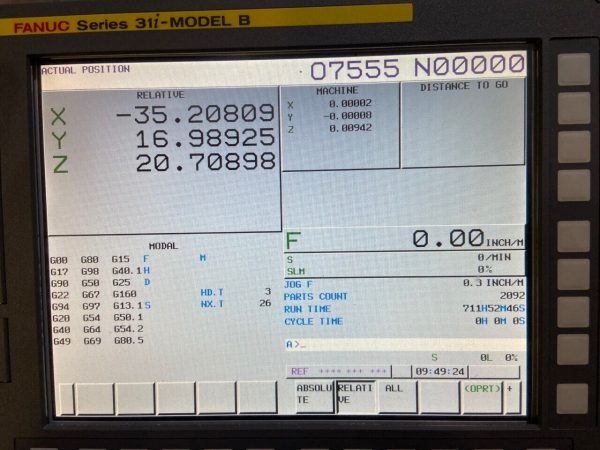

● FANUC 31iMB controller
● 20000 rpm,#HSK-A63, Built-in type spindle
● 16T, #HSK-A63, armless type ATC (H7/H10/H12)
● 20T, #HSK-A63, armless type ATC (H16)
● Spindle air blast
● Cutting air blast

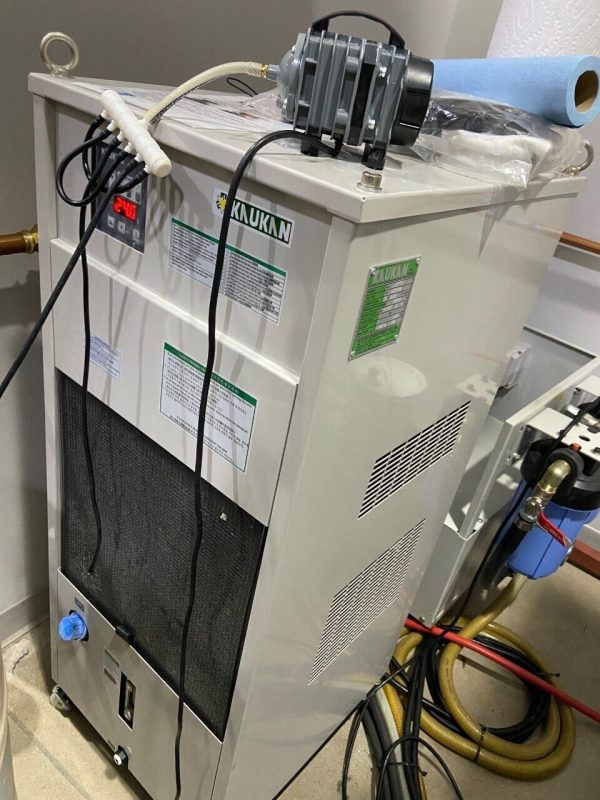

● Spindle cooler
● Cutting coolant system

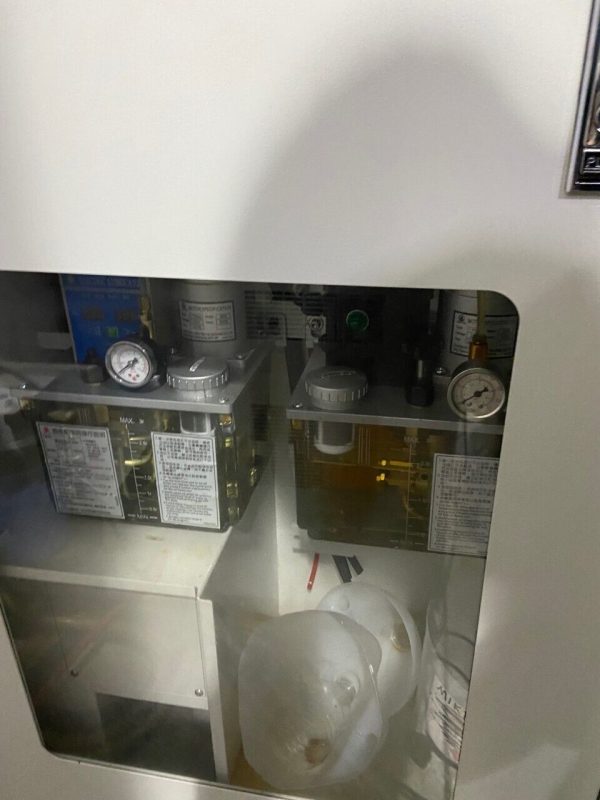

● Centralized automatic lubrication system (oil)
● 3 axes absolute encoder motors
Fully enclosed splash guard ● Working lamp
● Indication lamp
● Washing gun & air gun
● Oil skimmer
● Coolant tank & coolant flushing system (H7/H10/H12) ● Steel belt type chip conveyor (H16)
● Manual pulse generator
● Ethernet card & RS-232C interface

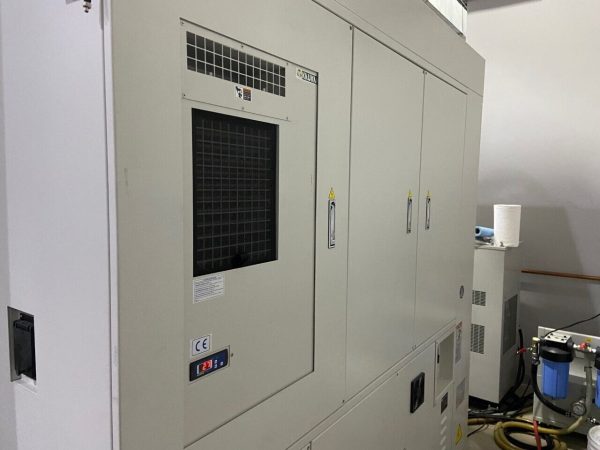

● Air conditioner for electrical cabinet
● Tool kits
● Anchor bolts, leveling blocks and bolts
● Operation manuals, PLC, electrical circuit diagrams
● One-year machine warranty
(Spindle warranty depends upon spindle manufacturer) ● Controller warranty
(FANUC : 24 months from shipping date)

■ Optional Accessories
● MITSUBISHI M730V controller
● HEIDENHAIN iTNC 530 controller
● SIEMENS 840D controller
● Direct-drive type spindle
15000rpm, BBT-40 (H7/H10)
10000rpm, BBT-50 (H16)
● Built-in type spindle (IBAG)
24000rpm, HSK-A63 (Except H12)
● ATC
24T, #40, arm type ATC (H7/H12) 30T, #40, arm type ATC (H10/H12) 30/48/60T, #40, arm type ATC (H16) 24T,#50, arm type ATC (H12) 32/60T,#50, arm type ATC (H16)
● Coolant through spindle
● Spindle thermal compensation system
(For IBAG spindle only)
● Ball screw cooling system
● Grease type lubrication system
(for machine equipped graphite cutting set)
● Oil mist device

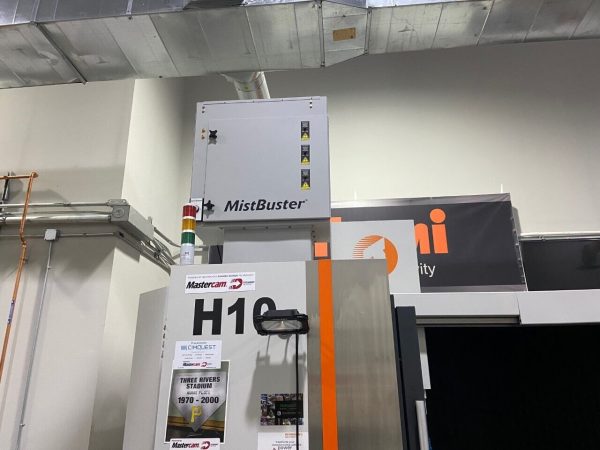

● Oil mist collector
● Linear scales (3 axes)
● Workpiece measurement system

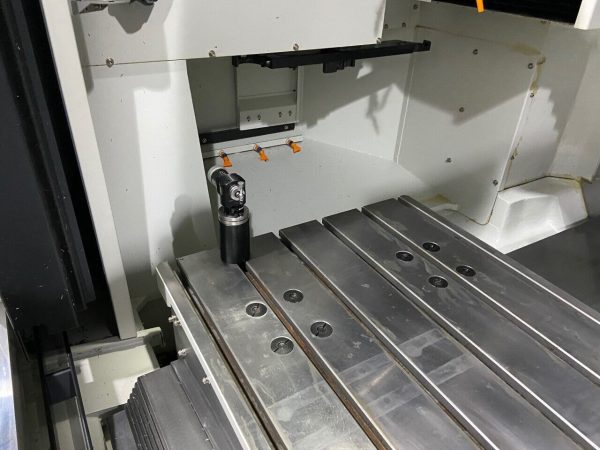

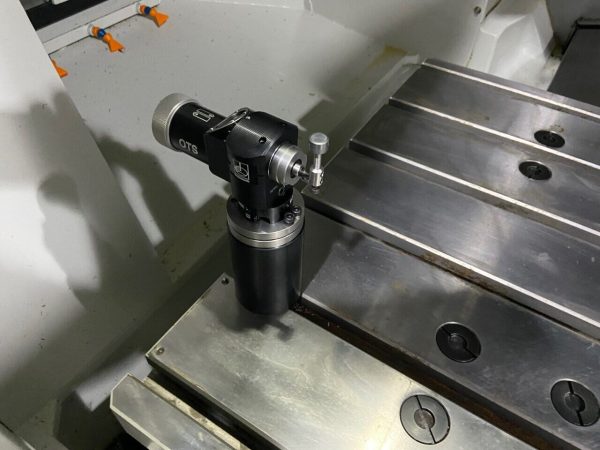

● Tool length measurement system
● Rotary table (The 4th/5th axis)
● Steel belt type chip conveyor (H7/H10/H12)
● Scraper type chip conveyor(H7/H10/H12)
● Transformer
● CE (CE area only)
