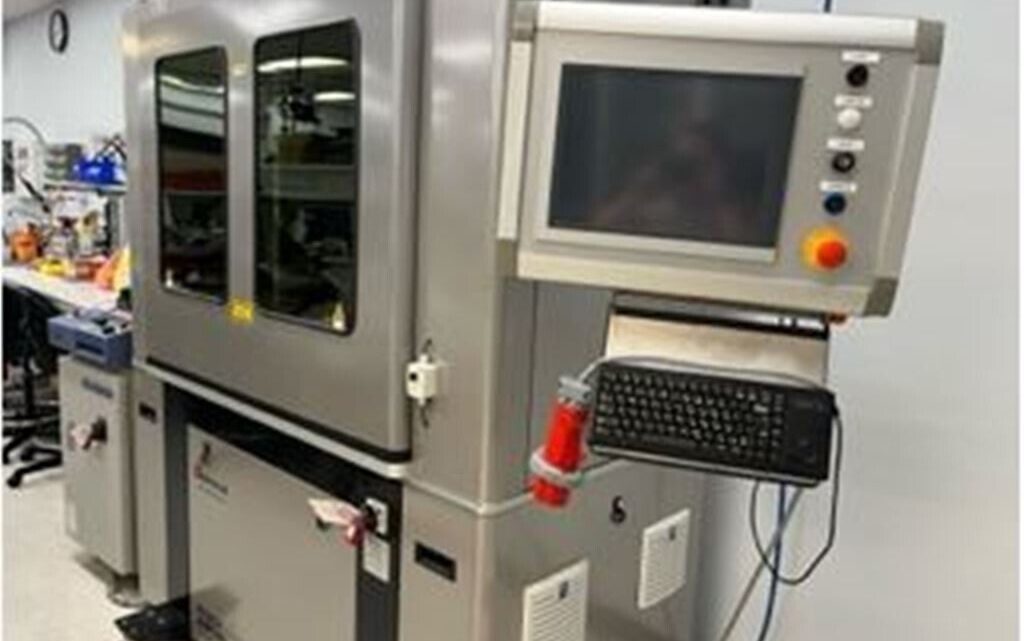

From Inspection to Installation: What to Verify Before Buying a Pre-Owned, Used, Secondhand, Surplus Amada Miyachi Jupiter 68P0070 Laser Welding System made in Japan
Below is a professional, clear, and purely textual English evaluation guide you can use before purchasing a pre-owned / used / secondhand / surplus Amada Miyachi Jupiter 68P0070 Laser Welding System (Made in Japan). This covers technical details, inspection checkpoints, what to verify before buying, and installation readiness.
From Inspection to Installation
What to Verify Before Buying a Pre-Owned Amada Miyachi Jupiter 68P0070 Laser Welding System
1. PRODUCT SUMMARY
- Model: Jupiter 68P0070
- Brand: Amada Miyachi
- Machine Type: Laser Welding System
- Origin: Made in Japan
- Application: Precision laser welding for metal components including automotive, electronics, medical, tooling, and precision assemblies
2. TYPICAL SYSTEM COMPONENTS
A complete laser welding system like the Jupiter 68P0070 generally includes:
- Laser Source
- Pulsed laser generator (fiber or solid-state)
- Power range often between 100 W and 1000 W depending on configuration
- Workstation / Cabinet
- Rigid base frame
- Safety interlocked guarding
- Beam Delivery
- Flexible fiber optic cable (if fiber laser)
- Beam path optics and focusing head
- Welding Head
- Programmable 3-axis or 5-axis head
- Collimation and focusing lens
- Control Electronics
- CNC or microprocessor-based controller
- User interface panel
- Cooling System
- Chiller or heat exchanger
- Temperature sensors
- Fume Extraction
- Ports for smoke and particulate removal
- Safety Features
- Interlock switches
- Laser safety enclosure
3. TECHNICAL SPECIFICATIONS
(Values may vary slightly based on configuration and options installed on the unit. Confirm with seller.)
| Category | Typical Specification |
|---|---|
| Laser Type | Pulsed Laser Welding Source |
| Wavelength | Typically 1064 nm (infrared) |
| Maximum Average Power | 200 W – 1000 W range depending on model |
| Peak Power | kW range in pulsed operation |
| Cooling | Closed-loop industrial chiller |
| Control System | CNC / PLC controller with digital user interface |
| Beam Delivery | Fiber optic delivery or articulated arm |
| Welding Head Axis | X, Y, Z axis motion with programmable motion |
| Focusing Lens | Replaceable focusing optics |
| Power Supply | Three-phase industrial supply |
| Work Chamber | Safety-interlocked enclosure |
| Exhaust Port | Standard port for fume removal |
4. PRE-PURCHASE INSPECTION CHECKLIST
Before committing to purchase, verify the following:
A. LASER SOURCE HEALTH
- Laser Hours: Request operating hours from seller
- Laser Power Test: Verify output with power meter or test cut/weld
- Optics Condition: No burned, scratched, or contaminated lenses
- Fiber Delivery: No excessive bending, cracking, or damage
B. MECHANICAL & STRUCTURAL CONDITION
- Work Table Condition
- Flatness
- No warping or dents
- Linear Rails & Guides
- Smooth motion
- No play or backlash
- Proper lubrication
- Welding Head Motion
- All axes move freely
- No unusual binding or noise
C. ELECTRICAL & CONTROL SYSTEM
- Control Panel Operation
- Buttons and display respond normally
- Emergency stop functions correctly
- Wiring Inspection
- No loose connections
- No signs of overheating or arcing
- PLC / CNC Logic
- Program loads
- Memory intact
- No corrupt configurations
D. COOLING SYSTEM CHECK
- Chiller Operation
- Proper coolant temperature
- No leaks
- Clean heat exchanger
- Pumps & Fans
- Functioning without grinding noise
- Correct flow rate
E. SAFETY FEATURES
- Laser Interlock Doors
- Break the laser when opened
- Safety Shields
- No cracks
- Interlocks active
- Emergency Stop
- Confirm stops laser immediately
5. TEST & DEMONSTRATION REQUIREMENTS
Before purchase, request the following tests:
Power & Alignment Verification
- Laser output test at the welding head
- Check alignment consistency across X/Y travel
Welding Test
- Weld on sample parts
- Observe bead quality
- Verify penetration and repeatability
Motion & Repeatability Test
- Move welding head through full travel
- Check for smooth motion
- Confirm repeatability on return
6. DOCUMENTATION TO REQUEST
Ask seller for:
- Original Manuals
- Operation manual
- Maintenance manual
- Electrical & wiring diagrams
- Service History
- Repairs
- Part replacements
- Laser Calibration Records
- Chiller and Optics Replacement Records
- Installation and Training Records
7. TRANSPORT & INSTALLATION CONSIDERATIONS
A. SITE PREPARATION
- Floor Condition
- Level and strong enough for machine weight
- Electrical Supply
- Match required voltage and phase
- Dedicated breaker
- Ventilation
- Adequate fume exhaust
- Cooling Water
- Industrial chiller ready and water handling
B. INSTALLATION CHECKPOINTS
- Leveling
- Use precision level before powering up
- Grounding
- Proper machine grounding is crucial
- Cable Routing
- Secure and avoid tripping hazards
- Safety Verification
- Ensure interlocks and shielding are functional
8. OPERATION READINESS TESTS
After installation:
- Power On
- Watch for error codes
- Verify fan operation
- Homing & Referencing
- All axes home reliably
- Control System Warm-Up
- Ensure no faults
- Dry Motion Run
- Execute motion program without laser
- Confirm speed and motion correctness
- Laser Fire Test
- Short pulse on test plate
- Confirm correct power delivery
9. COMMON ISSUES ON USED LASER WELDERS
| Common Issue | What to Check |
|---|---|
| Dirty Optics | Lens cleaning / replacement |
| Misaligned Beam | Requires re-alignment |
| Cooling System Damage | Signs of leaks |
| Software Faults | Corrupt memory |
| Mechanical Wear | Backlash or noise |
10. FINAL DECISION FACTORS
- Laser life hours vs price
- Condition of optics and laser head
- System documentation completeness
- Safety compliance status
- Availability of spare parts
- Technical support availability
