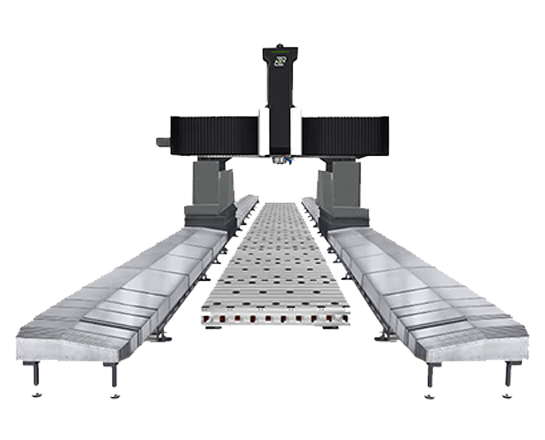

| Starvision CM-8237
CNC 5-Axis Double Column Beam and Column Moving Machining Center – 8.2 Meters Year 2022 |
| Specification |
Metric |
Imperial |
Description |
| Manufacturer |
Starvision Machinery |
Starvision Machinery |
Double Column Machining Center |
| Model |
CM-8237 |
CM-8237 |
Beam & Column Moving CNC Machining Center |
| Year of Manufacture |
2022 |
2022 |
Modern CNC Machine |
| CNC Control |
FANUC 31i-MB (10.4” Plus) |
FANUC 31i-MB (10.4” Plus) |
Advanced CNC Control System |
| Machine Type |
Double Column Machining Center |
Double Column Machining Center |
Gantry / Portal Milling Machine |
| Table Size |
8,000 × 2,000 mm |
314.96 × 78.74 in |
Working Table Dimensions |
| X-Axis Travel |
8,200 mm |
322.83 in |
Longitudinal Travel |
| Y-Axis Travel |
3,700 mm |
145.67 in |
Cross Travel (Moving Column) |
| Z-Axis Travel |
1,000 mm |
39.37 in |
Vertical Travel |
| Guideway Type |
X: Linear / Y: Box / Z: Box |
X: Linear / Y: Box / Z: Box |
High Rigidity Guideway Configuration |
| Spindle Nose to Table |
410 – 1,410 mm |
16.14 – 55.51 in |
Working Clearance Range |
| Distance Between Columns |
3,400 mm |
133.86 in |
Maximum Workpiece Width |
| Table Load Capacity |
5,000 kg |
11,023 lbs |
Maximum Workpiece Weight |
| Spindle Speed |
4,200 rpm |
4,200 rpm |
Gear Type Spindle |
| Spindle Taper |
BT50 |
BT50 |
Heavy Duty Tooling System |
| Tool Changer |
32 ATC (H + V) |
32 ATC (H + V) |
Horizontal + Vertical Tool Magazine |
| Automatic Head |
90° Head (C-Axis 5° Indexing) |
90° Head (C-Axis 5° Indexing) |
Flexible Machining Head |
| Head Speed |
2,000 rpm |
2,000 rpm |
Auto Head Spindle Speed |
| AC Angular Head ATC |
70° Head / 24 ATC |
70° Head / 24 ATC |
Additional Head Tool System |
| Coolant System |
Through Spindle 70 bar |
Through Spindle 1,015 psi |
High Pressure Coolant |
| Cooling System |
Spindle Oil Cooler |
Spindle Oil Cooler |
Thermal Stability |
| Linear Scales |
Heidenhain (X/Y) |
Heidenhain (X/Y) |
High Precision Feedback System |
| Air System |
Air Through System |
Air Through System |
Enhanced Cooling & Chip Removal |

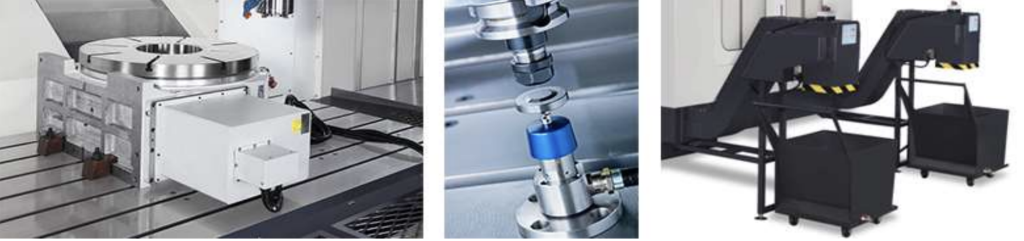

| Chip Removal |
Chip Conveyor |
Chip Conveyor |
Automatic Chip Evacuation |
| Additional Equipment |
• Oil Skimmer
• Data Server / AICC II
• Air Conditioner (Electrical Cabinet) |
| Machine Dimensions |
15,500 × 8,700 × 5,500 mm |
610.24 × 342.52 × 216.54 in |
Overall Machine Size |
| Key Features |
• Large 8.2 meter travel gantry machining center
• High rigidity double column structure
• FANUC 31i-MB advanced CNC control
• Heavy-duty BT50 spindle with gear drive
• 32 tool ATC with additional angular head system
• 90° automatic head with C-axis indexing
• High precision Heidenhain linear scales
• Through spindle coolant at 70 bar
• Ideal for machining large molds, aerospace parts, heavy steel structures, energy components and precision large-scale machining applications |
