Available now : Quaser UX 500 CNC 5-Axis Vertical Machining Center – Year 2025

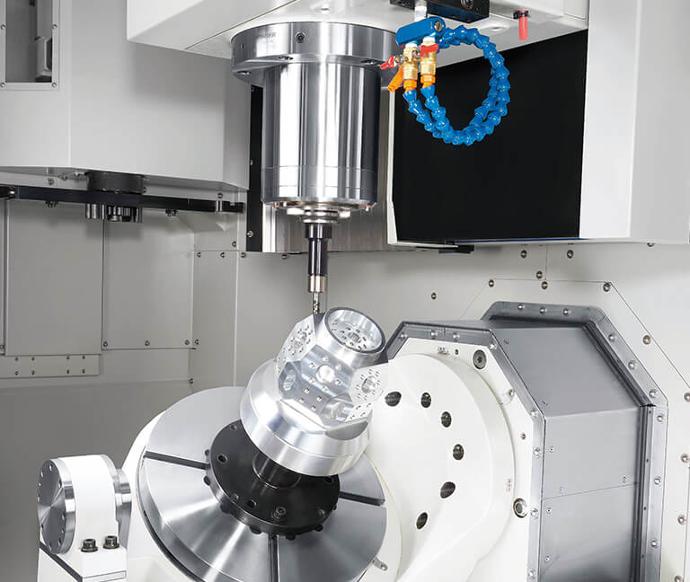

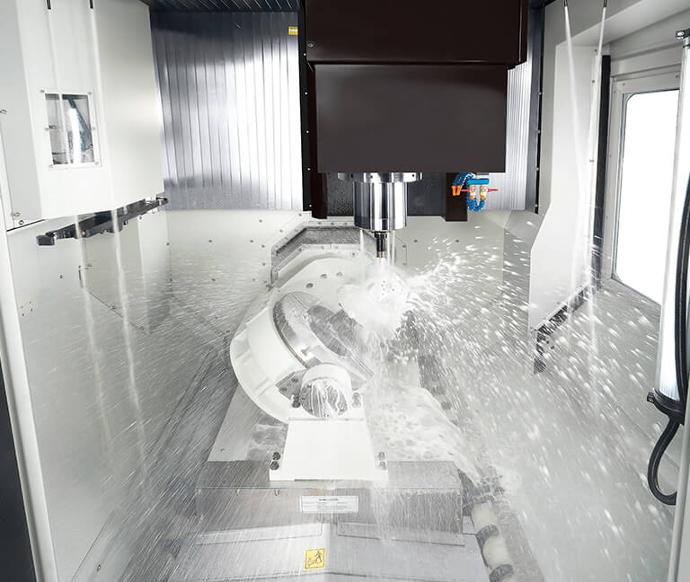

Quaser UX 500 CNC 5-Axis Vertical Machining Center – Year 2025
| Specification | Metric | Imperial |
|---|---|---|
| Manufacturer | Quaser | Quaser |
| Model | UX 500 | UX 500 |
| Machine Type | CNC 5-Axis Vertical Machining Center | CNC 5-Axis Vertical Machining Center |
| Year of Manufacture | 2025 | 2025 |
| Condition | Excellent (Used) | Excellent (Used) |
| Functionality | Fully Functional | Fully Functional |
| CNC Control Options | Siemens 828D (15″) or Heidenhain TNC 640 | Siemens 828D (15″) or Heidenhain TNC 640 |
| Number of Axes | 5-Axis (B/C) | 5-Axis (B/C) |
| X-Axis Travel | 712 mm | 28.03 in |
| Y-Axis Travel | 540 mm | 21.26 in |
| Z-Axis Travel | 515 mm | 20.28 in |
| Rapid Traverse (X) | 36 m/min | 1,417 ipm |
| Rapid Traverse (Y) | 36 m/min | 1,417 ipm |
| Rapid Traverse (Z) | 36 m/min | 1,417 ipm |
| B-Axis Travel | +30° to -120° | +30° to -120° |
| C-Axis Rotation | 360° Continuous | 360° Continuous |
| Maximum Workpiece Diameter | 540 mm | 21.26 in |
| Maximum Workpiece Height | 400 mm | 15.75 in |
| Maximum Workpiece Weight | 200 kg | 441 lb |
| Table Load Capacity | 200 kg | 441 lb |
| Rotary Table Diameter | 410 mm | 16.14 in |
| Swivel Diameter | 540 mm | 21.26 in |
| Number of Spindles | 1 | 1 |
| Maximum Spindle Speed | 12,000 rpm | 12,000 rpm |
| Spindle Taper | BT40 / #40 Taper | BT40 / #40 Taper |
| Spindle Cooling | Integrated Spindle Cooler | Integrated Spindle Cooler |
| Air Through Spindle | Included | Included |
| Coolant Pressure | 20 bar | 290 psi |
| Tool Magazine Type | Chain Type | Chain Type |
| Tool Magazine Capacity | 60 Tools | 60 Tools |
| Maximum Tool Diameter | 76 mm | 2.99 in |
| Maximum Tool Length | 280 mm | 11.02 in |
| Maximum Tool Weight | 7 kg | 15.43 lb |
| Overall Length | 4,040 mm | 159.06 in |
| Overall Width | 2,770 mm | 109.06 in |
| Overall Height | 3,360 mm | 132.28 in |
| Glass Scale Feedback | X, Y & Z Axes | X, Y & Z Axes |
| Position Measuring System | Direct Path Measuring System for B/C Axes | Direct Path Measuring System for B/C Axes |
| MPG Handwheel | Included | Included |
| Automatic Lubrication | Central Automatic Lubrication System | Central Automatic Lubrication System |
| Chip Conveyor | Included | Included |
| Documentation / Manual | Included | Included |
| Media Supply Table | 6 Connections | 6 Connections |
| Coolant Filtration | CAN Filter for Chip Flushing & Ring Cooling | CAN Filter for Chip Flushing & Ring Cooling |
| Rotary Union | Deublin Rotary Union | Deublin Rotary Union |
| Accessibility | Large Access Doors with Short Distance to Spindle | Large Access Doors with Short Distance to Spindle |
| Machine Design | Optimized for 5-Side Machining with Excellent Operator Accessibility | Optimized for 5-Side Machining with Excellent Operator Accessibility |
| Industrial Applications | Aerospace, Medical, Mold & Die, Automotive, Precision Engineering, General Manufacturing | Aerospace, Medical, Mold & Die, Automotive, Precision Engineering, General Manufacturing |
| Machining Capability | 5-Axis Milling, Drilling, Tapping, Boring, Simultaneous Multi-Surface Machining, Complex Component Manufacturing | 5-Axis Milling, Drilling, Tapping, Boring, Simultaneous Multi-Surface Machining, Complex Component Manufacturing |
| Machine Features | 5-Side Machining, Siemens or Heidenhain CNC, 60-Tool Chain Magazine, 12,000 rpm High-Speed Spindle, B/C Rotary Axes, Glass Scales, Direct Measuring System, 20 Bar Coolant, Air Through Spindle, Spindle Cooler, Chip Conveyor, Automatic Lubrication, CE Specification | 5-Side Machining, Siemens or Heidenhain CNC, 60-Tool Chain Magazine, 12,000 rpm High-Speed Spindle, B/C Rotary Axes, Glass Scales, Direct Measuring System, 20 Bar Coolant, Air Through Spindle, Spindle Cooler, Chip Conveyor, Automatic Lubrication, CE Specification |
