From Inspection to Installation: used Kitamura Mycenter HX250iG CNC 4-Axis Horizontal Machining Center with Dual Pallet – Year 2022 made in Japan

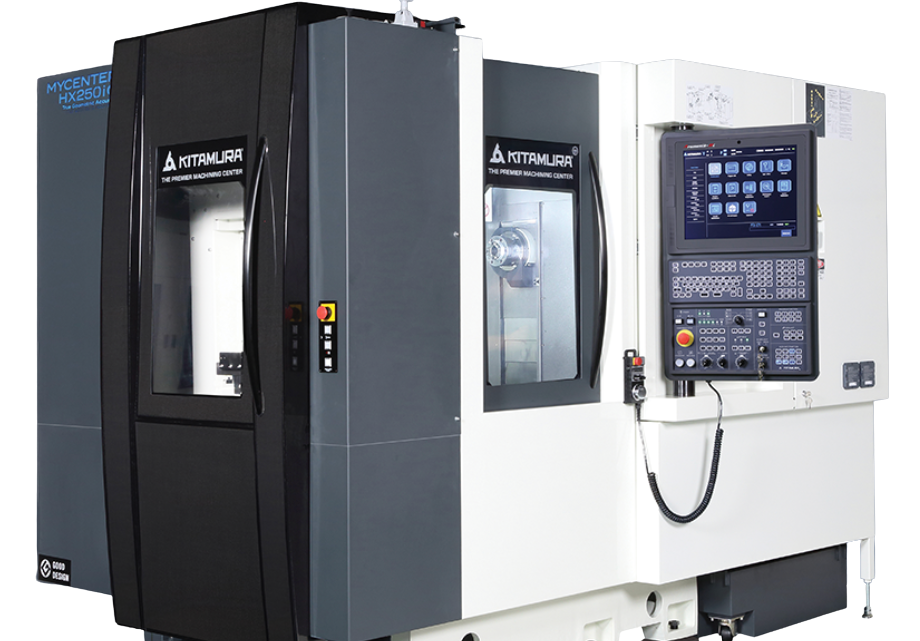

Kitamura Mycenter HX250iG CNC 4-Axis Horizontal Machining Center with Dual Pallet – Year 2022
| Specification | Metric | Imperial |
|---|---|---|
| Manufacturer | Kitamura | Kitamura |
| Model | Mycenter HX250iG | Mycenter HX250iG |
| Machine Type | CNC 4-Axis Horizontal Machining Center | CNC 4-Axis Horizontal Machining Center |
| Year of Manufacture | 2022 | 2022 |
| Serial Number | Contact to us | Contact to us |
| Condition | Used | Used |
| CNC Control | Kitamura Arumatik-Mi CNC | Kitamura Arumatik-Mi CNC |
| Touchscreen Display | 483 mm Color Swing-Type Touchscreen | 19 in Color Swing-Type Touchscreen |
| Number of Axes | 4 Axes | 4 Axes |
| Pallet System | Dual Automatic Pallet Changer (2 Stations) | Dual Automatic Pallet Changer (2 Stations) |
| Rotary Table | Full 4th-Axis Rotary Table | Full 4th-Axis Rotary Table |
| Maximum Spindle Speed | 15,000 rpm | 15,000 rpm |
| Spindle Type | Dual-Contact High-Speed Spindle | Dual-Contact High-Speed Spindle |
| Spindle Taper | BT30 | BT30 |
| Tool Magazine Capacity | 40 Tools | 40 Tools |
| Automatic Tool Changer | 40-Position Fixed-Pot ATC | 40-Position Fixed-Pot ATC |
| Positioning Accuracy | ±0.002 mm | ±0.000078 in |
| Repeatability | ±0.001 mm | ±0.000039 in |
| Maximum Cutting Feedrate | 60,000 mm/min | 2,362 ipm |
| Rapid Traverse (X/Y/Z) | 60,000 mm/min | 2,362 ipm |
| Look-Ahead Processing | 1,880 Blocks | 1,880 Blocks |
| Encoder System | 67 Million Pulse Encoder | 67 Million Pulse Encoder |
| Surface Control | Super Smooth Surface (SSS) Control | Super Smooth Surface (SSS) Control |
| Through-Spindle Coolant | 69 bar (1,000 PSI) ChipBlaster System | 1,000 PSI Through-Spindle Coolant |
| Coolant Chiller | Included | Included |
| Coolant System | Overhead Shower Coolant | Overhead Shower Coolant |
| Tool Breakage Detection | BK Micro Automatic Tool Breakage Detection | BK Micro Automatic Tool Breakage Detection |
| Machine Configuration | High-Speed 4-Axis Horizontal Machining Center with Dual Pallets | High-Speed 4-Axis Horizontal Machining Center with Dual Pallets |
| Machining Capability | Milling, Drilling, Tapping, Boring, Multi-Face Machining, Simultaneous 4-Axis Machining | Milling, Drilling, Tapping, Boring, Multi-Face Machining, Simultaneous 4-Axis Machining |
| Suitable Materials | Steel, Stainless Steel, Aluminum, Titanium, Cast Iron, Copper Alloys, Engineering Plastics | Steel, Stainless Steel, Aluminum, Titanium, Cast Iron, Copper Alloys, Engineering Plastics |
| Industrial Applications | Aerospace, Automotive, Medical, Mold & Die, Precision Engineering, Electronics, General Manufacturing | Aerospace, Automotive, Medical, Mold & Die, Precision Engineering, Electronics, General Manufacturing |
| Machine Features | 15,000 rpm Dual-Contact BT30 Spindle, Dual Automatic Pallet Changer, Full 4th-Axis Rotary Table, 40-Tool ATC, Arumatik-Mi CNC, 19″ Touchscreen, 1,880-Block Look-Ahead, Super Smooth Surface Control, 67-Million Pulse Encoder, 1,000 PSI Through-Spindle Coolant, Overhead Shower Coolant, BK Micro Tool Breakage Detection, Coolant Chiller | 15,000 rpm Dual-Contact BT30 Spindle, Dual Automatic Pallet Changer, Full 4th-Axis Rotary Table, 40-Tool ATC, Arumatik-Mi CNC, 19″ Touchscreen, 1,880-Block Look-Ahead, Super Smooth Surface Control, 67-Million Pulse Encoder, 1,000 PSI Through-Spindle Coolant, Overhead Shower Coolant, BK Micro Tool Breakage Detection, Coolant Chiller |
