Available now : used DOOSAN PUMA TT1800SY CNC Turning Center with ICMCA Bar Feeder – Year 2008 made in South of Korea

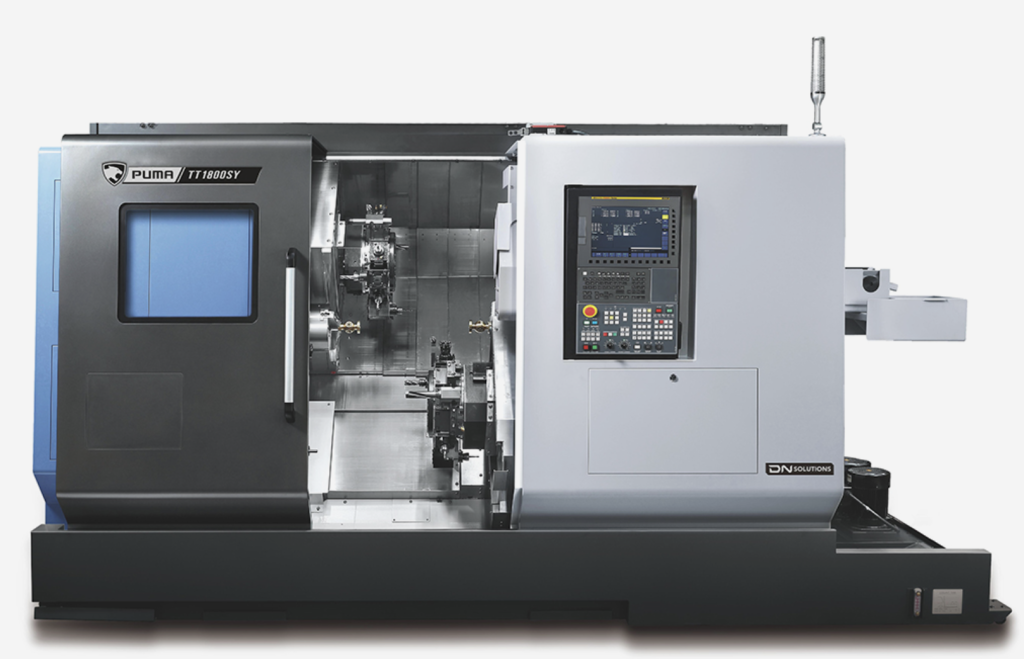

DOOSAN PUMA TT1800SY CNC Turning Center with ICMCA Bar Feeder – Year 2008
| Manufacturer | DOOSAN |
| Model | PUMA TT1800SY |
| Year of Manufacture | 2008 |
| Machine Type | CNC Turning Center (Twin Spindle, Y-Axis) |
| Bar Feeder | ICMCA Bar Feeder Included |
| CAPACITY | |
| Chuck Size | 8 inch |
| Max. Turning Diameter | 230 mm |
| Max. Turning Length | 230 mm |
| TRAVELS | |
| X-Axis Rapid Traverse | 20 m/min |
| Z-Axis Rapid Traverse | 40 m/min |
| X-Axis Travel | 165 mm |
| Y-Axis Travel | 100 mm |
| Z-Axis Travel | 700 mm |
| MAIN SPINDLE | |
| Max. Spindle Speed | 5,000 rpm |
| Spindle Power | 22 kW |
| Spindle Torque | 208 Nm |
| SUB SPINDLE | |
| Max. Spindle Speed | 5,000 rpm |
| Spindle Power | 22 kW |
| TURRET | |
| Number of Tool Stations | 12 |
| Rotary Tool Speed | 6,000 rpm |
| DIMENSIONS | |
| Length | 3905 mm |
| Width | 2250 mm |
| Height | 2080 mm |
| Weight | 8800 kg (≈ 19,400 lbs) |
