01/07/2026
From Inspection to Installation: used Ficep Katana K 115L CNC Band Saw Profile Cutting Line – Year 2018

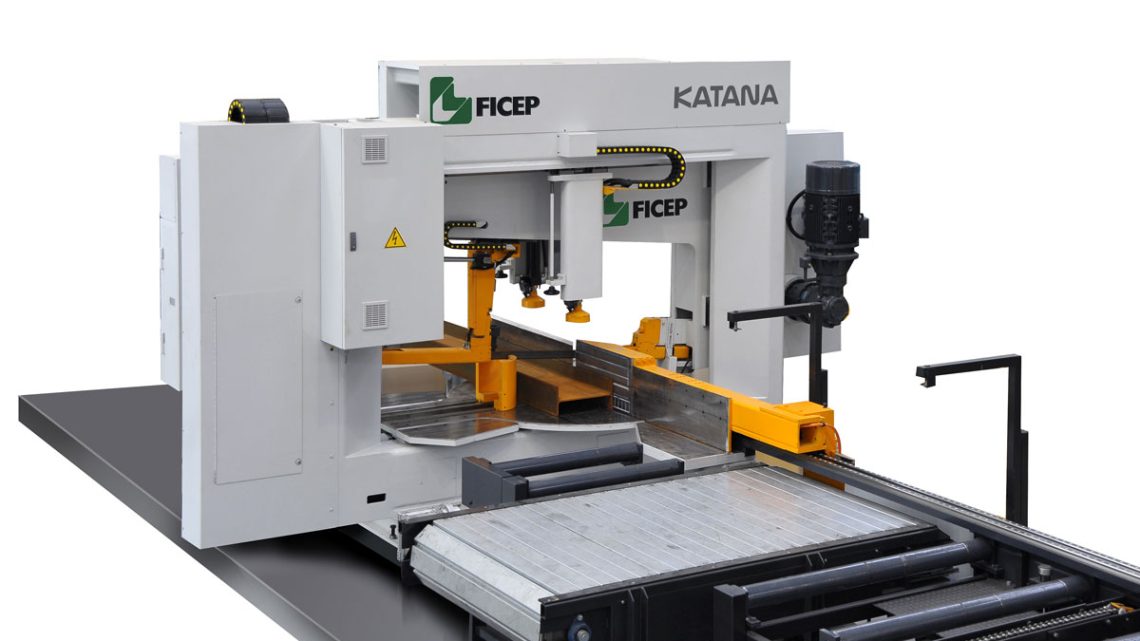

Ficep Katana K 115L CNC Band Saw Profile Cutting Line – Year 2018
| Main Technical Specifications | |
|---|---|
| Minimum Sawing Capacity at 90° | 80 × 10 mm (3.15″ × 0.39″) |
| Maximum Sawing Capacity at 90° | 1100 × 510 mm (43.31″ × 20.08″) |
| Sawing Capacity at 45° | 710 × 510 mm (27.95″ × 20.08″) |
| Sawing Capacity at 60° | 460 × 510 mm (18.11″ × 20.08″) |
| Mitering Angles | +45° / -60° |
| Band Saw Blade Size | 54 × 1.6 × 9920 mm (2.13″ × 0.063″ × 390.55″) |
| Band Speed | 60 – 170 m/min (197 – 558 ft/min) |
| Band Motor Power | 15 kW (20.1 HP) |
| Working Height | 865 mm (34.06″) |
| Machine Weight | 11,500 kg (25,353 lbs) |
| MODEL | FICEP K 60L | FICEP K 100L | FICEP K 115L | FICEP K 126L | FICEP K 206L | FICEP K 258L | |
|---|---|---|---|---|---|---|---|
| Cutting capacity | mm | 610X310 | 1015X450 | 1100X510 | 1250X600 | 2000X600 | 2540X815 |
| Angular cutting capacity | angle | ±60° | ±60° | ±60° | ±60° | ±45° | ±45° |
| Tape measure | mm | 34 x 1.1 | 41 x 1.3 | 54 x 1.3 | 67 x 1.6 | 67 x 1.6 | 67 x 1.6 |
| Saw motor power | kW | 7 | 9 | 15 | 15 | 15 | 18 |
| CNC Axis | piece | 3 | 3 | 3 | 3 | 3 | 3 |
