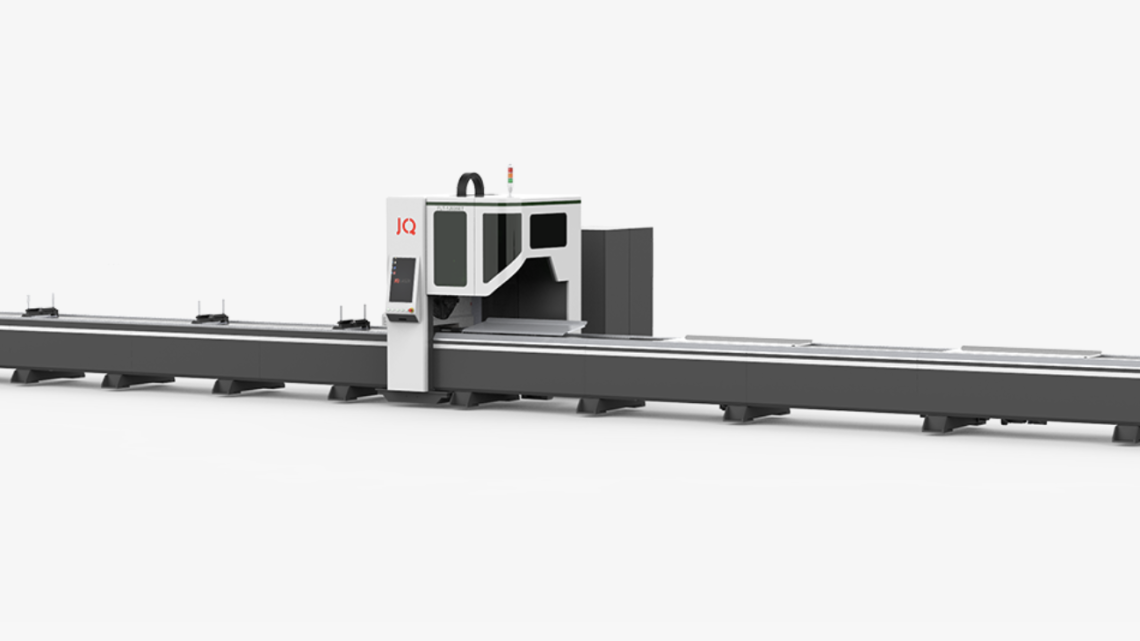

Available now : used JQ Laser FLT-12035ETN CNC Round / Square / Rectangular Tube Fiber Laser Cutting Machine 4kW with 12 Meter Load/Unload System – Year 2022 made in China
| JQ Laser FLT-12035ETN CNC Round / Square / Rectangular Tube Fiber Laser Cutting Machine 4kW with 12 Meter Load/Unload System – Year 2022 Specifications | |||
|---|---|---|---|
| Manufacturer | JQ Laser | Model | FLT-12035ETN |
| Year | 2022 | Machine Type | CNC Fiber Tube Laser Cutting Machine |
| Laser Power | 4 kW | Laser Type | Fiber Laser |
| Maximum Tube Length Capacity | 12,500 mm | 492″ | |
| Maximum Cutting Length | 9,000 mm | 354″ | |
| Tube Diameter Range | 15 – 350 mm | 0.59″ – 13.7″ | |
| Bundle Loader Length | 12.19 m | 40 ft | |
| Bundle Unloader Length | 7.92 m | 26 ft | |
| Bundle Loader Capacity | 2,994 kg | 6,600 lb | |
| Single Tube Capacity | 200 kg | 441 lb | |
| Operating Speed | 60 m/min | 196 ft/min | |
| Chuck Size | 355 mm (3-Jaw) | 14″ | |
| Chuck Capacity | 500 kg | 1,102 lb | |
| Maximum Chuck Speed | 80 RPM | ||
| Loading / Unloading System | Automatic Bundle Loader & Servo Unloader (6 m / 9 m / 12 m) | ||
| Supported Profiles | Round, Square, Rectangular, Angle, U-Channel, Special Sections and Open Profiles | ||
| Tailing System | Zero Tailings | ||
| Support System | Servo Follow-Up Support with Anti-Bending System | ||
| Unloading Stations | 3 Stations | Additional Cutting Head | Included |
| Additional Power Source | Included | Security System | Included |
| Machine Enclosure | Protective Fencing | Installation Support | Remote Assistance by Harnois Industries |
| CAD/CAM Software | 3D Graphical CAD/CAM Environment, Tube Design Libraries, Accurate Batch Time & Cost Estimation, Remote Production Planning, Real-Time Production Monitoring, Waste Reduction and Productivity Optimization. | ||
