01/07/2026

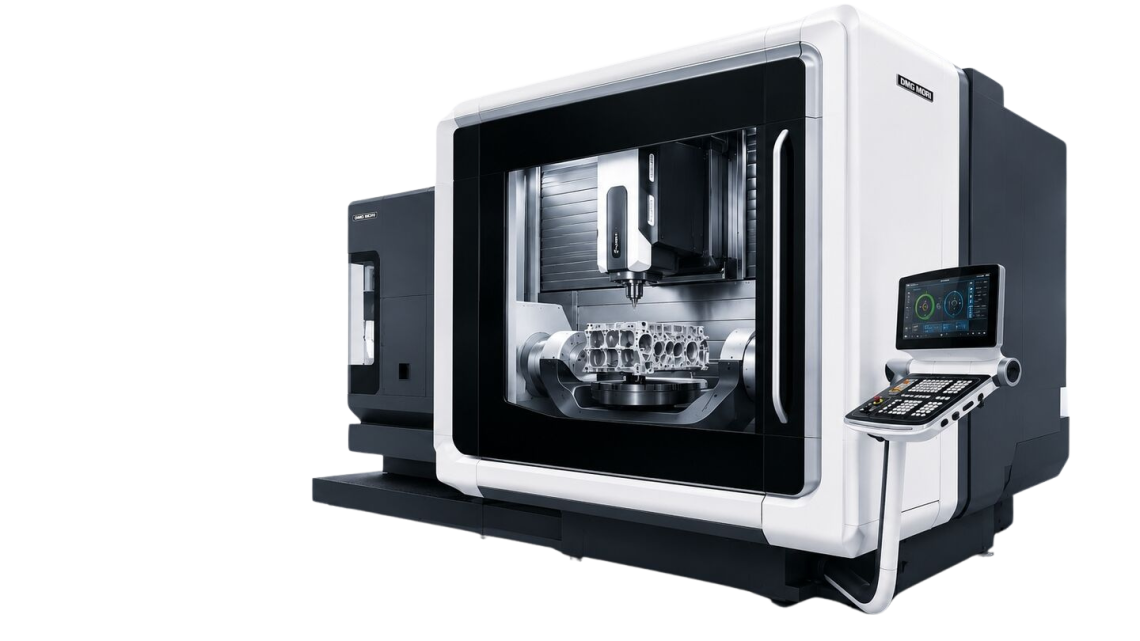

From Inspection to Installation: used DMG MORI DMU 125 FD4 CNC 5-Axis Vertical Machining Center – Year 2026 made in Germany
| DMG MORI DMU 125 FD4 CNC 5-Axis Vertical Machining Center – Year 2026 | |
|---|---|
| Manufacturer | DMG MORI |
| Model | DMU 125 FD4 |
| Machine Type | CNC 5-Axis Vertical Machining Center |
| Year | 2026 |
| Machine Number | contact to us |
| Condition | New |
| Functionality | Fully Functional |
| Operating Hours | 293 h |
| Spindle Hours | 204 h |
| Axis Travels | |
| X-Axis Travel | 1,250 mm (49.21″) |
| Y-Axis Travel | 1,250 mm (49.21″) |
| Z-Axis Travel | 1,000 mm (39.37″) |
| Feed & Rapid Rates | |
| Rapid Traverse (X / Y / Z) | 60 m/min (2,362 IPM) |
| Feed Rate (X / Y / Z) | 60 m/min (2,362 IPM) |
| Table & Capacity | |
| Rotary Table Diameter | 1,250 mm (49.21″) |
| Maximum Table Speed | 500 RPM |
| Maximum Workpiece Diameter | 1,250 mm (49.21″) |
| Maximum Workpiece Height | 1,600 mm (62.99″) |
| Maximum Workpiece Weight | 2,600 kg (5,732 lbs) |
| Spindle | |
| Spindle Speed | 12,000 RPM |
| Spindle Motor Power | 52 kW (69.7 HP) |
| Maximum Torque | 430 Nm (317 lb-ft) |
| Spindle Taper | HSK-A100 |
| Number of Spindles | 1 |
| Tool Magazine | |
| Magazine Capacity | 123 Tools |
| Maximum Tool Length | 650 mm (25.59″) |
| Maximum Tool Diameter | 280 mm (11.02″) |
| Maximum Tool Weight | 30 kg (66.1 lbs) |
| Control System | |
| CNC Control | Siemens CELOS 840D sl Operate |
| Coolant & Electrical | |
| Coolant Pressure | 150 bar (2,176 PSI) |
| Coolant Tank Capacity | 2,500 L (660 gal) |
| Nominal Power | 130 kVA |
| Input Voltage | 400 V AC |
| Dimensions & Weight | |
| Machine Weight | 31,000 kg (68,343 lbs) |
| Equipment & Features | |
|
|
