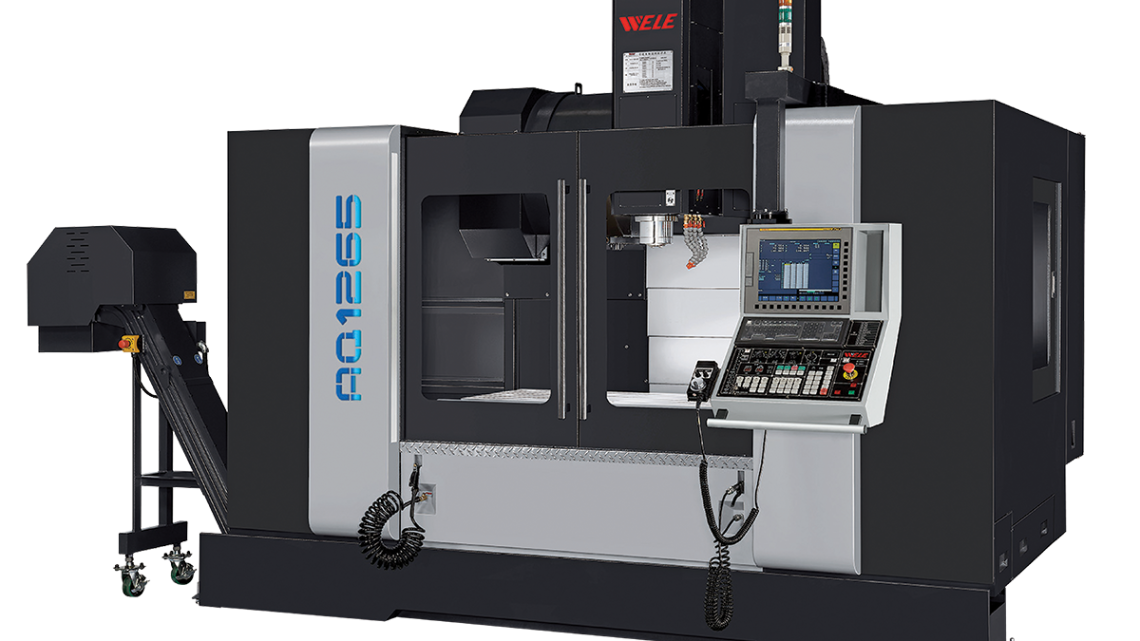

From Inspection to Installation: JTEKT Wele AQ1265 CNC Vertical Machining Center – Year 2017 made in Taiwan
| JTEKT Wele AQ1265 CNC Vertical Machining Center – Year 2017 | ||
|---|---|---|
| Specification | Metric | Imperial |
| Year of Manufacture | 2017 | 2017 |
| Table Size (W × L) | 1400 × 650 mm | 55.1 × 25.6 in |
| X-Axis Travel | 1199 mm | 47.2 in |
| Y-Axis Travel | 650 mm | 25.6 in |
| Z-Axis Travel | 610 mm | 24.0 in |
| Distance from Spindle Nose to Table Top | 150 – 759 mm | 5.9 – 29.9 in |
| Maximum Spindle Speed | 12,000 RPM | 12,000 RPM |
| Spindle Drive Motor | 22.4 kW | 30 HP |
| Tool Taper | CAT40 | CAT40 |
| Rapid Feed Rate (X / Y) | 36 m/min | 1,417 IPM |
| Rapid Feed Rate (Z) | 30 m/min | 1,181 IPM |
| Tool Magazine Capacity | 40 Tools | 40 Tools |
| Maximum Tool Weight | 7 kg | 15.4 lbs |
| Machine Type | Vertical Machining Center | Vertical Machining Center |
| Manufacturer | JTEKT Wele | JTEKT Wele |
| Description | The JTEKT Wele AQ1265 is a high-speed CNC Vertical Machining Center manufactured in 2017 and designed for precision milling, drilling, tapping, and contour machining operations. Equipped with a 12,000 RPM CAT40 spindle driven by a 30 HP motor, the machine provides excellent cutting performance for steel, stainless steel, aluminum, titanium, and engineering materials. The large 1400 mm × 650 mm worktable combined with travels of 1199 mm (X), 650 mm (Y), and 610 mm (Z) makes the AQ1265 suitable for mold manufacturing, aerospace components, automotive parts, medical components, and general precision engineering applications. The machine features rapid traverse rates up to 36 m/min, a 40-position automatic tool changer, and a rigid machine structure designed for high productivity and excellent machining accuracy. | |
