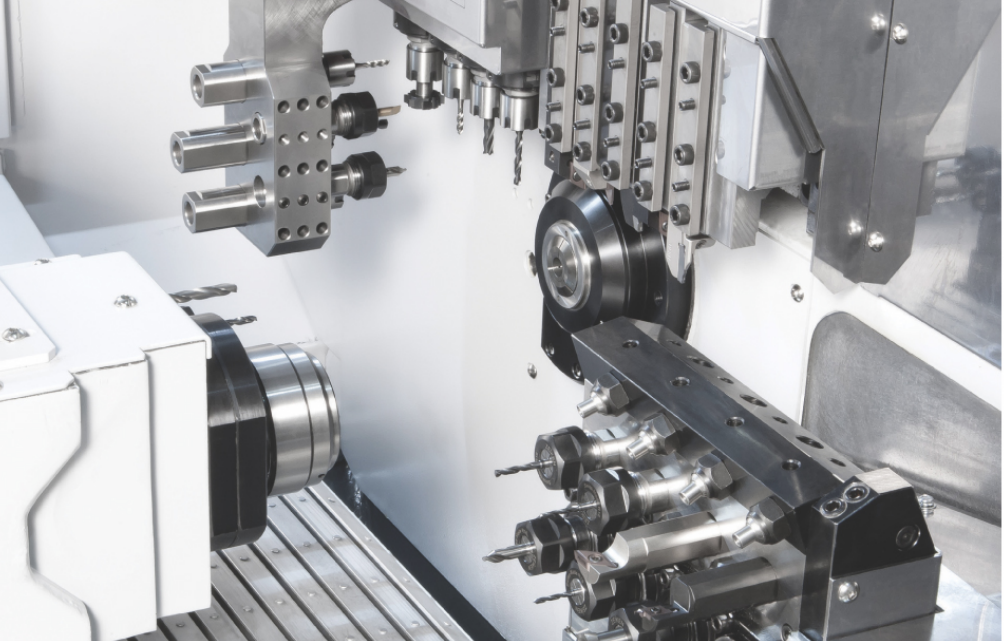

Available now : NEXTURN SA32PII CNC Swiss Lathe with Bar Feeder – Year 2019 made in South of Korea

Specification	NEXTURN SA20PII	NEXTURN SA20PYII	NEXTURN SA26PII	NEXTURN SA26PYII	NEXTURN SA32PII	NEXTURN SA32PYII	NEXTURN SA38PII	NEXTURN SA38PYII
Machining Capacity
Maximum Turning Bar Diameter	Ø20 mm (0.79″)	Ø20 mm (0.79″)	Ø26 mm (1.02″)	Ø26 mm (1.02″)	Ø32 mm (1.26″)	Ø32 mm (1.26″)	Ø38 mm (1.50″)	Ø38 mm (1.50″)
Maximum Turning Bar Length	250 mm (9.84″)	210 mm (8.27″) (N:60 mm / 2.36″)	250 mm (9.84″)	210 mm (8.27″) (N:60 mm / 2.36″)	250 mm (9.84″)	210 mm (8.27″) (N:80 mm / 3.15″)	250 mm (9.84″)	210 mm (8.27″) (N:80 mm / 3.15″)
Max. Main Spindle Drilling / Tapping	Ø10 mm / M8	Ø10 mm / M8	Ø12 mm / M10	Ø12 mm / M10	Ø12 mm / M10	Ø12 mm / M10	Ø12 mm / M10	Ø12 mm / M10
Maximum Sub-Spindle Chucking Diameter	Ø20 mm (0.79″)	Ø20 mm (0.79″)	Ø26 mm (1.02″)	Ø26 mm (1.02″)	Ø32 mm (1.26″)	Ø32 mm (1.26″)	Ø38 mm (1.50″)	Ø38 mm (1.50″)
Max. Back-End Face Drilling / Tapping	Ø8 mm / M6	Ø8 mm / M6	Ø12 mm / M10	Ø10 mm / M8	Ø12 mm / M10	Ø10 mm / M8	Ø12 mm / M10	Ø10 mm / M8
Max. Cross Drilling / Tapping	Ø10 mm / M8	Ø10 mm / M8	Ø12 mm / M10	Ø12 mm / M10	Ø12 mm / M10	Ø12 mm / M10	Ø12 mm / M10	Ø12 mm / M10
Max. Cross Disc-Mill Diameter	Ø32 mm (1.26″)	Ø32 mm (1.26″)	Ø40 mm (1.57″)	Ø40 mm (1.57″)	Ø40 mm (1.57″)	Ø40 mm (1.57″)	Ø40 mm (1.57″)	Ø40 mm (1.57″)
Capability
Maximum Main Spindle Speed	10,000 RPM	10,000 RPM	8,000 RPM	8,000 RPM	8,000 RPM	8,000 RPM	8,000 RPM	8,000 RPM
Maximum Sub-Spindle Speed	8,000 RPM	8,000 RPM	8,000 RPM	8,000 RPM	8,000 RPM	8,000 RPM	8,000 RPM	8,000 RPM
Maximum Cross Spindle Speed	6,000 RPM	6,000 RPM	6,000 RPM	6,000 RPM	6,000 RPM	6,000 RPM	6,000 RPM	6,000 RPM
Total Number of Tools	23	27	20	25	20	25	19	24
OD / Cross Live Tool / Y-Axis ID Tools	6 / 4 / 5	6 / 5 / 5	5 / 4 / 5	5 / 5 / 5	5 / 4 / 5	5 / 5 / 5	5 / 4 / 5	5 / 5 / 5
Front-End Face Tools (Sub)	3 (Live 2, Fixed 1)	3 (Live 2, Fixed 1)	2 (Fixed 2)	2 (Fixed 2)	2 (Fixed 2)	2 (Fixed 2)	1 (Fixed 1)	1 (Fixed 1)
Back-End Face Tools	5 (Live 2, Fixed 3)	8 (Live 4, Fixed 4)	4 (Live 2, Fixed 2)	8 (Live 4, Fixed 4)	4 (Live 2, Fixed 2)	8 (Live 4, Fixed 4)	4 (Live 2, Fixed 2)	8 (Live 4, Fixed 4)
Bite Shank Size	12 × 120 mm	12 × 120 mm	16 × 120 mm	16 × 120 mm	16 × 120 mm	16 × 120 mm	16 × 120 mm	16 × 120 mm
Rapid Traverse	32 m/min (1,260 IPM)	32 m/min (1,260 IPM)	32 m/min (1,260 IPM)	32 m/min (1,260 IPM)	32 m/min (1,260 IPM)	32 m/min (1,260 IPM)	32 m/min (1,260 IPM)	32 m/min (1,260 IPM)
Controllable Axes	7	8	7	8	7	8	7	8
Main Spindle Positioning	Cs ±1/1000°	Cs ±1/1000°	Cs ±1/1000°	Cs ±1/1000°	Cs ±1/1000°	Cs ±1/1000°	Cs ±1/1000°	Cs ±1/1000°
Sub-Spindle Positioning	Cs ±1/1000°	Cs ±1/1000°	Cs ±1/1000°	Cs ±1/1000°	Cs ±1/1000°	Cs ±1/1000°	Cs ±1/1000°	Cs ±1/1000°
Motor
Main Spindle Motor	2.2 / 3.7 kW	2.2 / 3.7 kW	5.5 / 7.5 kW	5.5 / 7.5 kW	5.5 / 7.5 kW	5.5 / 7.5 kW	5.5 / 7.5 kW	5.5 / 7.5 kW
Sub-Spindle Motor	1.5 / 2.2 kW	1.5 / 2.2 kW	2.2 / 3.7 kW	2.2 / 3.7 kW	2.2 / 3.7 kW	2.2 / 3.7 kW	2.2 / 3.7 kW	2.2 / 3.7 kW
Cross Drill / Mill Unit	2.2 kW	2.2 kW	2.2 kW	2.2 kW	2.2 kW	2.2 kW	2.2 kW	2.2 kW
Back-End Face Tool Motor	1.0 kW	1.0 kW	1.0 kW	1.0 kW	1.0 kW	1.0 kW	1.0 kW	1.0 kW
Coolant Pump Unit	0.9 kW	0.9 kW	0.9 kW	0.9 kW	0.9 kW	0.9 kW	0.9 kW	0.9 kW
Lubrication Pump Unit	0.04 kW	0.04 kW	0.04 kW	0.04 kW	0.04 kW	0.04 kW	0.04 kW	0.04 kW
Dimensions
Coolant Capacity	280 L	280 L	280 L	280 L	280 L	280 L	280 L	280 L
Center Height	1,000 mm (39.37″)	1,000 mm (39.37″)	1,000 mm (39.37″)	1,000 mm (39.37″)	1,000 mm (39.37″)	1,000 mm (39.37″)	1,000 mm (39.37″)	1,000 mm (39.37″)
Machine Dimensions (L × W × H)	2,100 × 1,165 × 1,660 mm	2,100 × 1,165 × 1,660 mm	2,100 × 1,165 × 1,660 mm	2,100 × 1,165 × 1,660 mm	2,100 × 1,165 × 1,660 mm	2,100 × 1,165 × 1,660 mm	2,100 × 1,165 × 1,660 mm	2,100 × 1,165 × 1,660 mm
Net Weight	3,300 kg	3,300 kg	3,400 kg	3,400 kg	3,500 kg	3,500 kg	3,600 kg	3,600 kg

NC Specification
Description	PII Type	PYII Type
NC Controller	FANUC 0iTF
Number of Controllable Axes	7	8
Axis Designation	X1, Z1, Y1, X2, Z2, C1, C2	X1, Z1, Y1, X2, Z2, Y2, C1, C2
Minimum Input Increment	0.001 mm (0.00004″)
Minimum Command Increment	0.001 mm (X-axis: 0.0005 mm / 0.00002″)
Maximum Programmable Value	±8 Digits
Interpolation Function	Linear / Circular
Feedrate	1 ~ 6,000 mm/min (0.04 ~ 236.2 IPM)
Feedrate Override	0 ~ 150% (10% Steps)
Dwell	G04 0.001 ~ 9999.999
ABS / INC Command	Absolute: X, Z, Y, C Incremental: U, V, W, H
Tool Offset	±6 Digits
Number of Tool Offsets	64 Sets
CRT / MDI Display	10.4″ Color LCD
Display Language	English, Others
Tape Memory	1 MByte
Number of Registerable Programs	800 Programs
Miscellaneous Function	M5 / M3 (3 Digits)
Main Spindle Function	S4 Digits
Tool Function	T4 Digits
Machine Standard Equipment
Synchronous Rotary Guide Bush Holder Unit Part Conveyor M-Code Air Blow Part Ejection Detector 4-Spindle Cross Drill Unit (PII Type) 5-Spindle Cross Drill Unit (PYII Type) Main / Sub-Spindle Positioning: 1/1,000° Cs Control on Main & Sub Spindle Back Tool Unit (Fixed 4 / PII Type) Back Tool Unit (Live 2, Fixed 2 / PYII Type) Coolant Flow Detector Patrol Light Barfeeder Interface Service Tool Kit Instruction Manual FANUC Manuals (Operator / Maintenance / Parameter)
Machine Options
Barfeeder Long Part Discharging Unit Chip Conveyor Back Tool Unit (Live 2, Fixed 2 / PII Type) Back Tool Unit (Live 4, Fixed 4 / PYII Type) M-Code Oil Blow Front-End Face Revolving Unit (2) Cut-Off Breakage Detector Polygon Attachment Y-Axis Tool Unit Thread Whirling Device Back-End Face Cross Unit (Live 2)
NC Standard Functions
Circle / Semi-Circle Designation Work Coordinate Shift (G50) Machine Lock Single Block Software Operation Panel Tool Offset Display Input / Output Interface Working Hour / Number of Parts Display Tool Radius Compensation Chamfer / Corner Radius (R) Automatic Power-Off Inch / Metric Conversion Background Editing Constant Surface Speed Control Synchronous / Composite Function Z1-Z2 Synchronous Function MPG Resolution: 0.001 mm (0.00004″) Synchronous Control (Main & Sub Spindle) Rigid Tapping on All Spindles
NC Options
MPG Program Check IC Card Additional G-Code Functions Remote Control System (Ethernet) FANUC Warranty Service (2 Years) Helical Interpolation 3-Dimensional Coordinate Conversion

NEXTURN SA32PII CNC Swiss Lathe with Bar Feeder – Year 2019
Specification	Metric	Imperial
Manufacturer	NEXTURN	NEXTURN
Model	SA32PII	SA32PII
Year of Manufacture	2019	2019
Commissioning Date	November 2020	November 2020
Machine Type	CNC Swiss-Type Sliding Head Lathe	CNC Swiss-Type Sliding Head Lathe
CNC Control	FANUC	FANUC
Maximum Machining Diameter	Ø 32 mm	Ø 1.26 in
Maximum Turning Bar Length	250 mm	9.84 in
Main Spindle Speed	8,000 RPM	8,000 RPM
Sub-Spindle Speed	8,000 RPM	8,000 RPM
Cross Spindle Speed	6,000 RPM	6,000 RPM
Number of Axes	7 Axes	7 Axes
Live Tooling	Included	Included
Sub-Spindle	Included	Included
Total Number of Tools	20 Positions	20 Positions
OD / Cross Live Tool / Y-Axis ID Tools	5 / 4 / 5	5 / 4 / 5
Front-End Face Tools (Sub)	2 Fixed Tools	2 Fixed Tools
Back-End Face Tools	4 Tools (2 Live + 2 Fixed)	4 Tools (2 Live + 2 Fixed)
Main Spindle Motor Output	5.5 / 7.5 kW	7.3 / 10 HP
Sub-Spindle Motor Output	2.2 / 3.7 kW	3 / 5 HP
Cross Drill / Milling Unit	2.2 kW	2.95 HP
Rapid Traverse Rate	32 m/min	1,260 IPM
Main Spindle Positioning	Cs ±1/1000°	Cs ±1/1000°
Sub-Spindle Positioning	Cs ±1/1000°	Cs ±1/1000°
Coolant Capacity	280 Liters	74 Gallons
Center Height	1,000 mm	39.37 in
Machine Dimensions (L × W × H)	2,100 × 1,165 × 1,660 mm	82.7 × 45.9 × 65.4 in
Machine Weight	3,500 kg	7,716 lbs
Bar Feeder	Included	Included
Machine Status	Currently in Production	Currently in Production
Machine Features	FANUC CNC Control System Swiss-Type Sliding Headstock Design 7 Controlled Axes Main and Sub-Spindle Configuration Live Tooling Capability Bar Feeder Included High-Speed Precision Turning Back-End Machining Capability Cross Drilling and Milling Operations Simultaneous Front and Back Machining Suitable for Unattended Production
Description	The NEXTURN SA32PII is a high-performance CNC Swiss-Type Sliding Head Lathe manufactured in 2019 and commissioned in November 2020. Equipped with a FANUC control system, 7-axis configuration, live tooling, sub-spindle, and integrated bar feeder, the machine is designed for complete machining of precision turned components in a single setup. With a maximum machining diameter of 32 mm, spindle speeds up to 8,000 RPM, and 20 tool positions, the SA32PII provides excellent productivity and flexibility for medical, aerospace, automotive, electronics, hydraulic, and precision engineering applications. The machine is currently operating in active production and is equipped for high-volume, high-precision manufacturing.
