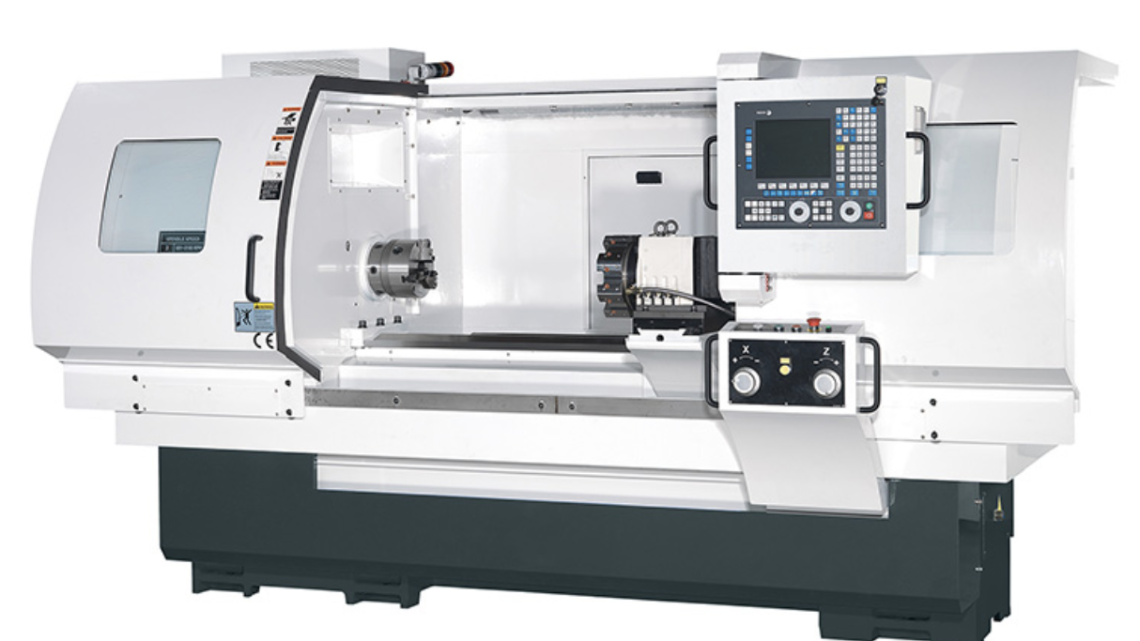

MASCUT IRON FLOWER MACHINERY AC-1840 CNC Flat Bed 8 inch Lathe – Year 2025

Specification	Unit	MASCUT AC-1840	MASCUT AC-1860	MASCUT AC-1880
CAPACITY
Swing Over Bed	mm / in	460 / 18.11″	460 / 18.11″	460 / 18.11″
Swing Over Gap	mm / in	640 / 25.20″ (Opt.)	640 / 25.20″ (Opt.)	640 / 25.20″ (Opt.)
Swing Over Cross Slide	mm / in	230 / 9.06″	230 / 9.06″	230 / 9.06″
Distance Between Centers	mm / in	1000 / 39.37″	1500 / 59.06″	2000 / 78.74″
Bed Width	mm / in	350 / 13.78″	350 / 13.78″	350 / 13.78″
SPINDLE
Spindle Bore	mm / in	58 / 2.28″	58 / 2.28″	58 / 2.28″
Spindle Nose	–	D1-6	D1-6	D1-6
Spindle Speed Range	RPM	33 – 3100	33 – 3100	33 – 3100
TRAVEL
Cross Slide Travel (X-Axis)	mm / in	280 / 11.02″	280 / 11.02″	280 / 11.02″
Longitudinal Travel (Z-Axis)	mm / in	850 / 33.46″	1350 / 53.15″	1850 / 72.83″
TAILSTOCK
Quill Diameter	mm / in	75 / 2.95″	75 / 2.95″	75 / 2.95″
Quill Inside Taper	–	MT #5	MT #5	MT #5
MOTOR
Spindle Motor	kW / HP	7.5 / 10.1 HP (Std.) 11 / 14.8 HP (Opt.)	7.5 / 10.1 HP (Std.) 11 / 14.8 HP (Opt.)	7.5 / 10.1 HP (Std.) 11 / 14.8 HP (Opt.)
Description	The AC-1840, AC-1860 and AC-1880 are precision engine lathes designed for general-purpose turning operations, maintenance workshops, toolrooms, educational facilities, and light-to-medium industrial machining applications. All models feature a 460 mm swing over bed, 58 mm spindle bore, D1-6 spindle nose, MT #5 tailstock taper, and spindle speeds ranging from 33 to 3100 RPM. The primary difference between models is the distance between centers and corresponding Z-axis travel capacities, providing flexibility for machining longer workpieces.

Made in Taiwan Condition : New
