TRUMPF TruPunch 1000 (S19) Technical Specifications

Specification	Unit	TruPunch 1000 (S19) Medium Format	TruPunch 1000 (S19) Large Format
Dimensions
Width	mm	6,282	7,644
Depth	mm	6,548	7,666
Height	mm	1,990	2,195
Maximum Stroke Rate
Punching (E = 1 mm)	strokes/min	600	600
Marking	strokes/min	1,000	1,000
Working Range
Punching Mode – X Axis	mm	2,500	3,000
Punching Mode – Y Axis	mm	1,250	1,550
Maximum Sheet Thickness	mm	6.4	6.4
Maximum Workpiece Weight	kg	150	230
Maximum Punching Force	kN	165	165
Tooling
Multitool Tool Changing Time	sec	2.4	2.4
Number of Tools / Clamps	pcs	18 / 2	21 / 3
Part Removal
Maximum Part Size (Part Removal Flap, Punching)	mm	400 × 600	400 × 600
Maximum Part Size (Fixed Chute, Punching with Moving Table)	mm	180 × 180	180 × 180
Consumption Values
Average Power Input (Active Auto Shutdown)	kW	0.3	0.3
Average Power Input During Production	kW	3.5	3.5

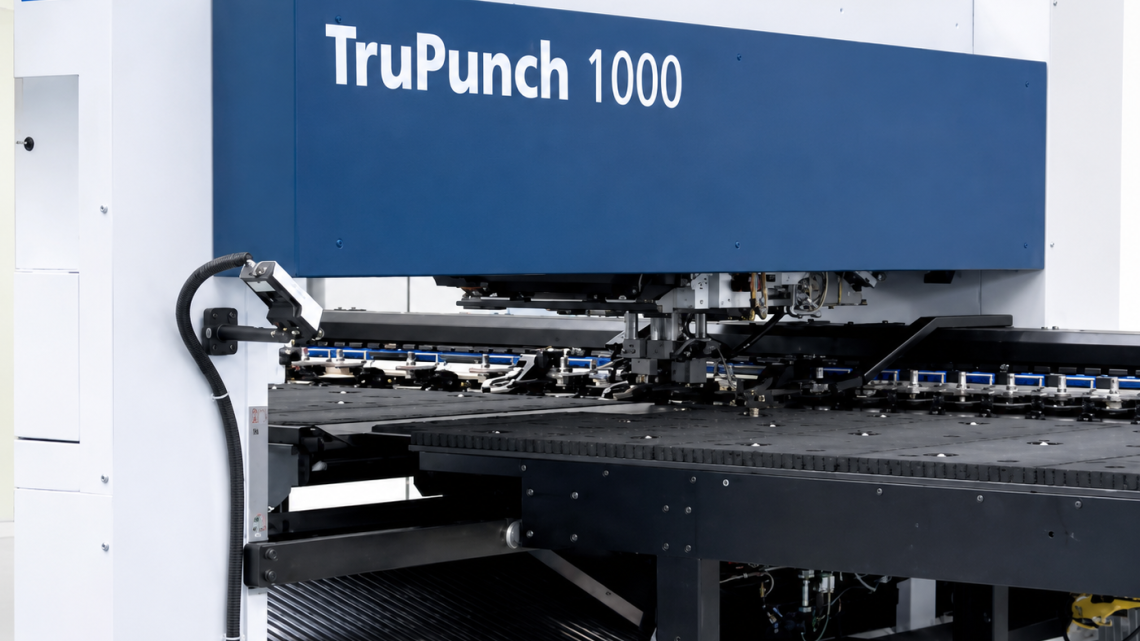

TRUMPF TruPunch 1000 S19 CNC Turret Punch Press – Year 2020

Machine Overview

TRUMPF TruPunch 1000 CNC Turret Punch Press, manufactured in 2020, designed for high-speed sheet metal punching with compact footprint, low energy consumption, and high precision.

Technical Specifications

Specification	Metric	Imperial	Description
Manufacturer	TRUMPF	TRUMPF	German sheet metal processing equipment manufacturer.
Model	TruPunch 1000	TruPunch 1000	CNC Turret Punch Press.
Machine Type	S19	S19	Machine type designation.
Machine No.	A11110330	A11110330	Factory serial number.
Year of Manufacture	09-2020	09-2020	Manufacturing date.
Maximum Punching Capacity	165 kN	37,093 lbf (18.5 US Tons)	Maximum punching force.
Machine Weight	9,100 kg	20,062 lbs	Approximate machine weight.
Power Supply	400 V / 3 Phase / 50 Hz	400 V / 3 Phase / 50 Hz	Required electrical supply.
Connected Load	16.9 kVA	16.9 kVA	Total connected electrical load.
Control Voltage	24 V	24 V	Machine control voltage.
Fuse Protection	3 × 35 A	3 × 35 A	Recommended electrical protection.
Manufacturer Information
Made in	TRUMPF Werkzeugmaschinen GmbH + Co. KG Johann-Maus-Str. 2 71232 Ditzingen, Germany

TRUMPF TruPunch 1000 S19 CNC Turret Punch Press – Year 2020

Machine Overview

TRUMPF TruPunch 1000 S19 CNC Turret Punch Press, Year 2020, in like-new condition with only 1 operating hour. This compact, high-precision CNC punching machine combines excellent energy efficiency, high productivity, and TRUMPF’s proven punching technology for flexible sheet metal fabrication. The machine has never been used in production and is offered in virtually new condition.

Technical Specifications

Specification	Metric	Imperial	Description
Manufacturer	TRUMPF	TRUMPF	German sheet metal processing equipment manufacturer.
Model	TruPunch 1000 S19	TruPunch 1000 S19	CNC Turret Punch Press.
Machine Number	A1111D0330	A1111D0330	Factory serial number.
Year of Manufacture	2020	2020	Machine manufacturing year.
Condition	Like New (Used)	Like New (Used)	Never used in production.
Operating Hours	1 Hour	1 Hour	Practically unused machine.
Machine Type	CNC Turret Punch Press	CNC Turret Punch Press	Servo-electric punching machine.
Maximum Punching Force	165 kN	37,093 lbf (18.5 US Tons)	Maximum punching capacity.
Power Supply	400 V / 3 Phase / 50 Hz	400 V / 3 Phase / 50 Hz	Standard industrial electrical supply.
Connected Load	16.9 kVA	16.9 kVA	Total electrical connected load.
Control Voltage	24 V	24 V	Machine control voltage.
Fuse Protection	3 × 35 A	3 × 35 A	Recommended electrical protection.
Machine Weight	9,100 kg	20,062 lbs	Approximate machine weight.
Standard Equipment
TRUMPF CNC Control Servo-Electric Punching Drive S19 Turret Configuration Automatic Tool Recognition Programmable CNC Punching System Energy-Efficient Electric Drive Technology Compact Machine Design Safety Enclosure
Machine Features
Machine is in virtually new condition with only one operating hour. Never used in production after installation. Compact footprint with high punching performance. Servo-electric punching technology delivers low energy consumption and reduced maintenance costs. Excellent accuracy and repeatability for sheet metal fabrication. Suitable for punching, forming, marking, embossing, and thread-forming operations. Ideal for electrical enclosures, HVAC, automotive, appliance, general fabrication, and precision sheet metal industries. Fully functional and ready for immediate installation.
