Star Micronics SP-23 CNC Sliding Head Swiss Type Lathe with FMB Turbo 3-38 Magazine Bar Feeder – Year 2024

Machine Overview

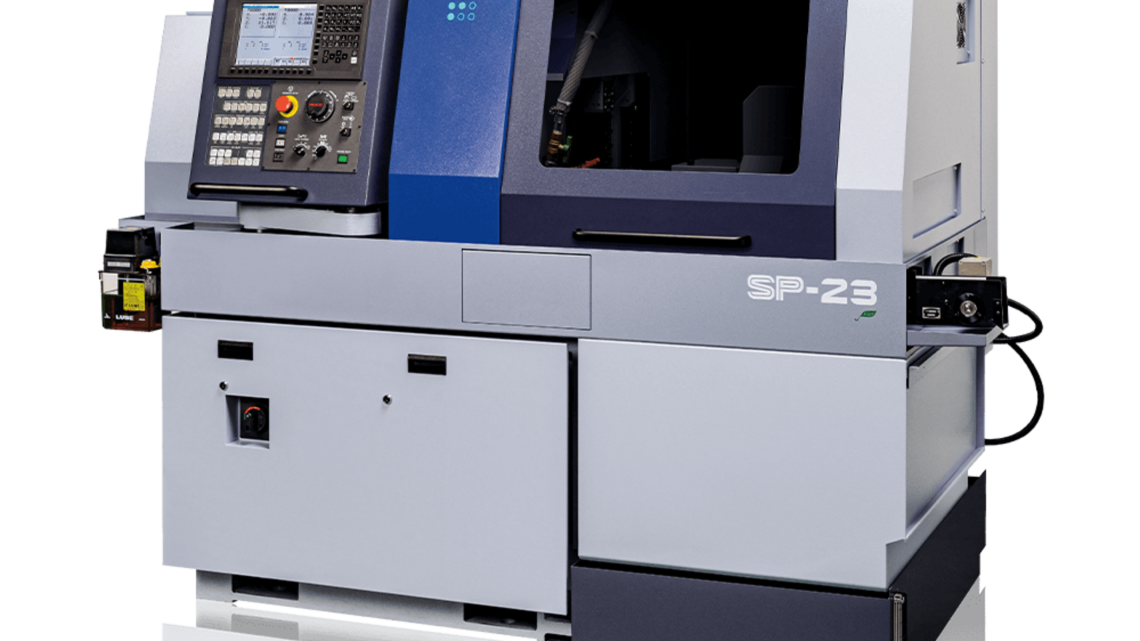

Star Micronics SP-23 CNC Sliding Head Swiss Type Lathe, Year 2024, presented in like-new condition with low operating hours. This high-performance Swiss-type turning center features a 7-axis configuration, dual spindles, guide bush and non-guide bush capability, and a complete automation package including an FMB Turbo 3-38 magazine bar feeder, LNS MH500 swarf conveyor, Filtermist oil mist extraction, and FireTrace automatic fire suppression system. Designed for high-volume precision manufacturing, the SP-23 offers exceptional productivity, flexibility, and machining accuracy across a wide range of industries.

Technical Specifications

Specification	Metric	Imperial	Description
Manufacturer	Star Micronics	Star Micronics	Japanese manufacturer of Swiss-type CNC lathes.
Model	SP-23	SP-23	CNC Sliding Head Swiss Type Lathe.
Year of Manufacture	2024	2024	Machine manufacturing year.
Condition	Like New (Used)	Like New (Used)	Excellent condition with low operating hours.

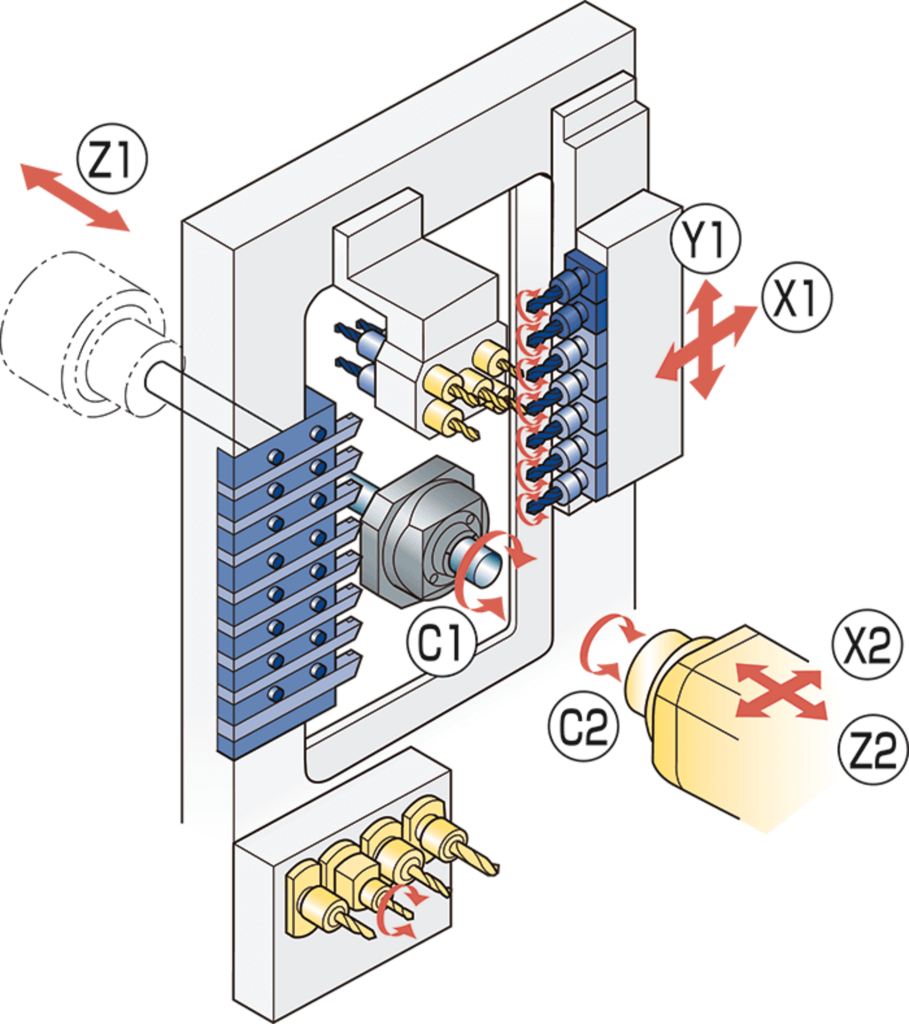

Number of CNC Axes	7 Axes	7 Axes	Simultaneous multi-axis machining capability.
Main Spindle Axes	Z1 / C1	Z1 / C1	Sliding headstock spindle axes.
Main Working Platen	X1 / Y1	X1 / Y1	Main machining slide configuration.
Sub Spindle Axes	X2 / Z2 / C2	X2 / Z2 / C2	Programmable sub spindle.
Maximum Machining Diameter	Ø23 mm	0.906 in	Maximum turning diameter.
Headstock Stroke	205 mm	8.07 in	Guide bush machining mode.
Headstock Stroke (Non-Guide Bush)	50 mm	1.97 in	Non-guide bush machining mode.
Maximum Bar Length	4,280 mm	168.50 in	Magazine bar feeder capacity.
Main Spindle Speed	10,000 RPM	10,000 RPM	Maximum spindle speed.
Main Spindle Motor	3.7 kW	5.0 HP	Main spindle drive motor.
Turning Tool Positions	8	8	12 mm square tool holders.
Drilling Sleeve Holders	5 × Ø22 mm (ER16)	5 × Ø0.866 in (ER16)	Main spindle drilling stations.
Driven Tool Stations	2 Fixed + 5 Modular	2 Fixed + 5 Modular	High-frequency live tooling.
Driven Tool Speed	8,000 RPM	8,000 RPM	Maximum live tooling speed.
Maximum Sub Spindle Chucking Diameter	Ø23 mm	0.906 in	Sub spindle workpiece capacity.
Sub Spindle Speed	10,000 RPM	10,000 RPM	Maximum sub spindle speed.
Sub Spindle Motor	2.2 kW	2.95 HP	Sub spindle drive motor.
Back Working Tool Positions	4	4	Back-working platen positions.
Back Working Drill Capacity	ER20	ER20	Drill sleeve capacity.
Back Working Driven Tools	4 × ER16	4 × ER16	Driven tool positions.
Back Working Driven Tool Speed	8,000 RPM	8,000 RPM	Maximum live tooling speed.
Standard Equipment
FMB Turbo 3-38 Magazine Bar Feeder LNS MH500 Swarf Conveyor Filtermist Oil Mist Extraction System FireTrace Automatic Fire Suppression System High Frequency Driven Spindles Guide Bush Machining Capability Non-Guide Bush Machining Capability Programmable Sub Spindle 7-Axis CNC Control Automatic Lubrication System Full Safety Enclosure
Machine Features
Designed for uncompromising precision, productivity, and long-term reliability. Capable of machining both guide bush and non-guide bush applications. Ideal for long, slender components as well as short, economical parts. High-frequency driven tooling enables milling, drilling, cross drilling, and tapping operations. Fully programmable sub spindle allows complete front and back machining in a single cycle. Reduces cycle times while maintaining outstanding surface finish and dimensional accuracy. Complete automation package supplied for immediate production. Suitable for medical, aerospace, automotive, hydraulics, electronics, precision engineering, and motorsport industries. Installation, commissioning, operator training, and ongoing technical support are available. 2 Machines Available. Immediate Delivery Available.
