For Sale : used Fully Automatic Trapezoidal Roofing Sheet Roll Forming Line – 3 Profile System
Fully Automatic Trapezoidal Roofing Sheet Roll Forming Line – 3 Profile System
Machine Overview
Fully Automatic Trapezoidal Roofing Sheet Roll Forming Line designed for the continuous production of high-quality trapezoidal roofing sheets and wall cladding panels from galvanized, pre-painted, and coated steel coils.
The production line is capable of processing steel sheet up to 1.5 mm thickness and features the capability to manufacture three different trapezoidal profiles on a single production line. This provides excellent flexibility for manufacturers serving multiple construction and roofing markets while maximizing production efficiency.
The line combines automatic coil feeding, precision roll forming, flying hydraulic cutting, and automated product discharge to ensure continuous production, outstanding dimensional accuracy, and reliable long-term performance.
Ideal for manufacturers of roofing sheets, wall cladding systems, industrial buildings, warehouses, agricultural buildings, commercial structures, prefabricated steel buildings, and construction materials.
Technical Features
Specification
Description
Machine Type
Fully Automatic Trapezoidal Roofing Sheet Roll Forming Line
Production System
Continuous Automatic Roll Forming
Material Thickness
Up to 1.5 mm Steel Sheet
Profile Capacity
3 Different Trapezoidal Roofing Profiles
Raw Material
Galvanized Steel (GI), Pre-painted Steel (PPGI), Galvalume and Similar Coated Steel Coils
Production Mode
Fully Automatic
Forming Method
Continuous Multi-Station Roll Forming
Coil Feeding
Automatic Coil Feeding System
Cutting System
Flying Hydraulic Cut-Off
Finished Products
Trapezoidal Roofing Sheets & Wall Cladding Panels
Profile Change
Three Different Production Profiles Available
Production Process
Continuous High-Efficiency Manufacturing
Industrial Application
Roofing, Wall Cladding and Steel Building Components

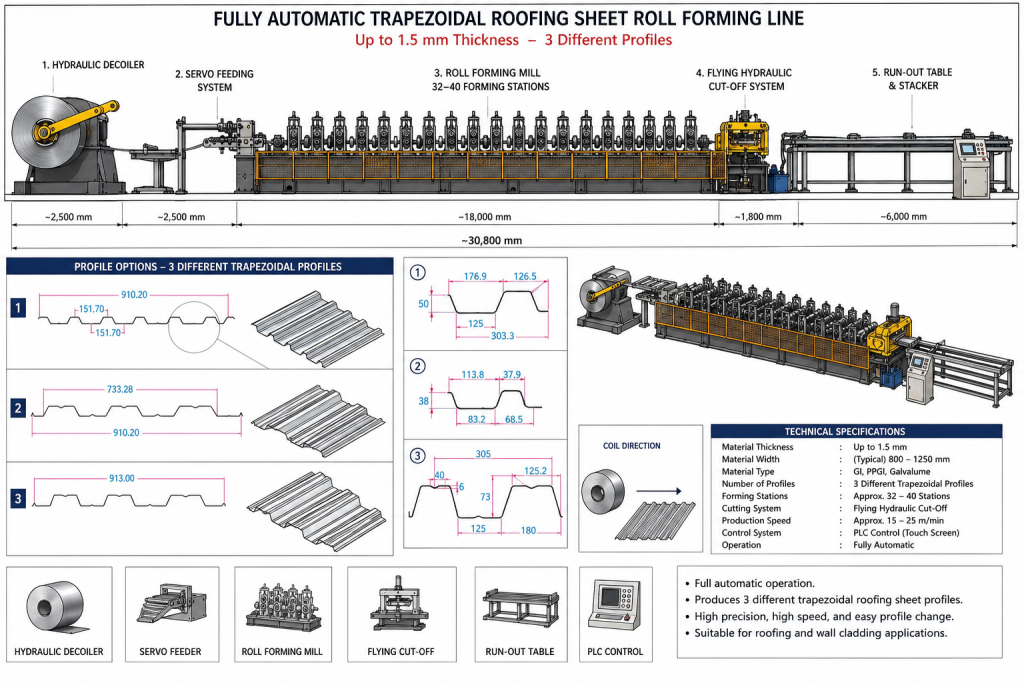

Main Line Configuration
Heavy-Duty Hydraulic Decoiler
Automatic Coil Feeding System
Precision Roll Forming Mill
Multi-Station Roll Forming Unit
Flying Hydraulic Cut-Off System
Automatic Product Exit Conveyor
PLC Controlled Fully Automatic Production System
Industrial Hydraulic Power Unit
Main Electrical Control Cabinet
Safety Protection System
Machine Advantages
Produces three different trapezoidal roofing profiles on a single production line.
Processes steel sheet up to 1.5 mm thickness for heavy-duty roofing and cladding applications.
Fully automatic production minimizes labor costs while maximizing productivity.
Continuous roll forming technology ensures consistent profile geometry and excellent dimensional accuracy.
Flying hydraulic cutting system enables continuous production without stopping the line.
Heavy-duty industrial construction provides reliable long-term operation.
