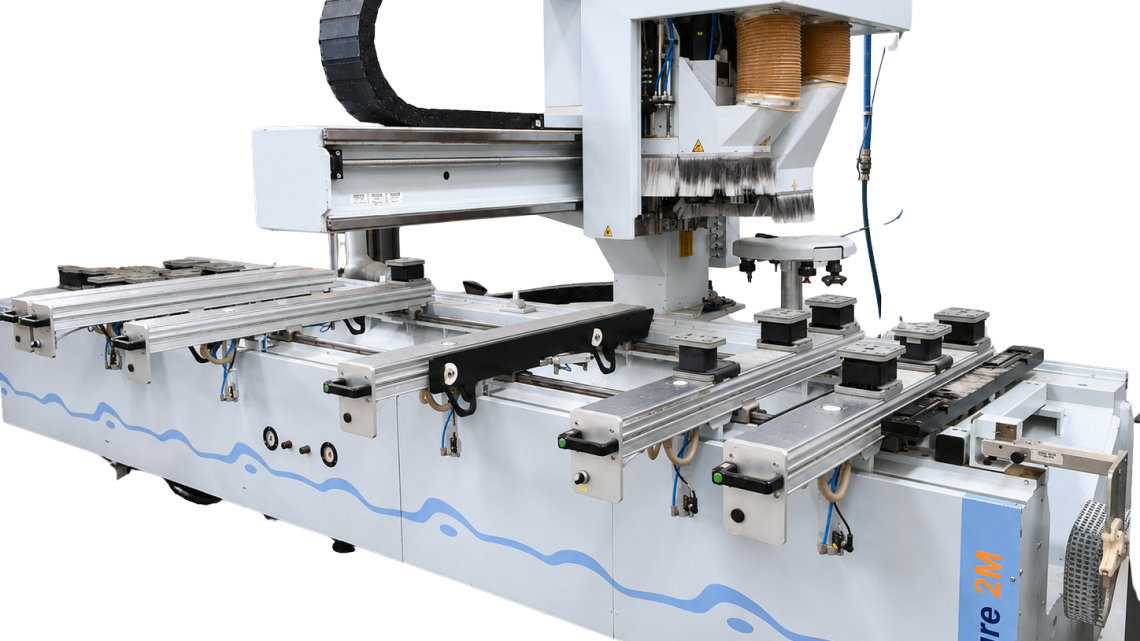

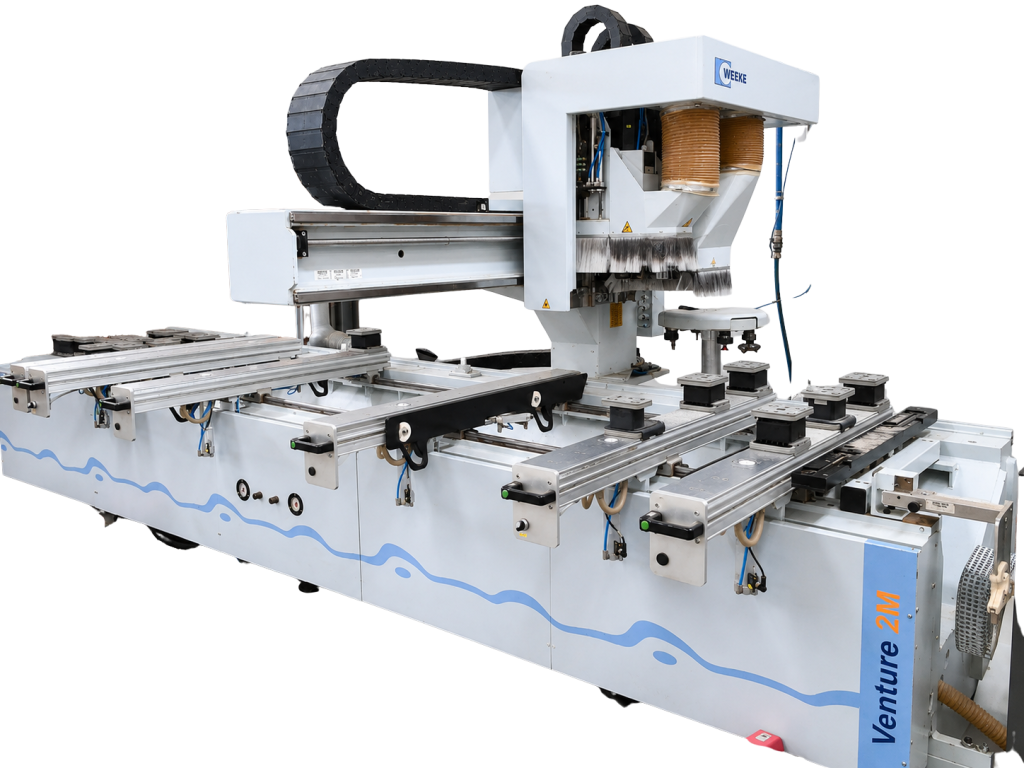

Weeke Optimat BHC Venture 2M CNC Router – Year 2007

Machine Overview

Weeke Optimat BHC Venture 2M CNC Router, Year 2007, maintained in very good condition and previously operated in a clean single-shift production environment. Equipped with a powerful 9 kW liquid-cooled routing spindle, 12 vertical drilling spindles, 6 horizontal drilling spindles, an integrated grooving saw, and WoodWOP Windows-based programming software, this machining center is ideal for high-precision woodworking, cabinet manufacturing, furniture production, and panel processing. The machine has been regularly serviced, is fully operational with no known faults, and is offered for sale due to surplus production capacity.

Technical Specifications

Specification	Metric	Imperial	Description
Manufacturer	Weeke	Weeke	German CNC woodworking machinery manufacturer.
Model	Optimat BHC Venture 2M	Optimat BHC Venture 2M	CNC Nesting & Machining Center.
Year of Manufacture	2007	2007	Machine manufacturing year.
Condition	Very Good	Very Good	Clean machine used in a single-shift production environment.
CNC Software	WoodWOP (Windows Based)	WoodWOP (Windows Based)	Programming and machine control software.
Power Supply	208 / 460-480 V, 60 Hz, 3 Phase	208 / 460-480 V, 60 Hz, 3 Phase	Industrial electrical supply.
Installed Power	18 kW	24.1 HP	Total installed electrical power.
Main Router Spindle	9 kW	12 HP	Liquid-cooled high-speed routing spindle.
Router Spindle Speed	9,000 – 18,000 RPM	9,000 – 18,000 RPM	Variable spindle speed.
Tool Changer	8 Positions (HSK)	8 Positions (HSK)	Ride-along automatic tool changer.
Vertical Drilling Spindles	12	12	6 in X-axis, 6 in Y-axis (one shared spindle).
Horizontal Drilling Spindles	6	6	4 in X-axis, 2 in Y-axis.
Drill Block Motor	2.7 kW	3.5 HP	Drilling unit drive motor.
Drill Spindle Speed	1,500 – 7,500 RPM	1,500 – 7,500 RPM	Variable drilling speed.
Grooving Saw	125 mm Blade	4.92 in Blade	Integrated X-Y axis grooving saw.
Working Area (X)	3,250 mm	128 in	Maximum machining length.
Working Area (Y)	1,250 mm	49 in	Maximum machining width.
Working Area (Z)	120 mm	4.72 in	Maximum machining height.
X-Axis Travel	3,860 mm	151 in	Total X-axis travel.
Y-Axis Travel	1,822 mm	71.7 in	Total Y-axis travel.
Z-Axis Travel	185 mm	7.28 in	Total Z-axis travel.
Rapid Feed (X)	110 m/min	360 ft/min	Maximum rapid traverse.
Rapid Feed (Y)	110 m/min	360 ft/min	Maximum rapid traverse.
Rapid Feed (Z)	19.8 m/min	65 ft/min	Maximum vertical feed rate.
Working Zones	2 Zones	2 Zones	Dual-zone machining capability.
Panel Support Rails	6 Rails	6 Rails	Heavy-duty adjustable support rails.
Vacuum Pods	10	10	6 Large + 4 Small adjustable vacuum pods.
Rear Positioning Stops	8 Pneumatic Stops	8 Pneumatic Stops	Automatic positioning system.
Front Positioning Stops	6 Pneumatic Stops	6 Pneumatic Stops	One stop on each support rail.
Side Fence	Pneumatic Left & Right	Pneumatic Left & Right	Automatic side positioning fences.
Shipping Weight	Approx. 4,536 kg	10,000 lbs	Approximate machine weight.
Shipping Size	Approx. Half Truck Load	Approx. Half Truck Load	Transportation footprint.
Standard Equipment
9 kW Liquid-Cooled High-Speed Router Spindle 8-Position HSK Automatic Tool Changer 12 Vertical Drilling Spindles 6 Horizontal Drilling Spindles Integrated Grooving Saw (125 mm) WoodWOP Windows-Based Programming Software Dual-Zone Machining Table 6 Adjustable Panel Support Rails 10 Adjustable Vacuum Pods Automatic Pneumatic Positioning Stops Pneumatic Side Fences Safety Perimeter Fence Safety Mats
Machine Features
Excellent cosmetic and mechanical condition. Used only in a clean single-shift production environment. All scheduled maintenance has been completed. No known mechanical or electrical faults. Offered for sale due to excess production capacity. Powerful 9 kW spindle suitable for routing, drilling, grooving, and contour machining. Integrated drilling unit with 12 vertical and 6 horizontal drilling spindles increases productivity. Built-in grooving saw eliminates secondary machining operations. Automatic HSK tool changer provides fast tool changes and reduced setup time. Dual-zone operation allows loading and machining simultaneously for maximum efficiency. Ideal for kitchen cabinet manufacturing, furniture production, MDF processing, panel processing, doors, windows, and custom woodworking applications. Reliable German-built CNC machining center designed for high-volume industrial production.
